JP18
-
DRZ
-
8705301000

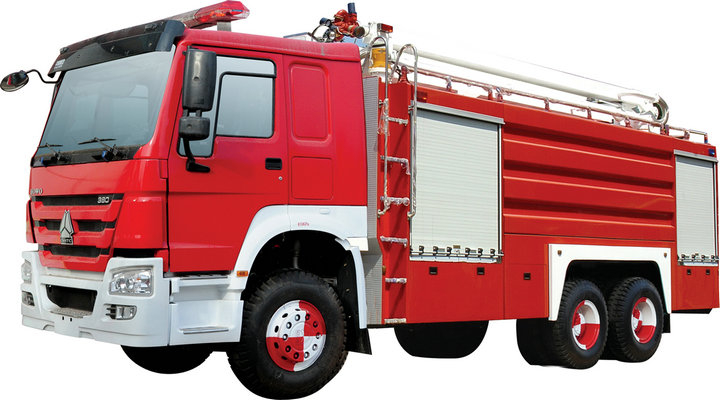

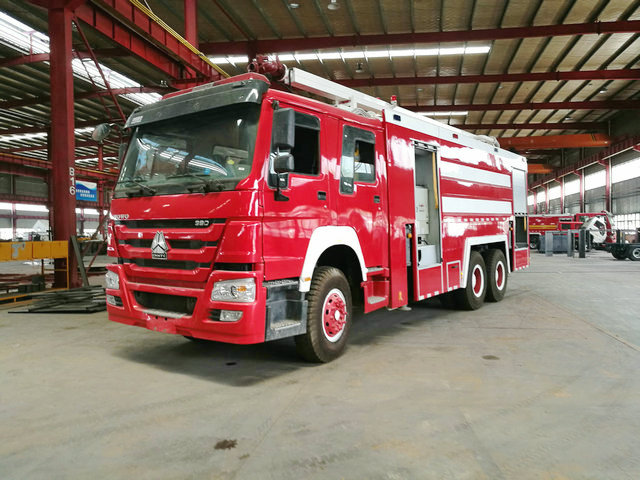

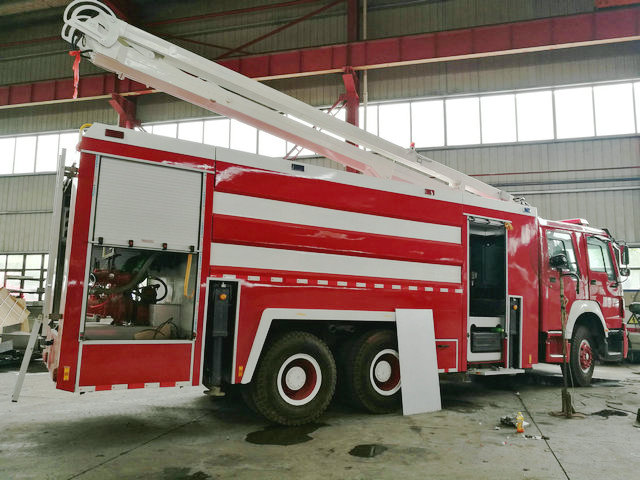

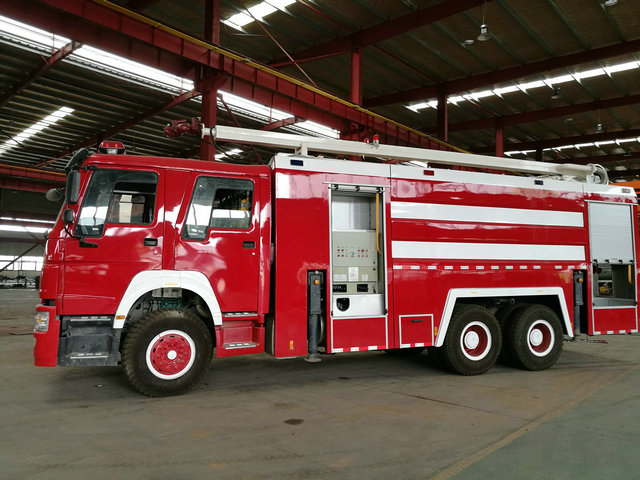

JP18 Water Tower Fire Truck
Main technical data
| Chassis | Engine power | Drive type | Max. running speed | ||
| Mercedes-Benz | 410HP(300KW) | 6 X 4 | ≥90km/h | ||
| UD TRUCKS | 430HP(316KW) | 6 X 4 | ≥90km/h | ||
| SINOTRUCK | 380HP(276KW) | 6 X 4 | ≥80km/h | ||
| item | parameter | ||||
| rated working height | 16m;18m | ||||
| max. working radius | 6m | ||||
| arm operating time | ≤60S | ||||
| fire pump | American import pump /china pump | ||||
| fire monitor | American import monitor | ||||
| Monitor reach | water≥75m foam≥65m | ||||
| Arm structure | Two folding jib | ||||
Specifications of 18-22m Lifting boom Jet Fire Truck
| Main Technical Parameters | |
| Overall | |
| Product name | 18-22m Lifting Jet Fire Truck |
| Model | JP18 |
| Overall size (mm) | 10480×2500×3550 |
| Max / Curb weight(kg) | 30900 / 14700 |
| Engine | |
| Engine model/type | WD615.47/ Sinotruk/ Diesel/ 6 in-line |
| Emission standard | Euro2 |
| Power(KW/HP) | 277/370 |
| Displacement (L) | 9726ml |
| Chassis | |
| Chassis brand | Sinotruk |
| Chassis model | ZZ5347N4647D1 |
| Highest speed(km/h) | 100 |
| Wheelbase (mm) | 4600+1350 |
| Driving type | 6×4 |
| Tire | 12.00R20 |
| Driving room | Double row seats(6 seats; suitable for 6 people) |
| Springs | Front and rear reinforced multiple-leaf springs (10/12) |
| Front/ Rear tread(mm) | 1830/1830 |
| Front/Rear suspension(mm) | 1500/2950 |
| Approach/Departure angle | 16/9(°) |
| PTO | Full power sandwich type |
| Fire fighting system | |
| Powder tank capacity(cbm) | 10cbm water;2cbm foam |
| Fire pump | CB10.60 |
| Lifting height | 18-22m |
| Normal pressure pump | CB20.10/30.60 |
| Max suction depth | 7m |
| Suction time | ≤35s |
| Fire monitor | PLKD-48(electrically control gun ) |
| Rate of flow | 48L/s |
| Effective throw | Water≥60m/1.0MPa; Foam≥55m/1.0MPa |
