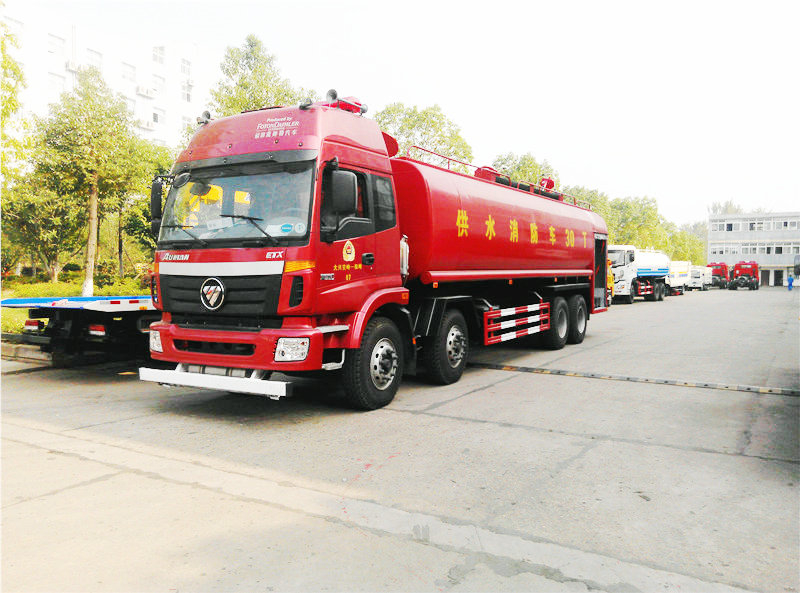

This model of Foton Auman 30ton water supplying fire truck is with reverse video, large power, more comfortable, etc This fire truck is installed with fire fighting cannon, fire fighting pump with long distance, etc. It is the dreaming vehicle for Public security fire troops, water supplying fire fighting, etc.
| Main parameters | |||||
| Product name | 30,000L water fire truck | ||||
| Total mass(Kg) | 31000 | Tank volume(m3) | 30 | ||
| Rated mass(Kg) | 17005 | Overall dimension (mm) | 11950×2500×3650 | ||
| Curb mass(Kg) | 13800 | Cargo body dimension (mm) | ×× | ||
| Seating person | 2,3 | Front/rear suspension (mm) | 1532/2593 | ||
| Approach/departure angle (°) | 11/9 | Wheelbase(mm) | 1860+4700+1300, | ||
| Axle nos. | 4 | Max speed(Km/h) | 79 | ||
| Axle load(Kg) | 6056/6944/18000 | Driver cab | Foton auman high top driver cab | ||
| Chassis main parameters | |||||
| Chassis model | BJ5317GYY-XB | Manufacturer | Foton company | ||
| Overall dimension (mm) | 11915×2495×3440 | Tyre nos. | 12 | ||
| Approach/departure angle (°) | 13/11 | Tyre specification | 11.00R20, | ||
| Steel spring | 10/10/10 | Front tread(mm) | 1940/1940 | ||
| Fuel type | Diesel | Rear tread(mm) | 1860/1860 | ||
| Emission standard | Euro 4 | ||||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) | ||
| ISLe315 40 | Dongfeng Cummins | 8900 | 231.5 | ||
| special function | Tank volume: 30, 000L Fire fighting pump: CB10/80 common pressure pump max sucking height: 7Mm Max sucking water time ≤35s water pump driving type: Sandwich PTO fire fighting pump : SP80 water flow：80L/s water range：≥80m pressure ：1.0MPa | ||||
