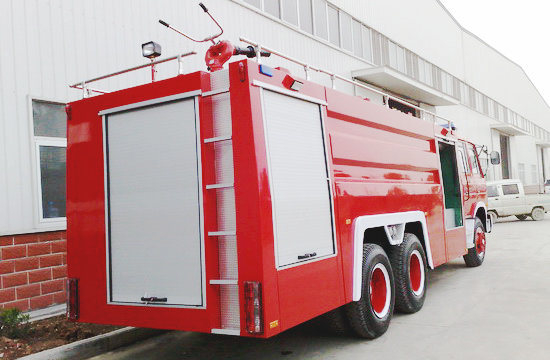

Double Cabin Water Tank 12000L Dongfeng 6X4 Fire Truck for Sale
| Quantity: | |
|---|---|
-
1000
-
T/T, Western Union
-
Nil
Double Cabin dongfeng 6x4 fire truck HXF5250GXF Fire Fighting Truck fire fighting truck
2.2000L water tank+500L foam tank
Fire pump Model: CB10/20 Flow rate: 20L/S
Fire monitor Model: SP20 Throw range≥ 48m
Technical parameter of fire fighting body
Liquid tanker
Volume: total 4000L (among, water: 3000L; foam: 1000L)
Material: high quality carbon steel plate, anti-rust treatment inside.
Structure: welding, there is baffle plate inner
Equipment: 2 manholes, with speediness lock and turn on equipment, 2overflow mechanisms, 2drainage exites
Fire fighting pump and pipeline system
Model of fire fighting pump: CB10/40
Pressure: 1.0Mpa
Flux: 40L/s
Suction depth: ≥ 7m
Suction time: ≤ 35s
Installing type: central or rear
Pipeline system:
Suction pipeline: there is 125mm water inlet, can sop natural water source and sop the water from liquid tanker
Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeling with dia. ≥ 80mm on the top of tanker
Discharge remaining water system: to protect pump and all ball valves
Fire fighting nozzle
Model: PP24
Range: water ≥ 50m, foam≥ 45m
Pressure: 1.0Mpa
PTO
QJ270 sandwich PTO, splashing-type lubricate, can put out fire when driving
Material of carriage
Carriage is made of high quality carbon steel and Aluminium embossed sheet
Pump room
Central type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Equipment box
Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminium embossed sheet, surface is anodic processed.
Rolling shutter door
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
pedal
Adopt air-supporting stucture to overturn easily and safely lock.
Material is high quality Q235A, pedal is non-skid aluminum embossed sheet
Electric control system
1. Alarm
Warning light: Lightweight Rectangular, installed on the top of cab, in accordance with outside of whole truck.
Siren: 80W. With FM/ Public Address System and megaphone
2. Light in equipment and pump room can be controlled in carriage.
3. Other light: one light on the top of vehicle, the switch in the cab.
color
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck
Technical requirement
1. The fire fighting vehicle is accordance with GB7965 performance requirementa and test methods for fire fighting vehicle
2. Tank of foam and water is accordance with GB39.5 General specification for fire fithting vehicle.
3. The outside is very beauty, the surface roughness is accordance with GB39.5 general specification for fire fighting vehicle.
All operating switch and meter is accordance with standard nameplate
Set
Please refer the following set of fire technical equipment
With fire hose reel auto-rewind middle pressure monitor. 1/2 inch, 40m
