Dongfeng 4x2 Overhead working truck with sprinkler

Dongfeng 4x2 Overhead working truck with sprinkler
Aerial Platform 16m Water Tank Truck
Working Height: 14m;16m 2 section of articulated boom
Water Tank Volume: 6000 L-8000L
Price: $ 45000  -  48000
Discount Price: $ 38000  -  40000
FOB:
Availability:
Quantity:

  • DRZ5160GKSS

  • DRZ

  • 8705909990

Dongfeng 4x2 Overhead working truck with sprinkler

Dongfeng 4x2 Overhead working truck with sprinkler

Working Height: 14m;16m 2 section of articulated boom

 Water Tank Volume: 6000 L-8000L

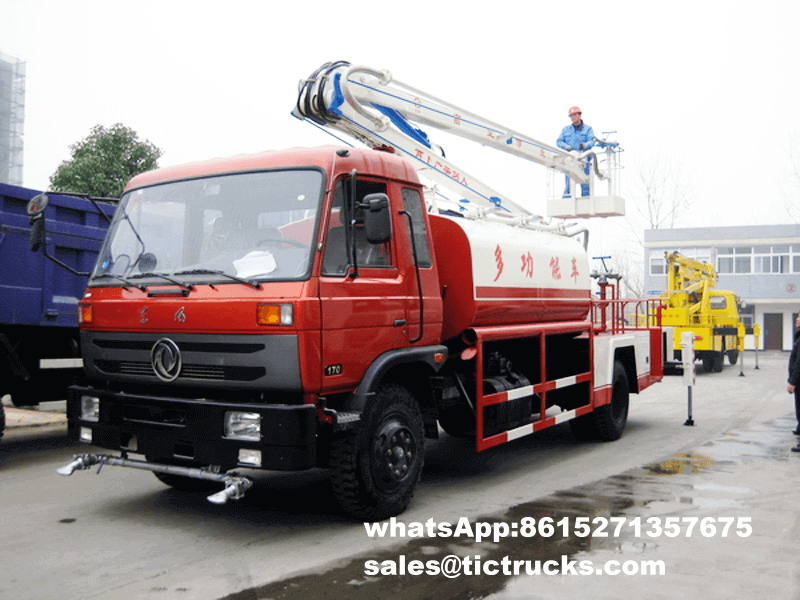

Dongfeng 4x2 Overhead working truck with sprinkler_1

Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck  water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform


- See more at:

http://en.site94923263.preview.leadong.com/Aerial-platform-truck-16m-with-water-tank-and-water-pump-id591283.html#sthash.27npKmWU.dpuf

  • Cell: +861527135767



Aerial platform truck with water tanker

water tanker is superior high quality carbon steel plate, provided with Yifeng special-purpose sprinkler water pump, vertical imbibing length≥5m, spray width≥14m, hoisting heights ≥25m.

Front washing and rear sprinkling, with spurting aside, with working platform after the tank installed high pressure cannon(the spurting water can be adjusted to concurrent shape, heavy rain shape, moderate rain, fine rain shape, and the cannon can rotate 360 degree, hoisting≥25m)

Installed with self-flow and fire hydrant valve. Equip with self-priming pump, which could suck the pool water into the tanker, and also can suck water from fire hydrant in the street directly.

The water trucks also have the function of pesticide spraying. The water tankers could be processed through antiseptic treatment according to customer’s requirements. They’re also applicable for water carrier and emergent firefighting.

Please notify in advance if you have special requirements about water trucks (eg: stainless steel plate material). We can offer various spare parts, pipes and sprayer nozzles.

Technical parameters

Total Mass(kg)

12450

Curb Weight(kg)

5855

Rated qualityof(kg)

6400

Chassis Model

EQ1121

Approach/Departure Angle

21/14(°)

Front/Rear Overhang

1250/2150

Dimensions(mm)

7350x2480x2950

Number of spring

8/10+8

Number of axes

2

Maximum speed

85

Tire Specifications

10.00-20 ,9.00-20

Number of tires

6

Front track

1900

Rear track

1800

Wheelbase

3950

Axle load

4370/7720

Emission Standards

Euro3

Type of fuel

Diesel

Engine parameters

Engine Model

B190-33

Engine Manufacturer

Dongfeng Cummins Engine Co., Ltd

Engine Displacement(ml)

5900

Engine power(kw)

140

Chassis
Description

1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C;
2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 10.00-20 tire;
3. Power steering, air brake.

Modified
Description

1. Tank effective volume:6000L -8000L, made by 4-6mm carbon steel plate or corrosion resistant plate;
2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle);
3. Pump parameters:model:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating;
Pump parameters:model: 80QZ60/90N(S),flow:1000L/min,lift:50m,input shaft speed:1180r/min,shaft power:22.5KW,vertical suction:6.5m,direction of input shaft:left-right rotating
4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant.

Component

Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.

Application

Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.

Product advantage

reasonable price,multiple functions,easy operation




 Description


             Technical parameters




             Total Mass(kg)




             12450




             Curb Weight(kg)




             5855




             Rated qualityof(kg)




             6400




             Chassis Model




             EQ1121




             Approach/Departure Angle




             21/14(°)




             Front/Rear Overhang




             1250/2150




             Dimensions(mm)




             7350x2480x2950




             Number of spring




             8/10+8




             Number of axes




             2




             Maximum speed




             85




             Tire Specifications




             10.00-20 ,9.00-20




             Number of tires




             6




             Front track




             1900




             Rear track




             1800




             Wheelbase




             3950




             Axle load




             4370/7720




             Emission Standards




             Euro3




             Type of fuel




             Diesel




             Engine parameters




             Engine Model




             B190-33




             Engine Manufacturer




             Dongfeng Cummins Engine Co., Ltd




             Engine Displacement(ml)




             5900




             Engine power(kw)




             140




             Chassis
             Description




             1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C;
             2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 10.00-20 tire;
             3. Power steering, air brake.




             Modified
             Description




             1. Tank effective volume:12000L, made by 4-6mm carbon steel plate or corrosion resistant plate;
             2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle);
             3. Pump parameters:model:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating;
             Pump parameters:model: 80QZ60/90N(S),flow:1000L/min,lift:50m,input shaft speed:1180r/min,shaft power:22.5KW,vertical suction:6.5m,direction of input shaft:left-right rotating
             4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant.




             Component




             Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.




             Application




             Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.




             Product advantage




             reasonable price,multiple functions,easy operation
