Dongfeng 20 Meter Aerial Platform Fire Trucks
| Quantity: | |
|---|---|

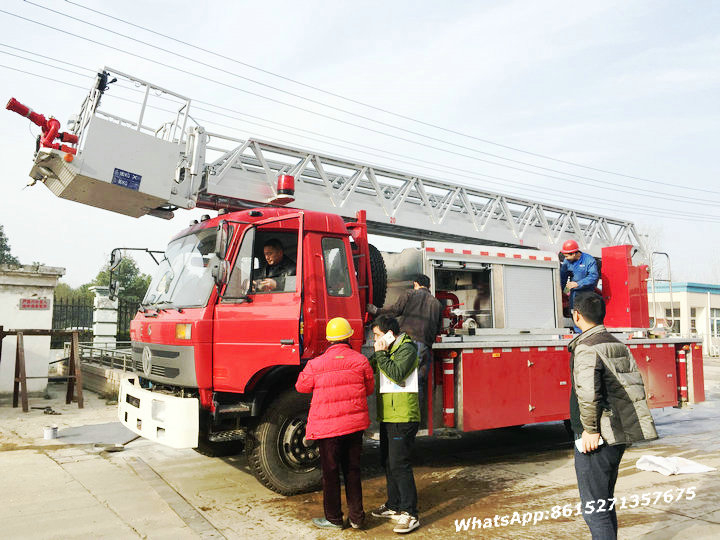

Dongfeng 20 meter Aerial Platform fire trucks
YT20 Main technical data
Platform Rated Working Height | 20m |
Cage Load | 270 Kg |
Max. Working Radius | 18m |
Outrigger Span(Longitudinal x Lateral） | 4.9m/6m |
Arm Operating Time | ≤70S |
Outrigger Extending Time | ≤40S |
Swing Speed | 0～2r/min |
Fire Monitor | 100m Remote Control Fire Monitor |
Monitor Reach | Water≥75m Foam≥65m |
Dimension(Mm) | 9600 x 2500 x 3800 |
YT25 Main technical data
Platform Rated Working Height | 25m |
Cage Load | 270 Kg |
Max. Working Radius | 18m |
Outrigger Span(Longitudinal x Lateral） | 5.9m/6m |
Arm Operating Time | ≤70S |
Outrigger Extending Time | ≤40S |
Swing Speed | 0～2r/min |
Fire Monitor | 100m Remote Control Fire Monitor |
Monitor Reach | Water≥75m Foam≥65m |
Dimension(Mm) | 11000x 2500 x 3800 |
• Ladder height 20 ，25 meters, excellent for aerial resue and extinguishing.
• Safety Protection including inter lock, fault operation alarm and autoumatic emergency stop system .
• Boom movement buffering system.
• Boom and cage automatic anti-collision system.
• Soft leg prevention.
• Automatic engine speed control when operation.
• One key outrigger stretching system.
• Smart combined movement of swivel and stretch.
• All-aluminum body and stainless steel tank.
• Light weight, and will never rust.
• Stainless steel pipelines
• Centralized control panel that makes operation and use extremely easy.
• Variety hose connectors.
• With normal foam extinguishing system.
• High flow rate.
• Remote control monitor.
Dimensions and Weight Specifications of the China fire truck | |
Overall Dimensions DONGFENG KINGRUN Yt20 Ladder Fire Truck 20 meters | |
Overall length (mm) | 9565,10180,10960 |
Overall width (mm) | 2500 |
Overall height (mm) | 3810,3960 |
Weights, Ground Pressure | |
Curb weight of the China fire truck (kg) | 14450 ,15075 ,15260 |
Gross vehicle weight (kg) | 15300 |
Axle load distribution (kg) | 5300/10000 |
Wheel Base and Track | |
Wheelbase (mm) | 4500,4700,5000,3950,5600(mm |
Front track (mm) | 1880, 1920 |
Rear track (mm) | 1860, 1800 |
Front and Rear Overhang | |
Front overhang (mm) | 1430 |
Rear overhang (mm) | 2860 |
Angle of Approach and Departure | |
Angle of approach (deg.) | 20 |
Angle of departure (deg.) | 11 |
Wheels and Tires
Tires and Wheels of the China fire truck | |
Number of axles | 2 |
Number of tires | 6 |
Tires dimension | 10.00-20, 10.00R20, 9.00-20, 9.00R20, 275/80R22.5 16PR |
Misc. Specifications
Miscellaneous Specifications (aerial platform fire truck) | |
Max. speed | 90 |
ABS | have |
Cab seating capacity | 3 |
Steering | steering wheel |
Leaf springs | 8 / 10+8, 7 / 9+6, 9 / 10+8 |
Additional Information
Country of origin | China |
Yt25 Ladder Fire Truck 20 meters Chassis | DFL1160BX1V |
Manufacturer Profile
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
1 | ISD210 50 | 6 700 cc | 6.7 L | 409 cu in | 155 kW | 211 hp | Dongfeng Cummins Engine Co., Ltd. |
2 | ISD190 50 | 6 700 cc | 6.7 L | 409 cu in | 144 kW | 196 hp | Dongfeng Cummins Engine Co., Ltd. |
3 | ISD180 50 | 4 500 cc | 4.5 L | 275 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. |
4 | EQH180-52 | 4 752 cc | 4.8 L | 290 cu in | 132 kW | 179 hp | Dongfeng Commercial Vehicle Co., Ltd. |
5 | EQH180-53 | 4 752 cc | 4.8 L | 290 cu in | 132 kW | 179 hp | Dongfeng Commercial Vehicle Co., Ltd. |
6 | ISB180 50 | 5 900 cc | 5.9 L | 360 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. |
7 | ISD270 50 | 6 700 cc | 6.7 L | 409 cu in | 198 kW | 269 hp | Dongfeng Cummins Engine Co., Ltd. |
8 | ISB210 50 | 5 900 cc | 5.9 L | 360 cu in | 155 kW | 211 hp | Dongfeng Cummins Engine Co., Ltd. |
Performance | ||
Fuel | diesel fuel | |
Environmental standard | GB3847-2005, GB17691-2005 National V / Euro 5 | |
Maximum speed | 80 km/h | 50 mph |
ABS | have | |
Country of origin | China | |||||||
Yt25 Ladder Fire Truck 25 meters Chassis | DFL5160XXYBX2V | |||||||
# | Engine model | Engine displacement | Engine power | Engine manufacturer | ||||
1 | ISD210 50 | 6 700 cc | 6.7 L | 409 cu in | 155 kW | 211 hp | Dongfeng Cummins Engine Co., Ltd. | |
2 | ISD190 50 | 6 700 cc | 6.7 L | 409 cu in | 144 kW | 196 hp | Dongfeng Cummins Engine Co., Ltd. | |
3 | ISD180 50 | 4 500 cc | 4.5 L | 275 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. | |
4 | EQH180-52 | 4 752 cc | 4.8 L | 290 cu in | 132 kW | 179 hp | Dongfeng Commercial Vehicle Co., Ltd. | |
5 | EQH180-53 | 4 752 cc | 4.8 L | 290 cu in | 132 kW | 179 hp | Dongfeng Commercial Vehicle Co., Ltd. | |
6 | ISB180 50 | 5 900 cc | 5.9 L | 360 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. | |
7 | ISD245 50 | 6 700 cc | 6.7 L | 409 cu in | 180 kW | 245 hp | Dongfeng Cummins Engine Co., Ltd. | |
8 | ISB210 50 | 5 900 cc | 5.9 L | 360 cu in | 155 kW | 211 hp | Dongfeng Cummins Engine Co., Ltd. | |
Performance | ||
Fuel | diesel fuel | |
Environmental standard | GB3847-2005, GB17691-2005 National V / Euro 5 | |
Maximum speed | 90 km/h | 56 mph |
ABS | have | |
Weights and Ground pressure | |||
Curb weight | 15605 kg | 15.6 t | 34,403 lbs |
Gross vehicle weight rating | 15800 kg | 15.8 t | 34,800 lbs |
Axle load distribution | 5800 kg / 10000 kg
5.8 t / 10 t
12,800 lbs / 22,000 lbs | ||
Undercarriage and Suspension | ||
Number of axles | 2 | |
Wheelbase | 5600 mm | 18′5″ |
Front track | 1880 mm, | 6′3″, |
Rear track | 1800 mm, | 5′11″, |
Front overhang | 1430 mm | 4′9″ |
Rear overhang | 2870 mm | 9′5″ |
Angle of approach | 22° | |
Angle of departure | 11° | |
Leaf springs | 7 / 9+6, 8 / 10+8 | |
Tyres and Wheels | |
Number of tyres | 6 |
Tyres dimension | 9.00-20, 9.00R20, 10.00-20, 10.00R20, 10R22.5, 275/80R22.5, 275/70R22.5 |
