Dongfeng 16m Telescopic Aerial Platform Truck

Dongfeng 16m Telescopic Aerial Platform Truck
Price: $ 25000
Discount Price: $ 22000
FOB:
Availability:
Quantity:

  • DRZ5

  • Dong run

  • 8705909990

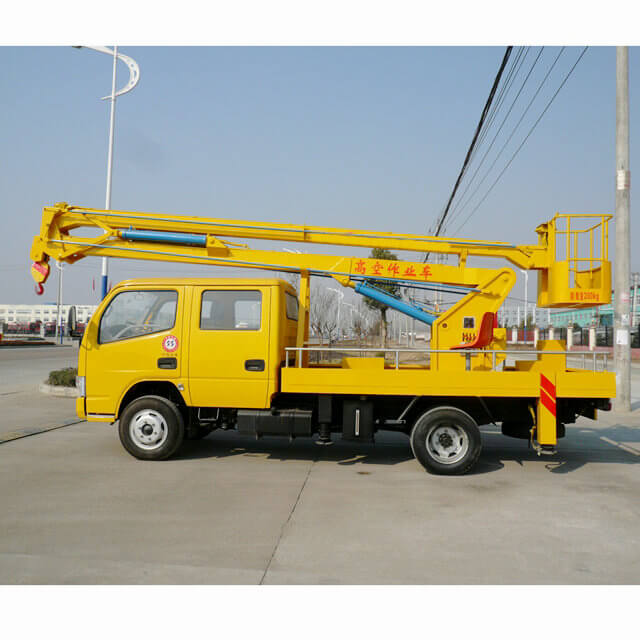

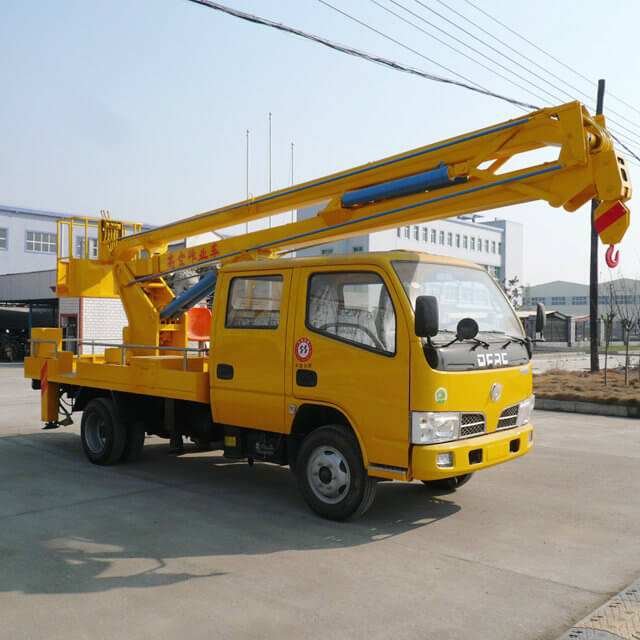

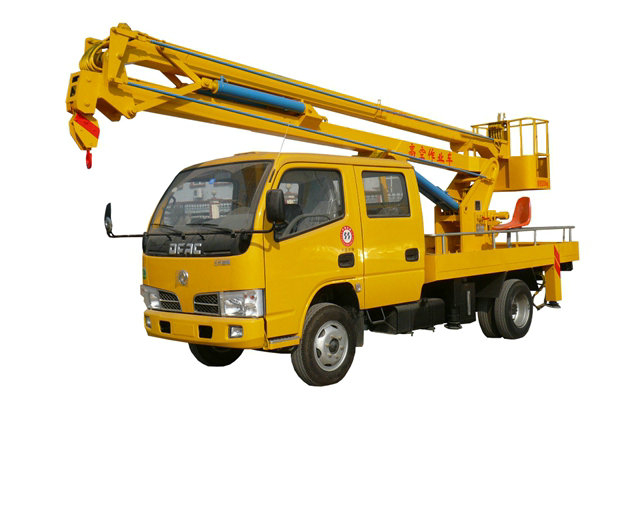

 Dongfeng DLK 16m telescopic aerial platform truck

 boom trucks  aerial bucket truck

aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:


---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

hydraulic aerial platform-22m truckhydraulic aerial platform-25m truck

EURO 3- 4 -5

         Technical parameters
          The total mass(kg)          7490           Curb Weight(kg)          7295
          Rated quality(kg)           xx           Chassis Model          DFA1080SJ12D3
          Approach / departure angle(°)          24/1           Front/Rear overhang          1210/2430
          Dimensions(mm)          8100*2320*3350          Number of spring          8/10+7,11/9+7
          Number of axles           2           Maximum speed          95
          Tire  Specifications          7.50-16 14PR,7.50R16 14PR          Number of tires           6
          Front track          1770,1831,1740,1845           Rear track          1586,1640,1610,1680
          Wheelbase(mm)          3800           Axle load          3310/4965
          Emission Standards           Euro II/Euro III/Euro IV           Type of fuel           Diesel
         Engine parameters
          Engine Model          YC4E140-42           Engine Manufacturer           Guangxi yuchai machinery
          Engine  Displacement(ml)          4260           Engine power(kw)          103
          Modified  Description          1. Basic equipment:1.height of working: 16m,360°all rotation,three folding arms,single hydraulic cylinder,rated load of cage:200-250 kg.
         2. 1 ton stretch hook,four hydraulic oil cylinder that are adjustable,without emergency power unit.
         3. Equipped with two-way balancing valve,electrical control operation,two sets of operating system. (1set platform pilot switch and 1 set pilot switch in the cab);
         Basic composition           chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system.
         Application          Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on.

  16m aerial working 703- aerial working platform

  FOTON 10-16M AERIAL WORKING PLATFORM TRUCK 0214319716

FOTON 10-16M AERIAL WORKING PLATFORM TRUCK 57097

Main parameters Product model  DRZ5053JGKZ3
Gross weight (kg) 7640
Curb weight (kg) 7445
Cab seats 3
Number of axles 2
Overall dimension(mm) 7400x1980x3100
Wheel base(mm) 3300
Max speed (km/h) 85
Steering Left hand drive or right hand drive
Chassis parameters Chassis model EQ1060TJ20D3
Brand DongFeng
Fuel diesel
Number of wheels (mm) 6
Tire specification 7.50R16
Engine displacement (ml) 3856
Engine power (kw) 96
Emission standard Euro II
Upper High meters (m) 16
Max. Out reach (m) 11
Max. lifting weight (kg) 1000
Rotating speed 0~2 r/min
The whole boom outreaching time ≤30 S
Articulated Boom Lift Dongfeng (14-16M)
General Vehicle Brand Dong run
Chassis Brand Dongfeng
Overall Dimension 7650 x 1980 x 3150 mm
GVW / Kerb Weight 7,300 kg / 6,975 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Dongfeng engine
Power 95Ps (70KW)
Displacement 3856 ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward gears & 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00-16 14PR, 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14m - 16 m
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables.
