Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T

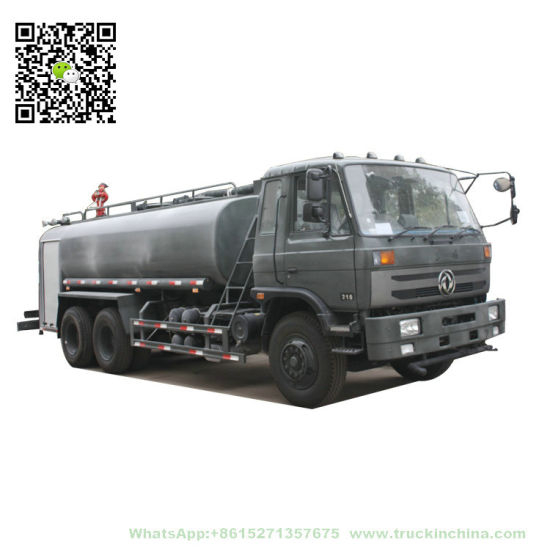

DONGFENG Fire Sprinkler Tank Truck For Sale
DF Water Tanker With Fire Pump Truck (Sprinkler Truck / Watering Cart)
Fire fighting water tank lorry truck

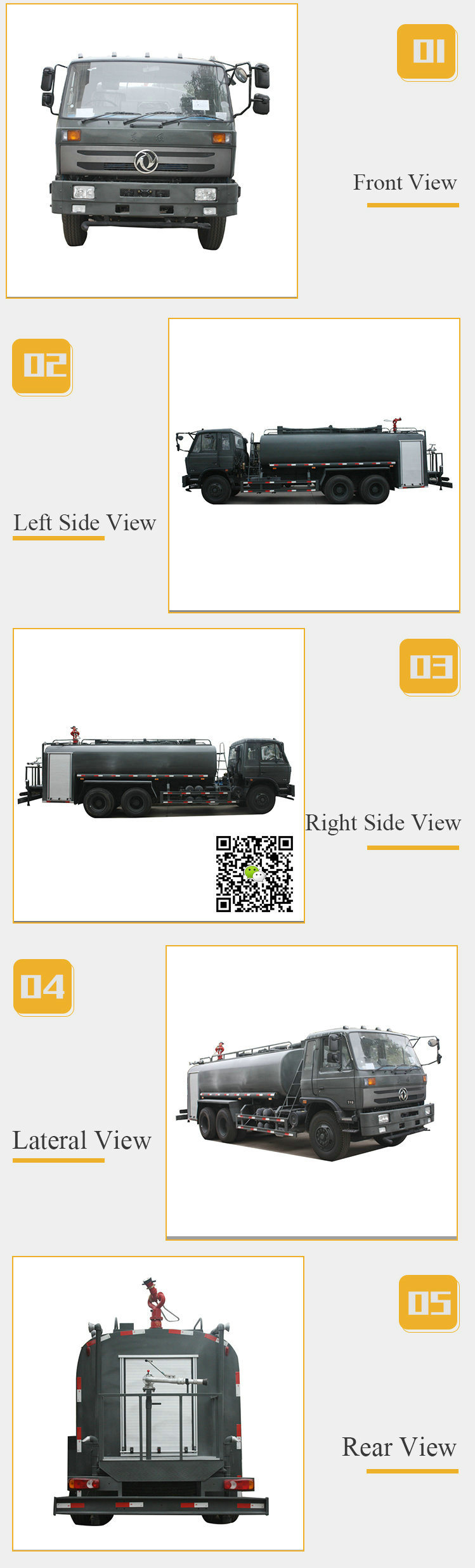

The pictures are for your reference only.
| Specification of DF Sprinkler Truck / Watering Cart | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | Sprinkler truck / Watering Cart | Overall Dimension (mm) | 9880x2480x3050 |
| Truck Brand | Dongfeng | Gross / Curb Weight (kg) | 25000/10370 |
| Truck Model | EQ1258KB3GJ | Approach / Departure Angle (°) | 24/11 |
| Max. Speed (km/h) | 90 | Front / Rear Overhang (mm) | 1250/2980 |
| Chassis | |||
| Chassis Brand | DF | Chassis Model | EQ1258KB3GJ |
| Wheel Base (mm) | 4350+1300 | Leaf Spring | 9/10 |
| Traction System | 6 x 4 | Quantity of Axles | 3 |
| Cab Capacity | 1+1 | Front / Rear Axle Load (kg) | 7000/18000 |
| Transmission | manual | Front / Rear Wheel Tread (mm) | 1960/1860 |
| Tyre Model | 11.00-20 18PR | Quantity of Tyre | 10+1 |
| Engine (Motor) | |||
| Brand | DF | Type of Fuel | Diesel |
| Model | ISD210 50 | Displacement (ml) | 6700 |
| Max. Power (hp) | 210 | Emission Standard | Euro 3-5-6 |
| Motor Net Weight (kg) | * | ABS | yes |
| Equipments | |||
| Tank Capacity (L) | 20,000 | ||
| Tank Material | 4-6mm carbon/stainless steel | ||
| Fire Monitor | Model: PS50 rate of flow: 60L/S/1MPa, water range: ≥60m | ||
| Fire Pump(Normal Pressure)middle-lower pressure is optional | 1. Normal pressure model:: CB10/60,rate of flow:60L/s, pressure:1.0MPa 2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO | ||
REMARKS: 1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
| |||
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. | |||
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
