Customizing Excavator Transport Hydraulic Lowbed Lowboy 3 Line 6 Axles Low Bed Semi Trailer
Heavy Haul Equipment Trailer
Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Axle Steering Axle Low Bed Trailer

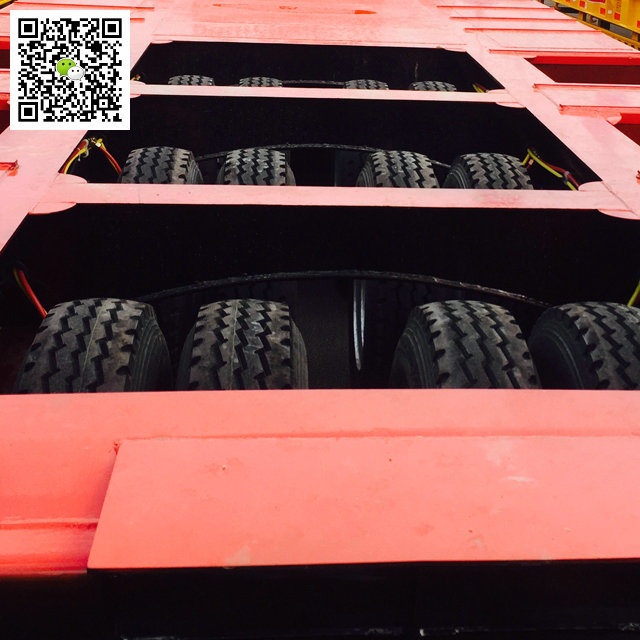

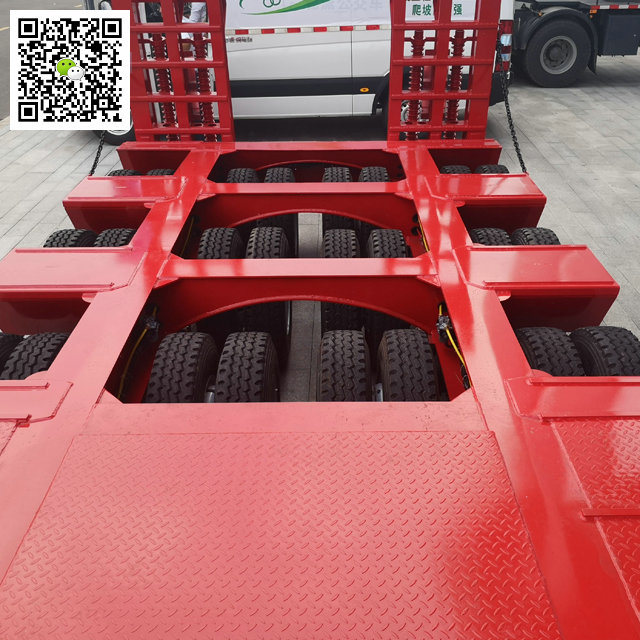

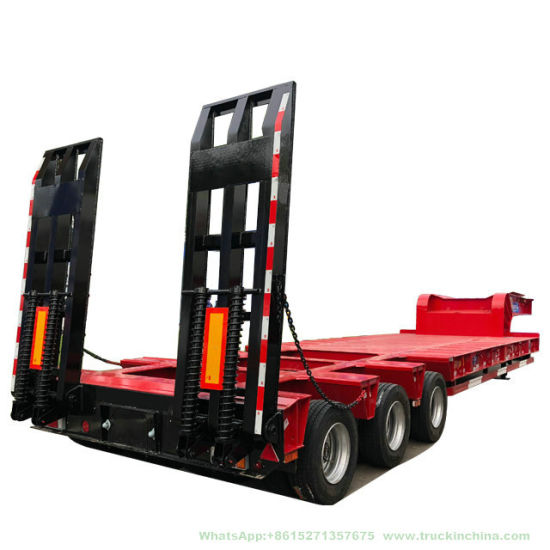

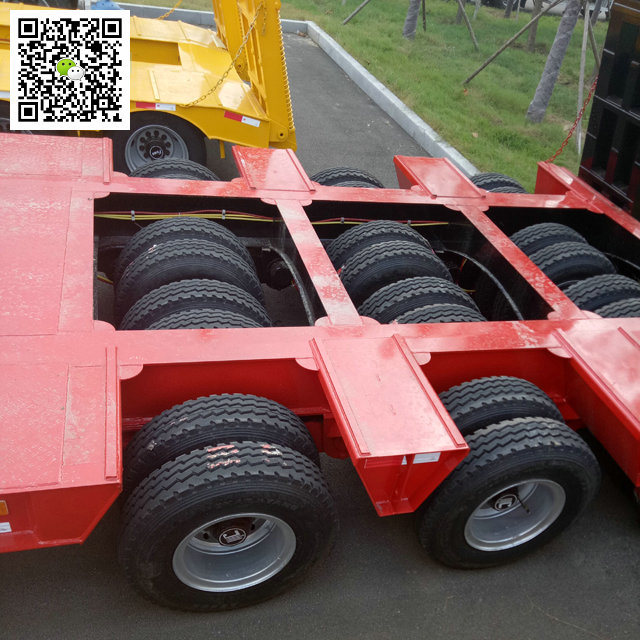

Description of the 3 line 6 axle low bed trailer
The 3 line 6 axle trailer has 6 axles which are arranged in 3 lines. In order to complete some heavy duty equipment transportation, we have to use multi axle trailers. However if the trailer axle is more than 4 axles, the trailer will be difficult to turn and move except using steering axle which has a high cost and requires higher technology to design and fabricate. The 3 line 6 axle trailer provides a solution of a 6 axle trailer. This low bed trailer has 6 axles, 13Ton capacity of each axle, mechanical suspension, JOST landing gear, and JOST kingpin, 11R22.5 tyres. The deck width 3m, the deck height 300mm.
Selling point of the 3 line 6 axle low bed trailer
1.The 3 line 6 axle trailer has larger payload, reaches more than 80Tons.
2.No special device or skills to operate this kind of trailer
3.Extreme low ground clearance, only around 300mm, gives the trailer much more better stability.
Specification
| Dimension | |
| Overall dimension | 16000x2500x16550mm |
| Tare weight | 15500kgs |
| Payload | 120Tons |
| Specification | |
| Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 20mm, width 140mm; Middle Flange 10mm; Bottom Flange 20mm, width 140mm; |
| Axle | Anqiao axle, 2 axle in line, 6 axle in total |
| Suspension | Mechanical suspension |
| Floor | 6mm checked plate |
| Ramp | Mechanical ramp |
| Kingpin | 2 inches |
| Landing gear | JOST landing gear |
| Wheel rim | 8.25R22.5 steel wheel rim |
| Tyre | 11R22.5 tubeless tyre |
| Spare tire | One spare tire |
| Brake system | WABCO RE 6 relay valve, spring brake chamber |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
| Overall Dimension | 13000*3000*3300mm or Customized |
| Curb Weight | 10T |
| Loading Capacity | 50T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Upper Plate Thickness:26mm, Middle Plate Thickness:20mm, Bottom Plate Thickness:26mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional |
| Leaf Spring | 10/10/10 leaf spring (90mm*7/8/13/16mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 6sets, drum brake, WABCO Emergency relay valve |
| Landing Gear | 28T*2, JOST brand |
| Accessories | 1 Standard Tool Box |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand balsting, prime coating, surface painting,color opitional, wax polishing |
| Ladder | Spring or Hydraulic |
| Color | white, bule, yellow, green, red, golden or optional |

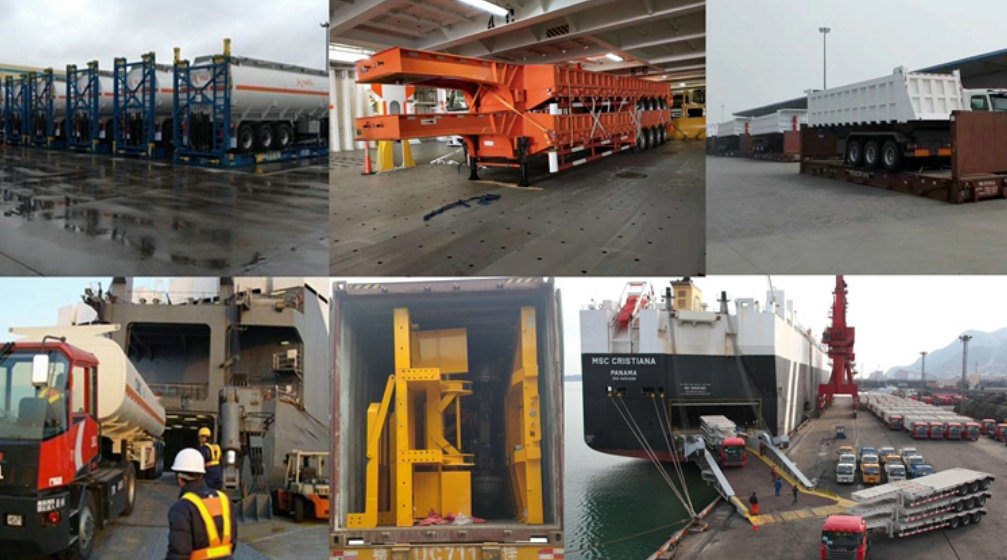

| Packing | FCL Container, Ro-ro Shipment, Framework or Optional |
Hydraulic platform Multi-Axles trailer
Hydraulic platform Multi-Axles trailer are mainly used in transporting large and heavy loads, bridge, tunnel engineering ,power engineering, petrochemical engineering and railway construction. Transportation oversize and over weight freights that split apart series hydraulic full trailer that can be assembled into weight from 45 tons to 2200 tons of various series.
We use advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces
