Heavy Equipment Recovery Wrecker Trailer with 12PCS Container Locks and Winch (Patform Liftable And Slide, Beam Stretchable)
| Quantity: | |
|---|---|
- Shanghai, China
- 200
- T/T, Western Union
Heavy Equipment Recovery Wrecker Trailer with 12pcs Container Locks and Winch (Patform Liftable And Slide ,Beam Stretchable)
Heavy Equipment Recovery Wrecker Trailer tows and recovers Heavy Duty Trucks, Tractor Trailers, Heavy Equipment, Motor Coaches, RVs, Buses, and most other large vehicles.

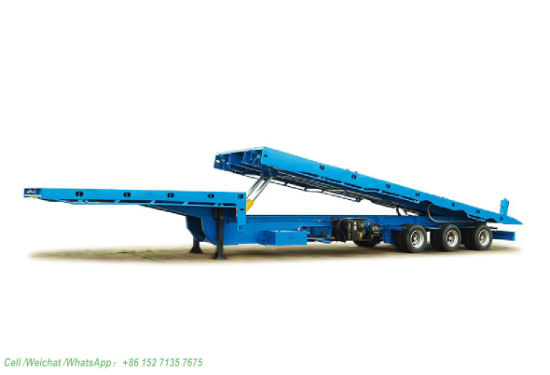

Wrecker Semi Trailer TILT TRAY FLATBED TRAILER
Hydraulic deck trailer
Transport Tilt Slide Trailer
Wrecker semi trailer is evolved according to the Australian market, can be used to transport containers, engineering machinery and failed vehicle. Due to its versatile features, can be promoted in differet regional markets under the regulations allow.
The patform can lift and slide down , move and form a small angle to ground, easy for moving the vehicle to the platfom it can also be used on dragging the immobile goods loading and unloading operation by the 8T /15 Ton ( optional 20ton) winch.

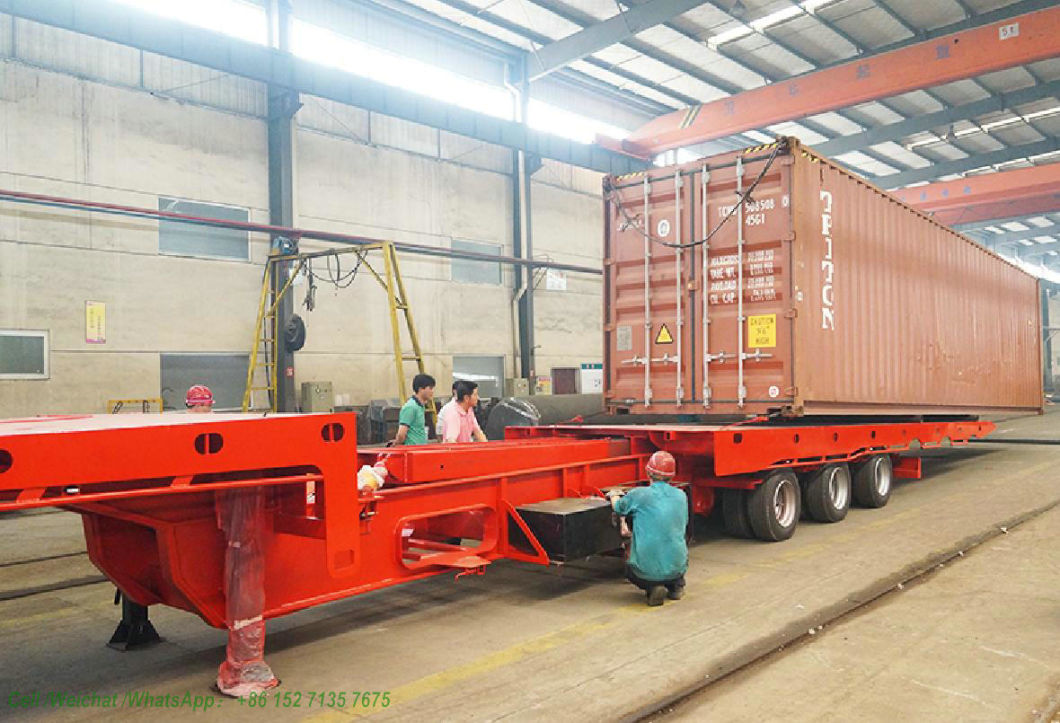

12 container locks and two Heightening container locks are istalled on the vehicle frame, to implement the transportation of a 40 feet container or two 20 fet containers transport in the middle The longitudinal beam is stretchable.make the tansportation of 45 feet and 48 feet container possible.
Heavy Duty Roadside Truck And Trailer Towing
Wrecker Semi Trailer
3 AXLES TILT TRAY FLATBED TRAILER FOR 40HC CONTAINER
WINCH RATED LOADING 15000KG
Underlift tow truck body
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 90Ton heavy duty low bed trailer specifications
4 axle 80-100Ton heavy duty low bed semi-trailer | |
Low bed trailer Model | DRZ9904TDP |
Overall weight(kg) | 100,000kgs |
Curb weight(kg) | 11,800kgs |
Rated loading weight(kg) | About 90,000kgs |
Overall dimensions(mm) | 13000×3000×3150 |
No of axle | 4 axle FUWA brand.BPW or other axle brand are optional |
Axle load capacity (kg) | 16Ton/axle.12Ton,13Ton,14Ton,20Ton axle are optional |
Tire specification | 11.00R20,total 16 tires or based on client's required |
Suspension type | Leaf spring suspension.Air suspension is optional |
Landing gear | JOST 24 Ton double action landing gear |
Kingpin specification | JOST, 2 or 3.5 inch(50mm or 90mm) |
Electric circuit | International standard 24V |
Main frame description | Heavy duty and extra durability designed;Opting for high tensile steel Q345B,welded by automatic Submerged-Arc. "I" beam sturdy structure(thickness of 500-550mm) The thickness of top and end plate:20mm Vertical plate width:12mm Thickness of web plate:10mm,anti-slide 3mm steel surface |
Floor | 4mm thickness checkered plate |
Spare tire carrier | 1 units spare tire carrier |
Side Fender | Installed at both sides of trailer made of steel |
Rear Bumper | Steel, Manufacturer's Standard design |
Mud guard/Mud Flap | Steel mud guard and mud flap to manufacturer's standard |
Chassis Finishes | Sand blasted before painting.Color per client's required |
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
