Customizing 60 Tons Flat Bed Curtain Side Wall Cargo Semi Trailer (Wing Side Opening Van)
Customizing 60 Tons Flat Bed Curtain Side Wall Cargo Semi Trailer (Wing Side Opening Van)
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union
Customizing 60 Tons Flat Bed Curtain Side Wall Cargo Semi Trailer (Wing Side Opening Van)
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.

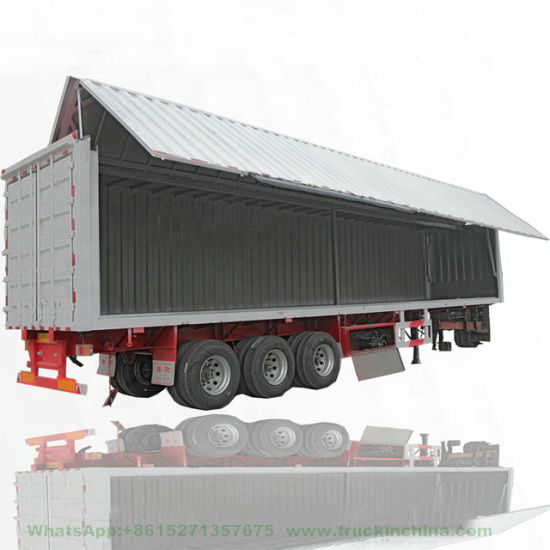

High efficiency transportation 50 ton 3 axle wing opening van semi trailer
| DIMENSIONS | ||||||||||||
| Tare weight | 9000kg | Payload | 50000 kg | |||||||||
| Overall length | 12500mm | Overall width | 2550mm | Overall height | 3930mm | |||||||
| SPECIFICATION | ||||||||||||
| Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,width 140mm. | |||||||||||
| Axle | Number | 3 | Brand | Fuwa | Capacity | 13T | ||||||
| Suspension | Mechanical suspension | |||||||||||
| Leaf spring | 10 pcs | |||||||||||
| Floor | 3mm .checkered plate | |||||||||||
| Tire | 12R22.5 double brand 12pcs | |||||||||||
| Wheel rim | 9.0 12 pcs | |||||||||||
| Kingpin | 2'' bolt-in king pin | |||||||||||
| Landing gear | Fuwa two-speed,manual operating ,heavy duty landing gear 28T | |||||||||||
| Twist lock | No | |||||||||||
| Vehicular applications | Cargo transport | |||||||||||
| Drawing | Including | |||||||||||
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V | |||||||||||
| Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | |||||||||||
| Accessories | One standard tool box | |||||||||||

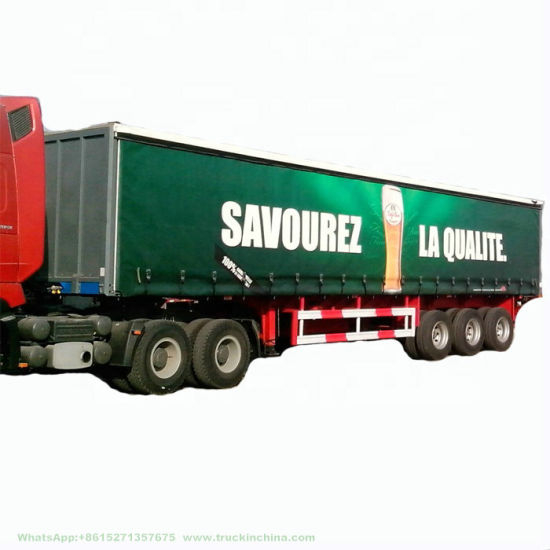

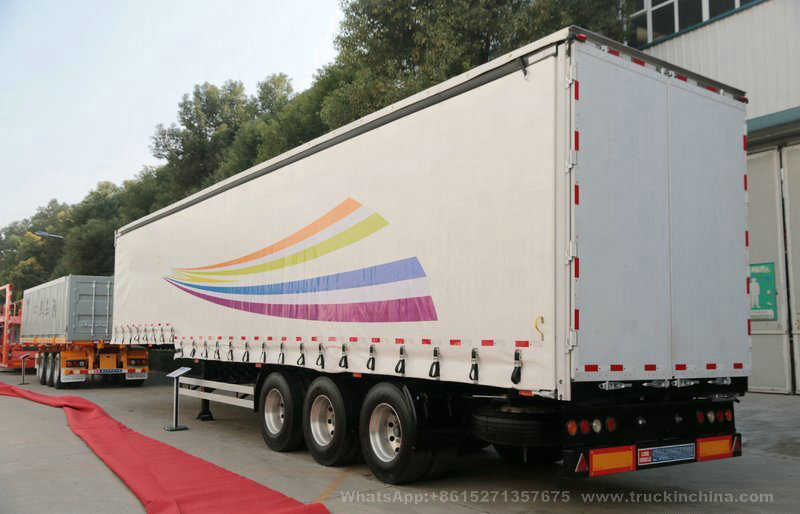

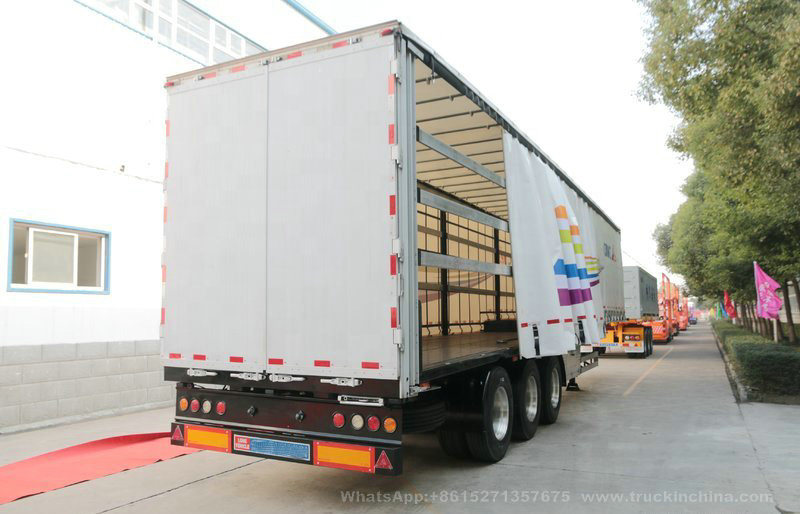

60 tons flat bed curtain side wall cargo semi trailer
| Trailer Model | 3 Axles curtain Semi Trailer |
| Overall Dimension(Lx W x H)(mm) | 13750*2550*4000 |
| Box size | 13650x2480x2800 |
| Remark | Including advertising cover sides & the upper side |
| Curban Weight(KG) | 64 000 |
| Load Capacity (KG) | 336 000 |
| Landing Gear | 28 ton Two-speed manual operating heavy duty lading gear |
| Axle | 3 axle FUWA 13TON optional |
| Suspension system | Mechanical/air suspension optional |
| Steel Spring | Leaf spring/air bag |
| Main beam | Upper plate 16mm Down plate 16mm Middle flange 8mm Width 200mm |
| Floor | diamond/checkered plate optional |
| Tire Type and quantity | 11.00R20/12.00R20/11R22.5/12R22.5 12units optional |
| Traction Pin | 50mm or 90mm |
| Spare Wheel Bracket | 2 PCS |
| Tool Box | 1 |
| Braking system | RE6 relay valve T30/30 spring brake chamber 40L air tanks |
| Painting | Complete chassis sand blasting to clean rust 1 coat of anticorrosive prime 2 coats of final paint |
3-Axle Stake Semi Trailer with Dolly for Cargo Transportation 12 Wheels Dolly Trailer
Type | Stake/Storage semi trailer,cattle transport truck trailer | |
Shipping Terms | ||
Delivery time | 15 workdays for one set stake/storage semi trailer | |
Weight: | ||
Tare Weight | 5600kg--8500kg | |
Loading Capacity | 40T--60T | |
Axle Weight Load | 13T/16T | |
Specification: | ||
Axle number | Two or Three | |
Axle specs. | FUWA or BPW brand | |
Suspension | Common mechanical Suspension | |
Wheel | 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand | |
King Pin | JOST 50# or 90# traction pin | |
Dimensions (LxWxH) | 12450×2500×1490mm,13000*2490*1450/1575/2770mm | |
Support legs | 28Tons (Tongyada Brand)/Jost D200T | |
Rim | 8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand | |
Wheelbase | 5980+1300/6680/6260+1310+1310mm, | |
Steel Spring | 10/10/10 pieces per axles | |
Twist Locks | 4 pieces | |
Tire: | ||
Number of Tire | can be choose freely | |
Spare Tire Carriers | 2/4 pieces | |
Frame: (specs. and materials) | ||
The material of Main beam | Q345B steel, The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm | |
Platform plate | 3mm Diamond Plate | |
Brake: | ||
Brake | Kemi Brand of China | |
Brake Chamber | Four double and two single chamber( TKL brand ) | |
ABS system | with | |
Electrical: | ||
Voltage | 24V | |
Receptacle | 7 ways(7 wire harness) | |
Light color: | ||
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: | ||
Painting | According to the requirement of the buyer | |
Marking | According to the requirement of the buyer | |
Side Guard | According to the requirement of the buyer | |
Tools box | One pieces or According to the buyer | |
The superiority of our product:
1.Manufacturer,high quality at competitive price
2.10 years exporting experience
3.Good after-sales service
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
