Asphalt Distributor Trailer Truck With Bitumen Spraying Nozzles ( Asphalt Tank Dolly Trailers Full Insulated 1000L -4000L, Spray Bitumen 2 -5 meters )
Cell /+8615271357675

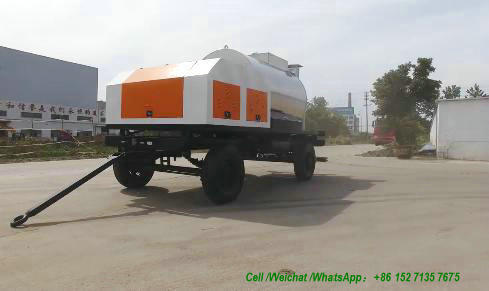

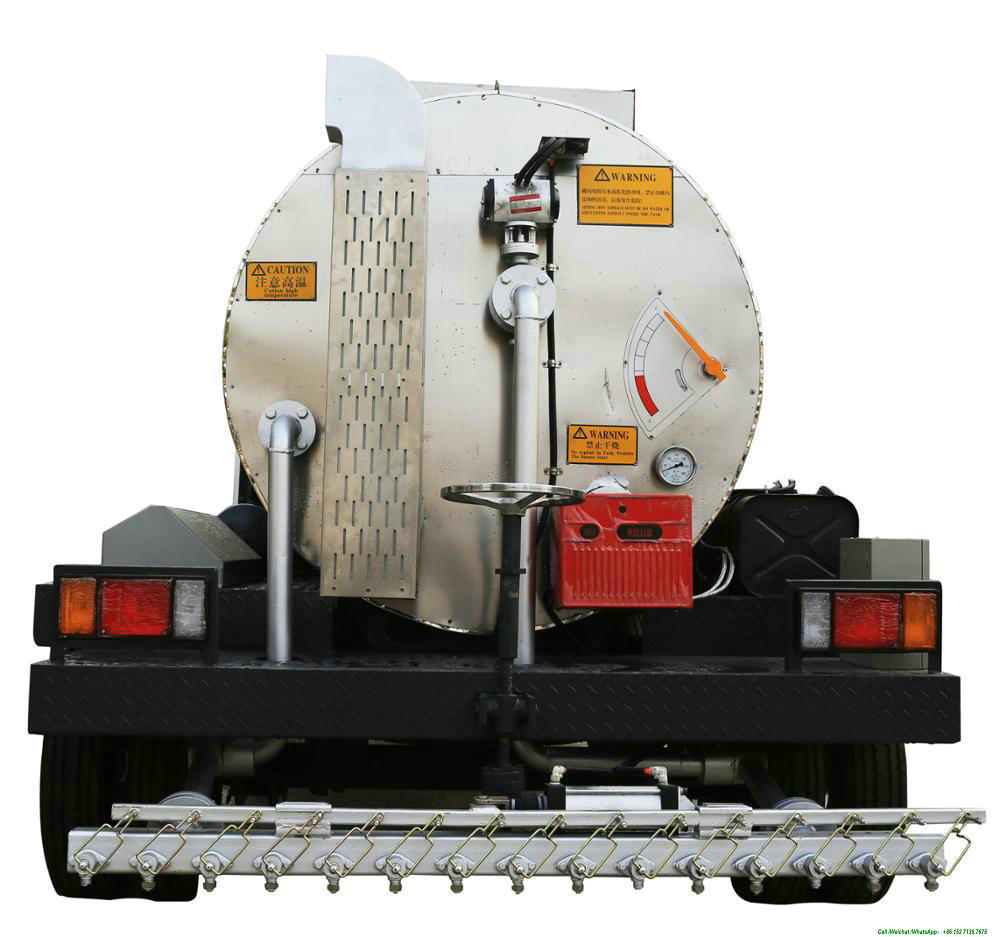

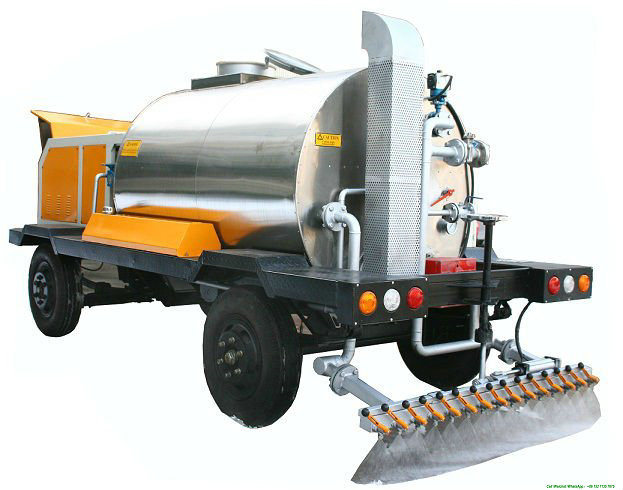

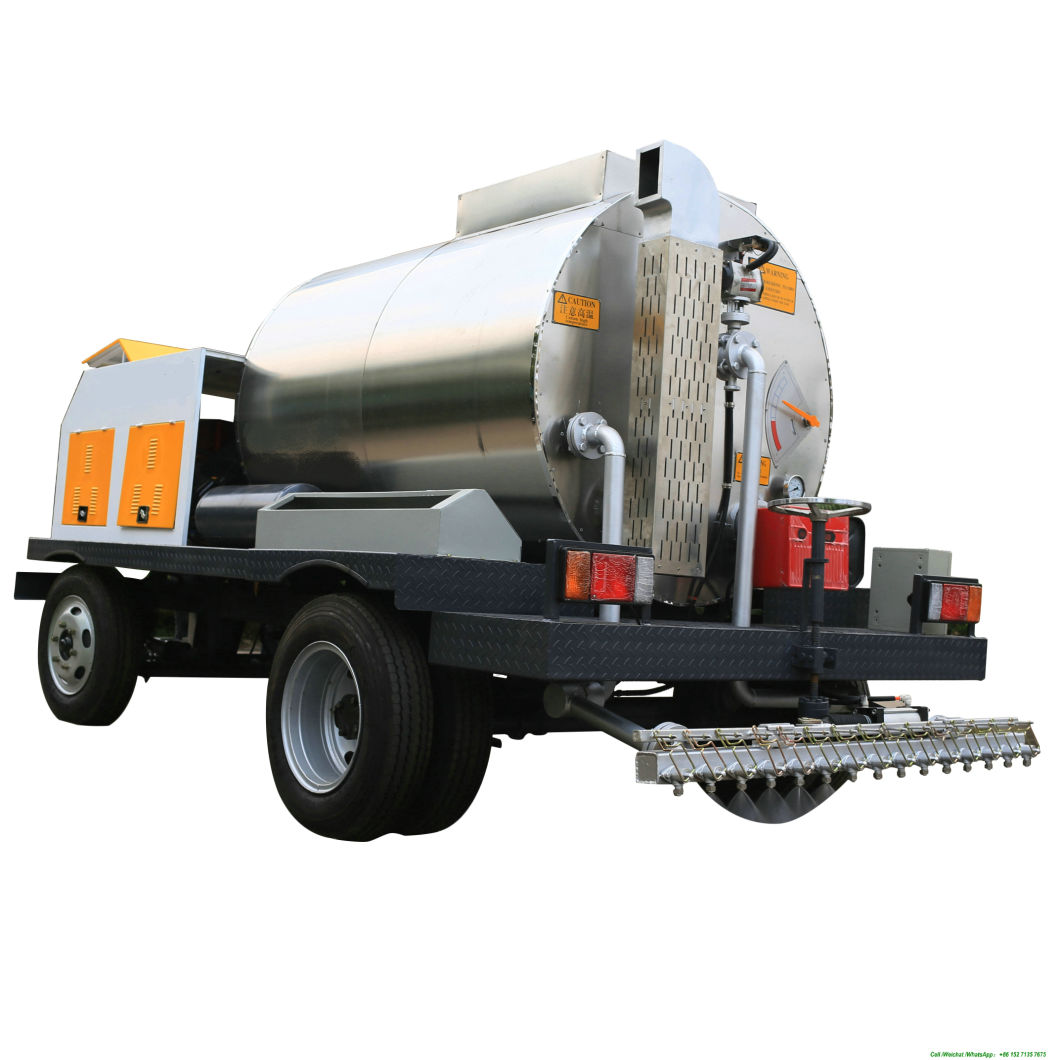

The pictures are for your reference only. Bitumen Sprayer Dolly Trailer
TRAILER ASPHALT DISTRIBUTOR SERIES
(1) The tank capacity from 1000L -4000L, insulated with 50mm fiber glass and coated by stainless steel.
(2) With Italy Riello burner and gasoline generator and heating tube in the tank.
(3) 2 meters spray bar and 5 meters hand spray lance, flexible use in the asphalt working.
(4) Multiple power options, 1-4 cylinder diesel engine, Mechanic connect or by hydraulic.
Specification
| Dimension(mm)(Excluding traction arm ) | 4960×1860×2550mm |
| Tank Capacity (L) | 2500 |
| Spray width | 2000mm |
| Hand spray lance | 5000mm |
| Nozzles | 15 |
| Spray Value | 0.5-3.0(Kg) |
| Insulation Thickness | 50mm |
| Engine model | ZS1100 |
| Asphalt pump | YCB6/0.6 |
| Burner | G10(Riello) |
Asphalt Distributor Trailer

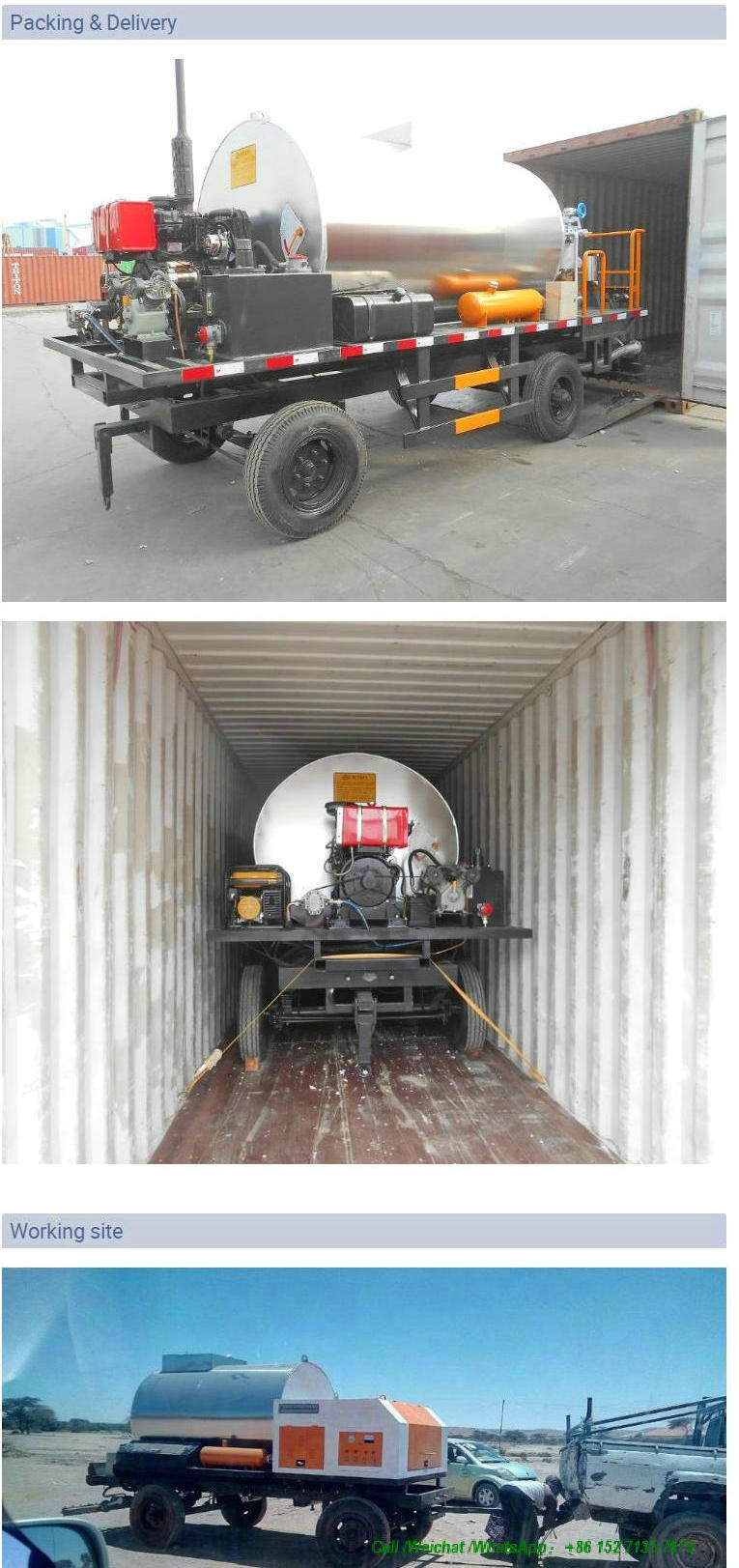

Packing & Delivery
1 DR5025 trailer asphalt distributor is a specialized machine for building and maintaining the road.
2 It is widely used for the spraying work and the liquid asphalt transport with high temperature. It features easy use, low center of gravity and compact structure.
3 It adopts a separable structure so that the asphalt distributor could be moved away from ZMTS-25 trailer asphalt distributor when there is no need to spray the asphalt.
4 The asphalt pump works powered by the reduction gear of diesel engine chain wheel.
5 The external asphalt pump is easy to be maintained.
6 The asphalt tank around utilizes aluminum silicate material as the insulation layer and has favorable heat preservation performance.
7 There is no need to heat the tank in general. If there is need, the tank could obtain the heating through
burning the diesel in burner.
8 High pressure air could easily blow the asphalt remnants out of the pipeline after the asphalt is dissolved through mixing with the diesel in the pipeline. So the nozzle is hard to block.
Mass parameter: | |||||||
Dimension(mm)(Excluding traction arm ) | 4960×1860×2200 | Total Weight(kg) | 4800 | ||||
Rated loading Weight(kg) | 2500 | Kerb Weight(kg) | 2300 | ||||
Chassis Parameter: | |||||||
Chassis Model | DR5025 | Tyre model | 7.50-16 | ||||
Wheelbase (mm) | 2310 | Tread (mm) | 1650 | ||||
Minimum Ground Clearance(mm) | 350 | ||||||
Spray specification: | |||||||
Tank Capacity(m³) | 2.5 | Spray width | 2000mm | ||||
Nozzles | 15 | Spray Value | 0.5-3.0(Kg) | ||||
Manual gun nozzle | 1(conical ) | Insulation Thickness | 50mm | ||||
Burner | G10(Riello) | Asphalt pump | YCB6/0.6 | ||||
Generator(Converter) | YGBT2500 | Air compressor | 0.1/0.8 | ||||
Other parameter: | |||||||
Max. Trail speed(km/h) | 30 | Axis No. | 2 | ||||

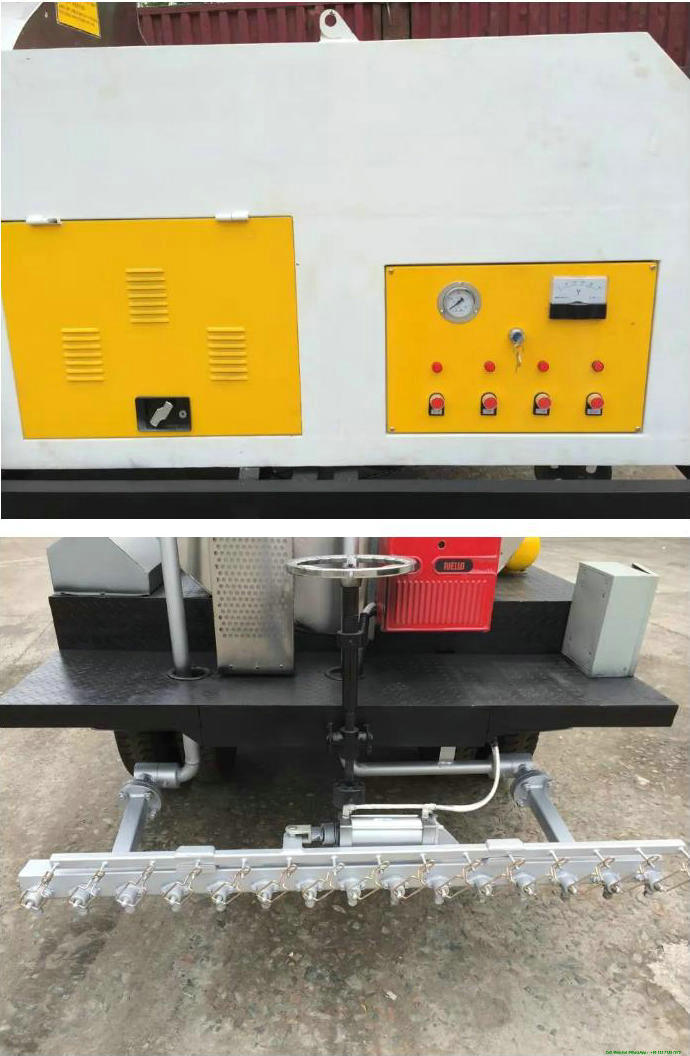

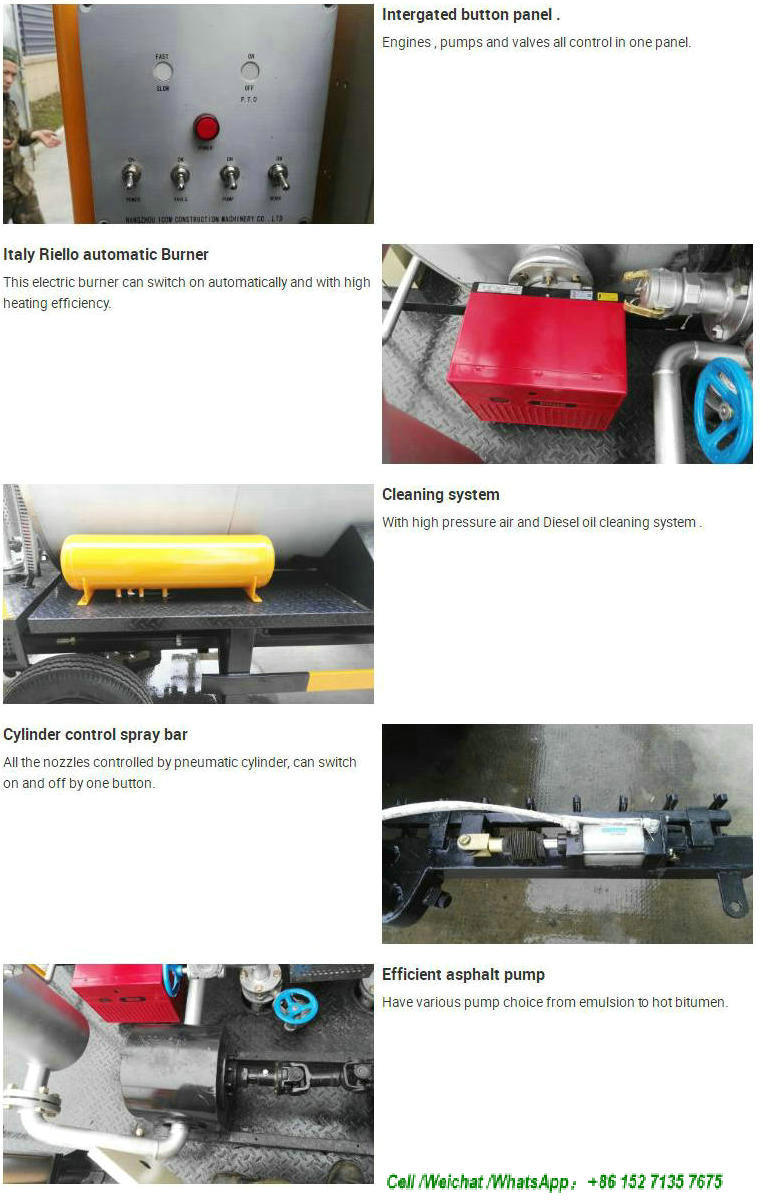

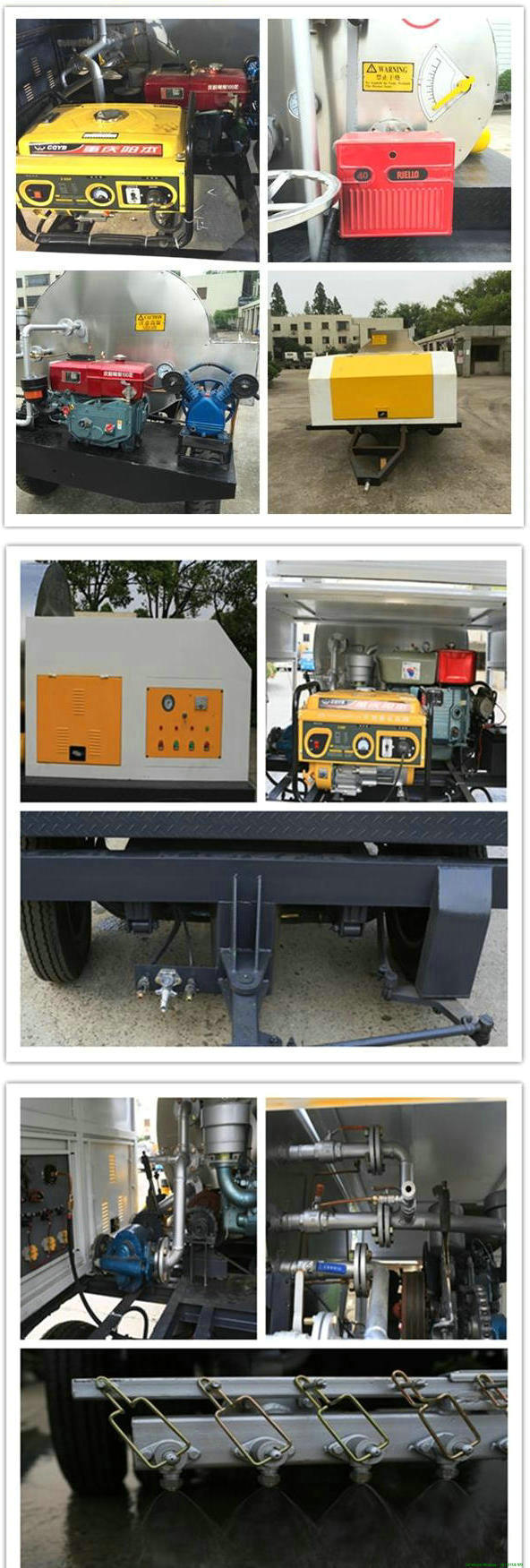

Intergated button panel .
Engines , pumps and valves all control in one panel.
Italy Riello automatic Burner
This electric burner can switch on automatically and with high heating efficiency.
Cleaning system
With high pressure air and Diesel oil cleaning system .

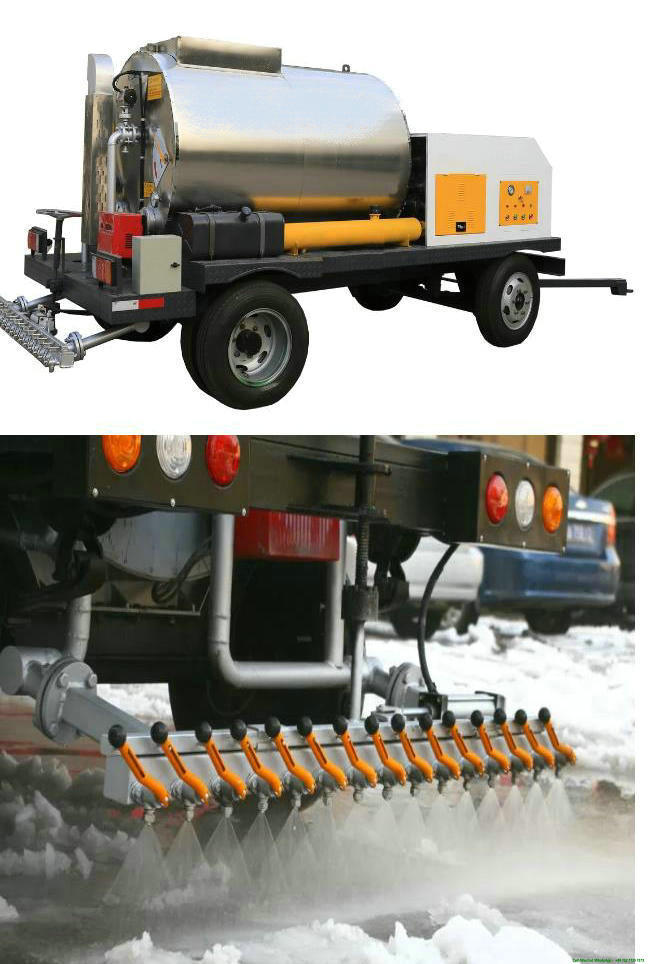

Cylinder control spray bar
All the nozzles controlled by pneumatic cylinder, can switch on and off by one button.
Efficient asphalt pump
Have various pump choice from emulsion to hot bitumen
| Mass parameter | |||
| Kerb Weight(kg) | 2300 | Total Weight(kg) | 4800 |
| Rated loading Weight(kg) | 2500 | Dimension(mm) | 4960×1860×2550 |
| Chassis Parameter | |||
| Chassis Model | DR5025 | Tyre model | 7.50-16 |
| Wheelbase (mm) | 2310 | Tread (mm) | 1650 |
| Minimum Ground Clearance(mm) | 350 | ||
| Spray specification | |||
| Tank Capacity(m³) | 2.5 | Asphalt pump | YCB6/0.6 |
| Nozzles | 15 | Spray width | 2000mm |
| Manual gun nozzle | 1(conical ) | Spray Value | 0.5-3.0(Kg) |
| Insulation Thickness | 50mm | Air compressor | 0.1/0.8 |
| Burner | G10(Riello) | Generator(Converter) | YGBT2500 |
| Engine model | ZS1100 | Engine power (Kw/r/min) | 10.3 |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlapping Spray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |
3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Technical Specifications:
Electronic control series
| Model | P3 | P4 | P6 | P8 | P10 | P12 | |
| Chassis | BJ1073 BJ1083 | BJ1103 BJ1120 | BJ1163 BJ5163 | SX1255 | ND1254 | ND1255 | |
| Capacity of asphalt tank (L) | 3000 | 4000 | 6000 | 8000 | 11000 | 12000 | |
| Max. distribution width(m) | 4 | 4.5 | 6 | 6 | 6 | 6 | |
| Distribution capacity (kg/m2) | 0.3-1.8 | 0.3-2.5 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
| Distribution precision (%) | ≤2 | ||||||
| Heating mode | Diesel burner Heat capacity | ||||||
| 8×104Kcal/h | 8×104Kcal/h | 10×104Kcal/h | 15×104Kcal/h | 19×104Kcal/h | 19×104Kcal/h | ||
| Average Temp. Drop (°C/h) | ≤1 | ≤1 | ≤1 | ≤1.5 | ≤1.5 | ≤1.5 | |
Before sales:
1.Gratis professional consultant service,multi solution options, and most suitable product recommendation.
2.Special product design and manufacture based on your requirements.
3.Gratis professtional technology consultant,and detailed equipment working scheme as reference,for your special project.
After sales:
1.Gratis professional technology training,to train qualified operator for you.
2.Satisfying solution response in 2 hours after your quality feedback.
3.Equipment repair warranty(details in contract attachment),life time repair service(only free of charge of labour cost).
4.Save your individual product records.Asphalt distributor
Smart Intelligent control series
Major features:The distributor is made up by chassis, asphalt tank, asphalt pump, conduction oil
heating system, electrical and automatic control system and cleaning system, etc. with main units
made of the most up-to-date components in the international community, all-round control with
micro-computer, high distribution precision.
Three layers of overlapped cloth for spray, adjustable distribution capacity based on the
traveling speed, totally operable in the cabin for distribution
Separate control with computer at each spraybar of adjustable width.
Two control systems in the control process for the whole truck (cabin and rear operating platform) to ensure reliable and successful asphalt distribution.
All-round heating of pump, spraybar and tank with conduction oil or separate heating.
Optional radar speed measurement system
Safe and reliable conduction oil heating system for fully automatic control
| Model | S4 | S7 | S8 | S10 | S12 | |
| Chassis | BJ1103 BJ1120 | BJ5163 | SX1165 | SX1255 | ND1254 | |
| Capacity of asphalt tank (L) | 4000 | 6800 | 8000 | 10000 | 12000 | |
| Max. distribution width(m) | 4.5 | 6 | 6 | 6 | 6 | |
| Distribution capacity (kg/m2) | 0.3-2.5 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
| Heating Mode | Diesel Burner Heat capacity | |||||
| 8×104Kcal/h | 12×104Kcal/h | 14×104Kcal/h | 19×104Kcal/h | 19×104Kcal/h | ||
Oil/gas dual use including light oil, heavy oil, two-stage, BALTUR Burner list
