40FT Flatbed Container Semi Trailer (Flatbed Container Trailer With Front Board)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union

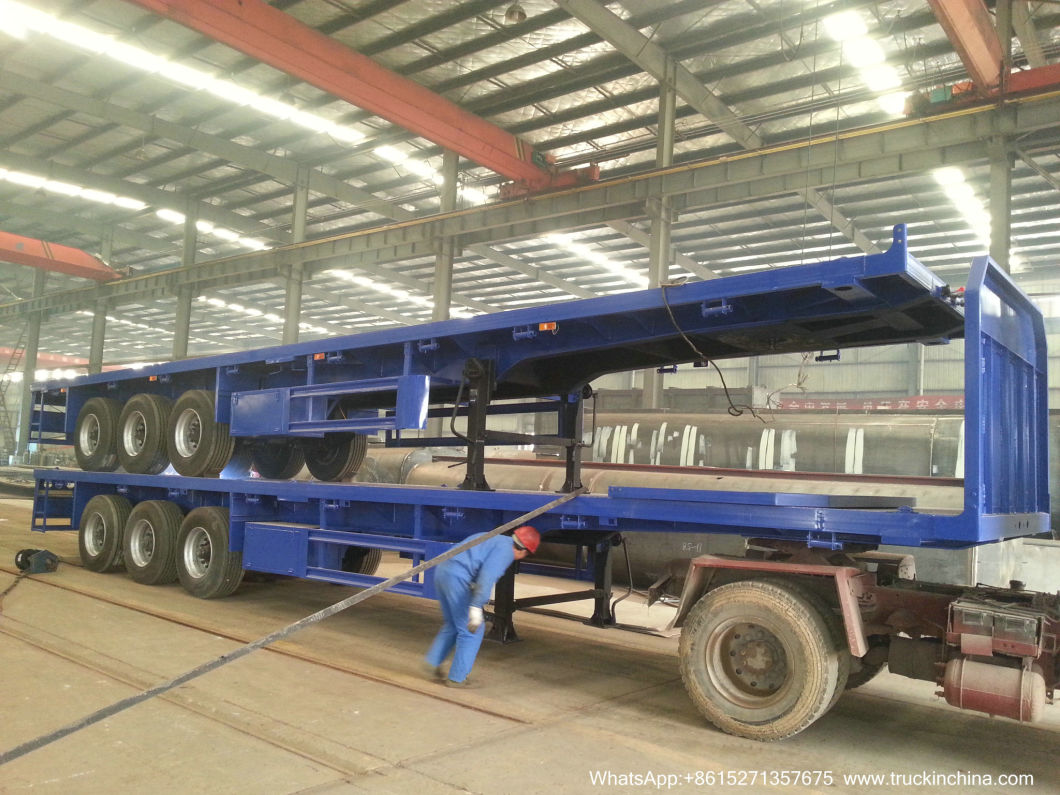

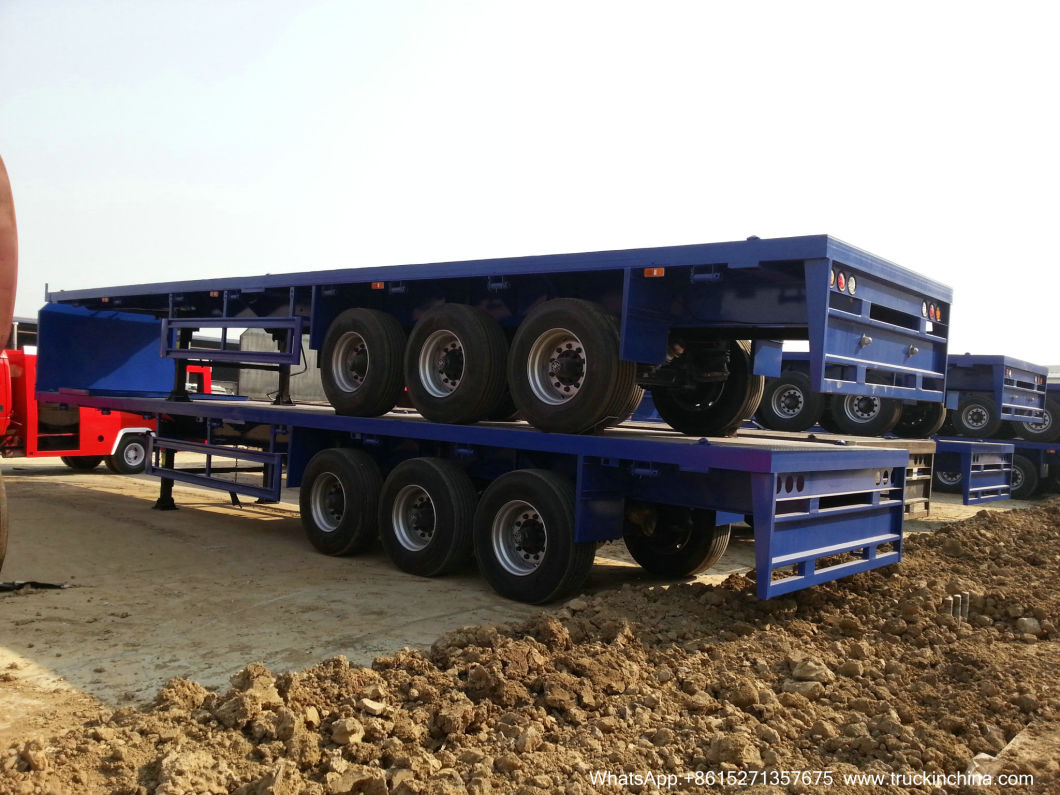

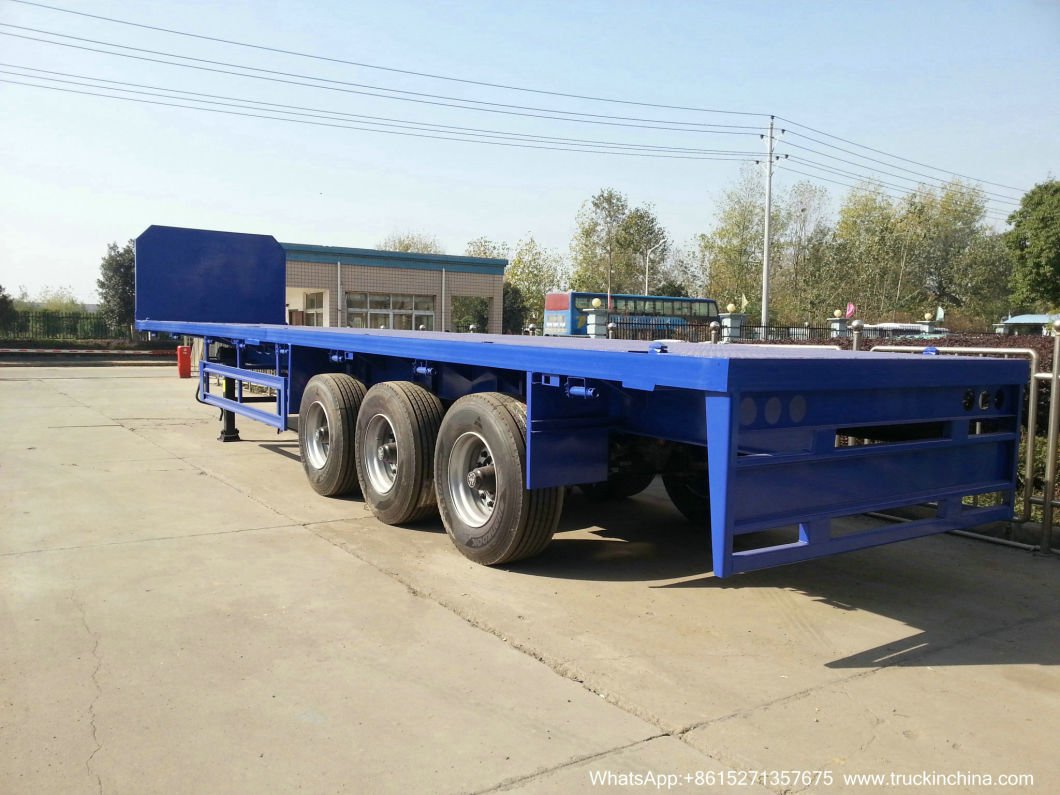

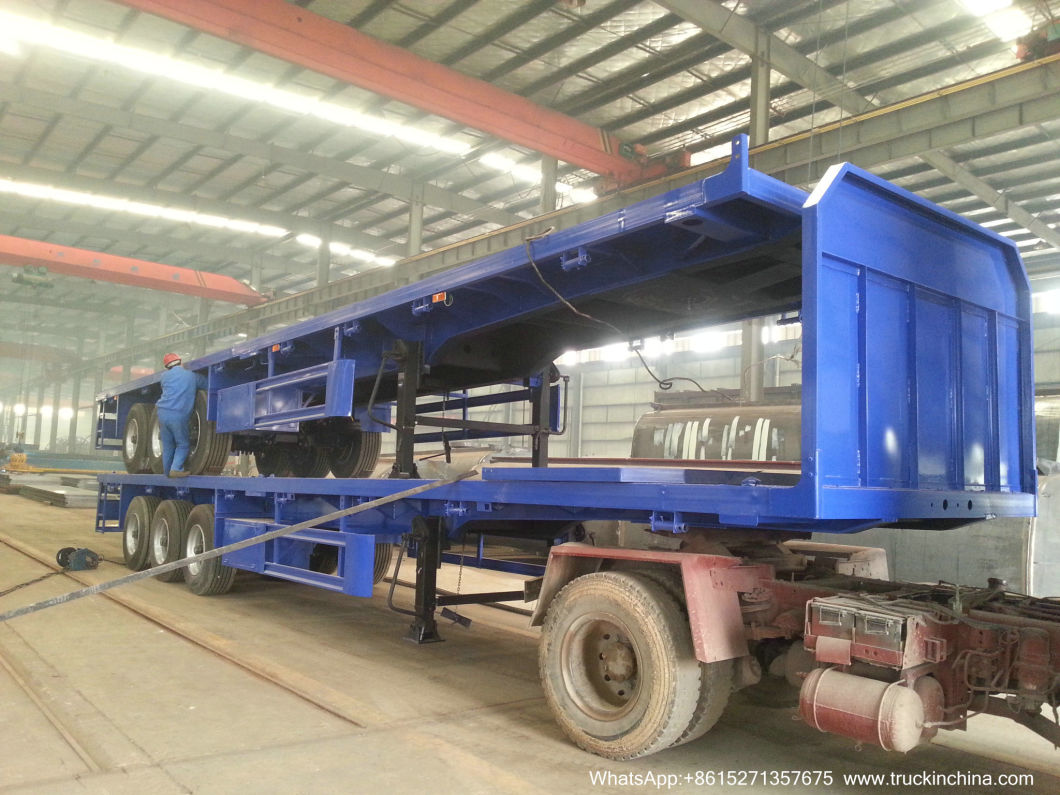

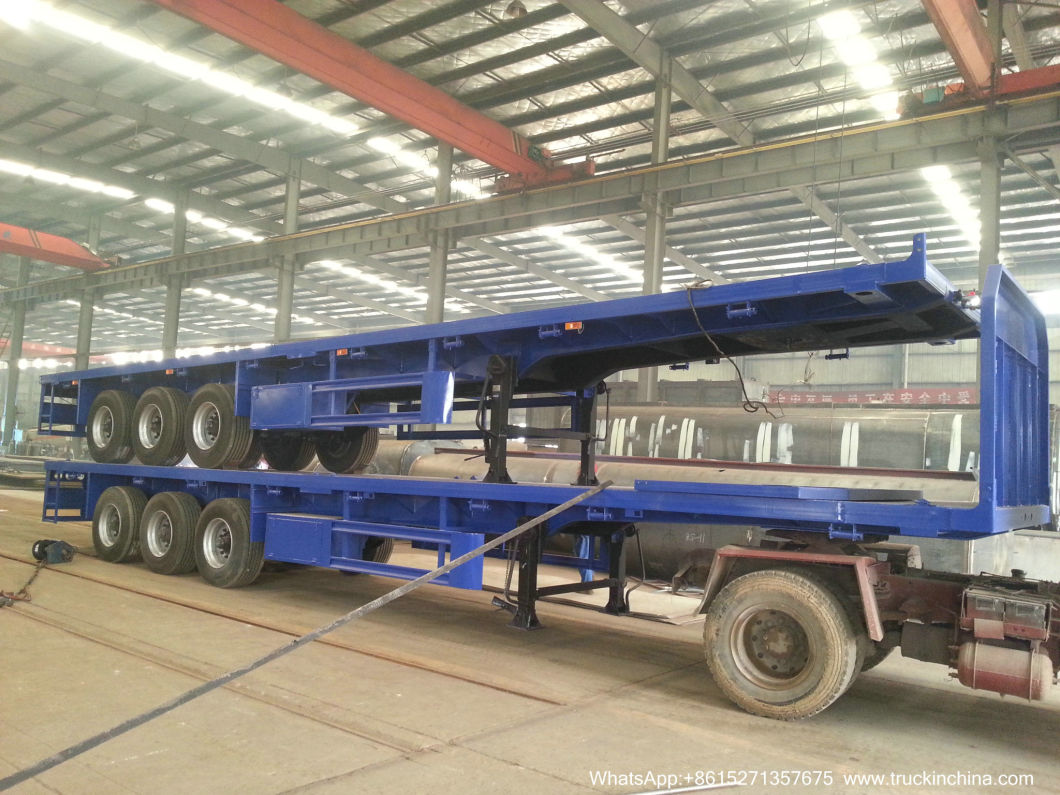

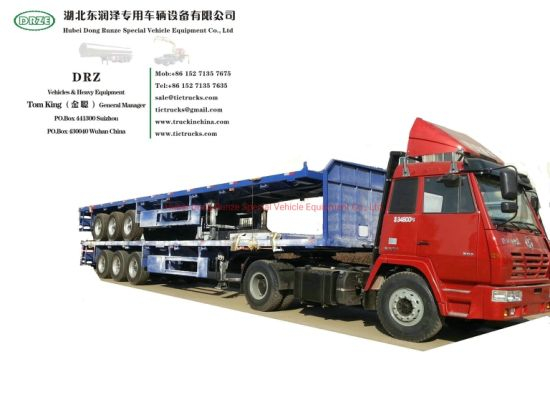

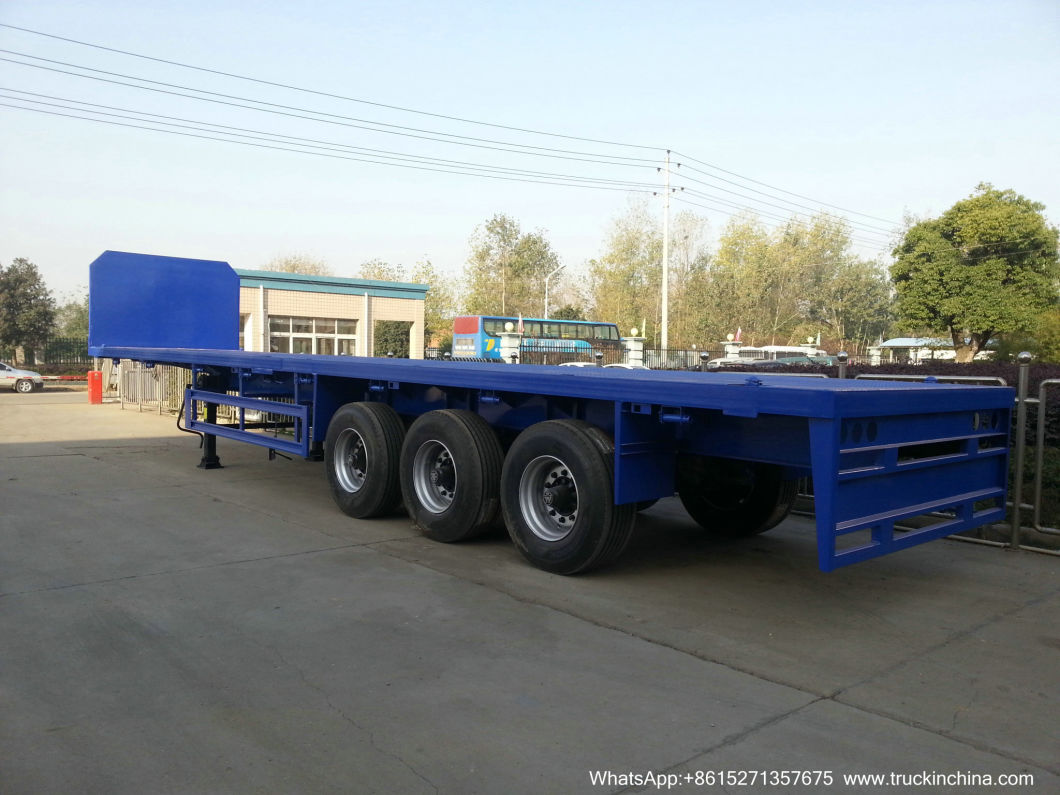

Flatbed Container Trailer With Front Board
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale call:+86-152 -7135-7675
40ft Flatbed Cimc Container Semi Trailer / Container Trailer
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Cellphone: (+86)15271357675
Website: www.truckinchina.com
| CARGO-HIGH SIDE TRAILER TECHNICAL SPECIFICATION | |
| FLAT BED | |
| All dimension and components should comply with the standard specified by the Standardization & Metrology Organanization for GCC (GSMO) and Saudi Arabian Standard Organization (SASO) | |
| Descriptions | Technical Specifications |
| Overall Length (mm) | 12,500 |
| Overall Width (mm) | 2,600 |
| Front wall Overall Height (mm) | 2,000 |
| Payload Capacity (kg) | 30,000 (Approximately) |
| Gross Vehicle Weight (kg) | 40,000 (Maximum) |
| Chassis | Beam (pre-engineered) build up structural steel conforming with DIN ST52-3. All structure, chassis and suspension shall be guaranteed for five (5) years against crack. |
| All structure, chassis and suspension should be guaranteed for five (5) years against cracked. | |
| Axle | Heavy duty axle, preferrably BPW brand |
| 3 X 10 - Air suspension | |
| Every air bellow shall be provided with emergency shut-off valve to manually close the air supply of individual bellow in case of leak | |
| 90 mm air bellows shoe should be installed on all air bellows. | |
| Spring center = 1,300 mm ( between axle ) | |
| Each axle shall have 2 shock absorbers | |
| Brakes | Air brake, dual circuit |
| Linkage-free parking brakes | |
| WABCO LSV/RSV valves conforming with asuspension loads | |
| The brake system shall have ABS control (Two axles2&3, indicating lights and fault indicator must be provided.) | |
| Best quality of brake hoses and clamps must be used | |
| All brake lines shall be protected with high quality insulation hoses and attached to the chassis with insulated metallic clamp | |
| Every union fitting shall be applied with loctite to ensure connection and prevent air leaks. | |
| Electrical System | 24 Vdc |
| Cables & Harnesses | Electrical cable wirings shall be appropriately harnessed and protected with an appropriate size of protective insulation. |
| Cable harness shall be properly laid out and held with appropriate sizes of insulated metallic clamps | |
| Fuses and Instrument Panels | The type of fuses shall be fast-acting and resettable |
| The instrument protective devices shall be appropriately coordinated for proper protection of the electrical system | |
| The instrument panel shall be easily accessible, it should be secured and placed in a safe area in front of the trailer chassis | |
| Trailer Exterior Lighting (Sizes & colors of exterior light shall conform with SASO and international standards) | Side marker lights - Total of 14 side marker lights, 7 on each side of the trailer, symmetrically placed to cover the total length of the trailer |
| Taillight clusters - Two sets on each side of the trailer's rear end. Each cluster includes; reflector red in color and the dimensions shall be 10cm x 12 cm) parking light, brake light, direction light, & reverse light and horn. | |
| Rear plate lights - 2 pieces | |
| Trailer Electric Coupling Connector | Heavy duty, all weather 7-pin connector, with flexible spiral conduit or multicore cable with heavy insulation |
| King pin | 2" King pin mounted to the front reinforced subframe . |
| Support legs (Landing gear) | SAF/JOST brand (Germany) heavy duty telescopic type dual speed support legs. Suitable bracing with crank mechanism should be added to support the landing gear |
| Suspension ride height on 5th wheel (mm) | The mounting of top plate for each air bellow shall be measured in such a way that the floor height shall be level. Taking into consideration that the fifth wheel height is 1,400 mm |
| Tires and Rims | Single tire Super 385/65R (11.75x22.5) steel disc rims. (6+1) HANKOOK |
| Flooring | Steel Checkered 3mm plate |
| The trailer shall be designed to carry a 40-foot container box and Two (2) 20-foot container box | |
| The container twist lock shall be made of best quality lock | |
| Each side shall have removable pillars with locks (60x80x4x1500mm) 10 pieces on each side | |
| 15 pieces of hooks for cargo belts shall also be provided on each side. | |

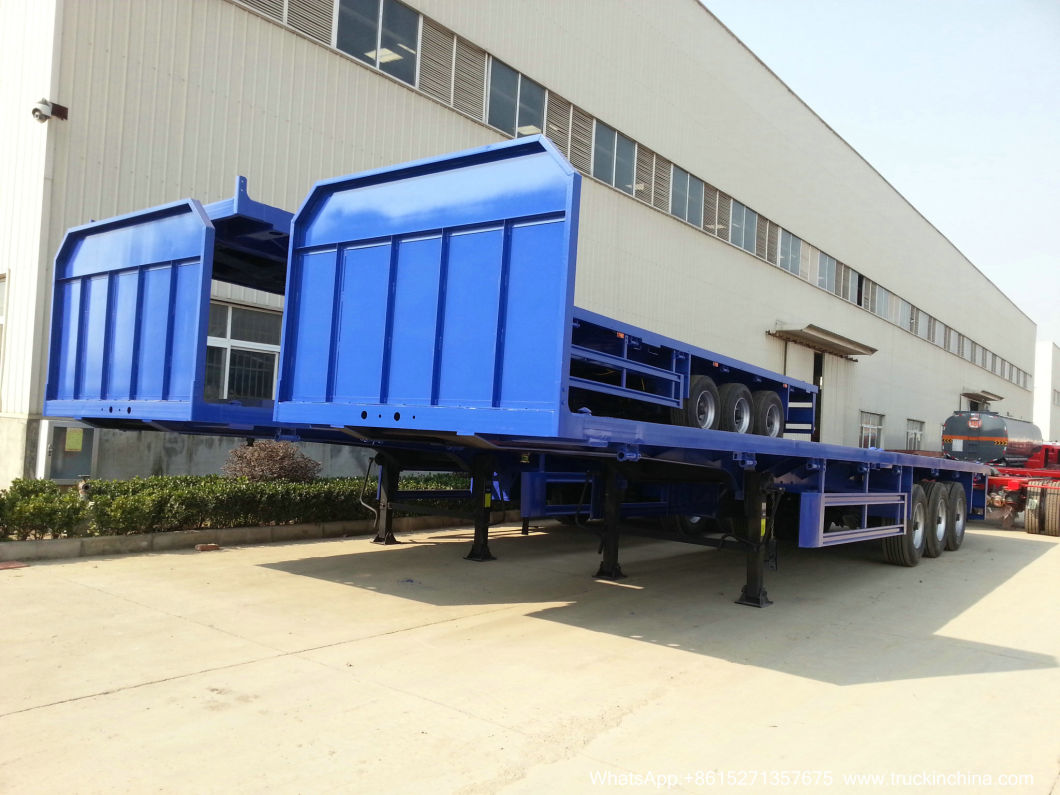

| Trailer Front Wall | The front wall shall be 2 meters high and shall be provided with appropriate carrier for trailer accessories |
| The carrier shall be infront of the trailer wall . The carrier shall be equipped with step ladders on both sides | |
| Side Pillars Carrier | Suitable carrier or tray with lockable door cover for keeping the removable side pillars shall be provided on the side of the trailer to storing the removable side pillars. |
| Cargo Restraint | Twenty (20) pieces removable side pillars and Two (2) pieces ratchet type cargo belts (2,000 kg x 10,000 mm). Two (2) pices cargo chain which come along with type 3 tons. |
| Paints and Anti-corrosion | All beams,plates and structural frames shall be cleaned by sand blasting then treated with anti-rust primer before anti-corrosion paint or body coat will be applied.The trailer shall be guaranteed for five (5) years against corrosion. |
| Standard Accessories | Reinforced rear bumper with rubber dumper |
| Two (2) six (6)kg. ABC type fire extinguisher with holder | |
| Spare tire carrier for 2 tires | |
| Ice box and water plastic tank with dispenser | |
| Driver tool box( food, etc…) | |
| Two (2) pieces tire chokes. | |
| Steel mudguard and tail lights grill | |
| Plastic water tank with faucet-200 liters | |
| Tool box with lock | |
| Warranty Provisions | The warranty from any manufacturing defect shall be applied to the trailer as a whole for a period of two years except for cracks which is five years. |
| Warranty Procedure Guidelines must be presented to SAPTCO by the vendor of the chosen entry. | |
| The vendor shall handle the processing of the warranty repairs and shall be fully responsible in case of technical failures found during the operation of the trailer while the warranty is still in effect. | |
| Suspensions and chassis structures must be free from fissure and deformity for five (5) years beginning from the receiving date of the trailer. | |
Application of 3 axle flatbed container semi trailer
Flatbed semi trailer could transport the containers and the bulk cargos. It is the most widely used semi trailer. It could load the 1x40ft, 2x20ft, 1x20ft container. With the assistance of front wall and hooks on both side of the trailers, it could easy load different types of daily bulk cargos.
Description of 3 axle flatbed container semi trailer
This 3 axle flatbed semi trailer is a standardized container semi trailer with several customized details. There is front wall and side hooks, euphroes to assist the bulk cargo transport. There is large volume fuel tankers 2x800L to assist the long distance transportation. The tare weight is 7400kgs, with 45000kgs payload, suitable for long distance and heavy duty transport.
Selling point of 3 axle flatbed container semi trailer
1.Additional fuel tankers to provide assistance for long distance travel
2.Customized rear bumper to suit the local regulations in Malawi
Specification
Dimension | |
Overall dimension | 12400x2500x1700mm |
Tare weight | 7400kgs |
Payload | 45Tons |
Specification | |
Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm; |
Axle | China brand HJ |
Suspension | German type heavy duty mechanical suspension |
Leaf spring | 13pcs leaf spring |
Kingpin | JOST 2 inches |
Landing gear | JOST landing gear |
Wheel rim | 9.0R22.5 steel wheel rim |
Tyre | 12R22.5 tubeless tyre |
Spare tire | One spare tire, one spare tire |
Twist lock | 12pcs twist lock for 40ft, 20ft container |
Brake system | WABCO RE 6 relay valve, spring brake chamber |
Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
Accessories | One standard tool box, one spare tyre carrier |
40' FLATBED SEMI-TRAILER 3 AXLES
1. Oversize : 12425*2480*1530mm(40')
2. Weight
(1) kerb mass: 7300 Kgs
(2) Capacity load: 40000 Kgs
(3) Total weight: 47300 Kgs
3. Frame: Double main beams(Q345B/ST52-3), through cross beams (Q235) and 3mm pattern plate frame, it is high intensify, 12 container locks will meet requirement of loading one 40' container or two 20' containers or one 20' container in the middle.
4. Running gear
(1) Axle: FUWA axle 13T*3
(2) Suspension: Three axles strengthen leaf spring suspension system, leaf spring 7×16×90mm
(3) Wheel rim: Single Tire-11.75-22.5*7; Double Tire: 90*22.5*13
(4) Tire: Single Tire - 385/65R22.5*7 (Spare tire 1pc included)
Double Tire - 315/80R22.5*13 (Spare tire 1pc included)
5. Kingpin: JOST 3.5"
6. Landing gear : SAF-HOLLAND, double speed linkage,
7. Braking system: Double pipe line air brake, WABCO brake valve, front axle is 30" air chamber, rear axle is 30/30" air chamber.
8. Electrical system: 24V, seven core socket, lights accord to standard in China.
9. Others
(1) Articulated frame spare tire bracket: 2 units
(2) Tool box: 1 unit
(3) One set of driver's tool: 1 Tire spanner, 1 Gudgeon sleeve, 1 Cranking bar
(4) Steel side guardboard
(5) Steel mudguard and mudguard rubber
10. Surface treatment
(1) Shot blasting for complete semi-trailer
(2) Zinc-rich prime coat and final coat, color accord to the requirement of customer.
Contact to get the detail and price → Cellphone: (+86)15271357635
Website: www.truckinchina.com
Hot Searches:
Semi Trailer Tanker Semi Trailer Flatbed Trailer Tipper Semi Trailer Utility Trailer Low Flatbed Semi Trailer Flatbed Container Semi Trailer 3 Axles Flatbed Semi Trailer 3 Axles Low Flatbed Semi Trailer 3 Axles Flatbed Container Semi Trailer Twist Locks Flatbed Semi Trailer
Recommended Suppliers:
Semi Trailer Manufacturers Tanker Semi Trailer Manufacturers Flatbed Trailer Manufacturers Tipper Semi Trailer Manufacturers Utility Trailer Manufacturers Low Flatbed Semi Trailer Manufacturers Flatbed Container Semi Trailer Manufacturers 3 Axles Flatbed Semi Trailer Manufacturers 3 Axles Low Flatbed Semi Trailer Manufacturers 3 Axles Flatbed Container Semi Trailer Manufacturers Twist Locks Flatbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Heavy Semi Trailer Wholesale Tractor Semi Trailer Wholesale New Semi Trailer
China Trailer Truck Trailer Semi Trailer Tipper Trailer Heavy Duty Lowbed Semi Trailer Lowbed Truck Semi Trailer Gooseneck Lowbed Trailer Gooseneck Lowbed Semi Trailer Lowbed Trailer 3 Axles Ramp Lowbed Semi Trailer
Recommended Suppliers:
China Trailer Manufacturers Truck Trailer Manufacturers Semi Trailer Manufacturers Tipper Trailer Manufacturers Heavy Duty Lowbed Semi Trailer Manufacturers Lowbed Truck Semi Trailer Manufacturers Gooseneck Lowbed Trailer Manufacturers Gooseneck Lowbed Semi Trailer Manufacturers Lowbed Trailer 3 Axles Manufacturers Ramp Lowbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Low Trailer Wholesale Truck Semi Trailer Wholesale Heavy Semi Trailer Wholesale New Semi Trailer Wholesale Semi Trailer Door
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
Flatbed Container Trailer With Front Board
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale call:+86-152 -7135-7675
40ft Flatbed Cimc Container Semi Trailer / Container Trailer
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Cellphone: (+86)15271357675
Website: www.truckinchina.com
| CARGO-HIGH SIDE TRAILER TECHNICAL SPECIFICATION | |
| FLAT BED | |
| All dimension and components should comply with the standard specified by the Standardization & Metrology Organanization for GCC (GSMO) and Saudi Arabian Standard Organization (SASO) | |
| Descriptions | Technical Specifications |
| Overall Length (mm) | 12,500 |
| Overall Width (mm) | 2,600 |
| Front wall Overall Height (mm) | 2,000 |
| Payload Capacity (kg) | 30,000 (Approximately) |
| Gross Vehicle Weight (kg) | 40,000 (Maximum) |
| Chassis | Beam (pre-engineered) build up structural steel conforming with DIN ST52-3. All structure, chassis and suspension shall be guaranteed for five (5) years against crack. |
| All structure, chassis and suspension should be guaranteed for five (5) years against cracked. | |
| Axle | Heavy duty axle, preferrably BPW brand |
| 3 X 10 - Air suspension | |
| Every air bellow shall be provided with emergency shut-off valve to manually close the air supply of individual bellow in case of leak | |
| 90 mm air bellows shoe should be installed on all air bellows. | |
| Spring center = 1,300 mm ( between axle ) | |
| Each axle shall have 2 shock absorbers | |
| Brakes | Air brake, dual circuit |
| Linkage-free parking brakes | |
| WABCO LSV/RSV valves conforming with asuspension loads | |
| The brake system shall have ABS control (Two axles2&3, indicating lights and fault indicator must be provided.) | |
| Best quality of brake hoses and clamps must be used | |
| All brake lines shall be protected with high quality insulation hoses and attached to the chassis with insulated metallic clamp | |
| Every union fitting shall be applied with loctite to ensure connection and prevent air leaks. | |
| Electrical System | 24 Vdc |
| Cables & Harnesses | Electrical cable wirings shall be appropriately harnessed and protected with an appropriate size of protective insulation. |
| Cable harness shall be properly laid out and held with appropriate sizes of insulated metallic clamps | |
| Fuses and Instrument Panels | The type of fuses shall be fast-acting and resettable |
| The instrument protective devices shall be appropriately coordinated for proper protection of the electrical system | |
| The instrument panel shall be easily accessible, it should be secured and placed in a safe area in front of the trailer chassis | |
| Trailer Exterior Lighting (Sizes & colors of exterior light shall conform with SASO and international standards) | Side marker lights - Total of 14 side marker lights, 7 on each side of the trailer, symmetrically placed to cover the total length of the trailer |
| Taillight clusters - Two sets on each side of the trailer's rear end. Each cluster includes; reflector red in color and the dimensions shall be 10cm x 12 cm) parking light, brake light, direction light, & reverse light and horn. | |
| Rear plate lights - 2 pieces | |
| Trailer Electric Coupling Connector | Heavy duty, all weather 7-pin connector, with flexible spiral conduit or multicore cable with heavy insulation |
| King pin | 2" King pin mounted to the front reinforced subframe . |
| Support legs (Landing gear) | SAF/JOST brand (Germany) heavy duty telescopic type dual speed support legs. Suitable bracing with crank mechanism should be added to support the landing gear |
| Suspension ride height on 5th wheel (mm) | The mounting of top plate for each air bellow shall be measured in such a way that the floor height shall be level. Taking into consideration that the fifth wheel height is 1,400 mm |
| Tires and Rims | Single tire Super 385/65R (11.75x22.5) steel disc rims. (6+1) HANKOOK |
| Flooring | Steel Checkered 3mm plate |
| The trailer shall be designed to carry a 40-foot container box and Two (2) 20-foot container box | |
| The container twist lock shall be made of best quality lock | |
| Each side shall have removable pillars with locks (60x80x4x1500mm) 10 pieces on each side | |
| 15 pieces of hooks for cargo belts shall also be provided on each side. | |
| Trailer Front Wall | The front wall shall be 2 meters high and shall be provided with appropriate carrier for trailer accessories |
| The carrier shall be infront of the trailer wall . The carrier shall be equipped with step ladders on both sides | |
| Side Pillars Carrier | Suitable carrier or tray with lockable door cover for keeping the removable side pillars shall be provided on the side of the trailer to storing the removable side pillars. |
| Cargo Restraint | Twenty (20) pieces removable side pillars and Two (2) pieces ratchet type cargo belts (2,000 kg x 10,000 mm). Two (2) pices cargo chain which come along with type 3 tons. |
| Paints and Anti-corrosion | All beams,plates and structural frames shall be cleaned by sand blasting then treated with anti-rust primer before anti-corrosion paint or body coat will be applied.The trailer shall be guaranteed for five (5) years against corrosion. |
| Standard Accessories | Reinforced rear bumper with rubber dumper |
| Two (2) six (6)kg. ABC type fire extinguisher with holder | |
| Spare tire carrier for 2 tires | |
| Ice box and water plastic tank with dispenser | |
| Driver tool box( food, etc…) | |
| Two (2) pieces tire chokes. | |
| Steel mudguard and tail lights grill | |
| Plastic water tank with faucet-200 liters | |
| Tool box with lock | |
| Warranty Provisions | The warranty from any manufacturing defect shall be applied to the trailer as a whole for a period of two years except for cracks which is five years. |
| Warranty Procedure Guidelines must be presented to SAPTCO by the vendor of the chosen entry. | |
| The vendor shall handle the processing of the warranty repairs and shall be fully responsible in case of technical failures found during the operation of the trailer while the warranty is still in effect. | |
| Suspensions and chassis structures must be free from fissure and deformity for five (5) years beginning from the receiving date of the trailer. | |
Application of 3 axle flatbed container semi trailer
Flatbed semi trailer could transport the containers and the bulk cargos. It is the most widely used semi trailer. It could load the 1x40ft, 2x20ft, 1x20ft container. With the assistance of front wall and hooks on both side of the trailers, it could easy load different types of daily bulk cargos.
Description of 3 axle flatbed container semi trailer
This 3 axle flatbed semi trailer is a standardized container semi trailer with several customized details. There is front wall and side hooks, euphroes to assist the bulk cargo transport. There is large volume fuel tankers 2x800L to assist the long distance transportation. The tare weight is 7400kgs, with 45000kgs payload, suitable for long distance and heavy duty transport.
Selling point of 3 axle flatbed container semi trailer
1.Additional fuel tankers to provide assistance for long distance travel
2.Customized rear bumper to suit the local regulations in Malawi
Specification
Dimension | |
Overall dimension | 12400x2500x1700mm |
Tare weight | 7400kgs |
Payload | 45Tons |
Specification | |
Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm; |
Axle | China brand HJ |
Suspension | German type heavy duty mechanical suspension |
Leaf spring | 13pcs leaf spring |
Kingpin | JOST 2 inches |
Landing gear | JOST landing gear |
Wheel rim | 9.0R22.5 steel wheel rim |
Tyre | 12R22.5 tubeless tyre |
Spare tire | One spare tire, one spare tire |
Twist lock | 12pcs twist lock for 40ft, 20ft container |
Brake system | WABCO RE 6 relay valve, spring brake chamber |
Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
Accessories | One standard tool box, one spare tyre carrier |

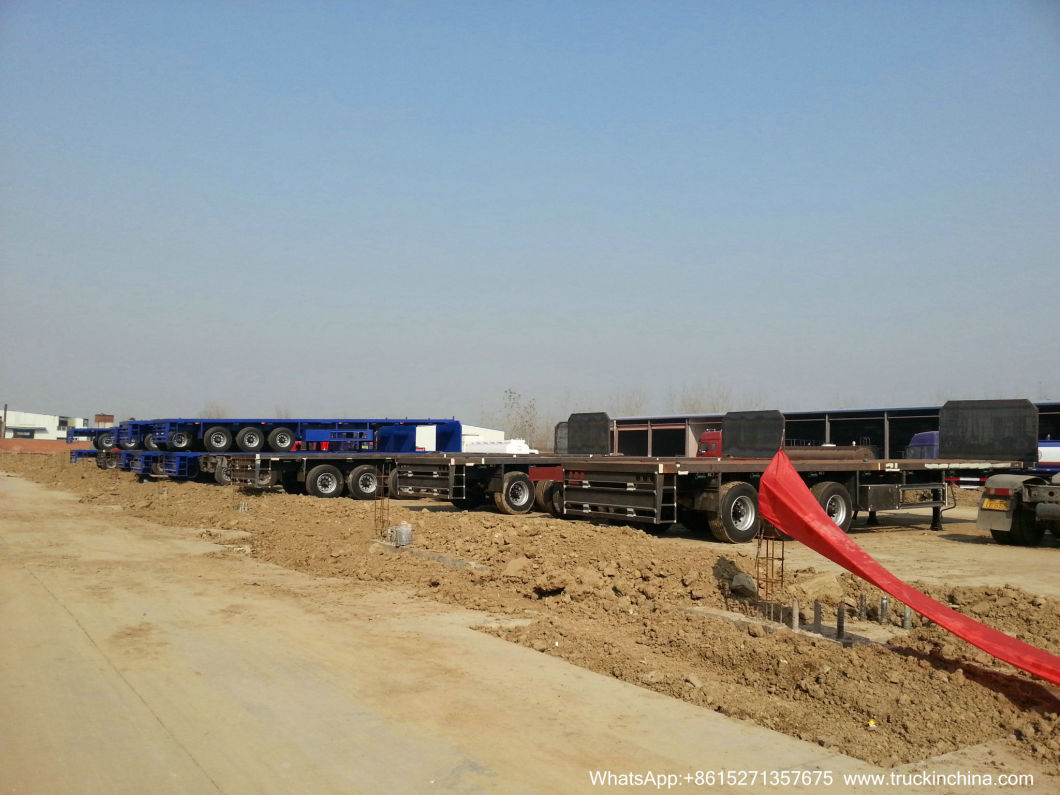

40' FLATBED SEMI-TRAILER 3 AXLES
1. Oversize : 12425*2480*1530mm(40')
2. Weight
(1) kerb mass: 7300 Kgs
(2) Capacity load: 40000 Kgs
(3) Total weight: 47300 Kgs
3. Frame: Double main beams(Q345B/ST52-3), through cross beams (Q235) and 3mm pattern plate frame, it is high intensify, 12 container locks will meet requirement of loading one 40' container or two 20' containers or one 20' container in the middle.
4. Running gear
(1) Axle: FUWA axle 13T*3
(2) Suspension: Three axles strengthen leaf spring suspension system, leaf spring 7×16×90mm
(3) Wheel rim: Single Tire-11.75-22.5*7; Double Tire: 90*22.5*13
(4) Tire: Single Tire - 385/65R22.5*7 (Spare tire 1pc included)
Double Tire - 315/80R22.5*13 (Spare tire 1pc included)
5. Kingpin: JOST 3.5"
6. Landing gear : SAF-HOLLAND, double speed linkage,
7. Braking system: Double pipe line air brake, WABCO brake valve, front axle is 30" air chamber, rear axle is 30/30" air chamber.
8. Electrical system: 24V, seven core socket, lights accord to standard in China.
9. Others
(1) Articulated frame spare tire bracket: 2 units
(2) Tool box: 1 unit
(3) One set of driver's tool: 1 Tire spanner, 1 Gudgeon sleeve, 1 Cranking bar
(4) Steel side guardboard
(5) Steel mudguard and mudguard rubber
10. Surface treatment
(1) Shot blasting for complete semi-trailer
(2) Zinc-rich prime coat and final coat, color accord to the requirement of customer.
Contact to get the detail and price → Cellphone: (+86)15271357635
Website: www.truckinchina.com
Hot Searches:
Semi Trailer Tanker Semi Trailer Flatbed Trailer Tipper Semi Trailer Utility Trailer Low Flatbed Semi Trailer Flatbed Container Semi Trailer 3 Axles Flatbed Semi Trailer 3 Axles Low Flatbed Semi Trailer 3 Axles Flatbed Container Semi Trailer Twist Locks Flatbed Semi Trailer
Recommended Suppliers:
Semi Trailer Manufacturers Tanker Semi Trailer Manufacturers Flatbed Trailer Manufacturers Tipper Semi Trailer Manufacturers Utility Trailer Manufacturers Low Flatbed Semi Trailer Manufacturers Flatbed Container Semi Trailer Manufacturers 3 Axles Flatbed Semi Trailer Manufacturers 3 Axles Low Flatbed Semi Trailer Manufacturers 3 Axles Flatbed Container Semi Trailer Manufacturers Twist Locks Flatbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Heavy Semi Trailer Wholesale Tractor Semi Trailer Wholesale New Semi Trailer
China Trailer Truck Trailer Semi Trailer Tipper Trailer Heavy Duty Lowbed Semi Trailer Lowbed Truck Semi Trailer Gooseneck Lowbed Trailer Gooseneck Lowbed Semi Trailer Lowbed Trailer 3 Axles Ramp Lowbed Semi Trailer
Recommended Suppliers:
China Trailer Manufacturers Truck Trailer Manufacturers Semi Trailer Manufacturers Tipper Trailer Manufacturers Heavy Duty Lowbed Semi Trailer Manufacturers Lowbed Truck Semi Trailer Manufacturers Gooseneck Lowbed Trailer Manufacturers Gooseneck Lowbed Semi Trailer Manufacturers Lowbed Trailer 3 Axles Manufacturers Ramp Lowbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Low Trailer Wholesale Truck Semi Trailer Wholesale Heavy Semi Trailer Wholesale New Semi Trailer Wholesale Semi Trailer Door
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
