3 Germany BPW 14t Axles Low Bed Trailer 60 Tons Customizing with 20FT Container Locks (12.8*3*3m) CIF Momombasa
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
3 GERMANY BPW 14T Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks (12.8*3*3m) CIF MOMOMBASA JUBA SOUTH SUDAN

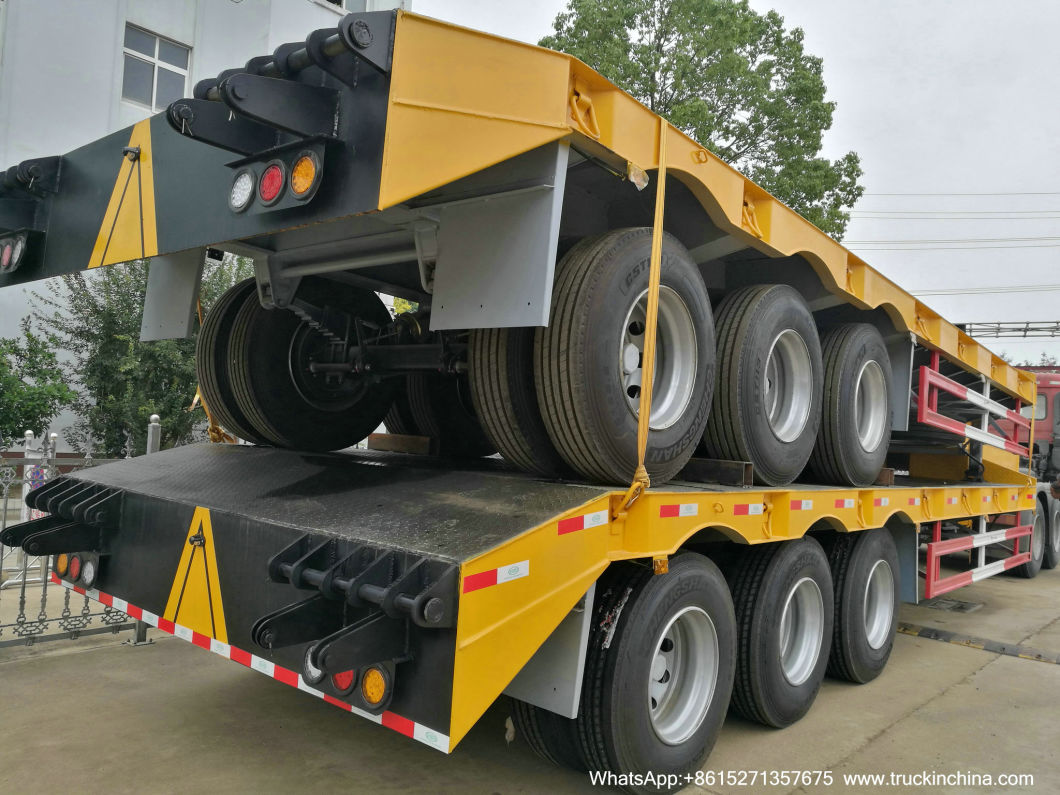

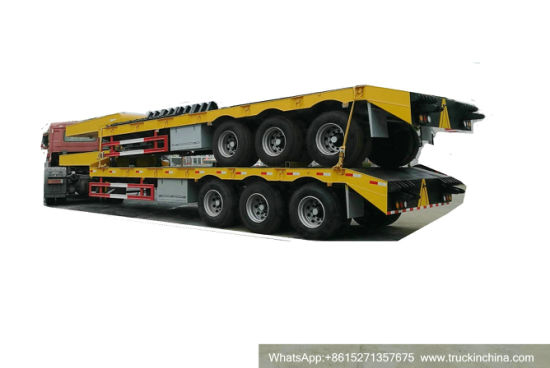

T9400TDP 3 Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks

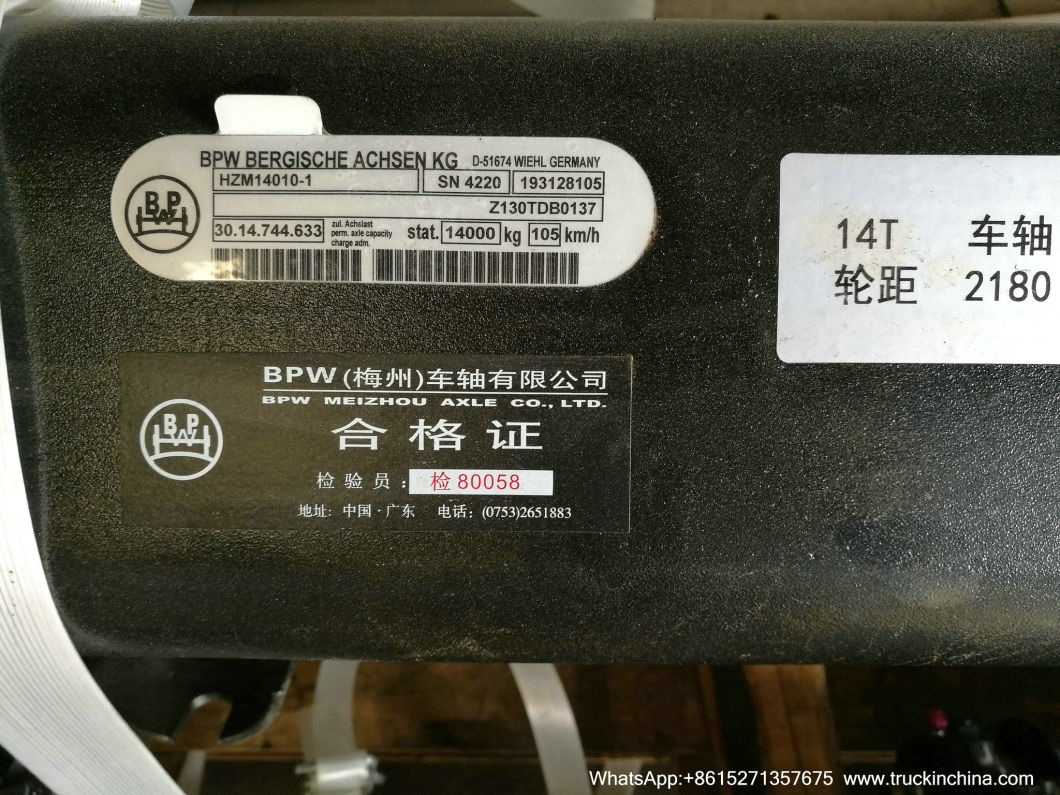

13M Low Bed Trailer BPW Axles 14T (GERMANY HZM4010-1) 2180mm, with 4pcs container locks,TIRES 12R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M
goosneck open 30*30cm for winch rope.
Ask Us for Better Price..

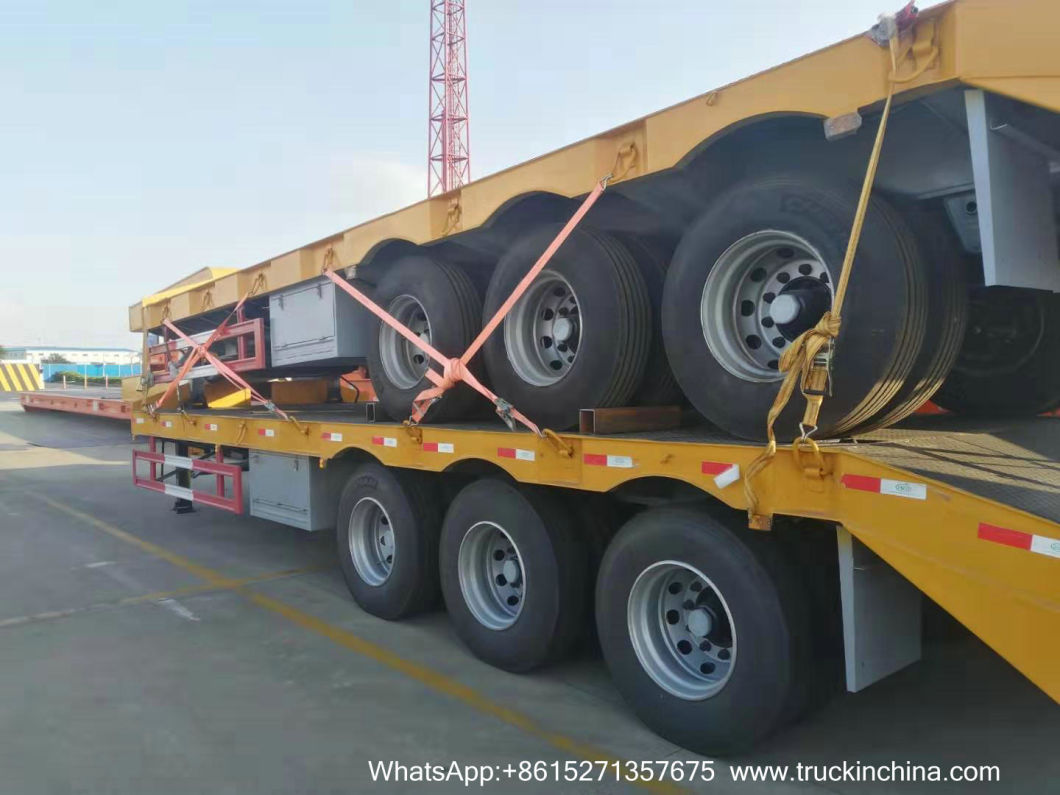

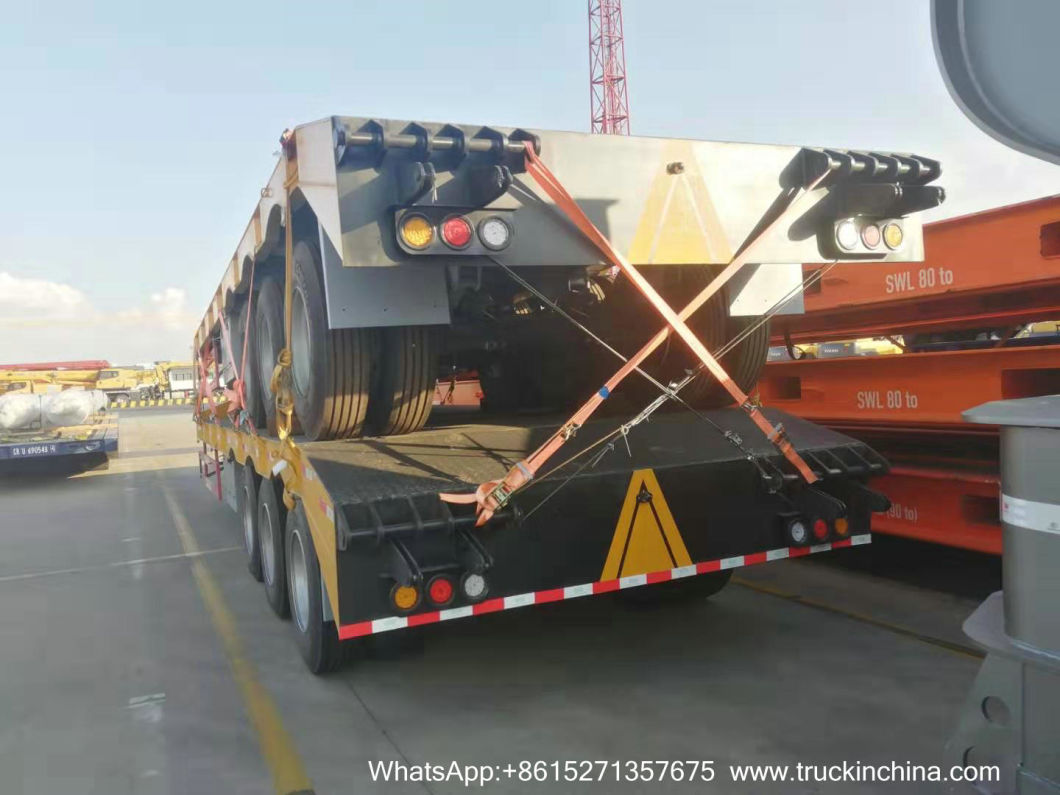

SUCCESS CASES : Export to Africa JUBA SOUTH SUDAN
FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA
Price TERM: CIF MOMOMBASA

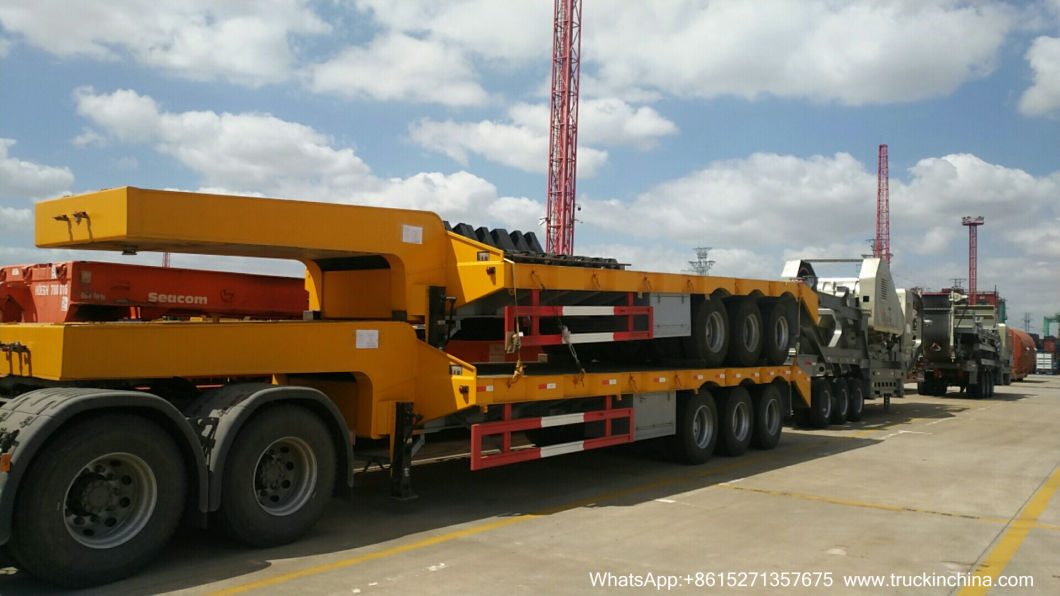

Ship Vessel details : GRAND PAVO (Vehicles Carrier) Voyage V.083 Time of Loading 2019-09-25
Heavy Equipment Transport Trailer

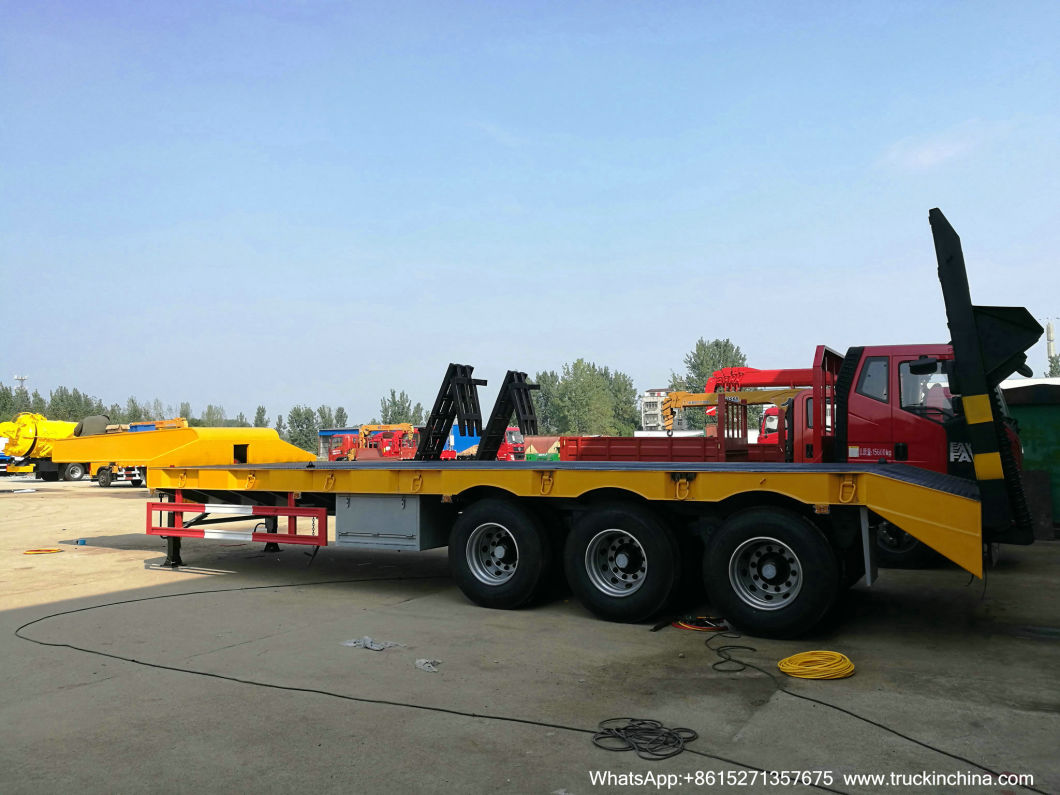

3 Axle Drop Deck Low Bed Trailer
1.Payload 60Tons ---90T
2.Construction machinery transport
3.Heavy duty equipment transport
4.3 axle heavy duty low bed trailer

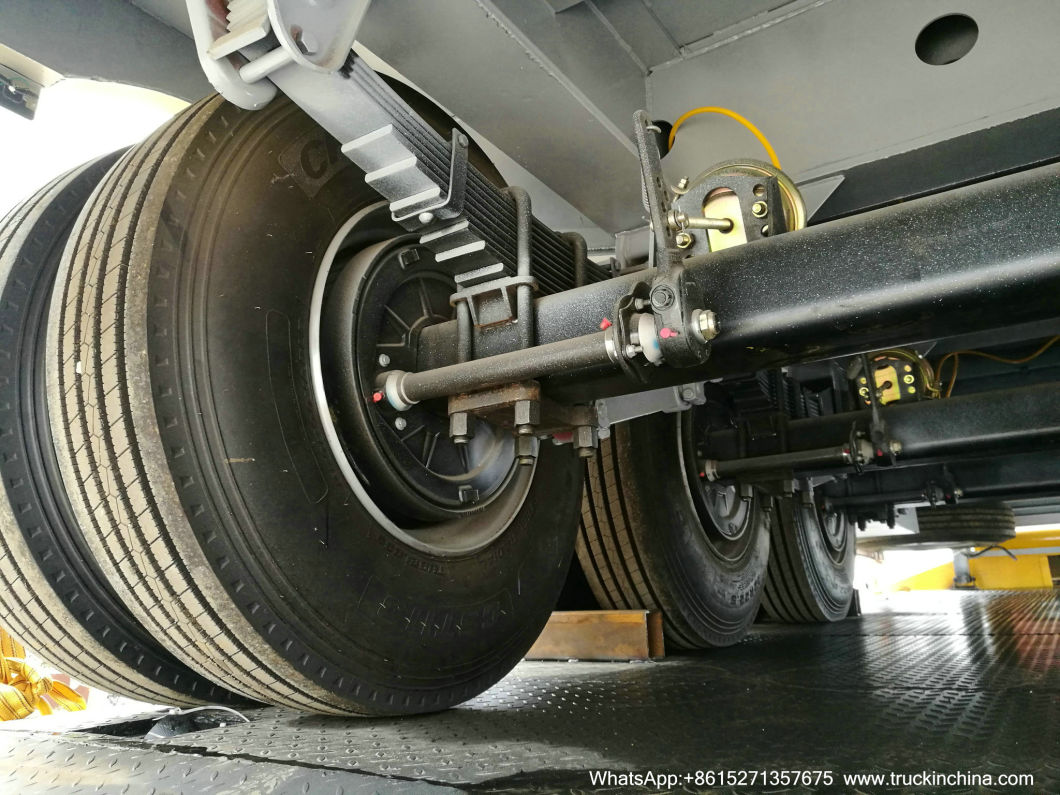

5.BPW 14 TON axle, mechanical suspension
Application of 3 Axle Heavy Duty Low Bed Trailer
Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.
Specifications:
Dimension | |
Loading Weight | 60T,75T,80T,90T,100T |
Overall Dimension(mm) | 12800×3000×3100,2015 |
Total Mass(Kg) | 55000-110,000 |
Deck Length | 8000mm-8300mm |
Deck Height | 850-1350mm |
Technical Data | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; Welded by automatic submerged-arc processes |
Fifth-wheel Load | 16000 |
Fifth-wheel Height | 1280 |
Payload(kg) | -/60000 (Tri-Axle) |
Curb Weight(kg) | 10000,11000,12000,13000, |
Approach/Departure Angle(°) | -/16 |
Front/Rear Suspension(mm) | -/1200 |
Floor | 3-6mm checkered steel plate |

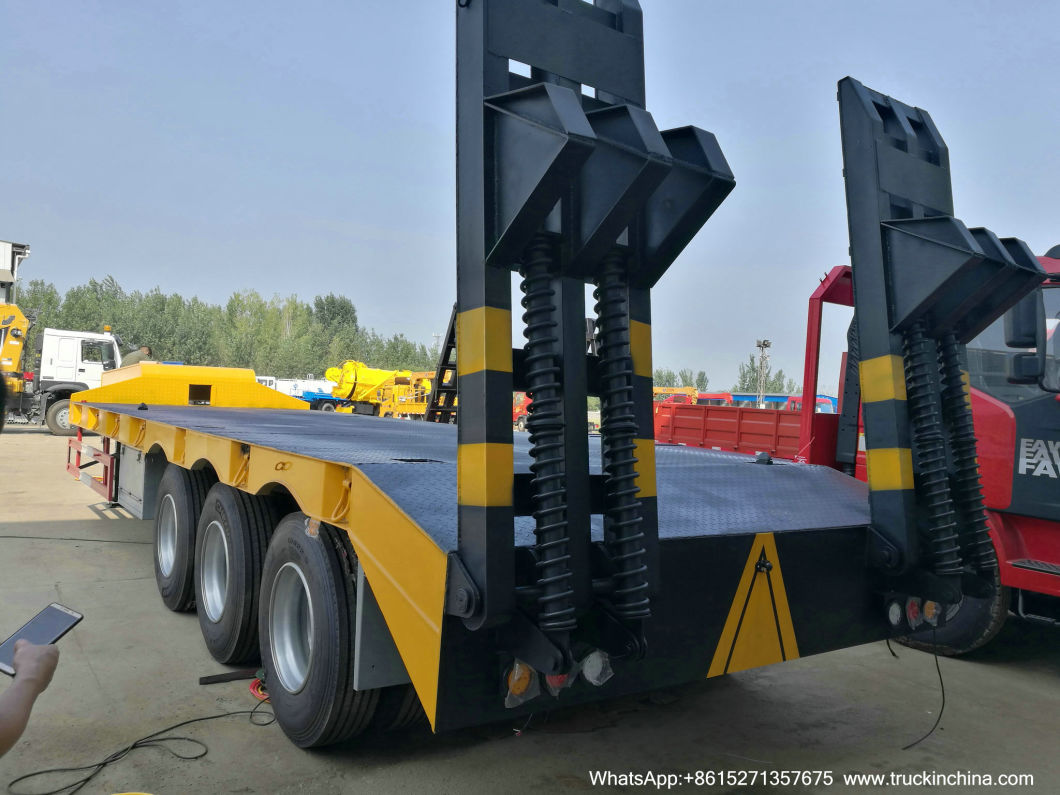

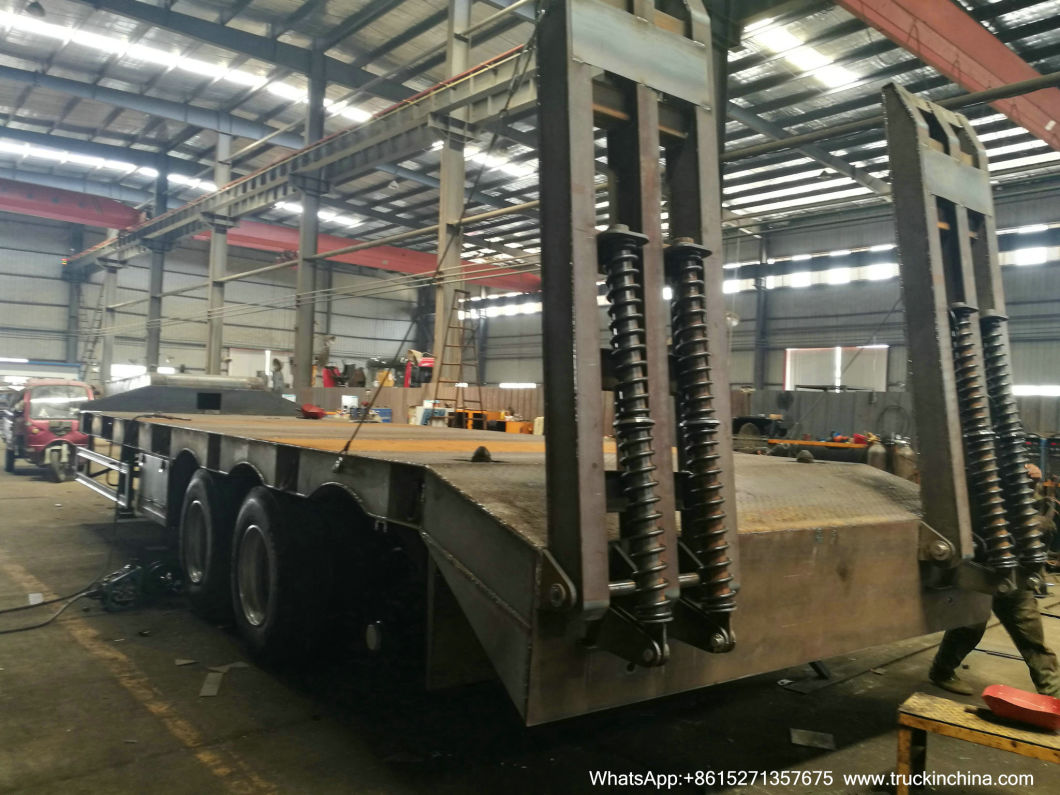

Ramp | Mechanical spring ramp |
Axle | FUWA 13 Ton x3, BPW 14T *3 |
Landing Gear | JOST brand Two-speed, manual operating |
King Pin | JOST brand 2"-3.5" bolt-in, 50#, 90# |

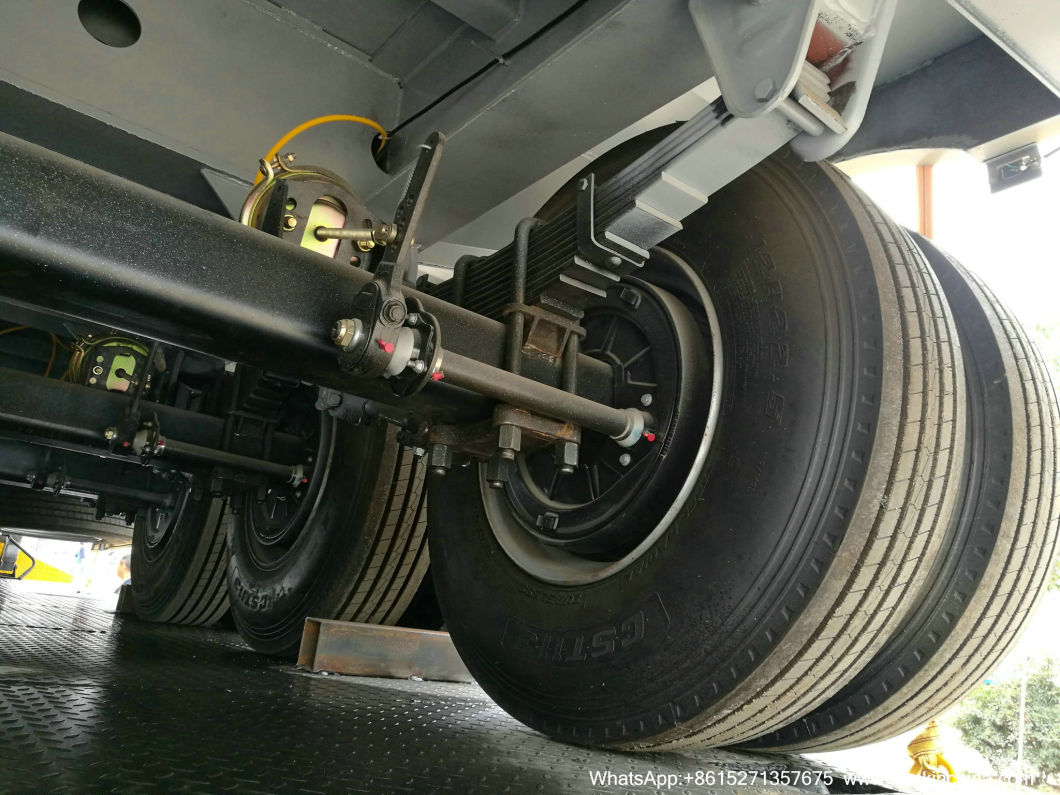

Suspension | Mechanical suspension |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |

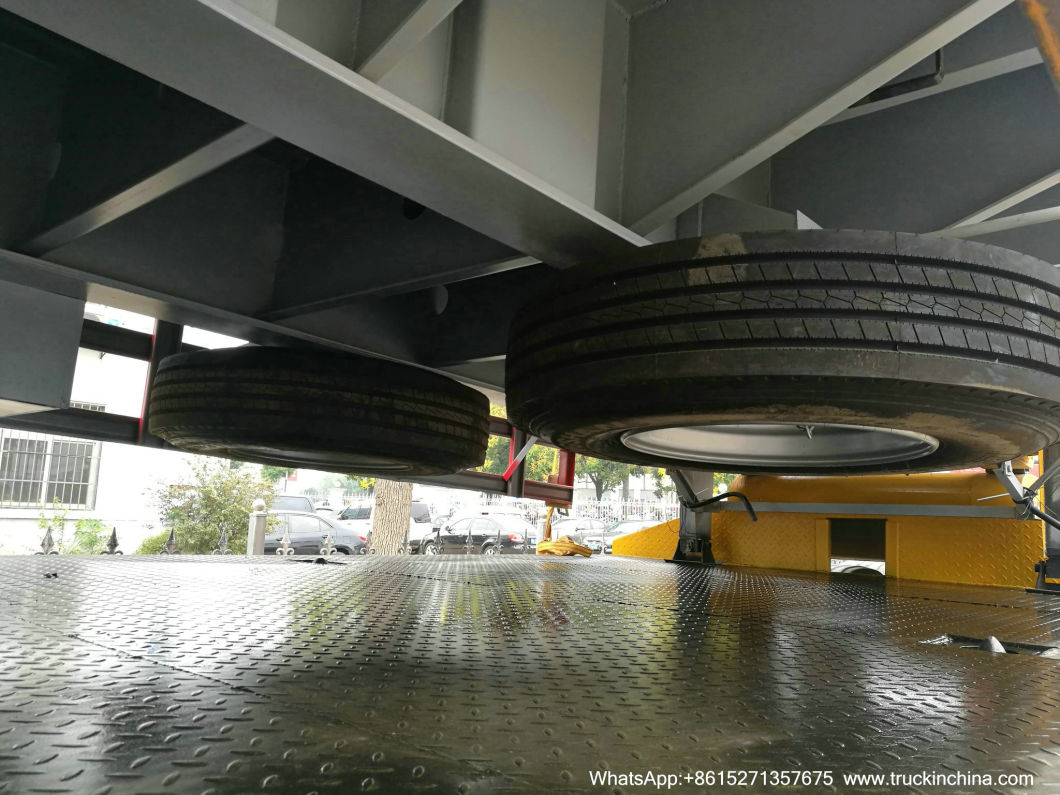

Spare Tire | One set of spare tire including a carrier |
Wheel Rim | 8.5-20, 8.25-22.5, 9.0-22.5 |
Tire | 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 |
Painting | Complete chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint |
Accessories | Tool box |
Wind Blade Transport Extendable Trailer
Total Standard Fuel Tank Trailer
Heavy Duty Low Loader Trailer
Heavy Equipment Transport Trailer
4 Axle 2 Line Low Bed Trailer
3 Axle Heavy Duty Low Bed Trailer
Advantages of 3 Axle Heavy Duty Low Bed Trailer
• Heavy duty I beam
The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.
• Well-made Superstructure
The superstructure of this low bed trailer is well designed by our experienced engineer.
• Customized Design
Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.
low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.
60 Ton Lowboy trailer Specification
SPECIFICATION | |
Payload | 60,000kg |
Tare Weight | 12,800kg |
Overall Length | 13,100mm |
Overall Width | 2,750mm |
Overall Height | 3,330mm |
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Floor | Steel Sheet 4mm thickness |
Axle | L1,FUWA,-16T axle for rear 3 axle |
Suspension | A couple of heavy duty under-slung mechanical suspension for rear 3 axle |
Leaf Spring | Six sets of reliable local brand, 8pcs( 10 pcs) leaf spring, 16x90mm |
King Pin | One unit of 3.5" welded kingpin (50#, 90#) |
Landing Gear | Two-speed, manual operation, heavy duty FUWA 19" linked landing gear |
Wheel Rim | 13 units 8.5-20, 8.25-22.5, 9.0-22.5, including 1 unit spare rim |
Tire | 13 units of 275/70R22.5 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 tire, including 1 unit spare tire; |
Hydraulic System of Rear Ladder | 1set of hydraulic ladder |
Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 chamber; |
Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; |
Painting | Sand blasting before painting; One coat of primer, anti-corrosion; |
Accessory | One box with a set of standard trailer tool |
Customizing Other Trailer Trucks
4 axles Heavy Duty Lowboy (Low Bed)Trailer (Flatbed 11M -16M )100Ton
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 90Ton heavy duty low bed trailer specifications
