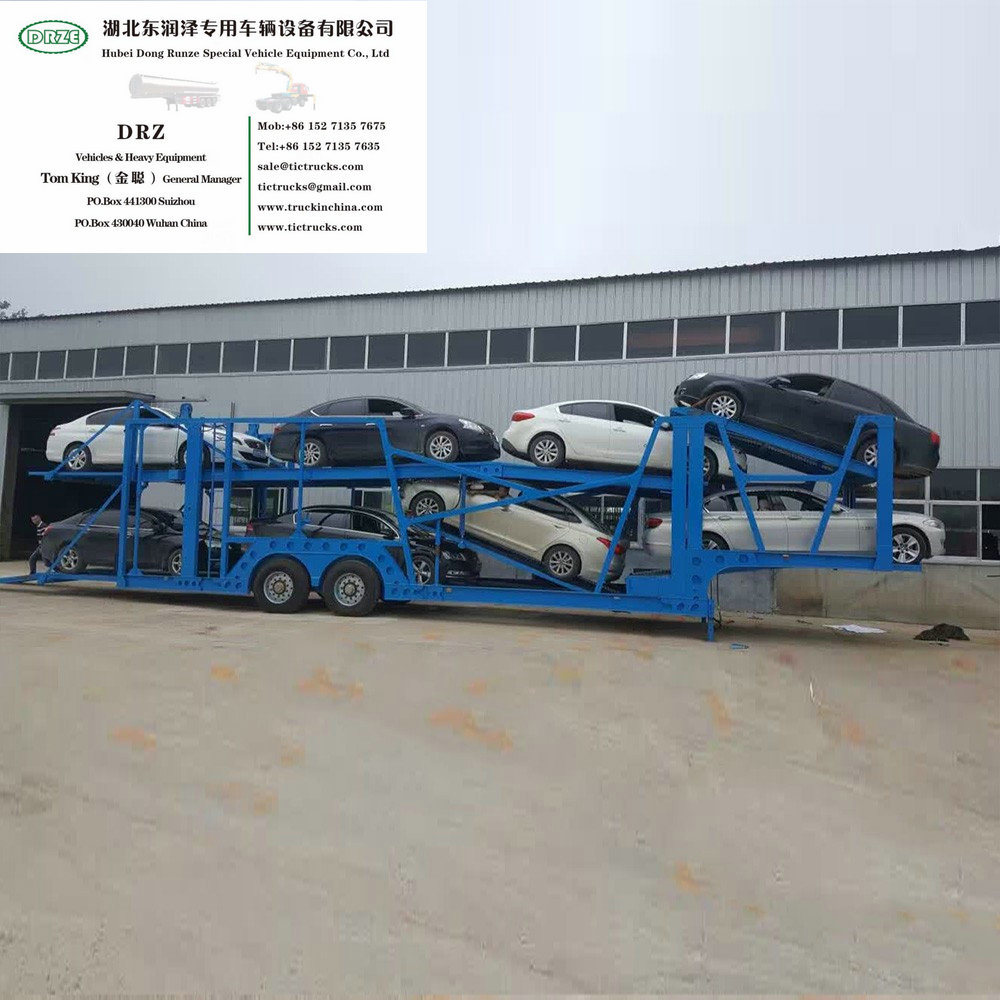

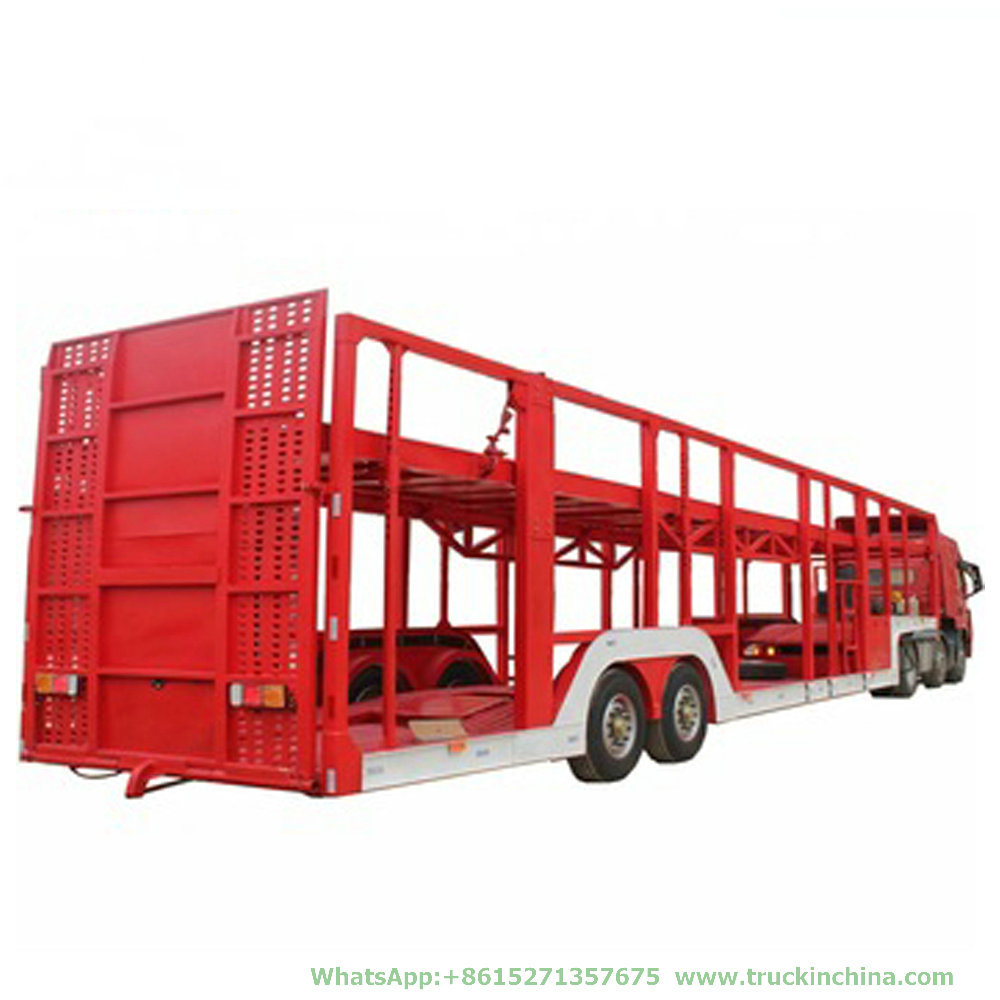

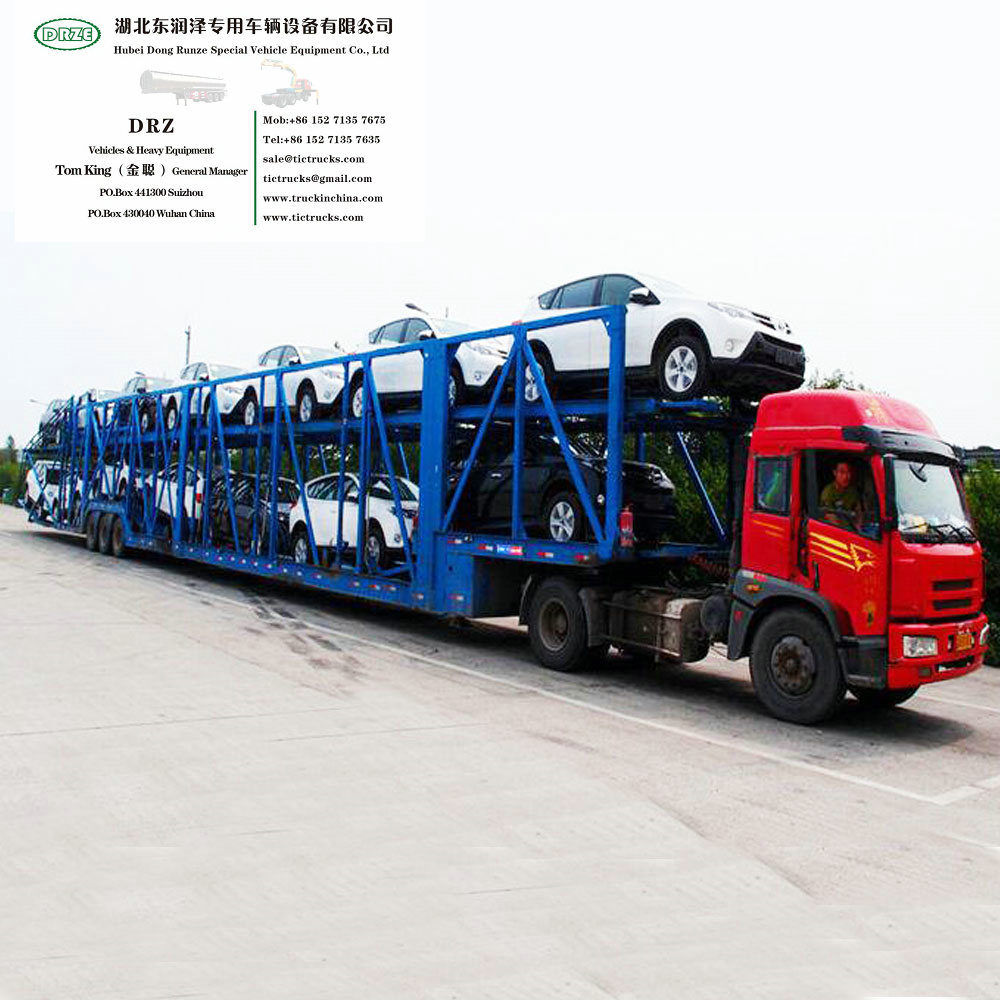

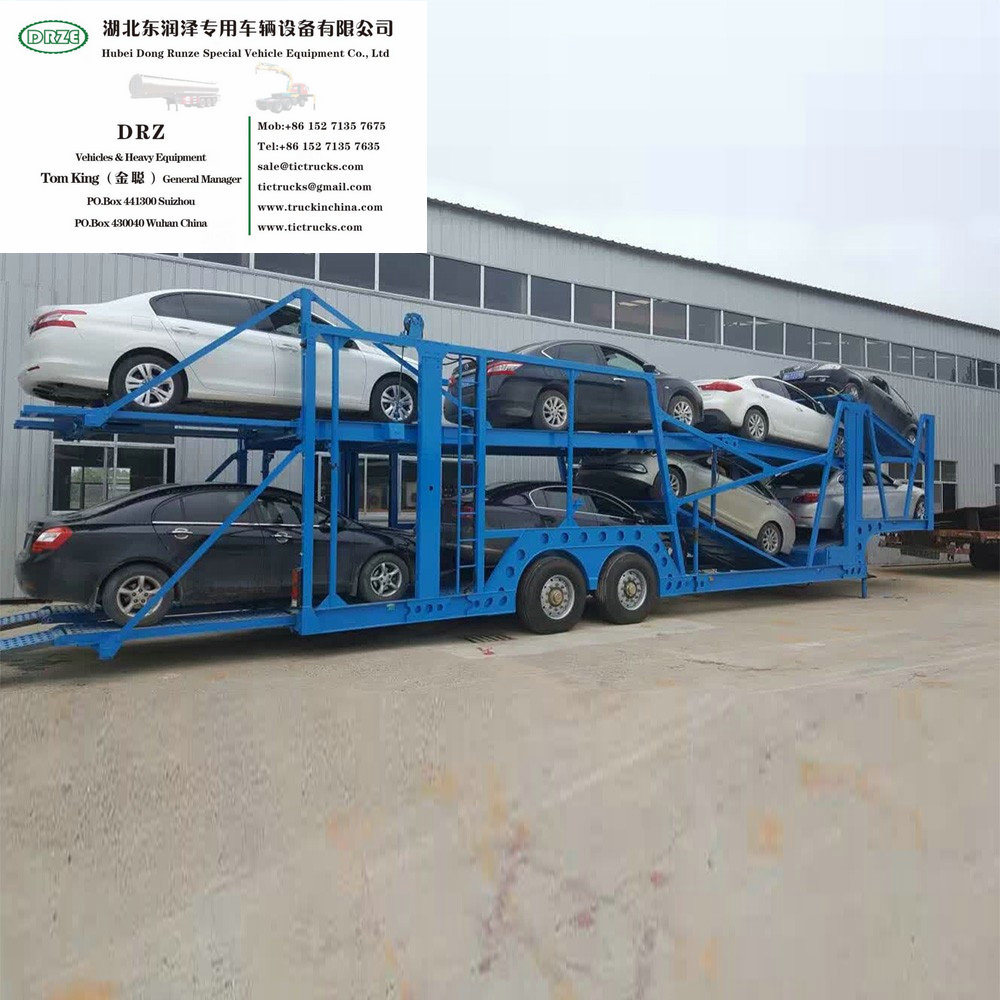

Customization Hydraulic Double Deck Car Carrier Semi Trailer (6-12 Units Car Transport Van Trailer)
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union
2 Axle Car Transport Trailer Delivery for 10 cars
6-8 cars 2/3 Axles Car Carrier trailer for sale
2 axles double deck car carrier trailer semi trailer
2/3 Axles 6 -12 car carrier/Car road transport semi truck trailer
6-12 Units Cdv, MPV, SUV, Hydraulic Van Double Deck CAR Carrier Semi Trailer
15-17m Length Car Carrier SemiTrailer for sale
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
| Cars Transportation Hydraulic Loading Truck Semi Trailer | |||||
| Size | Axle No | Rating Capacity | Tire Qty | Tire Model | |
| 6 Cars Loading | 2 Axles | 50Tons | 8 sets | 825R20 | |
| 10 Cars Loading | 3 Axles | 60-70Tons | 12sets | 10.00R20 | |
| More than 10 cars | 4 Axles | 80Tons | 16sets | 11.00R20 | |
| Rear tread(mm) | 1840/1840 | ||||
| Outside Dimension L×W×H | 15800-21000x2400x3000 mm | ||||
| Main Frame | Q345B manganese plates, automatic submerged arc welded | ||||
| Floor | Steel Sheet 3mm thickness or diamond plate | ||||
| Suspension | Steel leaf spring suspension system | ||||
| Rated load | 30-50 T | ||||
| Pin Size | 2' and 3.5' inter-changeable Pin | ||||
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. | ||||
| Braking System | 2-Line compressed air brake system on all wheels with additional parking brake. | ||||
| Brake Air Chamber | Automatic Air Chambers | ||||
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) | ||||
| Accessory | One tooling box with a set of standard trailer tool | ||||
| Landing gear | Capacity of 28ton,factory brand | ||||
| Lights System | LED electrical system to international standards includes taillights, sidelights and direction indicators. | ||||
| Loading Capacity | Two floors, | ||||
| General | ||||||
| Overall Dimension | 15000mm*2500mm*3800mm(Dimensions can be designed) | |||||
| Number of Car | 6(car quantity can be optional,6-12 cars) | |||||
| Total Weight | 11000kg | Pay Load | 40ton | |||
| Tell us the car outside dimensions,car carrier trailers can be designed | ||||||
| Running Gear | ||||||
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam (Air suspension) | |||||
| Tires | 10.00R20/8.25R20/1100R20, 12units | |||||
| Axles | FUWA axle, 13T capacity(BPW,YORK,SAF optional) | |||||
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
| Under Frame | ||||||
| Main Beam | Q345B steel,Height 500, upper 18mm, lower 18mm. Mid web 10mm | |||||
| Cross Beam | Mild Alloy Q235 | |||||
| King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | |||||
| Landing Gear | Single side operation or double side operation, Static capacity 28Ton | |||||
| Appendix | 1 tool box, length 1.0m | |||||
| Electrical & Paint | ||||||
| Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
| Lights & Reflectors | 24V, 7 lines | |||||
| Wiring | ISO standard air connector, 24V 7 pin plug socket | |||||
| Air/Elec. Connector | Color upon request | |||||
| Paint | According to your requirements | |||||
Application:
Suitable for the transportation of cars,commercial vehicles,jeep,other passanger cars.

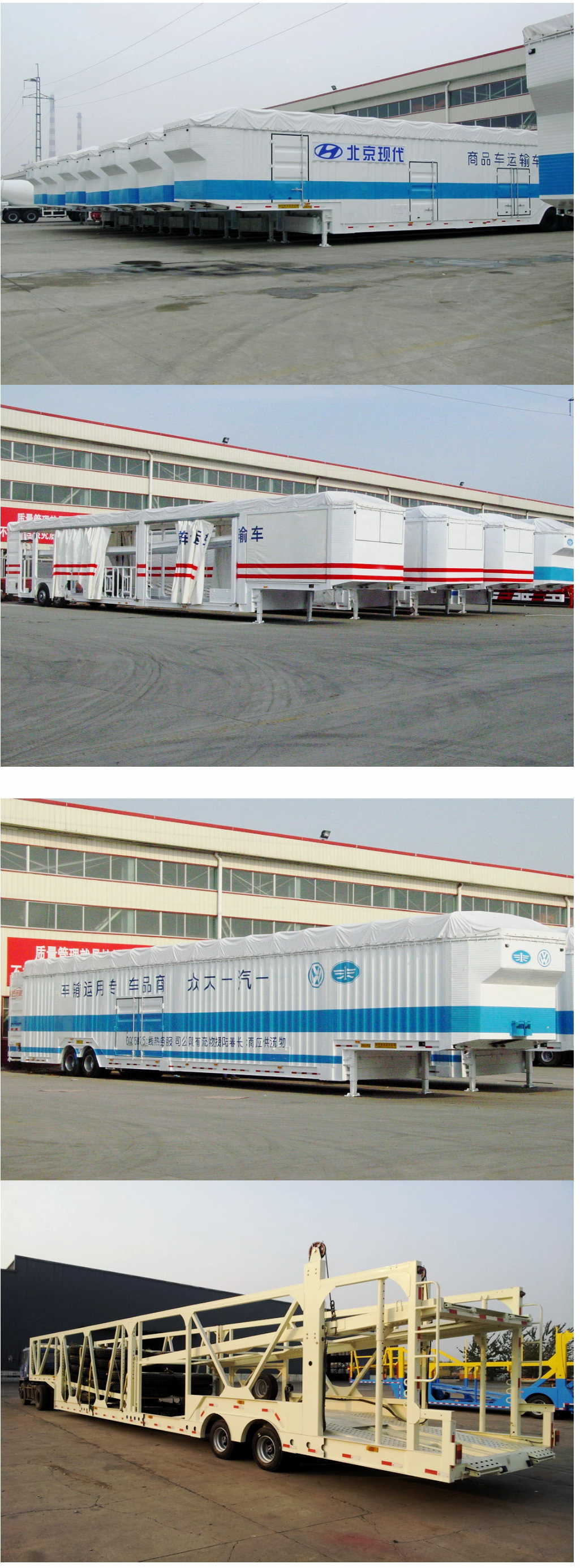

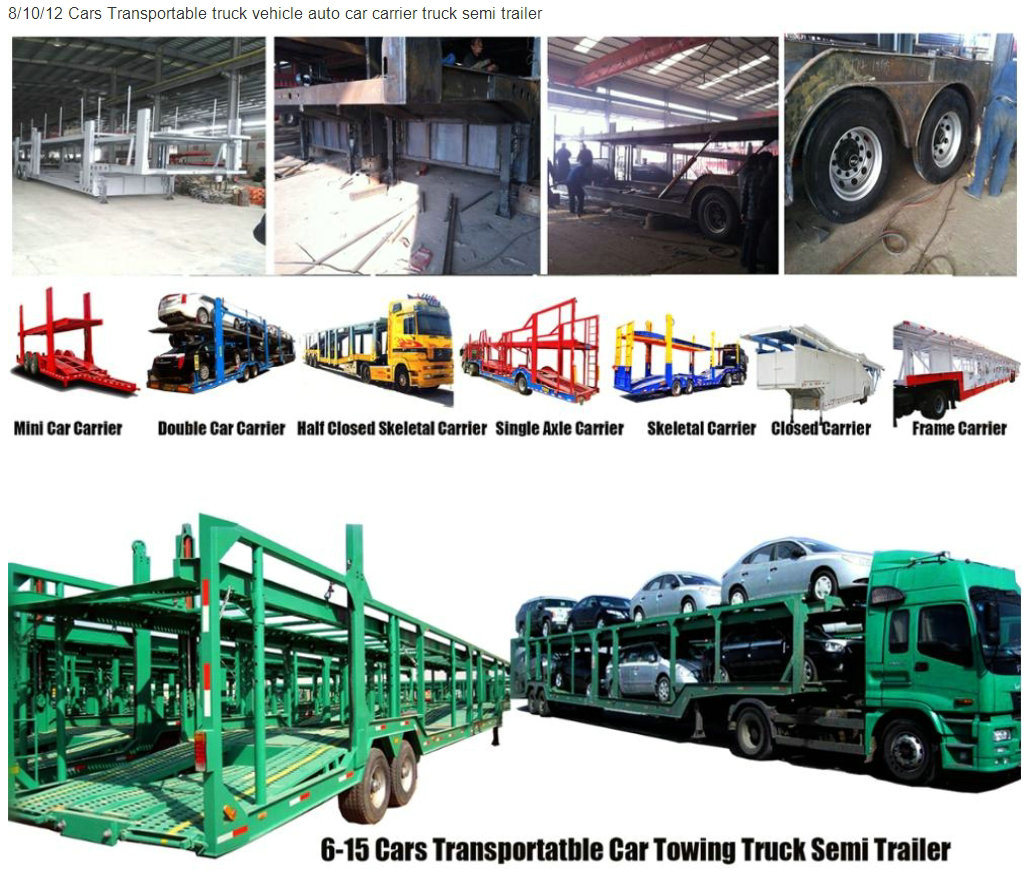

(a)This system mainly adopts the transportation vehicles semi-trailer rectangular pipe welded together frame structure, the overall high intensity, light weight, good appearance, have fully enclosed type, half hanging, semi-enclosed and frame type to wait for a few kinds structure, the use of safe and reliable
(b)The model fully absorbed the features of similar domestic and foreign products, adopt unique lifting system, the key part adopts renowned domestic and foreign products, load ability and high reliability
(c)The whole upper platform can be used on certain height, thus the can carry a different specifications od cars, MPV and SUVs and pickup truck, miniature passenger vehicles such as 5-10 vehicles. User's special customized vehicles can possess such special vehicle smoked full function, can transport various kinds of automobiles, return distribution, and other functions. The car is realized commodity car sales ideal tool for zero miles per hour
| Loading Capacity | Two floors,5cars each floor; 10cars in total |
| Outside Dimensions | 18000x2400x3000 mm |
| Tyre No | 12 |
| Wheelbase | 1310mm |
| Rear tread | 1840/1840 mm |
| Axle NO. | 3 |
| Traction Pin | 2' and 3.5' inter-changeable Pin |
| Landing gear | Capacity of 28ton |
| Tire Specifications | 12R22.5 |
| Spare Tire Carrier | One set of spare wheel carrier including a riser |
| Main Beam | Main Beams:Q345B manganese plates, automatic submerged arc welded |
| ABS | Optional |
| Suspension | Steel leaf spring suspension system |
| Brake System | 2-Line compressed air brake system on all wheels with additional parking brake |
| Brake Chamber | Automatic Air Chambers |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) |
| Lights System | Capacity of 28ton,factory brand Lights SystemLED electrical system to international standards includes taillights, sidelights and direction indicators. |
| Tool Box | 1 box of standard tools |
| Floor | Steel sheet 3mm thickness or diamond plate |
| Color and Logo | Depends on the customer's requirement |
| Usage | Mainly appropriate for the transportation of vehicle. |
