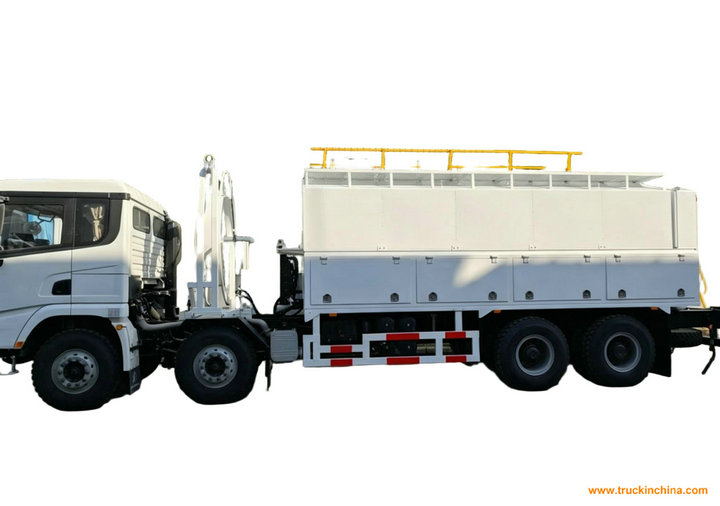

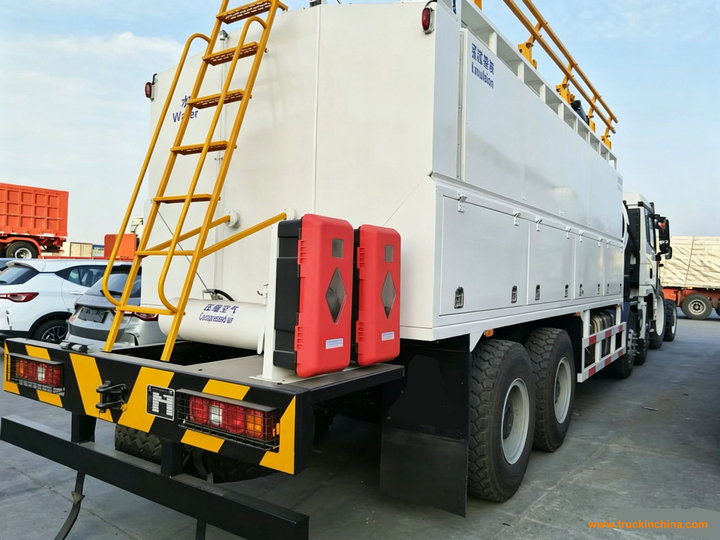

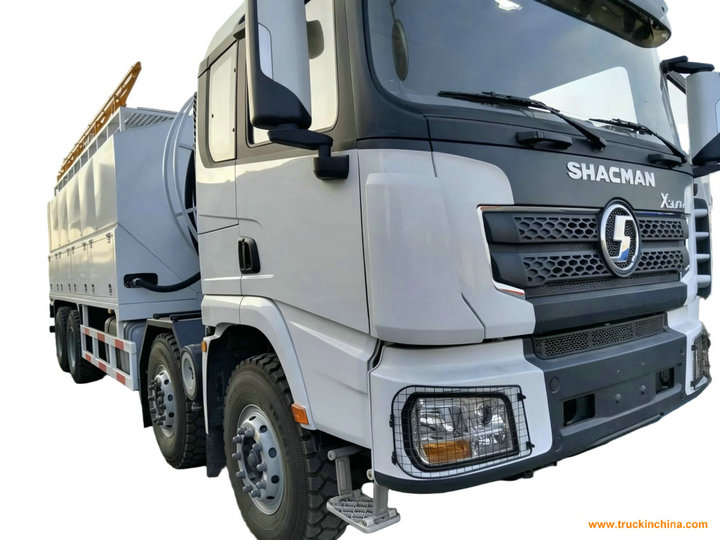

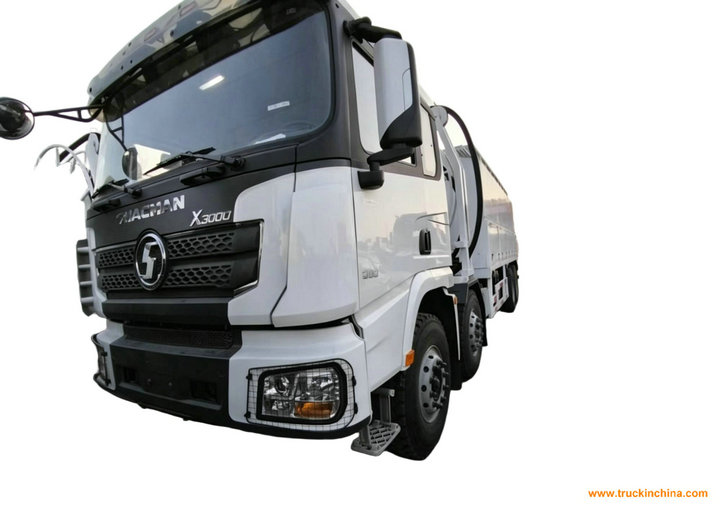

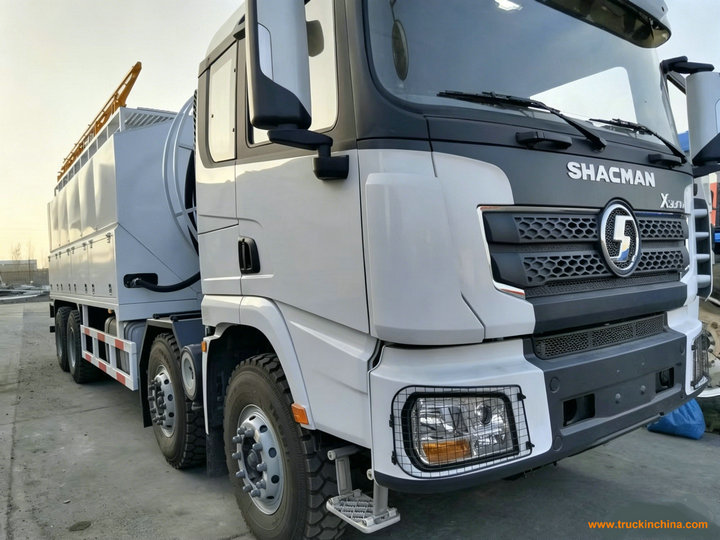

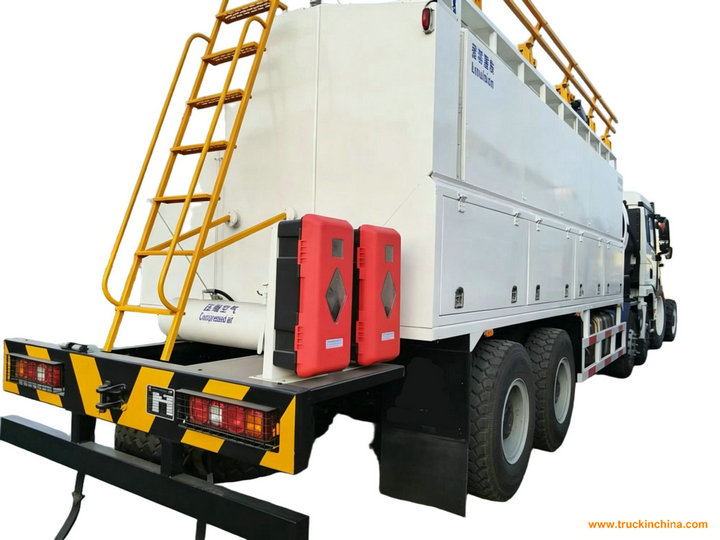

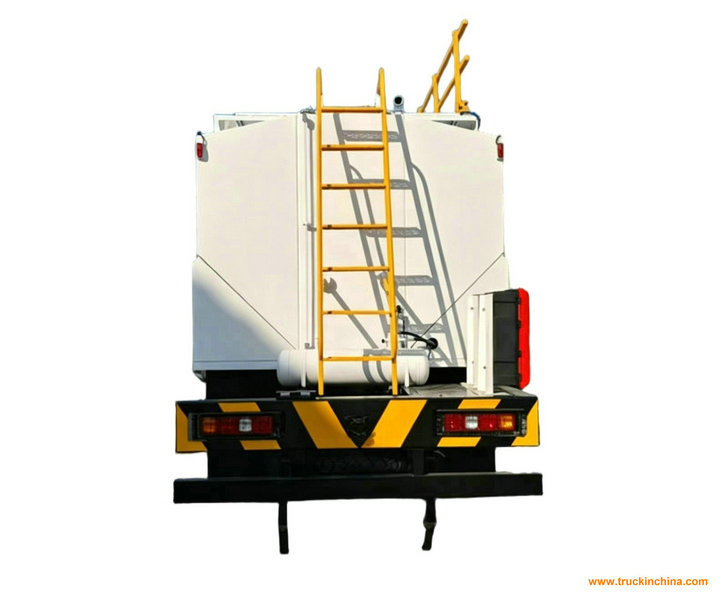

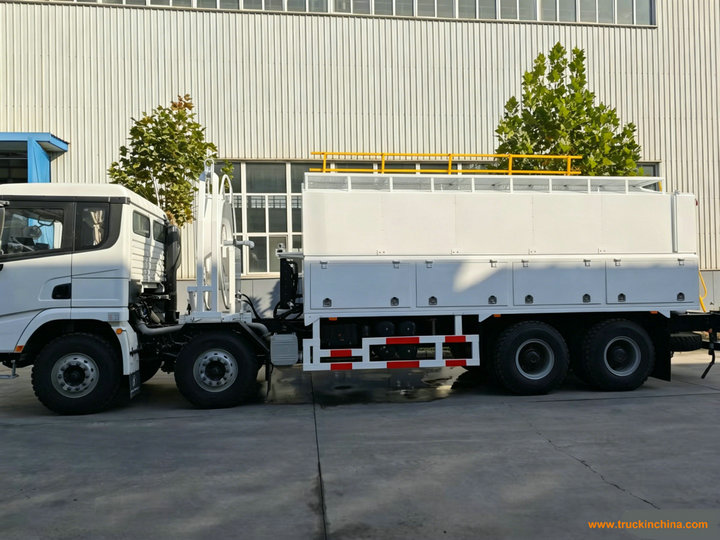

20T BCRH-20 SHACMAN X3000 On-site Mining Blasting Bulk Mixed And Charging Emulsion Explosives ANFO Truck MEMU MMU
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5325THRZ6SX
-
SHACMAN
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
20T BCRH-20 SHACMAN X3000 On-site Mining Blasting Bulk Mixed And Charging Emulsion Explosives ANFO Truck MEMU MMU
BCLH-15 ANFO Truck | BCRH-15 Emulsion Re-pump Truck | BCZH Quad Mixing/Loading Truck | |
Dimension(mm) | 11700×2495×3895 | 11700×2495×3895 | 11850×2490×4400mm |
Automotive chassis | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON SX1316DR366 |
Max. speed | 90km/h | 90km/h | 90km/h |
Max.load | 16000kg | 16000kg | 25000kg |
Charging quantity | 15000kg | 15000kg | Maximum 23400kg |
Charging speed | Standard 200-450kg/min Maximum 1000kg/min | 120~280kg/min | Standard 200~630kg/min Maximum 1000kg/min |
Filling bore diameter | ≥φ90mm | ≥φ40mm | ≥φ32mm |
Hose specification | One hose each for 1”and 2” | One hose each for 1”and 2” | |
Hose length | 40m | 40m |
Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units
Explosive Mixing And Charging Trucks Other Descriptions
The special devices of this truck mainly consist of power take-off system, tank body, pumping system and electric control system. Operated by the electric system, it mixes semi-finished products and various raw materials in a certain proportion and fills them into blast holes; the mixture reacts to form emulsion explosive. Transport medium: Ammonium Nitrate Latex Matrix, Class 5.1, dangerous goods transport vehicle type AT.
Side and rear guard materials are Q235, connected to the frame by welding and bolts; rear guard section size: 120×50mm, ground clearance of lower edge: 480mm.
This truck only adopts front exhaust pipe, optional speed limiting device (maximum speed 80km/h), front wheel disc brake and radial tire chassis. It is equipped with a driving recorder with satellite positioning function, rear axle with air suspension, and steering wheels with tire blowout emergency protection device. Manufacturer/model of EBS system controller: WABCO (Shanghai) Management Co., Ltd. / EBS3.
Corresponding relationship between engine model and fuel consumption: MC07H.35-60 / 37.44 (L/100km).
Wheelbase of 1800+3775+1400mm tire specifications: 12R22.5 18PR, 295/80R22.5 18PR. This model can be optionally equipped with direct power supply ETC vehicle device, and there is a lighting lamp at the rear for operation only.
On-site Mixed Emulsion Explosive Truck 、ANFO / Explosive Delivery Trucks ANFO mix units
ANFO TRUCK Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil is widely used in coal mining,quarrying, metal mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Series Classification
BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck
Core Technical Parameters
1. BCLH Series ANFO Explosive Truck
| Model | Power | Porous Granular Ammonium Nitrate | Diesel Oil | Charging Efficiency |
|---|---|---|---|---|
| BCLH-15 | 273kW | 14500kg | 1000kg | 450kg/min |
| BCLH-15G | 273kW | 14500kg | 1000kg | 350kg/min |
| BCLH-8 | 202kW | 8000kg | 600kg | 300kg/min |
| BCLH-8G | 202kW | 8000kg | 600kg | 250kg/min |
2. BCRH / BCZH Series Emulsion Explosive Truck
| Model | Power | Loading Materials | Charging Efficiency |
|---|---|---|---|
| BCRH-15B | 248kW | Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg | 280kg/min |
| BCRH-15C | 248kW | Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D Export Version | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15E | 248kW | Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCZH-15 | 248kW | Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg | 200-280kg/min |
Main Features
Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%
— Heavy ANFO Manufacture
