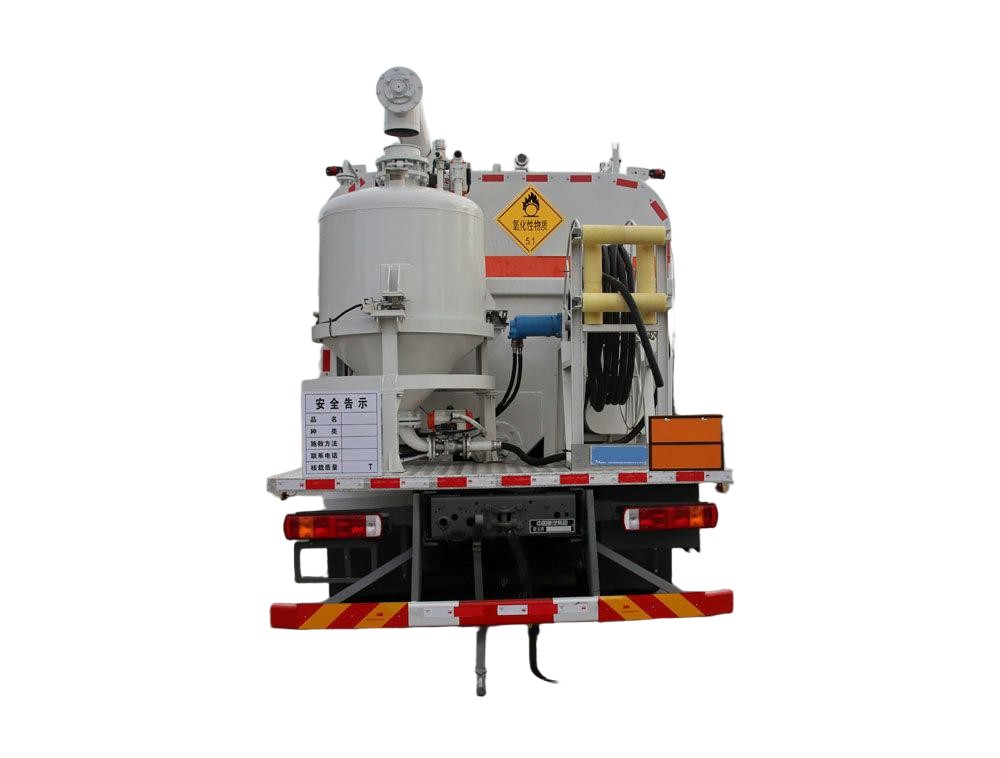

HOWO 8x4 Mining Blasting Bulk ANFO Explosive Mixing And Charging Truck
Bulk (ANFO blasting agent) and Bulk (blends of emulsion ) truck are augured products for dry or dewatered blast-holes.
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5320THAZ6STD
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

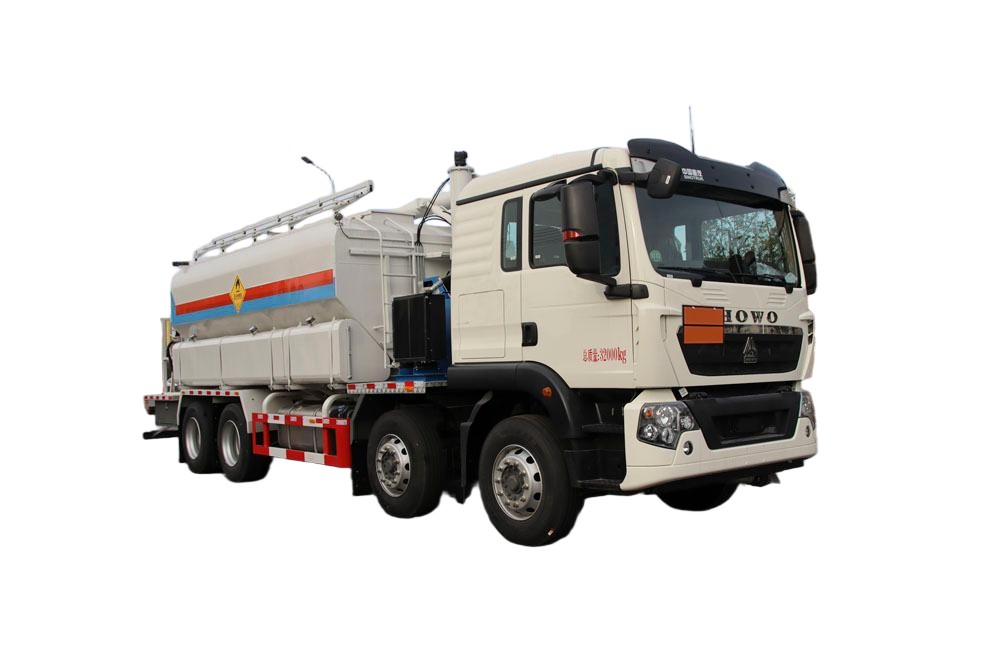

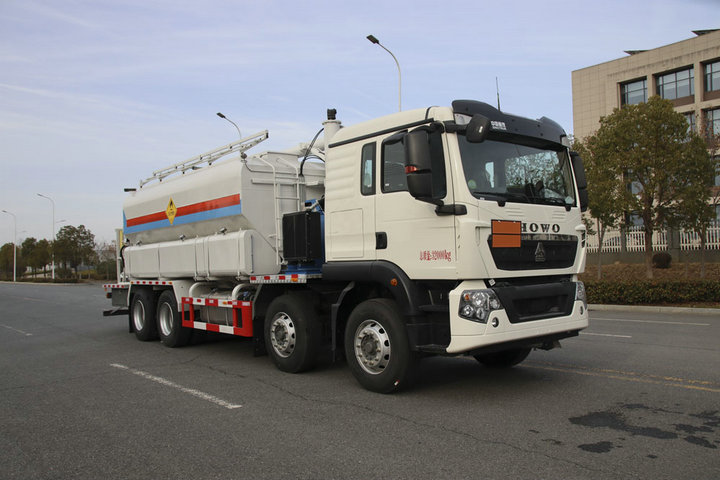

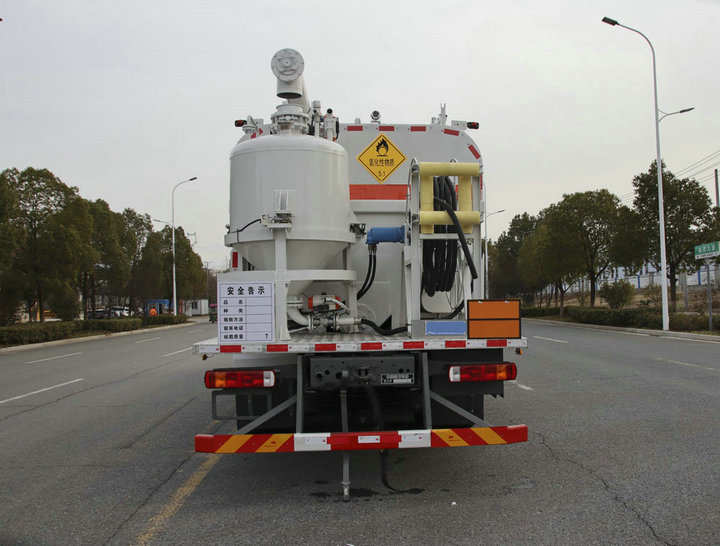

HOWO 8x4 Mining Blasting Bulk ANFO Explosive Mixing And Charging Truck
Chassis model: ZZ1327N466GF1K
Category | Parameter | Specification |
Basic Information | Model | 5320THAZ6STD |
Vehicle Type | On-site Mixed ANFO Truck | |
Dimensions | Overall Dimensions (L×W×H) | 11070 × 2500 × 3850 mm |
Wheelbase | 1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400, 2300+3500+1400 mm | |
Weight | Curb Weight | 16160 kg |
Gross Vehicle Weight (GVW) | 32000 kg | |
Payload Capacity | 15710, 15645 kg | |
Performance | Engine Model | MC07H.35-60; MC07H.35-61; MC07H.35P-61; MC11H.40-61; MC11H.46-61; MC11H.49-61; WP9H350E62; WP8T360E62; WP8T380E62 |
Emission Standard | E 6 | |
Max Speed | 80 km/h | |
Special Function Performance | 1. The special equipment consists of power take-off assembly, dry material tank, fuel system, screw conveying system, hydraulic system, CNC control system, etc. It is mainly used for dry hole charging in open-pit mines. It operates via a three-stage screw conveying system (quantitative screw, vertical screw, top screw) to accurately load properly proportioned explosives into blast holes. Transport medium: porous granular ammonium nitrate, Class 5.1 dangerous goods. 2. Side and rear guards are made of Q235 steel, connected to the frame by welding and bolts. Rear guard section size: 120×50 mm, ground clearance of lower edge: 360 mm. 3. Only chassis with front exhaust pipe is adopted. Optional speed limiter (max speed 80 km/h), front wheel disc brakes and radial tires. Equipped with driving recorder with satellite positioning, rear axle air suspension, tire blowout emergency protection device for steering wheels. EBS controller: WABCO (Shanghai) Co., Ltd. / EBS3. 4. Fuel consumption: MC07H.35-60 / 37.44 L/100km. 5. Wheelbase 1800+3775+1400 mm . ETC device with direct power supply is optional. Rear working lights are for operation use only. |
On-site Mixed ANFO Truck Engine Parameters
Engine Model | Manufacturer | Displacement (ml) | Power (kW) |
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35B-60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350E61; MC11.46-61; MC11H.46-61; WP10.5H430E62; WP12.430E62; WP12.490E62; WP12.460E62; MC07H.31-61 | Sinotruk Weichai | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800; 8240 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257; 265 |
On-site Mixed ANFO Truck Descriptions
BCRH-15 Emulsion truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the ratio of the pumped emulsion and chemical gassing agents. Emulsion is pumped through a progressive cavity pump, while high pressure piston pumps supply gassing agent and water flow. Emulsion hauling capacity is 15MT, and the delivery rate can be varied from 100-300kg/min. The control system is fully automated and features on-board data logging and diagnostics. The emulsion re-pump truck utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.
BCLH-15 ANFO truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing and loading of ANFO. The control system delivers automation, wireless remote control, on-board data logging and diagnostics. The body is available with either an overhead or side boom auger configuration. ANFO hauling capacity is 15MT, and the ANFO discharge rate can be varied from 100-1000kg/min. The ANFO unit utilizes proportional computer-control and well-designed diesel fuel injection to increase the wetted surface area of AN prill for maximum fuel distribution and absorption.
BCZH quad multi-functional truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing ratio of ANFO, emulsion, and chemical gassing agents. The quad vehicle is capable of pumping or augering a full range of bulk products: 100% bulk emulsion, various heavy ANFO blends and100% ANFO. The control system is fully automated and feature on-board data logging and diagnostics. The unit utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.
BCLH-15 ANFO Truck | BCRH-15 Emulsion Re-pump Truck | BCZH Quad Mixing/Loading Truck | |
Dimension(mm) | 11700×2495×3895 | 11700×2495×3895 | 11850×2490×4400mm |
Automotive chassis | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON | BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON SX1316DR366 |
Max. speed | 90km/h | 90km/h | 90km/h |
Max.load | 16000kg | 16000kg | 25000kg |
Charging quantity | 15000kg | 15000kg | Maximum 23400kg |
Charging speed | Standard 200-450kg/min Maximum 1000kg/min | 120~280kg/min | Standard 200~630kg/min Maximum 1000kg/min |
Filling bore diameter | ≥φ90mm | ≥φ40mm | ≥φ32mm |
Hose specification | One hose each for 1”and 2” | One hose each for 1”and 2” | |
Hose length | 40m | 40m |
Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units
ANFO TRUCK Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Series Classification
BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck
Core Technical Parameters
1. BCLH Series ANFO Explosive Truck
| Model | Power | Porous Granular Ammonium Nitrate | Diesel Oil | Charging Efficiency |
|---|---|---|---|---|
| BCLH-15 | 273kW | 14500kg | 1000kg | 450kg/min |
| BCLH-15G | 273kW | 14500kg | 1000kg | 350kg/min |
| BCLH-8 | 202kW | 8000kg | 600kg | 300kg/min |
| BCLH-8G | 202kW | 8000kg | 600kg | 250kg/min |
2. BCRH / BCZH Series Emulsion Explosive Truck
| Model | Power | Loading Materials | Charging Efficiency |
|---|---|---|---|
| BCRH-15B | 248kW | Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg | 280kg/min |
| BCRH-15C | 248kW | Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D Export Version | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15E | 248kW | Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCZH-15 | 248kW | Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg | 200-280kg/min |
Main Features
Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%
