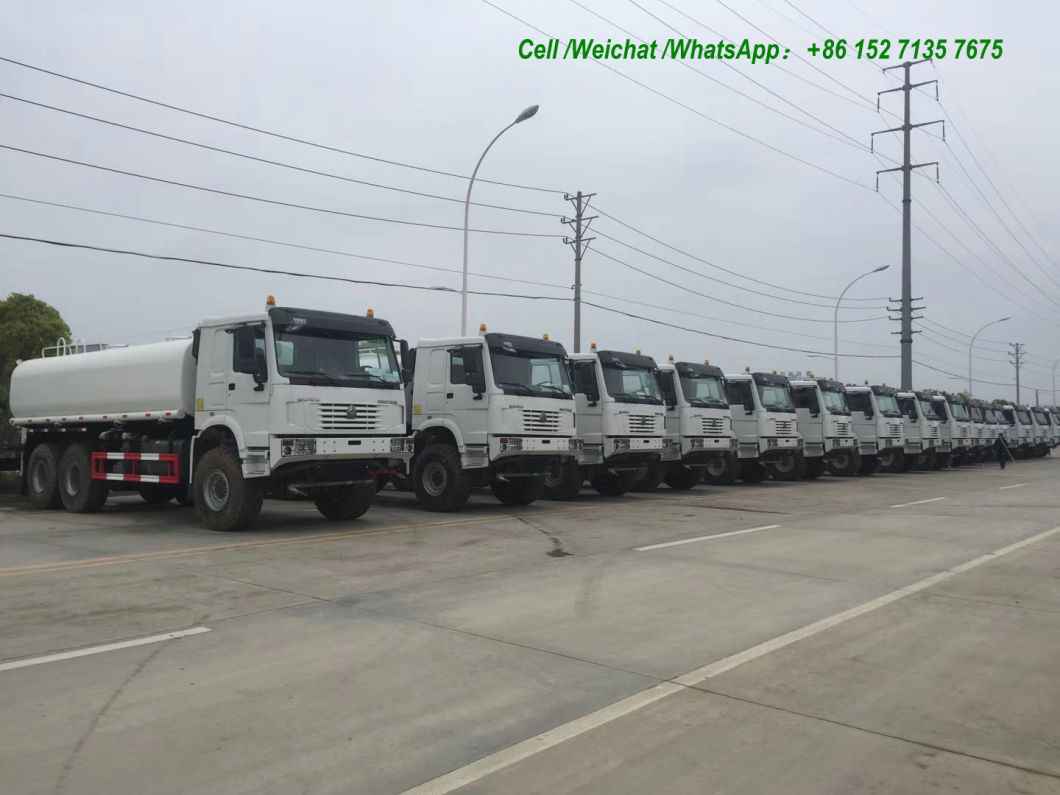

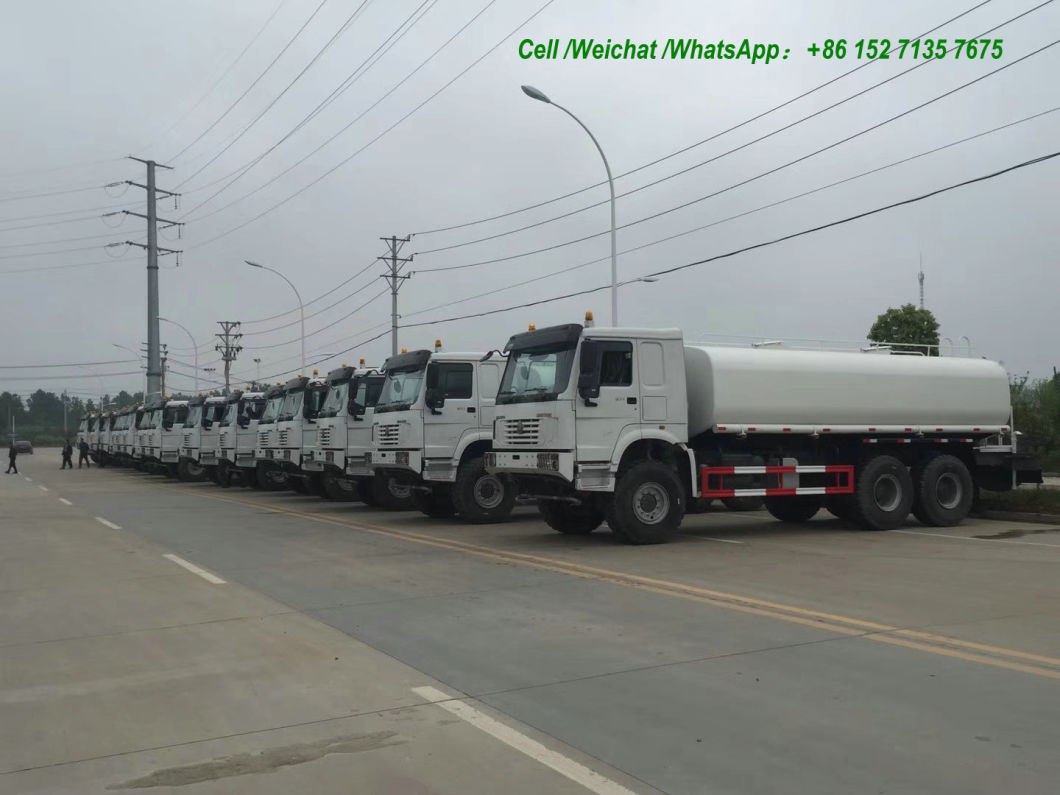

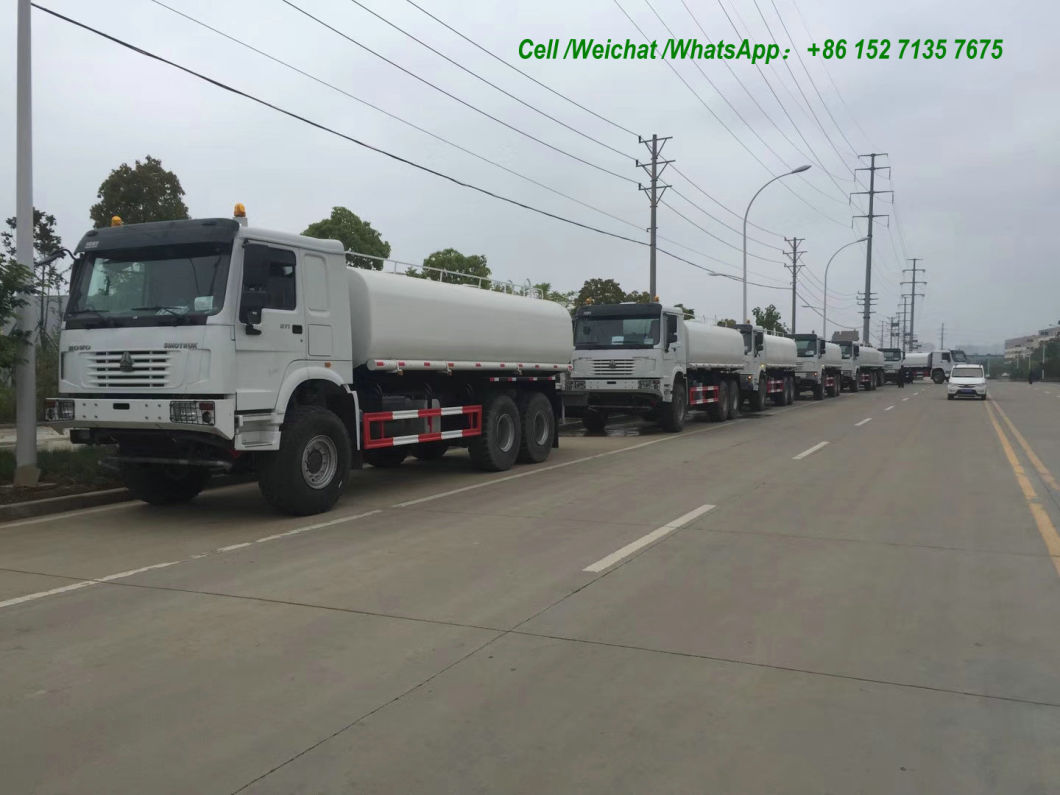

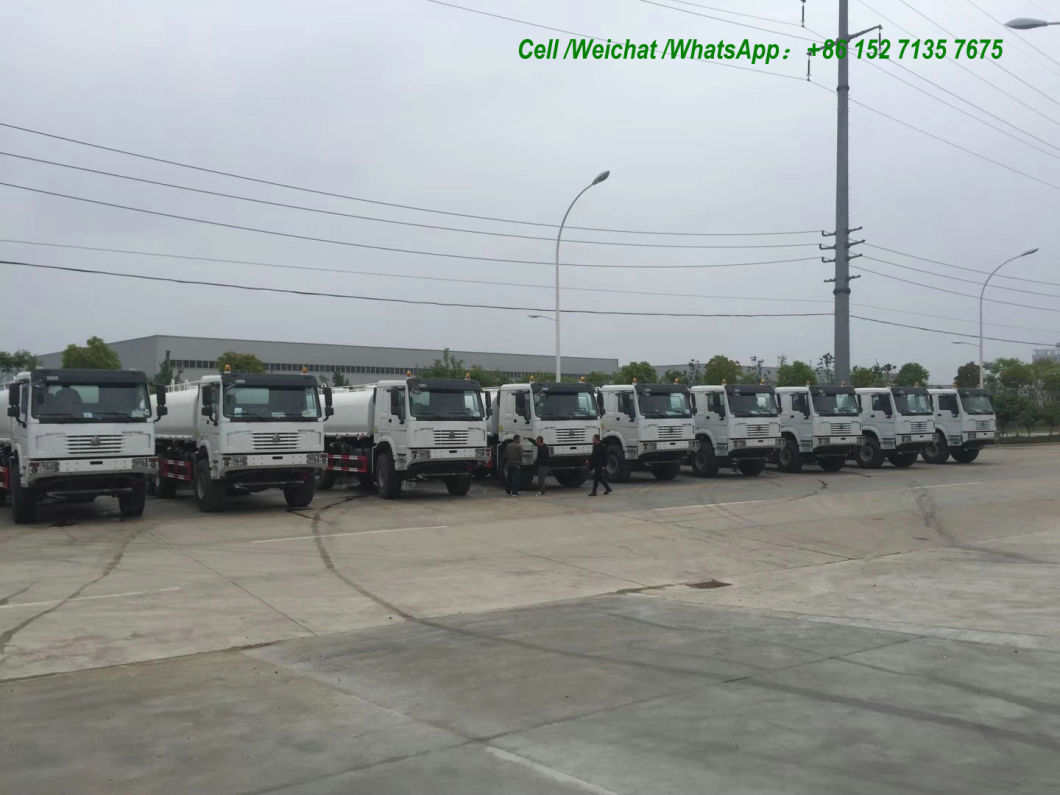

Sinotruck HOWO 6X6 Water Bowser off Road 20t (AWD All Wheels Drive PTO Pump Carbon Steel or Stainless Steel Tank)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Bowser Tanker used for fueling aircraft and other vehicles or for supplying water.
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7675
water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
Features and Specifications
Sinotruk 15000Liters -20T 6X6 Off Road water truck howo Water Bowser water tanker transport truck for sale
1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..
3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)
Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucks

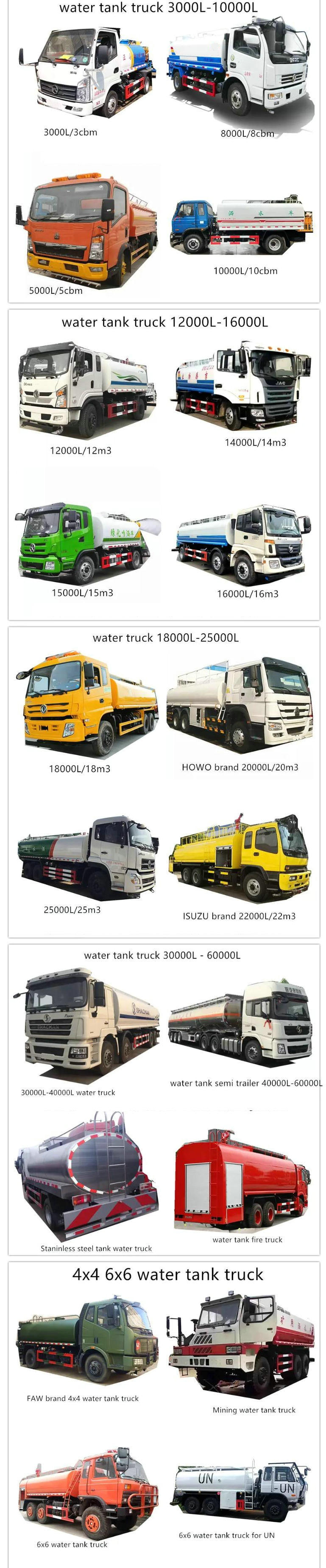

4. water tank truck pictures for refe,
Please contact with us if you need more information of the truck:
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
This HOWO 10cbm water tank truck is exported to Zanzibar in Africa. It mainly use for transporting clean water, drink water or other liquid. Please kindly noted that it's not the water sprinkler truck. It only transport water, which is popular in Africa.
Main advantages of water transport tank truck, water sprinkler truck :
| SINOTRUK HOWO Military Fuel Tanker Truck 16-25CBM 6X6 336HP / 380HP for Army | |
| Chassis Model | ZZ2257N4657D1 |
| Drive Type | 6×6 |
| Engine | WD615.69, 336HP ; 380HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tyre |
| Wheel base | 4600+1350(mm) |
| Capacity of tank body | 16-25CBM |
| Thickness of tank body | 5mm,With 5 cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
EURO 2-3-4 -5-6
ZZ2257N4657D1 | HW76 | D10.34-40 D12.38-40 | STR | HW19710 | ST16 | 12.00-20 | 3800+1400, 4300+1400, 4600+1400 | 6×6 |
Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 15-25ton
4. LHD or RHD are optional
5. Volume of tanker 15-20cbm
6. One year for three key parts (engine ,gear-box, axle)
The pictures of Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck:
| Cabin | HW 76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref. | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 11290x2500x3270 | |||
| Wheel base (mm) | 4600+1350 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/23 | ||||
| Weight in KGS | Tare Weight | 11950 | |||
| Loading Capacity | 20000 | ||||
| Front axles loading capacity | HF9 1x9000 | ||||
| Rear axles loading capacity | ST16 2x16000 | ||||
| Max. driving speed(km/h) | 75 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300 | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| Tank | 20CBM, tank thickness is 4mm, seal is 5mm. Equipped with front(rear, side)sprinkler(sprinkler width>14m). Equipped with pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauze. Equipped with rear working platform with water cannon. Rubber Padding between the tanker & chassis. | ||||
Parameter of water tank truck, water sprinkler truck:
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm) |
Bowser Tanker used for fueling aircraft and other vehicles or for supplying water.
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7675
water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
Features and Specifications
Sinotruk 15000Liters -20T 6X6 Off Road water truck howo Water Bowser water tanker transport truck for sale
1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..
3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)
Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucks
4. water tank truck pictures for refe,
Please contact with us if you need more information of the truck:
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
This HOWO 10cbm water tank truck is exported to Zanzibar in Africa. It mainly use for transporting clean water, drink water or other liquid. Please kindly noted that it's not the water sprinkler truck. It only transport water, which is popular in Africa.
Main advantages of water transport tank truck, water sprinkler truck :
| SINOTRUK HOWO Military Fuel Tanker Truck 16-25CBM 6X6 336HP / 380HP for Army | |
| Chassis Model | ZZ2257N4657D1 |
| Drive Type | 6×6 |
| Engine | WD615.69, 336HP ; 380HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tyre |
| Wheel base | 4600+1350(mm) |
| Capacity of tank body | 16-25CBM |
| Thickness of tank body | 5mm,With 5 cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
EURO 2-3-4 -5-6
ZZ2257N4657D1 | HW76 | D10.34-40 D12.38-40 | STR | HW19710 | ST16 | 12.00-20 | 3800+1400, 4300+1400, 4600+1400 | 6×6 |
Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 15-25ton
4. LHD or RHD are optional
5. Volume of tanker 15-20cbm
6. One year for three key parts (engine ,gear-box, axle)

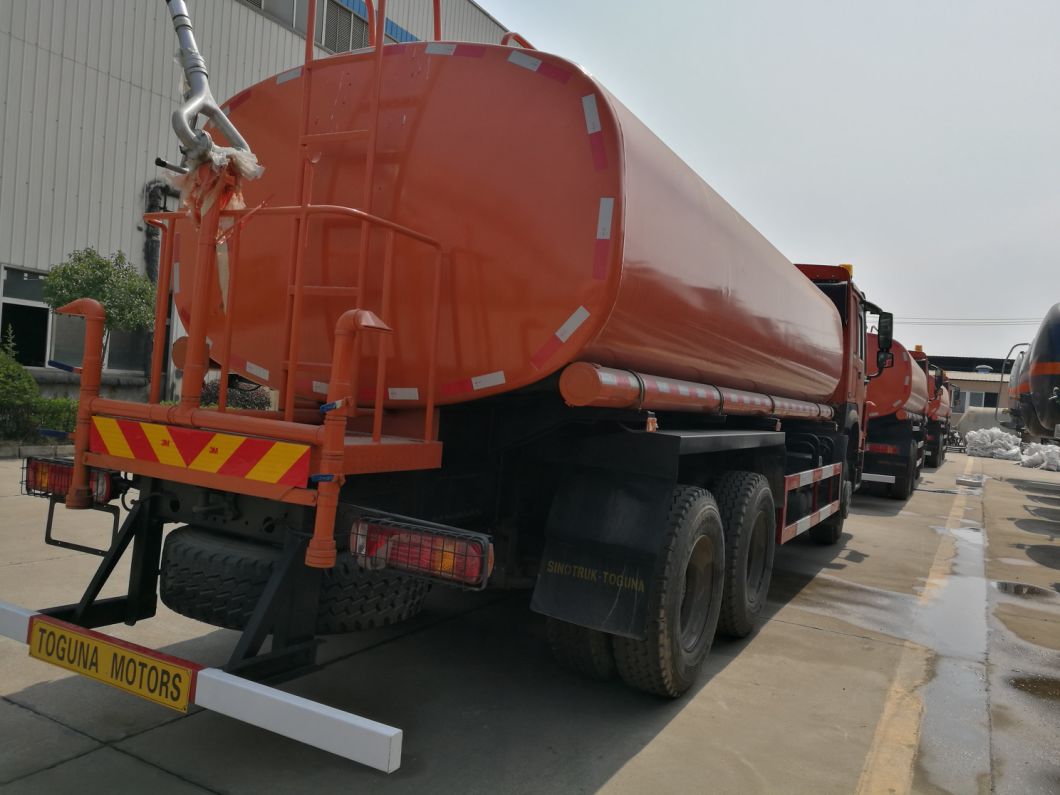

The pictures of Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck:
| Cabin | HW 76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref. | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 11290x2500x3270 | |||
| Wheel base (mm) | 4600+1350 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/23 | ||||
| Weight in KGS | Tare Weight | 11950 | |||
| Loading Capacity | 20000 | ||||
| Front axles loading capacity | HF9 1x9000 | ||||
| Rear axles loading capacity | ST16 2x16000 | ||||
| Max. driving speed(km/h) | 75 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300 | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| Tank | 20CBM, tank thickness is 4mm, seal is 5mm. Equipped with front(rear, side)sprinkler(sprinkler width>14m). Equipped with pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauze. Equipped with rear working platform with water cannon. Rubber Padding between the tanker & chassis. | ||||
Parameter of water tank truck, water sprinkler truck:
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm) |
