ISUZU Truck Mounted Mobile Shower & Toilet Vehicle

ISUZU Truck Mounted Mobile Shower & Toilet Vehicle
Superstructure
Separate Shower Room
Separate Toilet Room
Hand Washing Room
Clean water tank and dirty watertank
Gasoline Generator
4x2 or 4x4
Price for refer only. Final Price need Confirm as Order.
Price: $ 120000
Discount Price: $ 118000
Availability:
Quantity:

  • 5080TLV

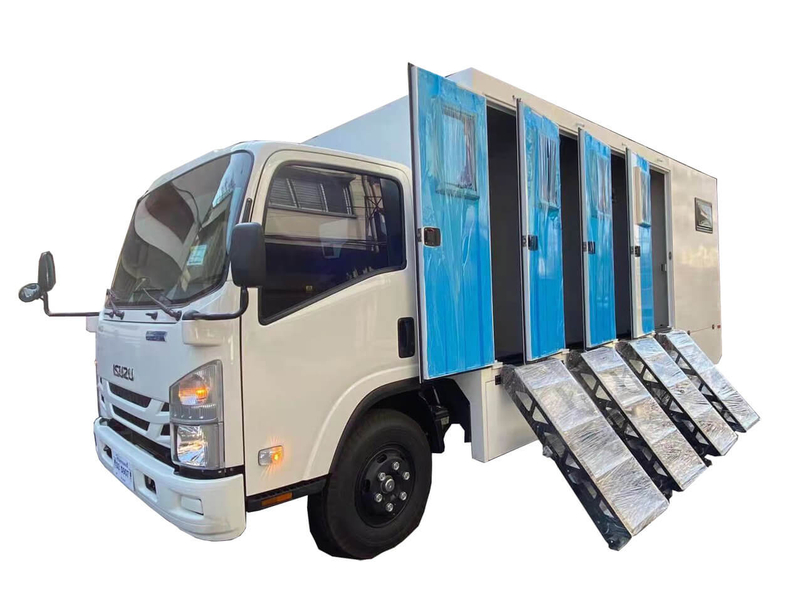

    ISUZU Truck Mounted Mobile Shower & Toilet Vehicle

customized special vehicle  4x2 or 4x4 ( All Wheel Drive Offroad)

Shower & Toilet vehicle

There provides 4 separate shower room.
There provides 4 separate toilet room.
Hand Washing Room at the rear.
Clean water tank and dirty water tank.
One set independent diesel generator & battery & 220V/12Vcharger are provided.
Control panel for all device in the hand wash room.

Shower and toilet superstructure based on HOWO/DFAC/JAC/FOTON/SHACMAN/ ISUZU /HINO chassis or other chassis brand.

ISUZU Shower & Toilet vehicles 3


SUPERSTRUCTURE

The sub frame of superstructure is designed as integrated type, made by galvanized profile which

can provide good water-proof and corrosion-resistant.

Major structure is made by galvanized profile.The superstructure will be covered with aluminum

alloy plate which has a perfect view of outside.

Provide the access ladders to shower room and toilet room. ladder which can be easily fixed inside

the room and rolled down to the ground.

Provide the access ladders to hand washing room, ladder amount inside rear and can be easy pull

out on the ground.

All of the room with door which is covered PVC to rpovide dust-proof, water-proof and corrosion –

resistant. Each door equipted with the small window and saftey locker.

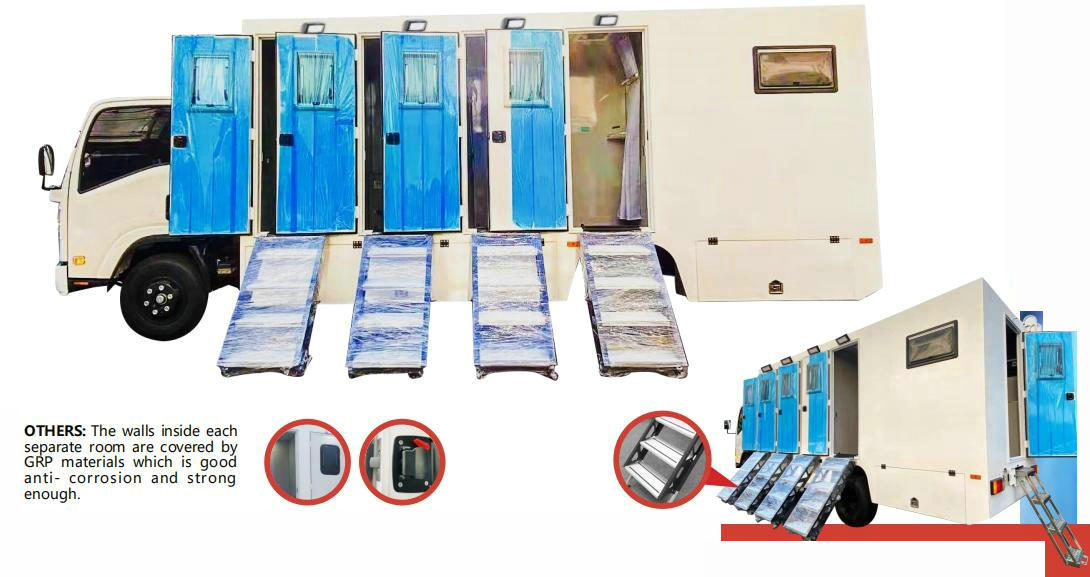

OTHERS: The walls inside each

separate room are covered by

GRP materials which is good

anti- corrosion and strong

enough.


ISUZU  CHASSIS

Engine: With 4HK1 Turbo Engine，5.1 Liter Engine

GVW: 8500kg

Wheel base:4175mm


SEPARATE SHOWER ROOM

There provides 4 separate shower room, 2 in left and 2 in right.

SEPARATE TOILET ROOM

There provides 4 separate toilet room, 2 in left and 2 in right.

HAND WASHING ROOM

Hand washing room is located at rear of superstructure.

DEVICE:

1.Closestool is electrical type which can smash the excrement

and toilet paper to keep it clean, easy maintaining.

2.Each room is equipped with access steps, electric

ventilator on roof, independent waterproof light and

other facilities inside. The closestool is easy operated.

DEVICE:

1.Provide 3 set stainless washbasin inside.

2. Provide 2 set electric hand sanitizer containers.

DEVICE:

1.There is stainless steel shower with stainless steel or copper ball valve to adjust flow.

2.Each room is equipped with access steps, electric ventilator on roof, independent waterproof

light, stainless steel rack, floor drain and other facilities inside.

No.

Name Of Goods

Brand

Specification Model

Units

Quanti ty

Unit Price

Total Price


1

ISUZU FTR

Chassis


ISUZU

QL11609QFR Y


set


1


￥238,000


￥238,000

2

On board air conditioning

CN

1P

set

2

￥8,800

￥17,600



3



alternator



Ludwig



7KW



platform



1



￥12,000



￥12,000



4


Stainless steel Teflon squatting pan



Shanghai Jinghe



Stainless steel, 304



set



7



￥4,800



￥33,600


5


Square tube


Baosteel


30*50*5mm


branch


3


￥120


￥360


6


Galvanized flat iron


Baosteel


3*40mm


branch


3


￥65


￥195


7

Wash basin + sink


TOTO


LW712RB


set


2


￥1,200


￥2,400


8

Induction faucet


TOTO


DL347


set


2


￥320


￥640


9

Ceramic water flushing urinal


TOTO

UW904SB/SH B


set


4


￥1,800


￥7,200


10

Urinal drain valve


TOTO


DUE106UEPA


set


4


￥650


￥2,600


11

Ceramic mop pool


TOTO


small-scale


set


1


￥680


￥680


12


Mop pool tap


TOTO


DBS105R


set


1


￥380


￥380





13



Water pump



Han Leshi



TP825F



set



1



￥1,200



￥1,200



14



Stainless steel suction bag



Shanghai Jinghe



Stainless steel, 304



set



7



￥3,000



￥21,000




15




Suction pump




Pinjia




TBP145




set




7




￥680




￥4,760


16

LED lighting system


Philips


LED15w


Calyx


12


￥125


￥1,500



17



air cleaner



Hzceco-Ho pe



SH-2186



platform



2



￥550



￥1,100



18



Incense sprayer



Hzceco-Ho pe



SH-1052



set



2



￥180



￥360



19


Inductive photoelectric switch



OMRON



E3Z-LS8



set



6



￥320



￥1,920


20


Manual touch switch


Still thin


Type 86


set


6


￥120


￥720



21



help system



Golden Chan



CS300； 85*85



set



1



￥1,200



￥1,200





22



Emergency Light



ahead



QF-ZFZD-E3 W-S105



only



2



￥320



￥640



23



Control box



Shanghai Jinghe



set



1



￥28,000



￥28,000



24


Electric control box with leakage



Schneider



15 circuit



set



1



￥1,500



￥1,500


25


wire


Senja


2*0.75m2


rice


120


￥3


￥384


26


wire


Senja


5*0.75m2


rice


150


￥5


￥675


27


wire


Senja


3*2.5m2


rice


85


￥9


￥723



28



Steel pipe



Crown



#50DG-88620



rice



80



￥65



￥5,200



29



Steel pipe



Crown



#38、DG-88620



rice



6



￥55



￥330



30



Steel pipe



Crown



#32、DG-88620



rice



8



￥45



￥360





31



Steel pipe



Crown



#25、DG-88620



rice



15



￥35



￥525



32



Steel pipe



Crown



#75、DG-88620



rice



10



￥85



￥850



33



Pipe hoop



Bairuit



#50



only



50



￥3



￥125



34



Pipe hoop



Bairuit



#38



only



25



￥2



￥50



35



Pipe hoop



Bairuit



#32



only



30



￥2



￥54



36



Pipe hoop



Bairuit



#25



only



20



￥2



￥32



37



Pipe hoop



Bairuit



#75



only



18



￥3



￥54


38


Pu trachea


Yuanlong pneumatic


10MM


rice


80


￥3


￥240







39




Quick connector





Huaxia




4-minute to 10 mm connector





only





24





￥25





￥600



40



Water jet



Huaxia



Stainless steel 10mm



only



24



￥45



￥1,080


41


External cable tray


bull


Three core 6

mm 2


set


1


￥485


￥485


42


Cable


Senja


3*6


rice


85


￥35


￥2,975




43




Door lock




Monlech




HH-8L




hold




11




￥100




￥1,100



44



Stainless steel horse



You taii



Stainless steel, 20x20



only



150



￥12



￥1,800




45




Coat hook




Lefu



Stainless

steel-lsm202-1




only




8




￥35




￥280



46



glass cement



Dow Corning



transparent



branch



10



￥35



￥350





47



glass cement



Dow Corning



grey



branch



10



￥38



￥380



48



glass cement



Dow Corning



white



branch



10



￥40



￥400




49



Stainless steel large flat head screw




Zhantong




5*16mm




set




500




￥1




￥500




50



Stainless steel flat head screw




Zhantong




5*40mm




set




200




￥3




￥500




51



Stainless steel flat head screw




Zhantong




5*45mm




set




100




￥3




￥280




52



Stainless steel flat head screw




Zhantong




5*35mm




set




150




￥2




￥330




53



Stainless steel flat head screw




Zhantong




5*25mm




set




300




￥2




￥450






54



Stainless steel flat head screw




Zhantong




5*50mm




set




250




￥3




￥750


55


PPR pipe


Ad, 25mm


root


18


￥65


￥1,170


56

PPR water elbow


Ad


25mm


only


25


￥10


￥250


57

PPR water parts direct


Ad


25mm


only


18


￥6


￥108


58

PPR water parts inner wire direct


Ad


25mm


only


10


￥28


￥280


59

PPR water

parts outer wire direct


Ad


25mm


only


28


￥28


￥784


60

PPR inner wire elbow of water

parts


Ad


25mm


only


15


￥35


￥525


61

PPR water part outer wire elbow


Ad


25mm


only


12


￥35


￥420


62

PPR water

parts big and small head


Ad


20*25mm


only


12


￥6


￥72


63


PPR water tee


Ad


25mm


only


35


￥8


￥280


64

Heating wire of upper and lower water pipes


Senja


2*2.0m2


rice


180


￥18


￥3,240



65



Rock wool insulation pipe



Sylolin



30mm polyethylene



rice



180



￥18



￥3,240




66



Clean water fire water inlet




Xing Xiang




63mm




only




1




￥120




￥120





67


Clean water injection nozzle



Taituo



32mm



only



1



￥150



￥150


68

Clear water outlet


Ad


32mm


only


1


￥85


￥85


69

PPR water valve drain

valve


Ad


75


only


1


￥185


￥185


70


ball valve


Ad


25mm


only


8


￥82


￥656


71


Copper valve


Ad


25mm


only


6


￥85


￥510


72


Triangle valve


Ad


25mm


only


3


￥75


￥225




73




Solenoid valve




Lin Wei




2W160-15




only




7




￥385




￥2,695


74


PTFE TAPE


Ad


20mm


volume


5


￥3


￥15



75



Electrical tape



Smihui



3M、1712



volume



3



￥6



￥18



76



Cosmetic mirror



Lefu



Lf213 (8

inches)



individu al



2



￥125



￥250



77



Hand sanitizer box



Lefu



LSM807-21(2

50ml）



only



2



￥85



￥170




78


Stainless steel hand carton


Lefu


LSM6700


only


7


￥82


￥574


79


Stainless steel paper floor


Lefu


LSM805-5L


only


7


￥85


￥595


80


Safety handrail


Lefu


LSM806-40


individu al


7


￥78


￥546



81


Large float switch (sewage)



Macro jump



U-80



only



1



￥185



￥185



82


Small float switch (clear water)



Figeac



A-GF



only



1



￥135



￥135



83


Grade 8 high strength lime screw



monk's residence



10*60mm



set



30



￥5



￥150



84


Grade 8 high strength pair Caragana nut



monk's residence



10*80mm



set



10



￥8



￥80



85



Folding ladder



Shanghai Jinghe



Stainless steel 304



set



1



￥3,800



￥3,800



86



Generator support



Shanghai Jinghe



Steel frame



set



1



￥1,500



￥1,500




87


Aluminum alloy edge strip


Wei Gang


18MM


rice


185


￥38


￥7,030


88


Paint free ecological partition board


Lvxin


18mm


square


45


￥320


￥14,400


89

Paint free ecological board folding door


Lvxin, 18mm


18MM


fan


7


￥620


￥4,340


90

Paint free ecological board sliding door


Lvxin, 18mm


18MM


fan


4


￥480


￥1,920



91



Folding door moving track



It's going to be smooth



1001



rice



15



￥128



￥1,920


92


Folding door sliding pulley


Haus hair


A01


pay


11


￥135


￥1,485



93



Window glass film



Hengyang



PE



rice



13.8



￥98



￥1,352



94



Five hole socket



Hua Yan



Type 86



set



4



￥35



￥140



95



Lighting switch



Hua Yan



Type 86



set



2



￥28



￥56



96



Stainless steel sewage tank



Shanghai Jinghe



Type 304 2mm



set



1



￥15,000



￥15,000





97



Stainless steel clear water box



Shanghai Jinghe



Type 304 2mm



set



1



￥12,000



￥12,000



98



Men's sign



Yizifang



Chinese and English



slice



2



￥55



￥110



99



Female sign



Yizifang



Chinese and English



slice



2



￥35



￥70



100



Sign in toilet room



Yizifang



Chinese and English



set



1



￥480



￥480

102

Van other Material +Construction & Installation cost ￥200,000

103

Total price FOB China ￥684,733 CNY RMB

The sub frame of superstructure is designed as integrated type, made by galvanized profile which can provide good water-proof and corrosion-resistant.
Major structure is made by galvanized profile. The welding position is treated with anti-corrosion.
The superstructure is covered with aluminum alloy plate by the way of glue on it which has a perfect view of outside, smooth and flat.
Provide the access steps to shower room, toilet room and hand washing room. The frame of steps are made by galvanized profile, covered with aluminum alloy plate.


ISUZU Euro 6 Chassis list

wheelbase Cab / auxiliary beam width The following is the Isuzu 120 horsepower standard national six light truck chassis The following Isuzu 100p / 600P national VI chassis configuration
2490 Single row / 700 QL1040BUEAY QL1040BUEACY Under the same model of this level, Isuzu 1x level 100p cab or 600P cab, Isuzu 4kh1cn6lb engine, guoliu emission 120 HP 88kw, Isuzu MSB five speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, front axle 2-2.5t, rear axle 4-4.8t, with ABS and standard 700r16 tires(individual 2490 wheelbase Blue brand model 700r15 tires)Note that the oil brake or air brake can be selected according to the different models on the left. The single row cab can be turned over, and the double row can not be turned over. The model painted green corresponds to the 120 HP 2.5-liter Isuzu engine, 4kk1n6lb. The other blue brand ql104 models in the table will also expand the engine in the later stage. The front wheel disc brake is optional for 5000 yuan, and the chassis model with the letter C in the penultimate table is the special bus model for sanitation and postCity models used, other models are non city models
Single row / 700
QL1060BUEACY
Double row / 700 QL1040MVEWY (2.5L displacement)
Double row / 700 QL1040BUEWY
2765 Single row / 700 QL1040BUFAY QL1040BUFACY
Single row / 700
QL1070BUFACY
Double row / 700 QL1040BUFWY
2795 Single row / 700 QL1041BUFAY

3360 Single row / 700 QL1040BUHAY QL1040BUHACY
Single row / 700 QL1070BUHAY QL1070BUHACY
Single row / 700 QL1040MVHAY QL1042MVHAY
Double row / 700 QL1040MVHWY (2.5L displacement)
Double row / 700 QL1040BUHWY QL1071BUHWY
Double row / 700 QL1070BUHWY QL1070BUHWCY
3815 Single row / 700 QL1070BUKAY QL1070BUKACY
Double row / 700 QL1070BUKWY QL1070BUKWCY
wheelbase Cab / auxiliary beam width The following are Isuzu 120-132 HP wide body kv100 / 600 series and medium body M100 / 600 series national VI chassis models The following Isuzu kV Series / M series national VI chassis configurations
2765 Single row / 700 QL1043BUFAY QL1073BUFACY Kv100p / kv600 chassis is equipped with Isuzu 3x wide body cab, M100 / M600 chassis is equipped with Isuzu 2x medium body cab, and other common configurations are: 120 HP G6 Isuzu 4kh1cn6lb engine is equipped with Isuzu 5-speed transmission, or 132 HP G6 4kh1cn6hb engine is equipped with Isuzu 6-speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, front axle 2.5-3Tons, rear axle 4.8-5.5t, with ABS, air brake (or oil brake), cab can be turned over, 700 auxiliary beam model is equipped with 700r16 tire frame height of 176mm, 800 auxiliary beam model is equipped with 750r16 tire frame height of 216mm (blue model can be equipped with 700r16 tire)The model painted green on the left corresponds to 4kk1n6lb, a 120 horsepower 2.5-liter Isuzu engine. The other models starting with blue brand ql104 will also expand the engine in the later stage. The front wheel disc brake is optional for 5000 yuan. The chassis model with the penultimate letter of C is a city model dedicated to sanitation and postal public transportation, and other models are non city models
2795 Single row / 800 QL1043BUFAY

Single row / 800 QL1080BUFAY QL1080BUFACY
3360 Single row / 700 QL1043BUHAY QL1043BUHACY
Single row / 700 QL1073BUHAY QL1073BUHACY
Single row / 700 QL1043MVHAY (2.5L displacement)
3365 Single row / 800 QL1043BUHAY QL1043BUHACY
Single row / 800 QL1080BUHAY QL1080BUHACY
3815 Single row / 700 QL1073BUKAY QL1073BUKACY
Single row / 800 QL1080BUKAY QL1080BUKACY
wheelbase Cab / auxiliary beam width The following Isuzu kv800 class 150-180 HP wide body national six light truck chassis The following Isuzu kv800 new model national VI chassis configuration
3365 Single row / 850 QL1043AKHAY (150 HP blue) Kv800 chassis is equipped with Isuzu 3x wide body cab: 150 HP Isuzu 4jz1-tcg60 engine with Isuzu Myy six speed transmission (180 HP G6 4jz1-tcg61 engine is added in the later expansion), with air conditioning, steering assistance, central lock, electric glass, multi-functional LCD instrument panel, 3.5 tons of front axle and 6 tons of rear axle, with ABS, air break brake and 750r16 tires(700r16 tires can be selected for the blue brand model), the cab can be turned over, and the frame width of 850 auxiliary beam model is 216mm. Note: the penultimate letter with C is the city model.
Single row / 850 QL1080AKHAY QL1080AKHACY
3815 Single row / 850 QL1080AKKAY QL1080AKKACY
4175 Single row / 850 QL1080AKLAY QL1080AKLACY
4475 Single row / 850 QL1080AKMAY
Single row / 850
QL1080AKMACY
wheelbase Cab / auxiliary beam width The following Isuzu 700p class 190-205 HP national VI air brake chassis The following Isuzu 700p level 190-205 HP national VI configuration
3360 Single row / 850 QL1110ANHAY
700p chassis is equipped with Isuzu 3x wide body cab: Standard Isuzu 4hk1-tcg61 engine, 190hp national VI emission, optional 205 HP Isuzu 4hk1-tcg60 engine, Isuzu MLD six speed transmission, with air conditioning, steering assistance, central lock, electric glass, multi-functional steering wheel, 4T front axle, 7T rear axle, ABS, air break brake, reversible cab, 235 / 75r17.5 wheels as standardTire, add 2000 optional 825r20 tire, add 3000 yuan optional front wheel disc brake. The chassis model with the penultimate letter of C is the urban model dedicated to sanitation and postal public transport, and other models are non urban models.,
Single row / 850 QL1111ANHAY (automatic chassis)
3765 11.99 gross tons QL1120AJJAY QL1120AJJACY
3815 Single row / 850 QL1110ANKAY QL1110ANKACY
Single row / 850 QL1110CNKAY (4WD Chassis)
Double row / 850 QL1110ANKWY

4175 Single row / 850 QL1110ANLAY QL1110ANLACY
Double row / 850 QL1110ANLWY
4475 Single row / 850 QL1110ANMAY QL1110ANMACY
Double row / 850 QL1110ANMWY

5200 Single row / 850 QL1110ANPAY QL1110ANPACY
Half row / 850 QL1110ANPHY
wheelbase The following is the Isuzu FTR 205 HP national VI chassis model, with the same model and configuration, and the adjacent wheelbase difference of 2000 yuan The following Isuzu FTR level 205 HP national VI chassis configuration
3900/4500 QL1180JQFRY
The 205 horsepower chassis of Isuzu guoliu corresponds to 4hk1-tc60 engine and is matched with Isuzu MLD six speed transmission. Other common configurations are: the new Isuzu 4x reduced version vc61 cab, cooling and heating air conditioner, steering assistance, central lock, electric doors and windows, multi-functional steering wheel, multi-functional liquid crystal instrument, ABS and air brake. The front axle is 6.3t and the rear axle is 13T. The model of this level is equipped with 295 / 80R22.5 as standard18pr (yellow painted models are urban models) remarks: cyclone seats and front wheel disc brakes can be optional on the chassis. Operating regulations configuration: the speed limit is 89 km / h, which is configured for ordinary ABS status, including front wheel, explosion-proof and tire pressure monitoring. In addition to TPMS with front wheel, explosion-proof and tire pressure monitoring, EBS + ESC + LDWS + FCW status configuration is under development
5550

4500/5000 QL1180JQFRCY

5350/5550

5800 QL5180XXYAJWHY QL5180XXYAJRHY
6300 QL5180XXYAJTHY
7200 QL5181XXYAJWHY
7200
QL5180XXYJTFRY
wheelbase The following are Isuzu 240 HP FVR / 300 HP fvz national VI chassis models The following Isuzu FVR / fvz level 240-300 HP national VI chassis configuration
★4500/5550 QL1180EQFRY QL1180EQFRCY Matching of engine and transmission: Isuzu guoliu single axle 240 HP FVR chassis corresponds to 6hk1-tcg61 engine and matches with fast 8-speed transmission. Isuzu guoliu 300 HP fvz chassis corresponds to 6hk1-tcg60 engine and matches with fast 9-speed transmission. Other common configurations: equipped with new Isuzu 5x vc61 cab, cooling and heating air conditioning, direction assistance, Central lock, electric doors and windows and multi-functionCapable of steering wheel, multi-functional liquid crystal instrument, with ABS and air brake. 4 * 2 models have 6.3t or 9t front axle, 13T rear axle, 6 * 4 or 8 * 4 models have 7T front axle and 10 + 10t rear axle. The model of this level is equipped with 295 / 80R22.5 18pr as standard (the model painted yellow is urban model)Remarks: cyclone seat is optional for FVR and fvz chassis for 1000 yuan and cyclone cab is optional for 2000 yuan. Operating regulations configuration: the speed limit of operating vehicle is 89 km / h: it is in ordinary ABS status, including front wheel disc brake, rear wheel drum brake, tire explosion-proof and tire pressure monitoring TPMS.
Vehicle speed above 90km / h for operating vehicles: EBS + ESC + LDWS + FCW, i.e. front disc and rear drum, tire pressure monitoring TPMS, tire explosion-proof emergency, EBS electronic control braking system and ESC vehicle electronic stability control system are added,
Lane departure alarm LDWS and forward collision alarm FCW. In addition to the configuration of the above fvz rear double axle models, the special hazardous chassis ql1260ffshy also has hazardous chassis kits such as speed limit 90, front exhaust pipe and air suspension axle.
5550 QL5180XXYEQFRY
5800 QL5180XXYGTFRY QL5180XXYERFRCY
6300 QL5180XXYESFRY
7150 QL5180XXYGTFRY Single axle 240 HP

Above 240 HP, below 300 HP
4500 QL5220GXFFMFRY Front 385 / 65r22.5 and rear 315 / 80R22.5
7150 QL5180XXYGTFRY Single axle 300 HP
4350+1370/4650+1370 ★ quotation for large wheelbase QL1250FNFZY
4650+1370/5100+1370 QL1251FTFZY QL1251FTFZY
5700+1370
5700+1370 QL1251FTFZY QL1250FTFZY
5800+1370 QL1252FTFZY
4650+1370 QL1260FFSHY Special chassis for hazardous chemicals
1850+2980+1370 QL2310GFSHY Front bar improves Trafficability
1850+4575+1370 QL1310FVFHY
wheelbase The following are Isuzu vc66 level 350 HP, 380 HP, 460 HP and 520 HP national six chassis models The following is the configuration of Isuzu vc66 level 350 HP, 380 HP, 420 HP, 460 HP and 520 HP national VI chassis
3900/4600/5600 QL5220TZZU4QDRY 380 HP special chassis Matching of engine and transmission: Isuzu guoliu 350 HP corresponds to 6uz1-tcg61 engine, 380 HP corresponds to 6uz1-tcg61 engine, 420 HP corresponds to 6wg1-tcg60 engine, 460 HP corresponds to 6wg1-tcg61 engine, guoliu 520 HP chassis corresponds to 6wg1-tcg62 engine, and the transmission is zf8 of ZF 8 or other common configurations of fast 12Set: equipped with the new Isuzu vc61 cab, heating and cooling air conditioner, steering assist, central lock, electric doors and windows, multi-functional steering wheel, multi-functional liquid crystal instrument, with ABS and air brake. Ordinary models have 7.5t front axle, 13-20t rear axle, overrun chassis, 9t-18t front axle and 13t-26t rear axle. Ordinary models of this level are equipped with 295 / 80R22.5 tires or 12r22.5 tires as standard. This level of overrun special chassisFront wheel 385 / 65r22.5, rear wheel 315 / 80R22.5, optional cyclone seat for 1000 yuan and air suspension cab for 2000 yuan. Configuration of operating regulations: speed limit of operating vehicle is 89 km / h: it is configured in ordinary ABS status, including front wheel disc brake, rear wheel drum brake and tire explosion-proof tire pressure monitoring TPMS. Speed of operating vehicle above 90 km / h: EBS + ESC + LDWS + FCW, i.e. front disc rear drum and tire pressure monitoringTest TPMS, tire explosion-proof emergency, add EBS electronic control braking system, ESC vehicle electronic stability control,
Lane departure alarm LDWS and forward collision alarm FCW. The special hazardous chassis ql1260kdphy is added with hazardous chassis kits such as speed limit 90, front exhaust pipe and air suspension axle on the basis of the above common goods
4600 QL5220TZZHFMHY 460 HP special chassis
3900+1370 QL1260KDPHY 380 maliwei chassis
3985+1370 QL1250U4QDZCY 380 HP sanitation chassis
4600+1370 QL1250U4SDZY 380 malinon City
4600+1370 QL5350TZZWUTDZY 380 HP fire chassis
460 HP fire chassis
1850+3000+1370 QL1310U4TDHCY 380 HP sanitation chassis
1850+2980+1370 QL2310U4TDHY 380 HP mixing chassis
1850+4575+1370 QL1310LCYHY 350 malifei City
1850+4575+1370 QL1320W6VDHY 460 HP air suspension rear axle
4800+1370 QL5350TZZW6TDZY 420 HP special chassis
5200+1370 QL5350TZZW6TDZY 420 HP special chassis
4800+1370 QL5350TZZW6TDZY 460 HP special chassis
4800+1370 QL5350TZZW7TDZY 520 HP special chassis
5200+1370 QL5350TZZW6TDZY 460 HP special chassis
5400+1370 QL5360TZZKJUHY 520 HP special chassis
2100+4325+1370 QL5440TZZW6VDHY 460 HP special chassis
2100+4325+1370 QL5440TZZW7VDHY 520 HP special chassis
wheelbase The following is Isuzu vc66 level 380 HP, 420 HP, 460 HP and 520 HP guoliu traction model number The following is the configuration of Isuzu vc66 class 380 HP, 420 HP, 460 HP and 520 HP national VI tractor
3600 QL4180U4JDR 380 HP 4 * 2 Engine transmission: Isuzu guoliu 380 HP corresponds to 6uz1-tcg61 engine, Isuzu guoliu 420 HP corresponds to 6wg1-tcg60 engine, Isuzu guoliu 460 HP corresponds to 6wg1-tcg61 engine, and Isuzu guoliu 520 HP corresponds to 6wg1-tcg62 engine. The transmission is ZF16, and the automatic gear model corresponds to the manual transmission. Other common configurations: install the new Isuzu 5xLevel vc61 cab, heating and cooling air conditioner, steering assist, central lock, electric doors and windows, multi-functional steering wheel, multi-functional LCD instrument, with ABS and air brake. Ordinary models have 7.5t front axle, 13T rear axle or 10 + 10t. Ordinary models of this level are equipped with 295 / 80R22.5 18pr as standard and 12r22.5 18pr as optional. Operation regulations configuration: the corresponding speed limit of ordinary models is 89km. Regulations include air break of front wheel and rear drumBrake, add EBS electronic control brake system, ESC vehicle electronic stability control system, double early warning (lane departure alarm LDWS, forward collision alarm FCW), 10t Meritor rear axle, air suspension seat and cab, and add tire pressure monitoring, tire explosion-proof, Harrison rear axle air suspension and 10t Meritor disc rear axle for hazardous vehicles
3600 QL4180W5JDR QL4180W6JDR
3900 QL4180W7KDR 460 HP 4 * 2
3385+1370 QL4250U4NDZ QL4250W6NDZ
3385+1370 QL4250WUNDZ 520hp manual gear
3385+1370 QL4250KJNH 520 HP automatic
3385+1370 QL4251U4NDZ 380 HP high-risk chemical
3385+1370 QL4252U4NDZ 380 HP standard top hazard
3385+1370 QL4251W6NDZ 460 HP high-risk
3385+1370 QL4252W6NDZ 460hp standard top hazard



Previous:
Next:

Related Products

DRZ5080xcs Mobile Toilet Restroom Trucks Divided into 5 Squat Washroom And 3 Urinal Room
DRZ5080xcs Mobile Toilet Restroom Trucks Divided into 5 Squat Washroom And 3 Urinal Room
SINOTRUCK HOWO Combined Jet Suction Trucks- 10000Liters Sewage+2000Liters Clean Water
SINOTRUCK HOWO Combined Jet Suction Trucks- 10000Liters Sewage+2000Liters Clean Water
Sinotruck HOWO BCZH-15 HEAVY ANFO TRUCK 8X4
Sinotruck HOWO BCZH-15 HEAVY ANFO TRUCK 8X4
HOWO Slide Tilt Tray Flatbed Recovery Truck Towing Breakdown Truck with 8ton Hydraulic Winch 8ton Boom Hydraulic Crane Sqs200-4 Towing 18ton
HOWO Slide Tilt Tray Flatbed Recovery Truck Towing Breakdown Truck with 8ton Hydraulic Winch 8ton Boom Hydraulic Crane Sqs200-4 Towing 18ton
HOWO Tilt Tray Flatbed Recovery Truck (Flat Slide Bed) 8Ton Hydraulic Winch Towing Breakdown Truck 15000kg
HOWO Tilt Tray Flatbed Recovery Truck (Flat Slide Bed) 8Ton Hydraulic Winch Towing Breakdown Truck 15000kg
HOWO Small 5 Ton Vacuum Road Sweeper Truck With 4cbm Garbage Dustbin 1cbm Water Tank
HOWO Small 5 Ton Vacuum Road Sweeper Truck With 4cbm Garbage Dustbin 1cbm Water Tank
Sino HOWO LPG Bobtail Truck 24, 000liters with LPG Pump Pto
Sino HOWO LPG Bobtail Truck 24, 000liters with LPG Pump Pto
LPG Bobtail Tanker Truck HOWO 12 Wheels Drive 30cbm Tank Mounted with LPG Pump computer Dispenser
LPG Bobtail Tanker Truck HOWO 12 Wheels Drive 30cbm Tank Mounted with LPG Pump computer Dispenser
HOWO Mobile Workshop 6X6 off Road Service Trucks Customizing
HOWO Mobile Workshop 6X6 off Road Service Trucks Customizing
Sinotruck HOWO Tanker Truck with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport 26, 000L-33, 000liters 12wheels
Sinotruck HOWO Tanker Truck with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport 26, 000L-33, 000liters 12wheels
HOWO 5.5m3 (5500 Liters) LPG Bobtail Truck Tanker Mounted with LPG Pump Yqb-5. LPG Dispenser BCS-150 LHD. Rhd
HOWO 5.5m3 (5500 Liters) LPG Bobtail Truck Tanker Mounted with LPG Pump Yqb-5. LPG Dispenser BCS-150 LHD. Rhd

SUCCESS CASES

More >>

Navigation

Home About Us Products News Contact Us Sign In Register Cart

Contact Us

EMAIL:Sale@tictrucks.com
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Contract Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Contract Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300
Address Keystone Vessel :R 23, F4,New Factory (4), B1, Phase II, Dashu Industrial Village , Liufang Street ,Wuhan East Lake Hi-tech Development Zone, Wuhan City, Hubei Province,P.R.China  .......
 Hubei Dong Runze Special Vehicle Equipment Co., Ltd.  Keystone Vessel (Wuhan) Co., Ltd ;Keystone Vessel Manufacturing Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/  www.truckinchina.com ,www.tictrucks.com, https://ks-vessel.com
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
