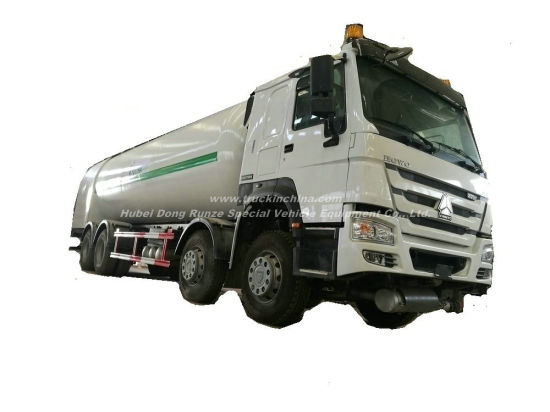

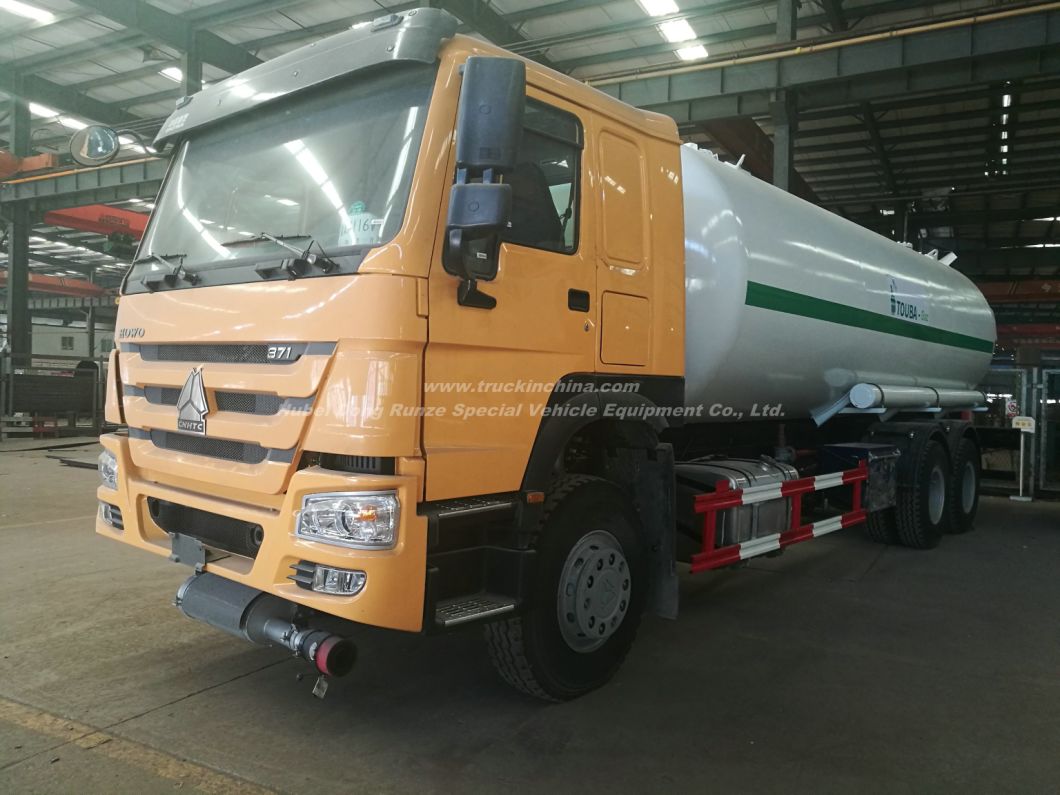

LPG Bobtail Tanker Truck HOWO 12 Wheels Drive 30cbm Tank Mounted with LPG Pump computer Dispenser
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
LPG Bobtail Tanker Truck HOWO 12 Wheels Drive 30CBM Tank Mounted with LPG Pump Computor Dispenser
Sinotruk HOWO
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
HOWO LPG BOBTAIL TRUCK 24,000LITERS 10 Wheels / 6X4 with LPG PUMP PTO
| LPG Tank | Volume | 24m3 |
| material | Q345R | |
| Tanks thickness | 12 mm | |
| Design pressure | 1.77 Mpa | |
| Design temperature | -20~+50 °C | |
| filling ratio | 0.42 T/ m³ | |

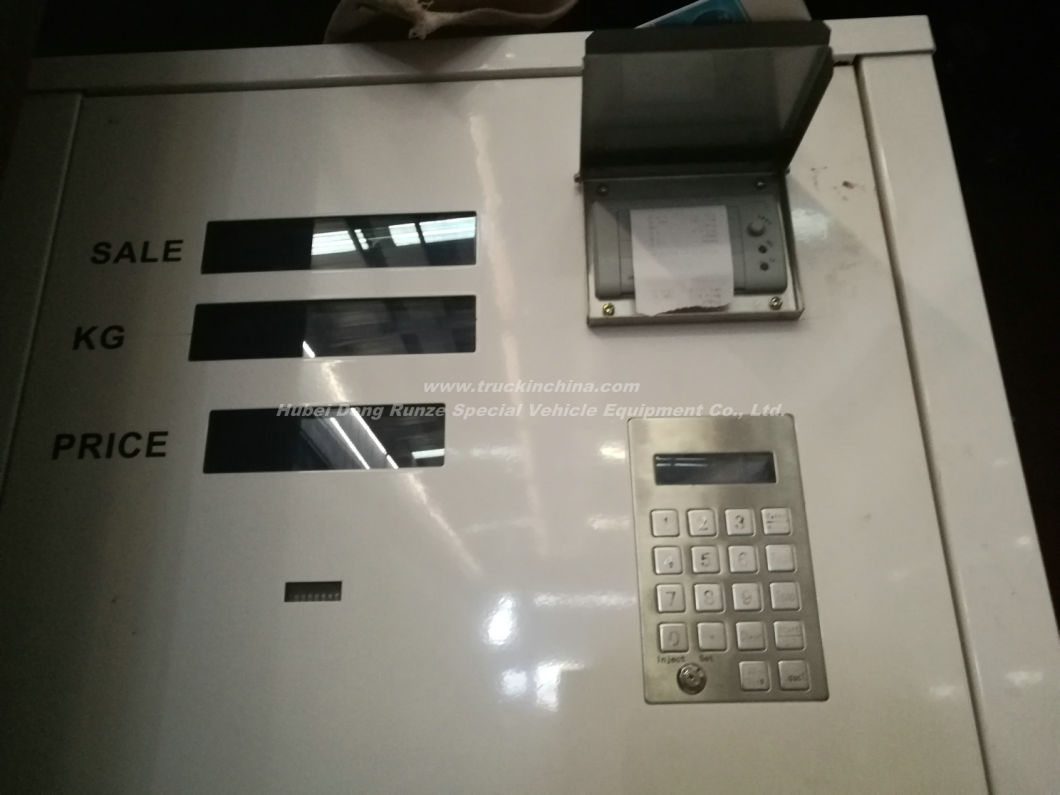

| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
| Description | HOWO LPG BOBTAIL TRUCK 24,000LITERS 10 Wheels / 6X4 | ||
| Condition | New condition/LHD | ||
| Chassis | Curb weight(kg) | 12870 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 5225+1350 | ||
| Dimensions(mm) | 10900×2500×3750 | ||
| Overhang (front/rear) (mm) | 1320/3080 | ||
| Approach/Departure angle(°) | 20/13 | ||
| Axle Load(kg) | 7000/18000 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | Sinotruk(HOWO) | ||
| Model | ZZ1257 | ||
| Tire | Number | 10pcs with one spare tire | |
| Specifications | 12R22.5 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Gear box | HW13710 10 Forwards & 2 reverses | ||
| Engine | Model | WD615.62 266HP / 196KW WD615.69 /WD615.95E 336HP/247KW WD615.47 371HP / 273KW | |
| Displacement(ml) | 9726 | ||
| Horsepower(HP)/Power(kw) | 266HP / 196KW; 336HP / 247KW; 371HP / 273KW | ||
| Emission standard | Euro 2 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Cab | HW76, It can accommodate three people | ||
| Steering Gear | ZF 8098, Power steering, hydraulic steering with power assistance | ||
| Remarks | 1, 2 units Fire Extinguisher Cabinet 2, With Air conditioning | ||
Tank Attachments
1. Fitted with internal ring segments, drilled for assembly of 4 demountable and folded steel surge baffles. Baffle thickness - 3mm steel

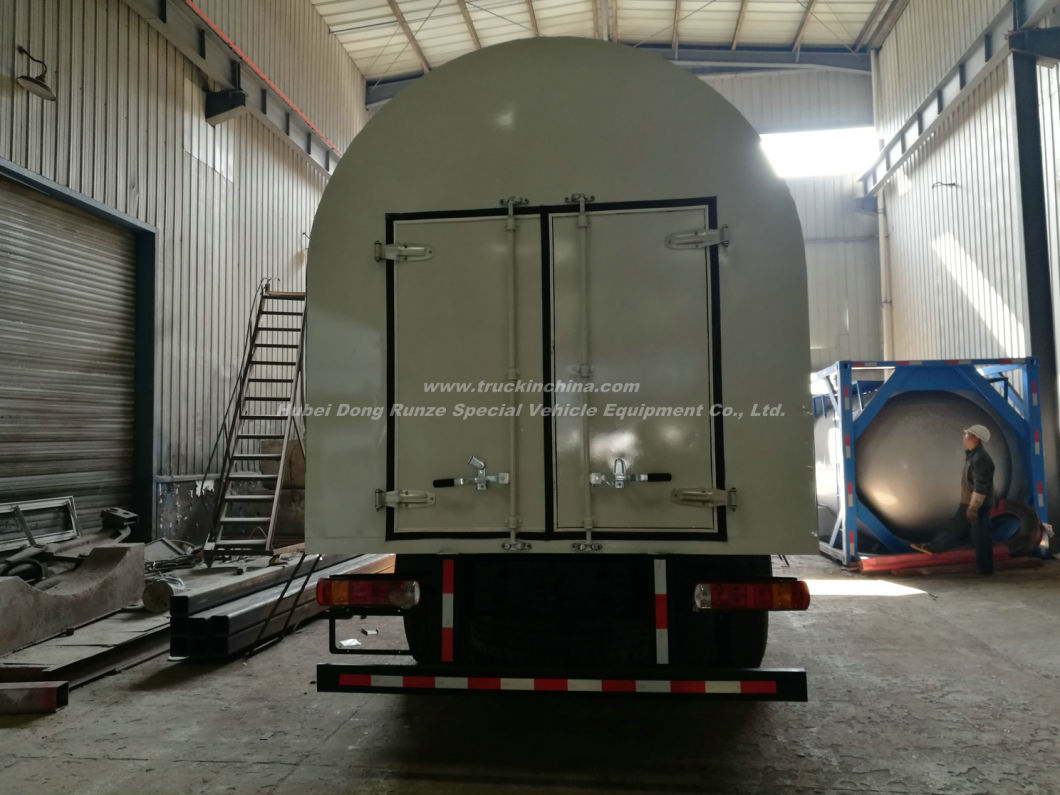

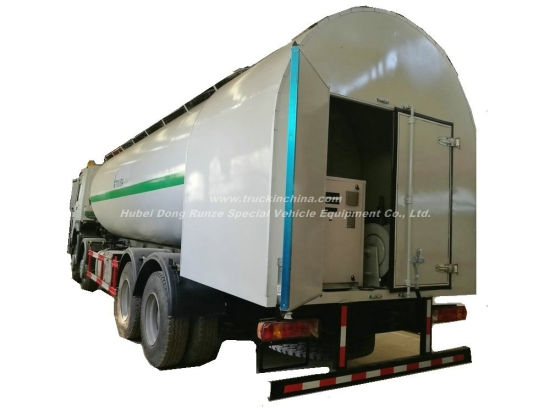

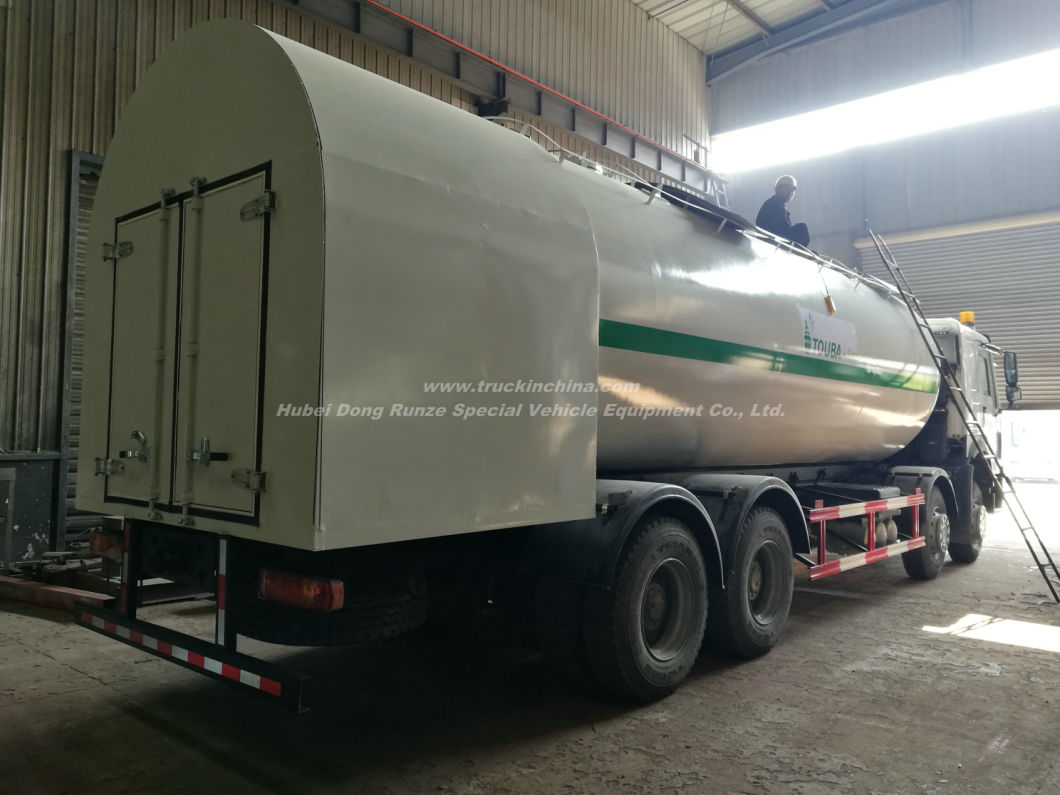

2. Valve Box Cabinet on the side for the bottom discharge, complete with lockable door
3. Operational Decal on the inside of the valve box cabinet door
Tank Openings & Connections
1, Manhole: DN450/DN500
2, Safety Relief Valve: DN50
3, Liquid Line: DN50/DN80
4, Gas Line: DN25/DN50

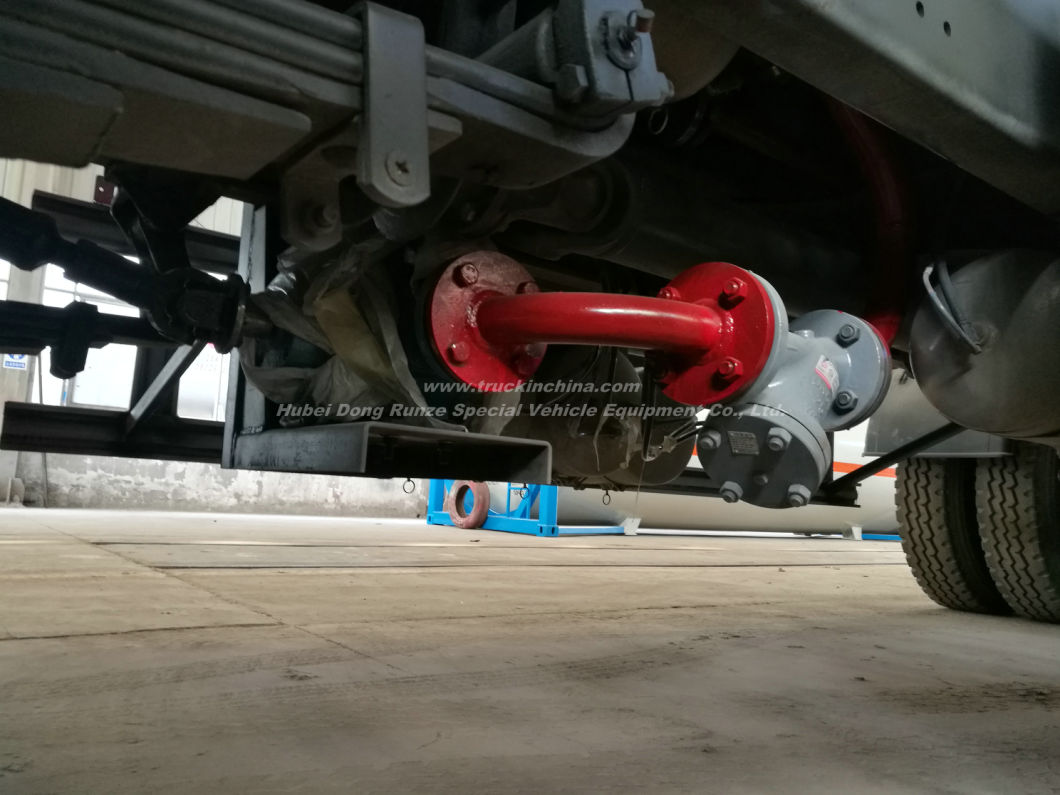

5, LPG Pump:
6, Discharging system
7, Liquid control LPG follow meter:
8, Tempreture Gauge
9, Pressure Gauges
10, Liquid Level
11, Drain Valve

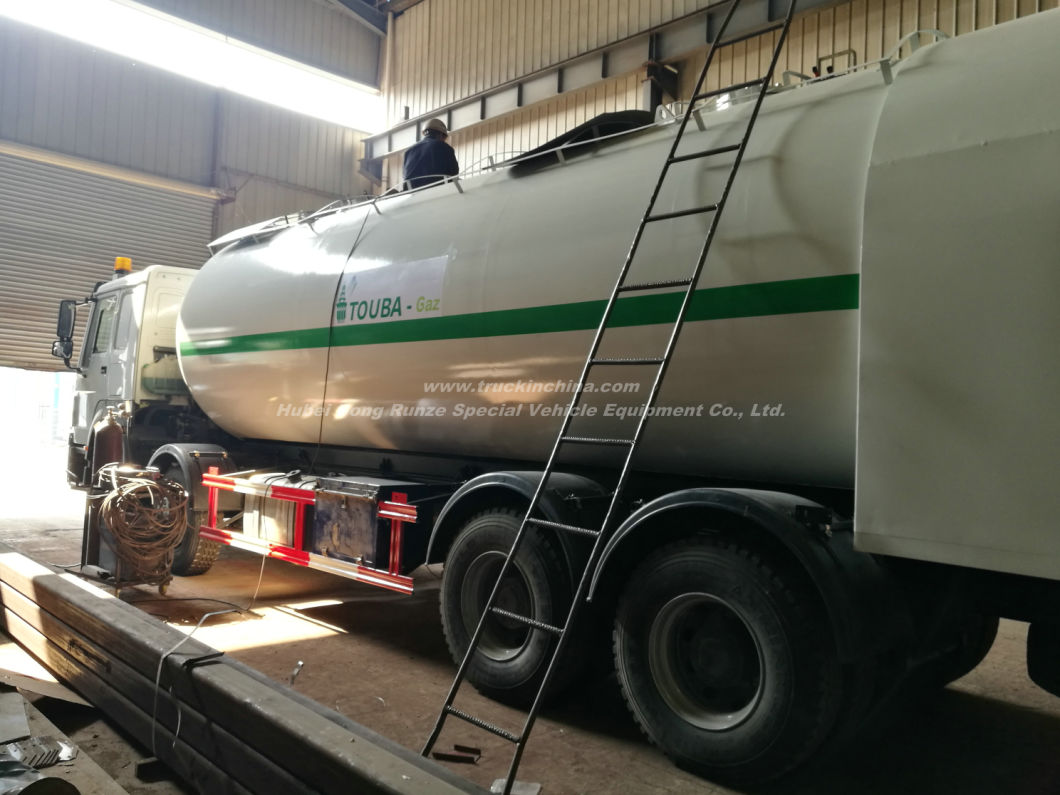

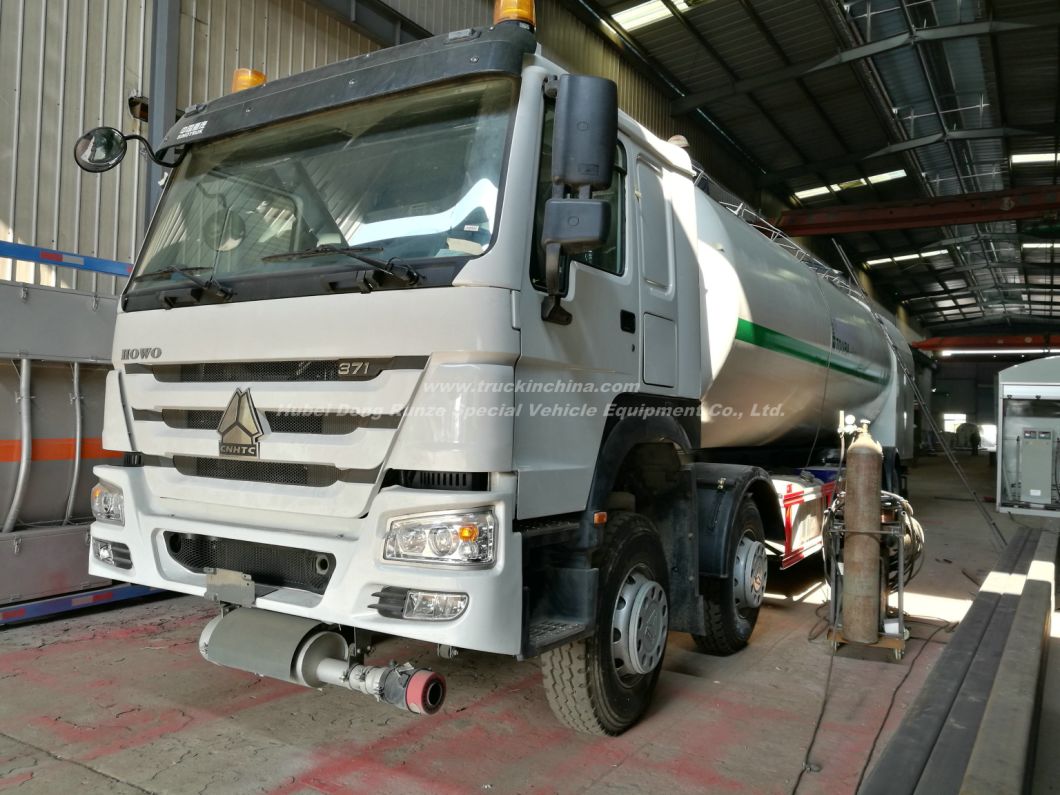

| HOWO LPG BOBTAIL TRUCK 30,000LITERS 12 Wheels / 8X4 Chassis : ZZ1317 |
| LPG Tank | Volume | 30m3 |
| material | Q345R | |
| Tanks thickness | 12 mm | |
| Design pressure | 1.77 Mpa | |
| Design temperature | -20~+50 °C | |
| filling ratio | 0.42 T/ m³ | |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
Engine : WD615.47 371HP/ 273KW
Power / Displacement: 371hp / 9726mL
| SR# | Project | Parameter | Unit | |
| 1 | Truck Spec | Drive Type | Left Hand Drive ( LHD ) | |
| 2 | Drive Mode | 8x4 | ||
| 3 | Overall Dimensions | 11510×2500×3770 | LxWxH, mm | |
| 4 | Tanker Volume | 36000 | Liters | |
| 5 | Total Weight | 31000 | kg | |
| 6 | Rated Payload | 14555 | kg | |
| 7 | Curb Weight | 16315 | kg | |
| 8 | Chassis Spec | Chassis Number | ZZ1317N4667W | |
| 9 | Chassis Brand | Sinotruk Howo | ||
| 10 | Wheelbase | 1800+4600+1350 | mm | |
| 11 | Tyre | 12R22.5 | ||
| 12 | Maximum Speed | 80 | km/h | |
| 13 | Engine Spec | Engine Number | WD615.47 | |
| 14 | Emission Standard | Euro 3 ( Euro III ) | 371HP/ 273KW | |
Cell :+8615271357675
