DRZ5311GJQJAC
-
Dong Run Ze
-
8705909990
-
Shanghai, China
-
3000
-
T/T

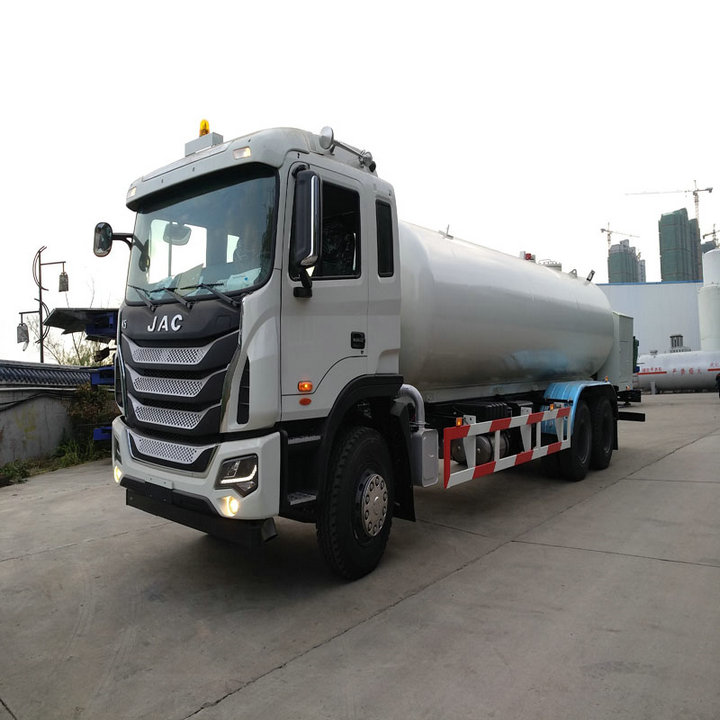

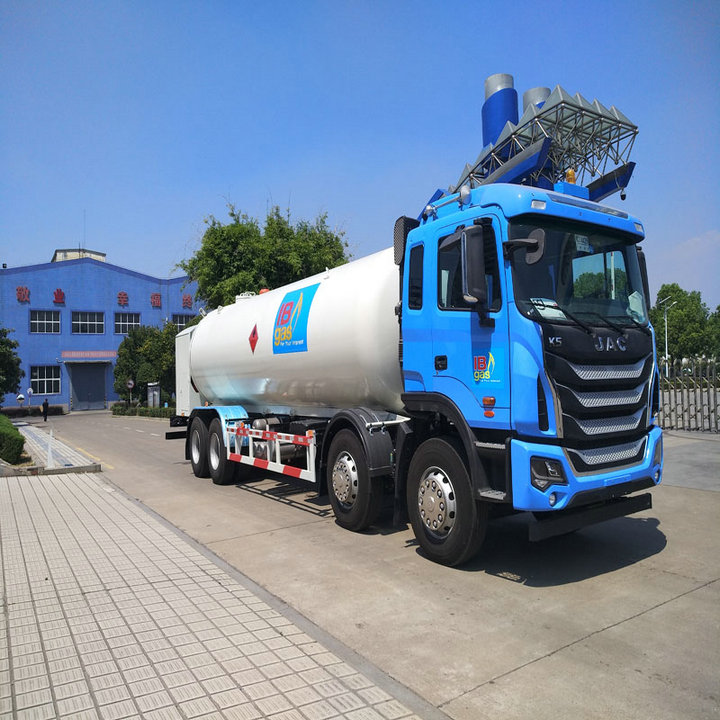

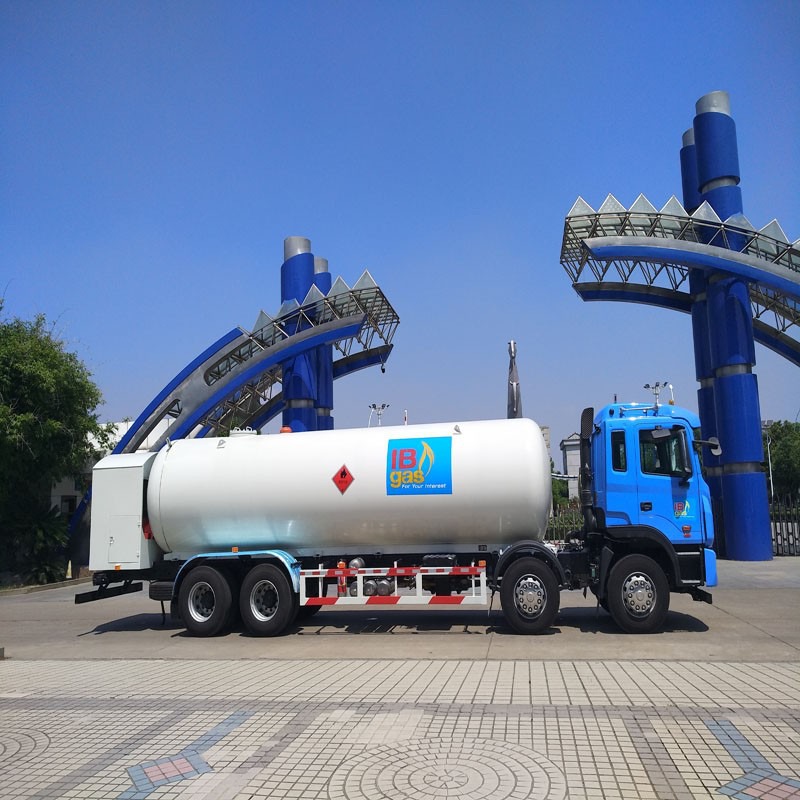

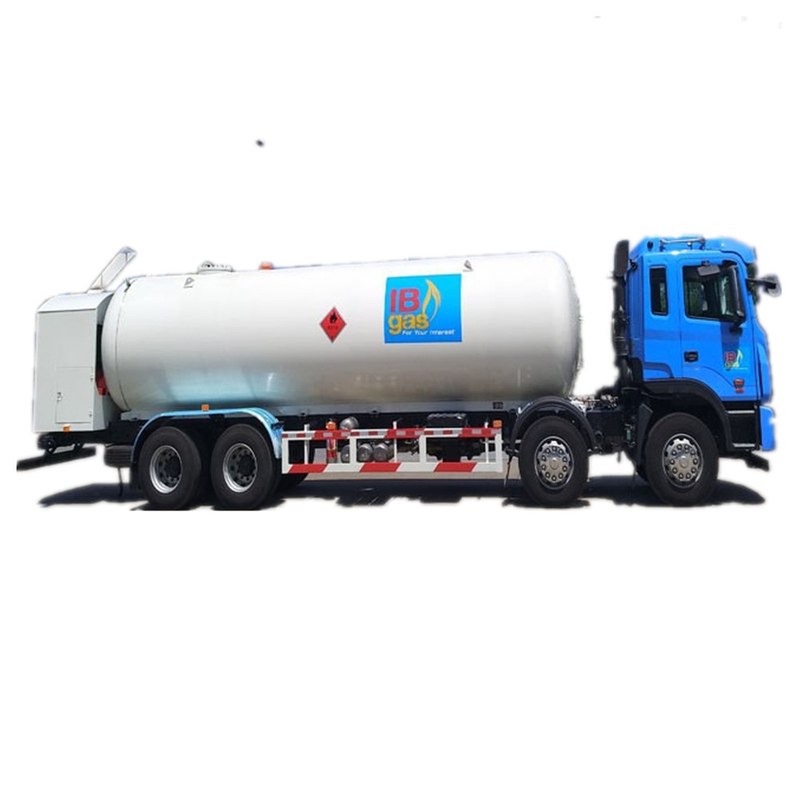

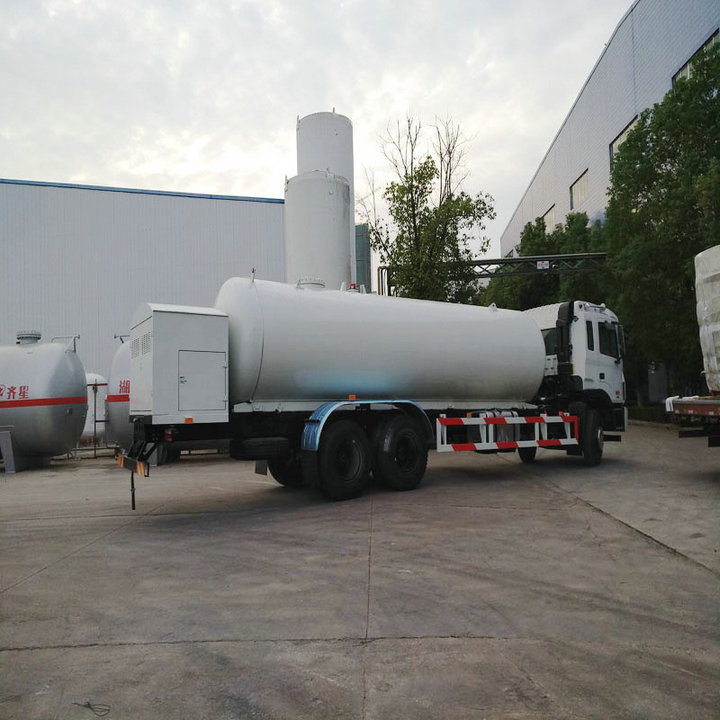

JAC Liquefied Gas Tank Truck 25m3 LPG Bobtail Tanker with Pump Filling SystemJAC Liquefied Gas Tank Truck 25m3 LPG Bobtail Tanker with Pump Filling System
LPG Bobtail Tanker Truck JAC 12 Wheels Drive 25CBM Tank Mounted with LPG Pump Computor Dispenser
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Tank Attachments
1. Fitted with internal ring segments, drilled for assembly of 4 demountable and folded steel surge baffles. Baffle thickness - 3mm steel
2. Valve Box Cabinet on the side for the bottom discharge, complete with lockable door
3. Operational Decal on the inside of the valve box cabinet door
Tank Openings & Connections
1, Manhole: DN450/DN500
2, Safety Relief Valve: DN50
3, Liquid Line: DN50/DN80
4, Gas Line: DN25/DN50
5, LPG Pump:
6, Discharging system
7, Liquid control LPG follow meter:
8, Tempreture Gauge
9, Pressure Gauges
10, Liquid Level
11, Drain Valve
| LPG Tank | Volume | 25m3 |
| material | Q345R | |
| Tanks thickness | 12 mm | |
| Design pressure | 1.77 Mpa | |
| Design temperature | -20~+50 °C | |
| filling ratio | 0.42 T/ m³ | |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
| SR# | Project | Parameter | Unit | |
| 1 | Truck Spec | Drive Type | Left Hand Drive ( LHD ) | |
| 2 | Drive Mode | 8x4 | ||
| 3 | Overall Dimensions | 11510×2500×3770 | LxWxH, mm | |
| 4 | Tanker Volume | 36000 | Liters | |
| 5 | Total Weight | 31000 | kg | |
| 6 | Rated Payload | 14555 | kg | |
| 7 | Curb Weight | 16315 | kg | |
| 8 | Chassis Spec | Chassis Number | ||
| 9 | Chassis Brand | JAC or HOWO,DFAC, BEIBEN,SHACMAN,ISUZU | ||
| 10 | Wheelbase | 1800+4600+1350 | mm | |
| 11 | Tyre | 12R22.5 | ||
| 12 | Maximum Speed | 80 | km/h | |
| 13 | Engine Spec | Engine Number | WD | |
| 14 | Emission Standard | Euro 3 ( Euro III ) | 371HP/ 273KW | |
Cell :+8615271357675
