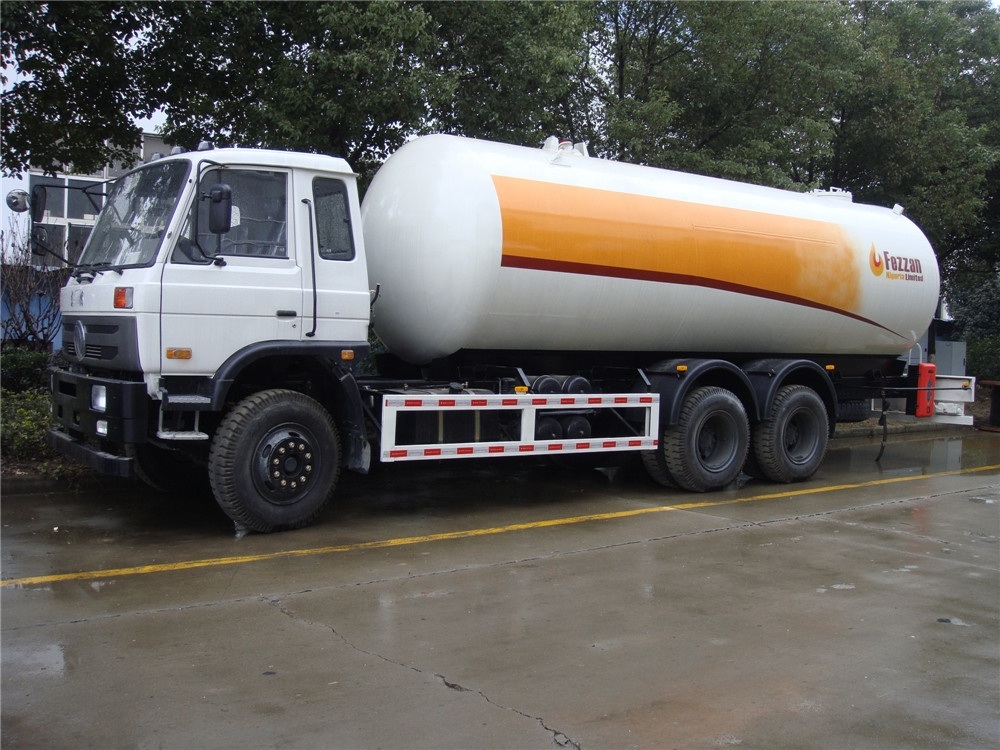

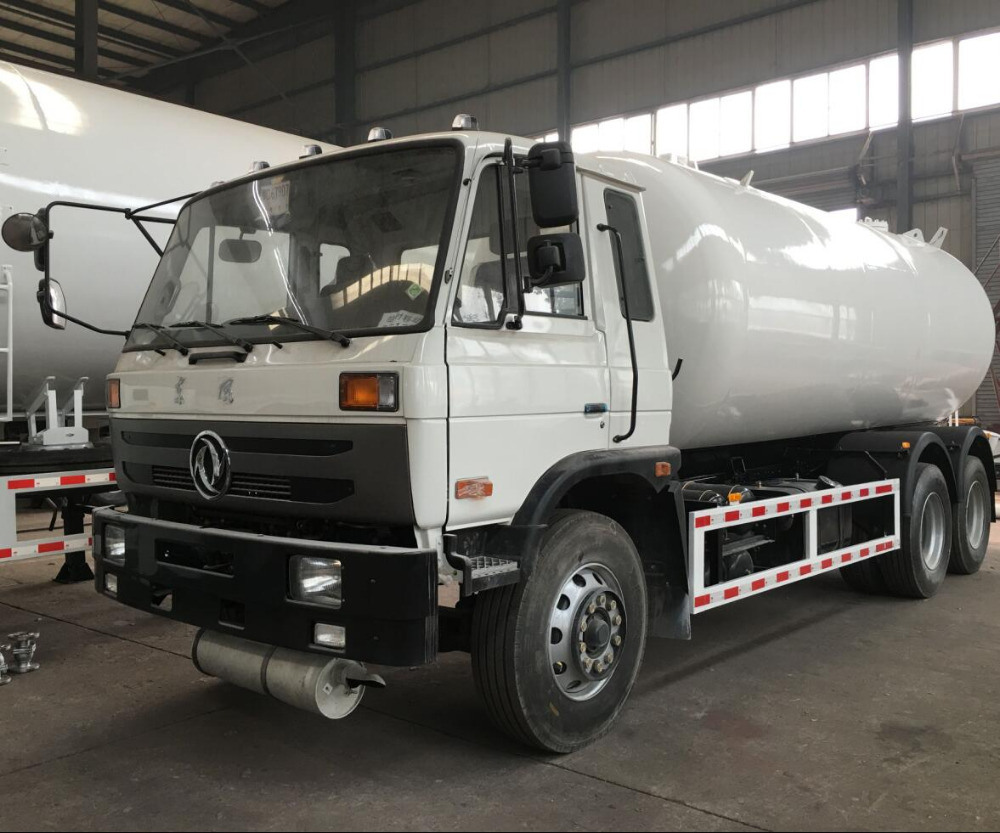

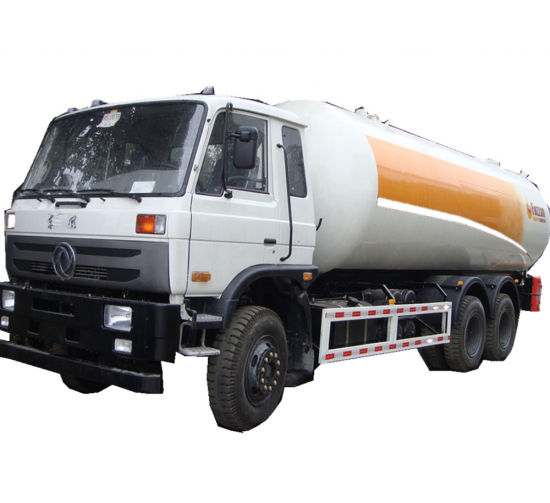

Dong Run LPG Bobtail Truck 20, 000liters Bulk Cooking Gas 10 Wheels Drive
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
LPG Bobtail Tanker Truck HOWO 12 Wheels Drive 30CBM Tank Mounted with LPG Pump Computor Dispenser
Sinotruk HOWO
Ask for better price
Cell /+8615271357675

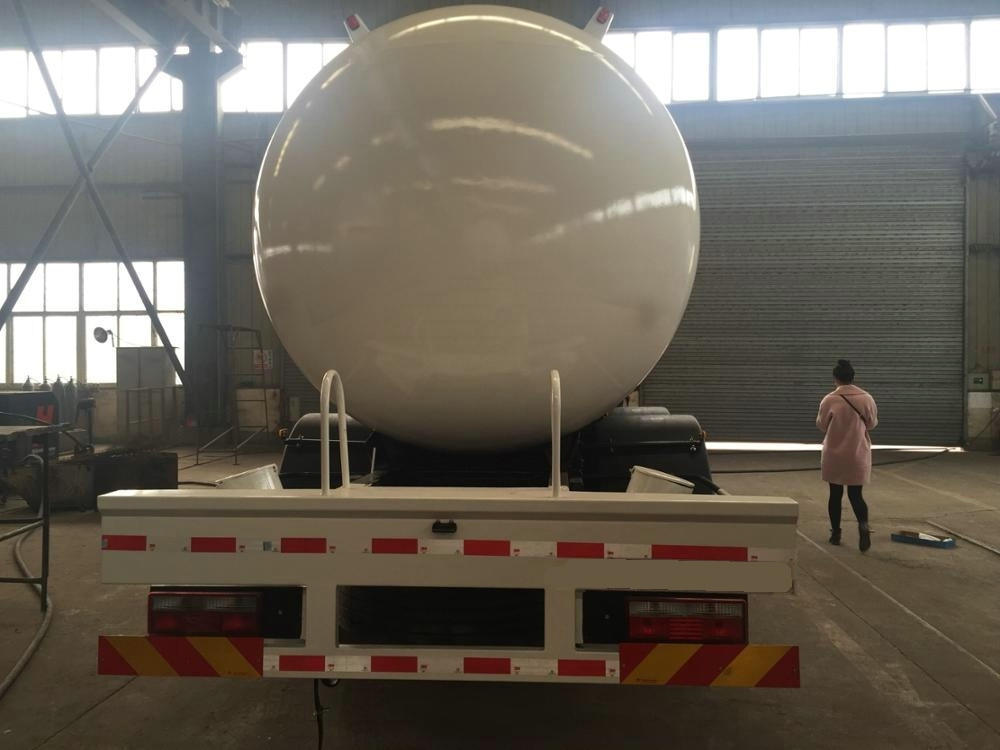

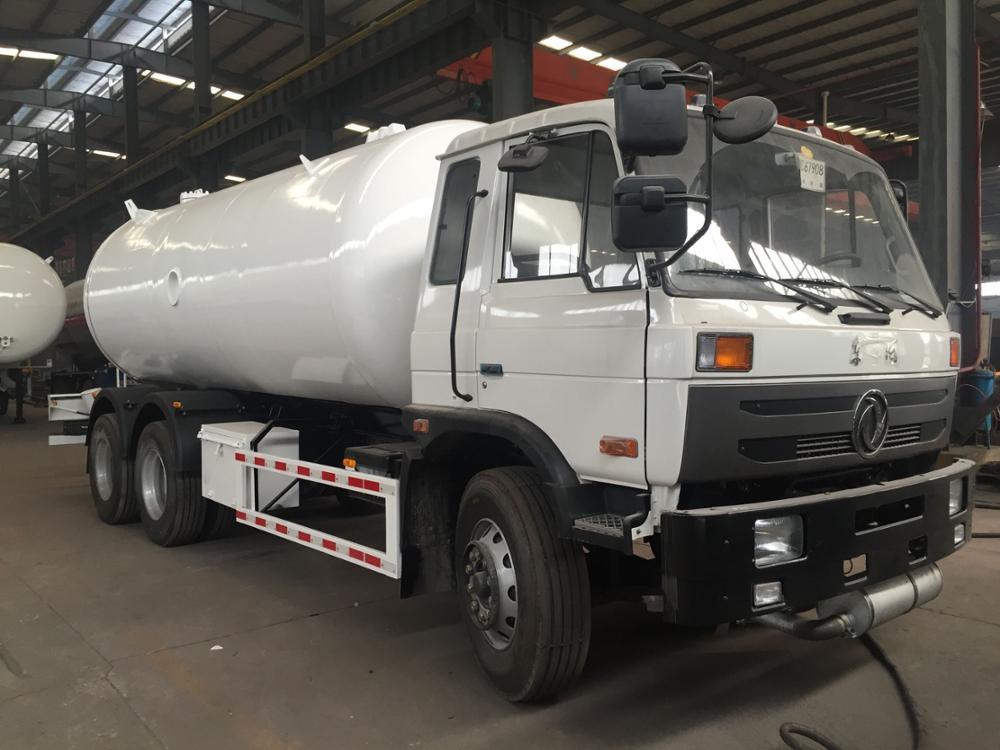

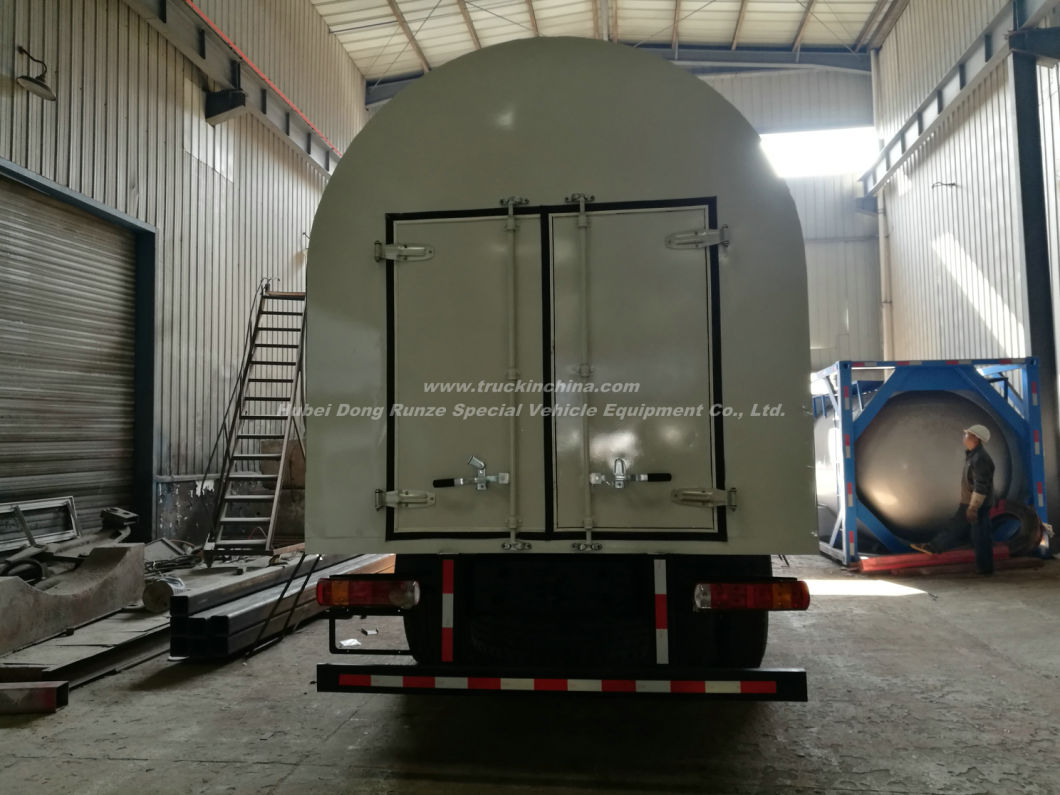

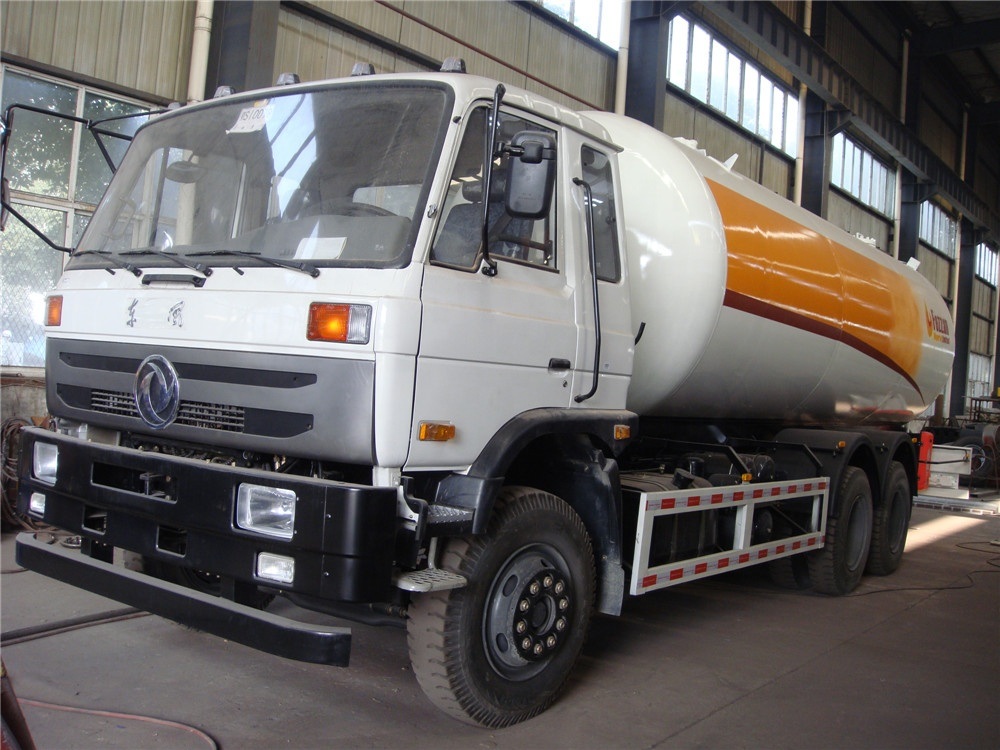

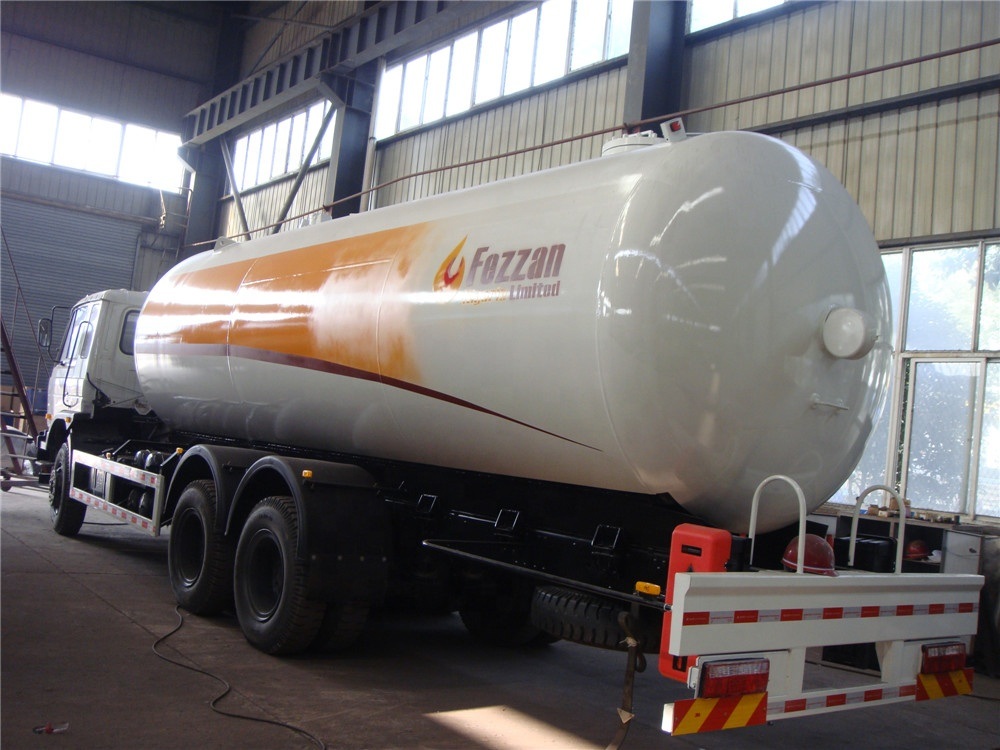

Details Photo LPG Tank Truck for your reference only.
» LPG Tank Truck Specification :
| TECHNICAL SPECIFICATION | ||
| Items | Descriptions | Specifications and Types |
| General | Truck Name | LPG dispensor truck |
| Drive Type | 6x4 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 13969 | |
| Overall Dimensions(mm) | 10720×2500×3420 | |
| Engine | Engine Brand | Dongfeng |
| Fuel Type | Diesel | |
| Power | 210HP/155KW | |
| Emission Standard | Euro III | |
| Displacement(ml) | 5900 | |
| Engine Type | 6 cylinder in line,water cooling, charged inter-cooling | |
| Chassis | Cab | Flat roof , single row and half cab |
| Chassis Brand | Dongfeng | |
| Tire | 10.00-20 Nylon Tyre (10+1pcs) 10.00R20 with 1 spare tire | |
| Wheelbase (mm) | 4350+1300 | |
| Front axle | 5000kgs x1 | |
| Rear axles | 10000kgs x2 | |
| Gear Box | 8 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Steering Wheel | Left hand drive with power-assisted | |
| Tank | Filling Medium | LPG(Propane) |
| Tank Volume(L) | 20000 | |
| Filling Mass(KG) | 8400 | |
| Cylinder Design Thickness(mm) | 10 | |
| Head Design Thickness(mm) | 10 | |
| Tank Material | Q345R | |
| Density of Medium(kg/m3) | 420(50°) | |
| Design Pressure(Mpa) | 1.61 | |
| Hydrostatic Test Pressure(Mpa) | 2.66 | |

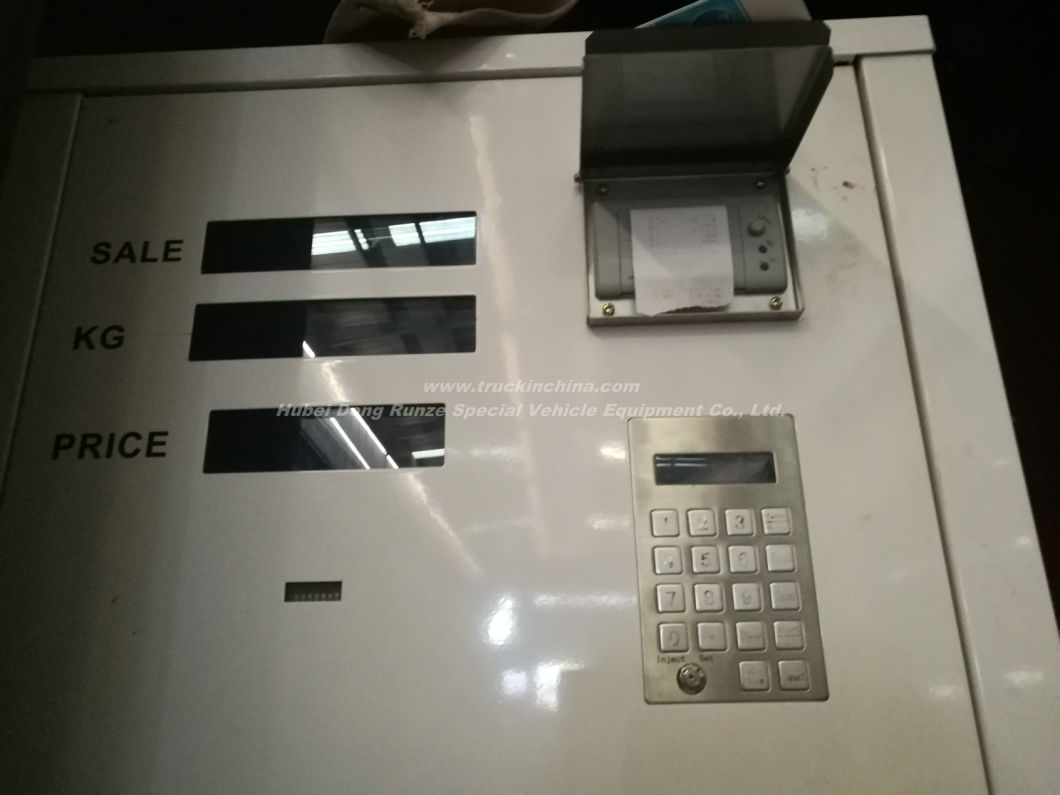

| Equipment | Gas pump, gas dispenser, gas gun,pressure gauge, thermometer ,discharge valve, Safety Valve, level gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. | |
Domestic or imported high-quality safety accessories is optional for lpg storage tank
We can provide LPG storage tank volume from 5m3 to 120m3
LPG transporation truck from 5.5m3 to 35.5m
We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide
According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability
Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified
Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology
Standard configuration:Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.
Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs
HOWO LPG BOBTAIL TRUCK 24,000LITERS 10 Wheels / 6X4 with LPG PUMP PTO
| LPG Tank | Volume | 24m3 |
| material | Q345R | |
| Tanks thickness | 12 mm | |
| Design pressure | 1.77 Mpa | |
| Design temperature | -20~+50 °C | |
| filling ratio | 0.42 T/ m³ | |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
| Description | HOWO LPG BOBTAIL TRUCK 24,000LITERS 10 Wheels / 6X4 | ||
| Condition | New condition/LHD | ||
| Chassis | Curb weight(kg) | 12870 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 5225+1350 | ||
| Dimensions(mm) | 10900×2500×3750 | ||
| Overhang (front/rear) (mm) | 1320/3080 | ||
| Approach/Departure angle(°) | 20/13 | ||
| Axle Load(kg) | 7000/18000 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | Sinotruk(HOWO) | ||
| Model | ZZ1257 | ||
| Tire | Number | 10pcs with one spare tire | |
| Specifications | 12R22.5 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Gear box | HW13710 10 Forwards & 2 reverses | ||
| Engine | Model | WD615.62 266HP / 196KW WD615.69 /WD615.95E 336HP/247KW WD615.47 371HP / 273KW | |
| Displacement(ml) | 9726 | ||
| Horsepower(HP)/Power(kw) | 266HP / 196KW; 336HP / 247KW; 371HP / 273KW | ||
| Emission standard | Euro 2 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Cab | HW76, It can accommodate three people | ||
| Steering Gear | ZF 8098, Power steering, hydraulic steering with power assistance | ||
| Remarks | 1, 2 units Fire Extinguisher Cabinet 2, With Air conditioning | ||
Tank Attachments
1. Fitted with internal ring segments, drilled for assembly of 4 demountable and folded steel surge baffles. Baffle thickness - 3mm steel

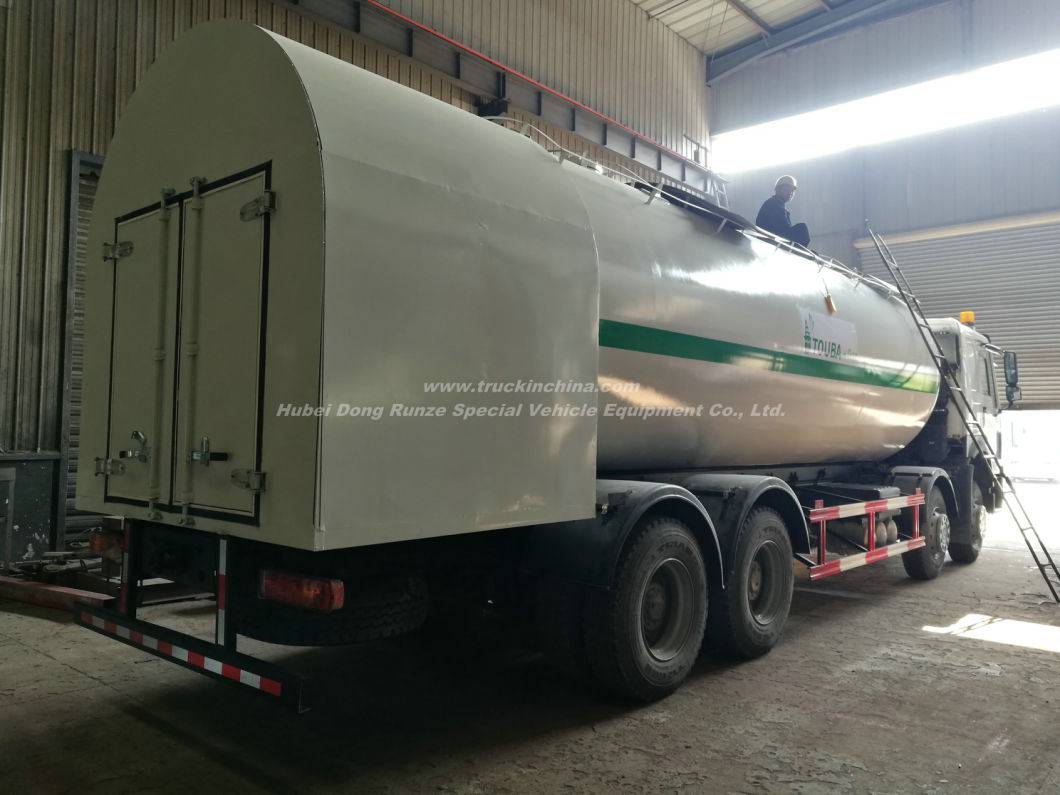

2. Valve Box Cabinet on the side for the bottom discharge, complete with lockable door
3. Operational Decal on the inside of the valve box cabinet door
Tank Openings & Connections
1, Manhole: DN450/DN500
2, Safety Relief Valve: DN50
3, Liquid Line: DN50/DN80
4, Gas Line: DN25/DN50
5, LPG Pump:
6, Discharging system
7, Liquid control LPG follow meter:
8, Tempreture Gauge
9, Pressure Gauges
10, Liquid Level
11, Drain Valve
| HOWO LPG BOBTAIL TRUCK 30,000LITERS 12 Wheels / 8X4 Chassis : ZZ1317 |
| LPG Tank | Volume | 30m3 |
| material | Q345R | |
| Tanks thickness | 12 mm | |
| Design pressure | 1.77 Mpa | |
| Design temperature | -20~+50 °C | |
| filling ratio | 0.42 T/ m³ | |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
Engine : WD615.47 371HP/ 273KW
Power / Displacement: 371hp / 9726mL
| SR# | Project | Parameter | Unit | |
| 1 | Truck Spec | Drive Type | Left Hand Drive ( LHD ) | |
| 2 | Drive Mode | 8x4 | ||
| 3 | Overall Dimensions | 11510×2500×3770 | LxWxH, mm | |
| 4 | Tanker Volume | 36000 | Liters | |
| 5 | Total Weight | 31000 | kg | |
| 6 | Rated Payload | 14555 | kg | |
| 7 | Curb Weight | 16315 | kg | |
| 8 | Chassis Spec | Chassis Number | ZZ1317N4667W | |
| 9 | Chassis Brand | Sinotruk Howo | ||
| 10 | Wheelbase | 1800+4600+1350 | mm | |
| 11 | Tyre | 12R22.5 | ||
| 12 | Maximum Speed | 80 | km/h | |
| 13 | Engine Spec | Engine Number | WD615.47 | |
| 14 | Emission Standard | Euro 3 ( Euro III ) | 371HP/ 273KW | |
Cell :+8615271357675
