DRZ5080xcs
-
Dong Run Ze
-
8705909990
-
1

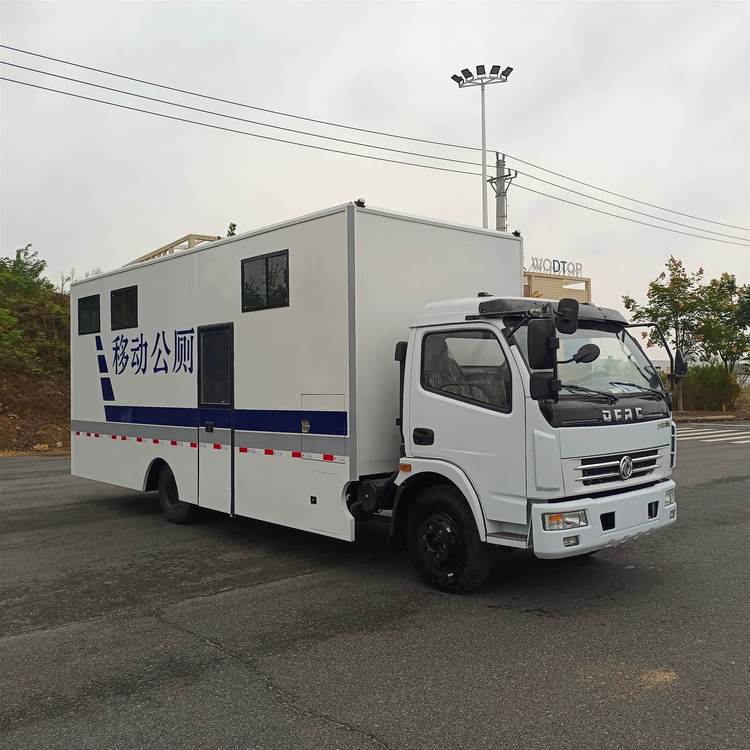

1. Vehicle brand: DFAC
2. Euro 2 / 3 emission standard, electric doors and windows, original air conditioner, directional power steering, 6 tires, air break braking, axle base 3800mm, central lock, transmission 6 gear, maximum ≤ 100km, single row cab.
2、 Technical parameters and general conditions of refitting mobile toilet vehicles

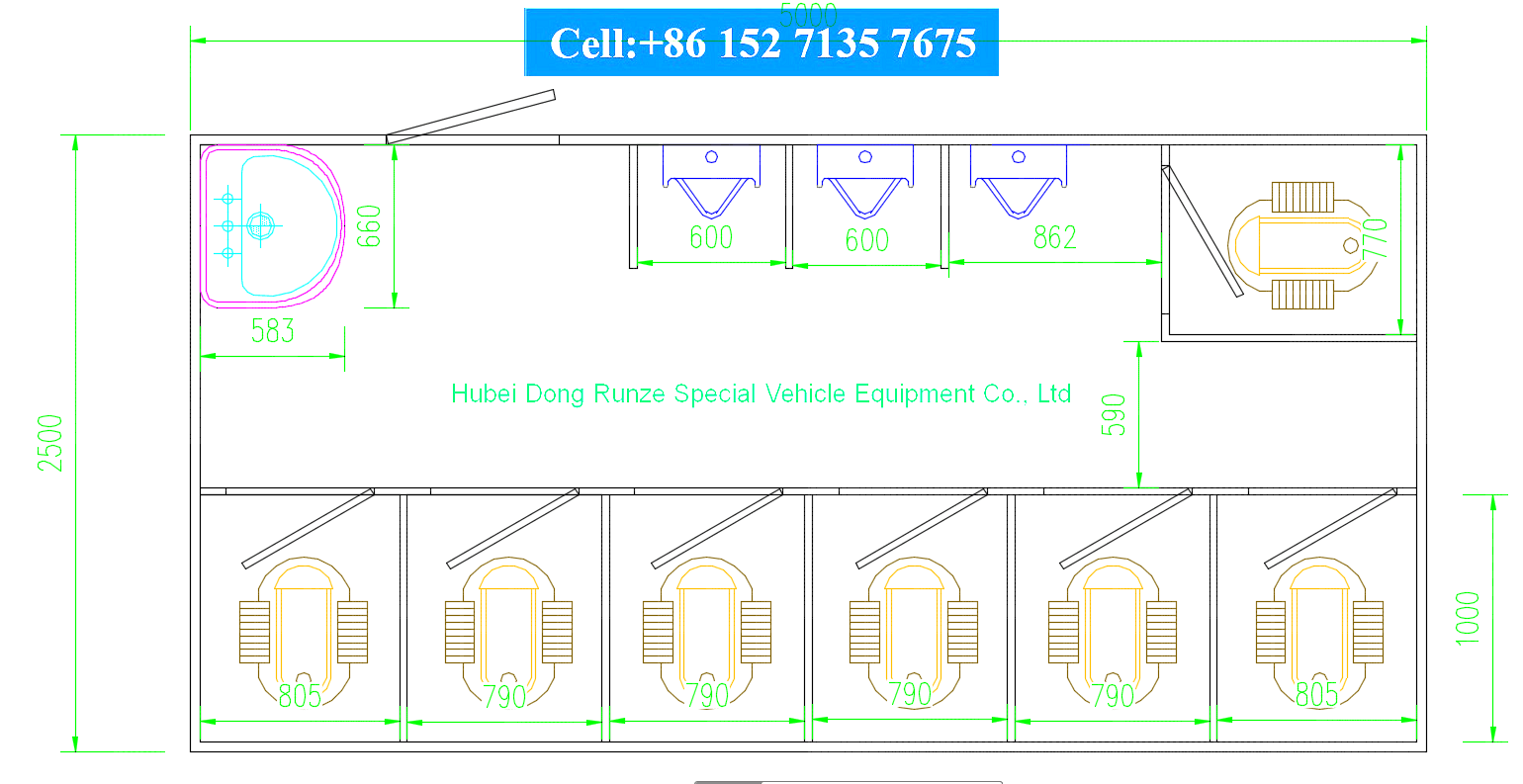

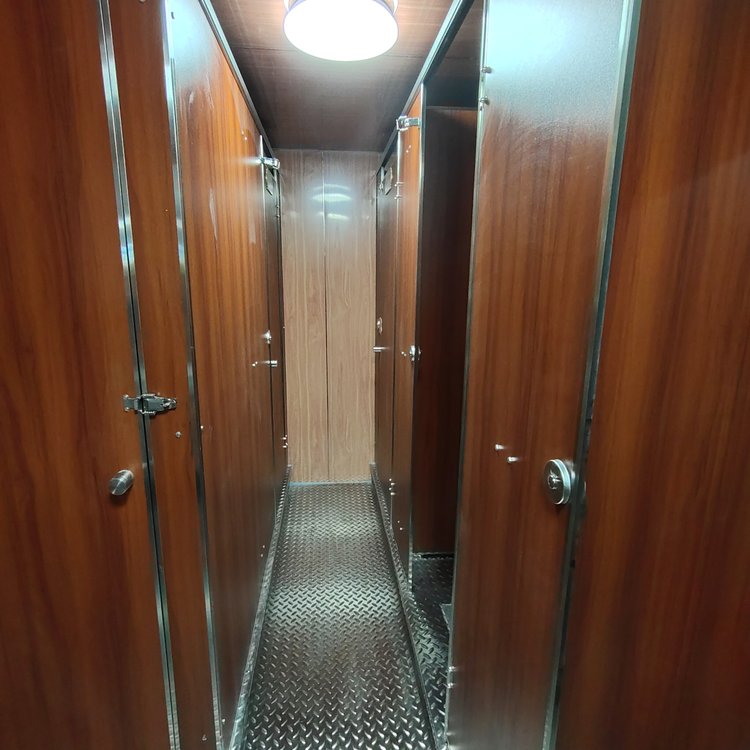

1. Rest Room divided into five room for men and women and men's urinal (three urinals). They are separated from each other.
2. Toilet materials: 40 * 4 square steel galvanized steel, the outer material is 1mm cold-rolled steel plate, press formed, assembled and welded, and sprayed with special paint for automobile after phosphating treatment or as required by the owner.

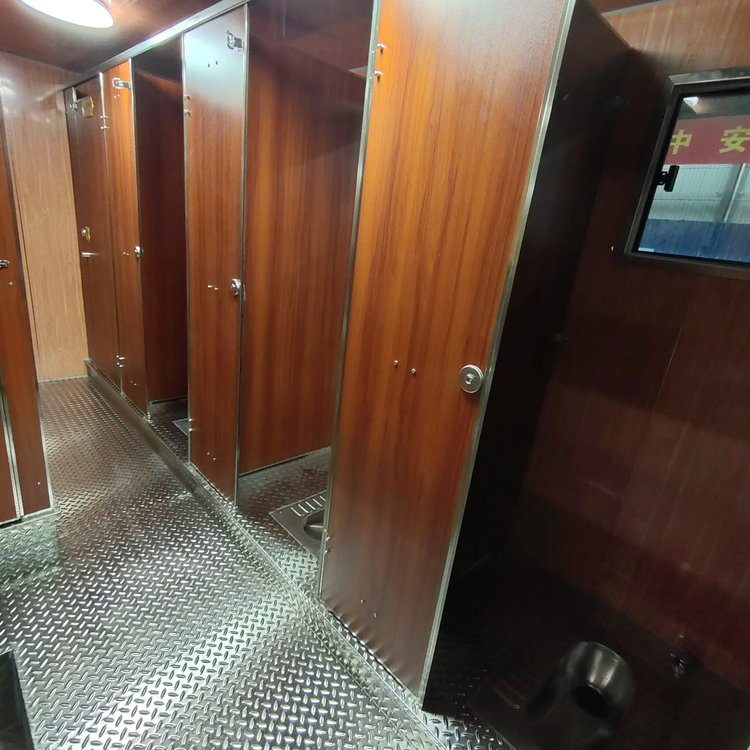

3. UV board for interior decoration, waterproof board interval for squatting position, pneumatic door installation in five squatting toilet, manual door installation in urinal, with removable movable stairs.
4. Car window size: 800 * 500mm (length and width), window material: aluminum alloy outer window, inner glass.
5. One water tank is made in the front of the mobile toilet, which is made of 304 stainless steel with a national standard of 2mm. The lower part of the water tank is equipped with an air-conditioning host and storage items. It is equipped with a self overflow port with full water, and water is injected with a fire hydrant interface.
6. One waste water collecting tank is set, which is made of 2mm304 stainless steel in the national standard.
7. Fecal sewage treatment, sewage suction vehicle suction or direct discharge of sewage pipeline.

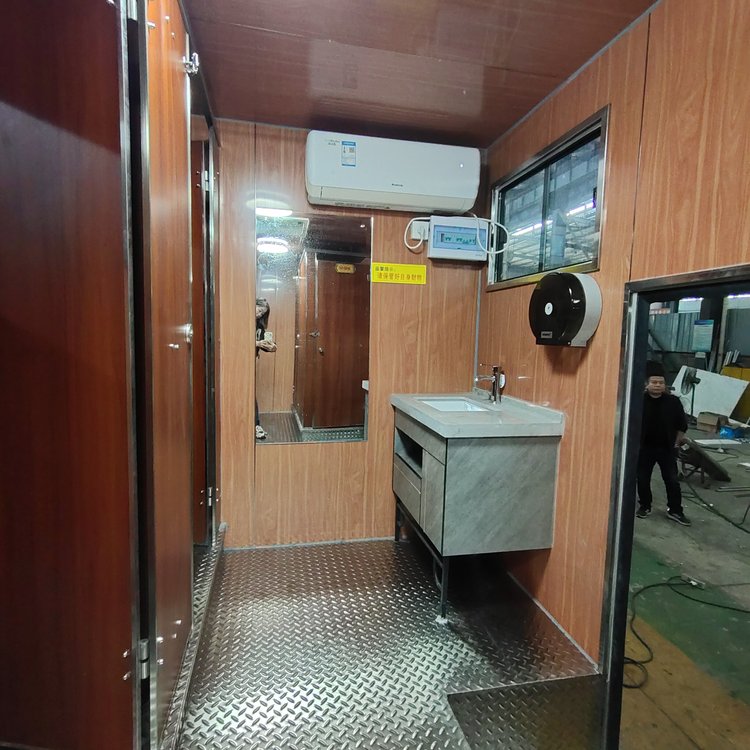

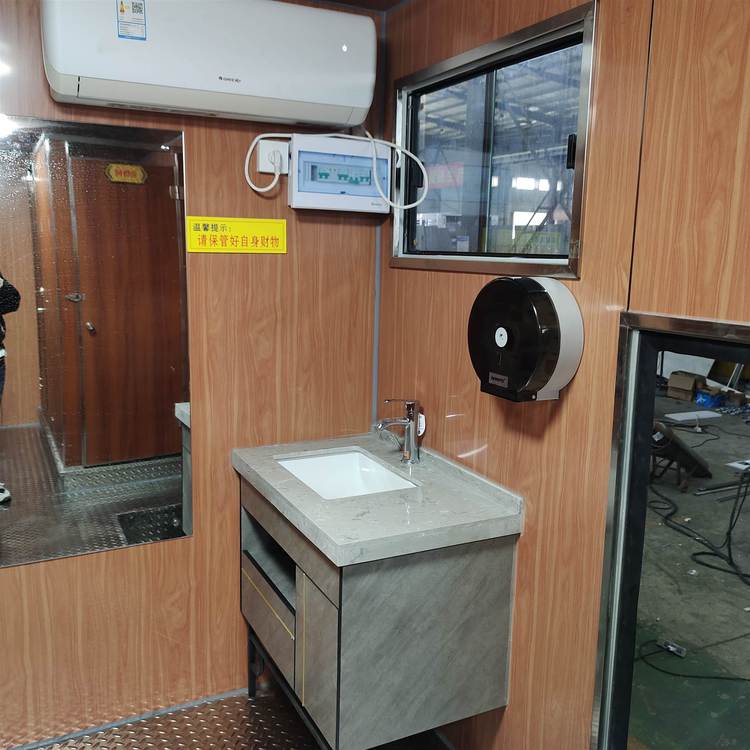

8. The squatting position is flushed by pedal valve, the toilet is made of 304 stainless steel, and the urinal is made of high-quality brand, including tempered glass hand washing table, cosmetic mirror, bag hook and paper basket
Chassis Dimensions(mm) |
| |||
Overall chassis length | 6725 | |||
Cab width | 2090 | |||
Cab height (unladen) | 2430 | |||
Wheel base | 3800 | |||
Front overhang | 1140 | |||
Rear overhang | 1785 | |||
Maximum velocity (Km/h) | 95 | |||
Minimum Clearance (mm) | 176 | |||
Minimum turning diameter(m) | 15 | |||
Aprroach/dparture angle(°) | 20°/13° | |||
Grade ability(%) | 30 | |||
Vehicle weights(kg) | ||||
G.V.W | 6455 | |||
Curb weight Chassis/With cargo | 4410 | |||
Frame profile Dimensions(mm) | ||||
Frame width (front ) | 800 | |||
Frame width ( rear ) | 800 | |||
Section height | 192 | |||
Section width | 65 | |||
Engine | Type | YC4FA120-33 | ||
Emission level | EURO 2 | |||
Maximum power | 88 | |||
Economy engine speed （green） | 1500-1800 | |||
Maximum torque | 345 | |||
Number of cylinders | 4 | |||
Displacement (lit) | 2.98 | |||
Cylinder bore (mm) | 96 | |||
Stroke (mm) | 103 | |||
System |
Yuchai, diesel, in-line four cylinder, supercharged intercooler | |||
Clutch | Type | Single diaphragm spring type | ||
Plate's diameter | 325 | |||
operating system | Hydraulic control with pneumatic power | |||
Gear box | Type | 1700010-C69031 , 6TS40 | ||
Number of gears | 6 | |||
Ratios | 5.32,2.91,1.82,1.33,1,0.766,R4.83 | |||
Brake System | Brake system type: double circuit air brake / parking brake type: central brake | |||
Cab | Flat cab, width 2030, single row standard length | |||
Axle | Front | Front axle type: end fist I-beam | ||
Load capacity(ton) | 2.2Ton | |||
Rear |
Rear axle housing type: press welded axle housing | |||
Load capacity(ton) | 5Ton | |||
Tyres | 7.50-16-14PR | |||
Suspension | Front | 8 leaf springs | ||
Rear | Leaf spring 10+7 pieces | |||
Battery | Voltage (V) | 24 | ||
Battery capacity (A.h) | 90Ah | |||
Fuel | Type | Steel | ||
Capacity | 125L | |||
