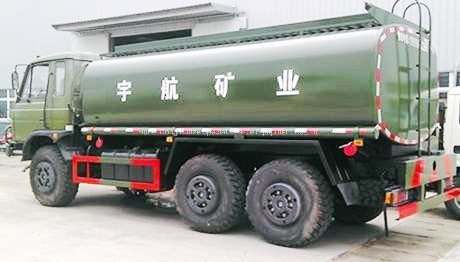

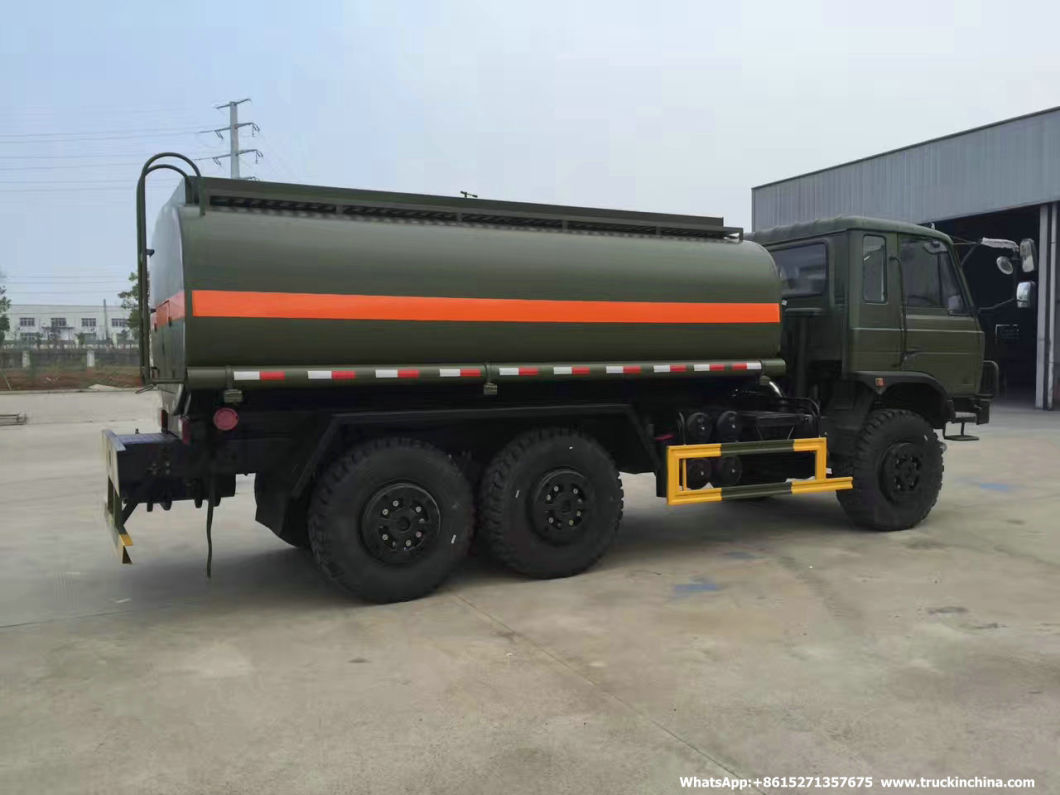

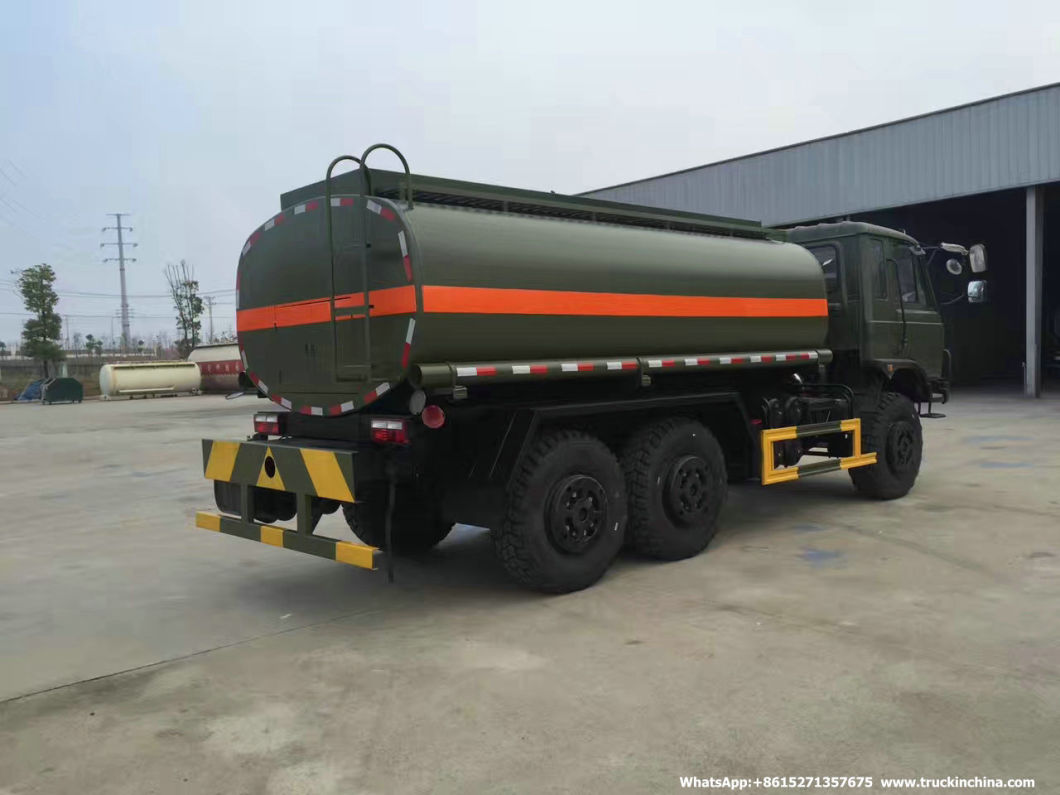

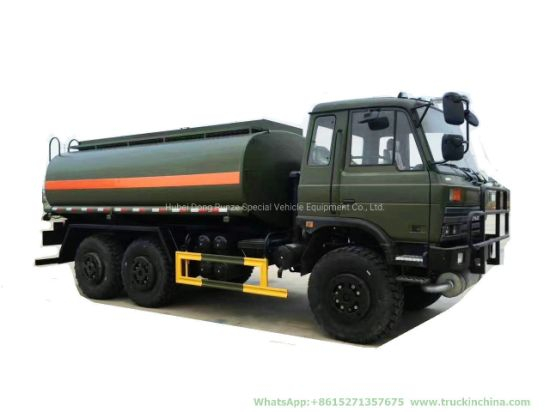

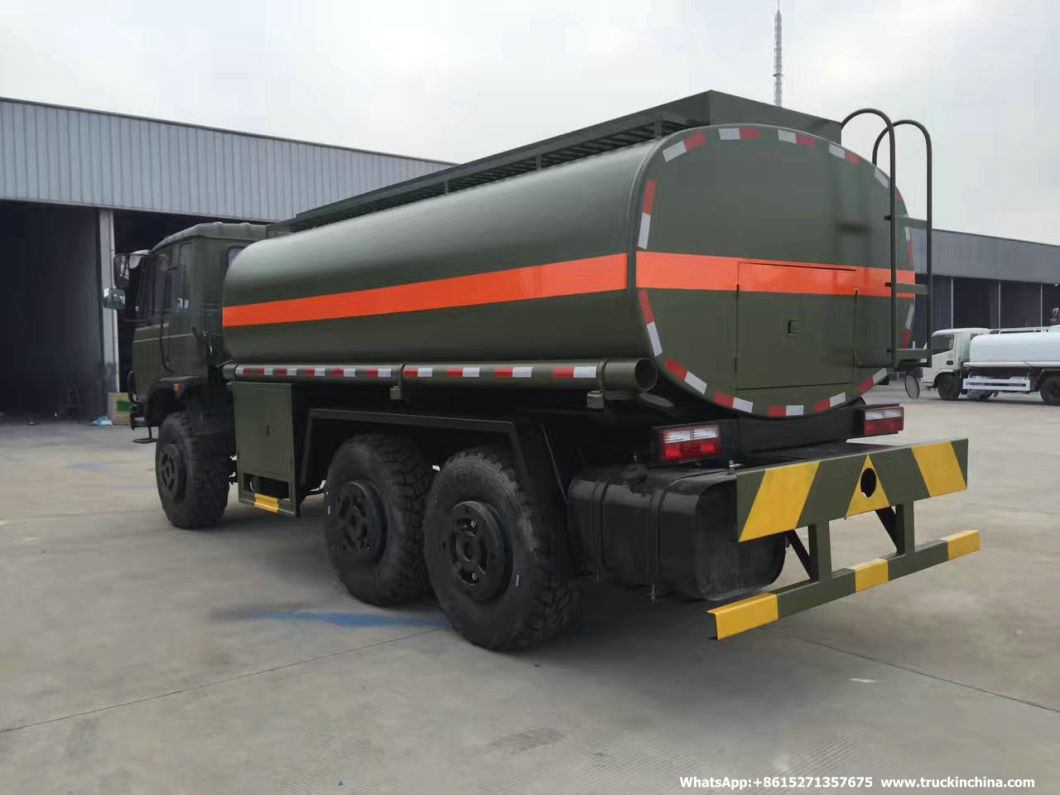

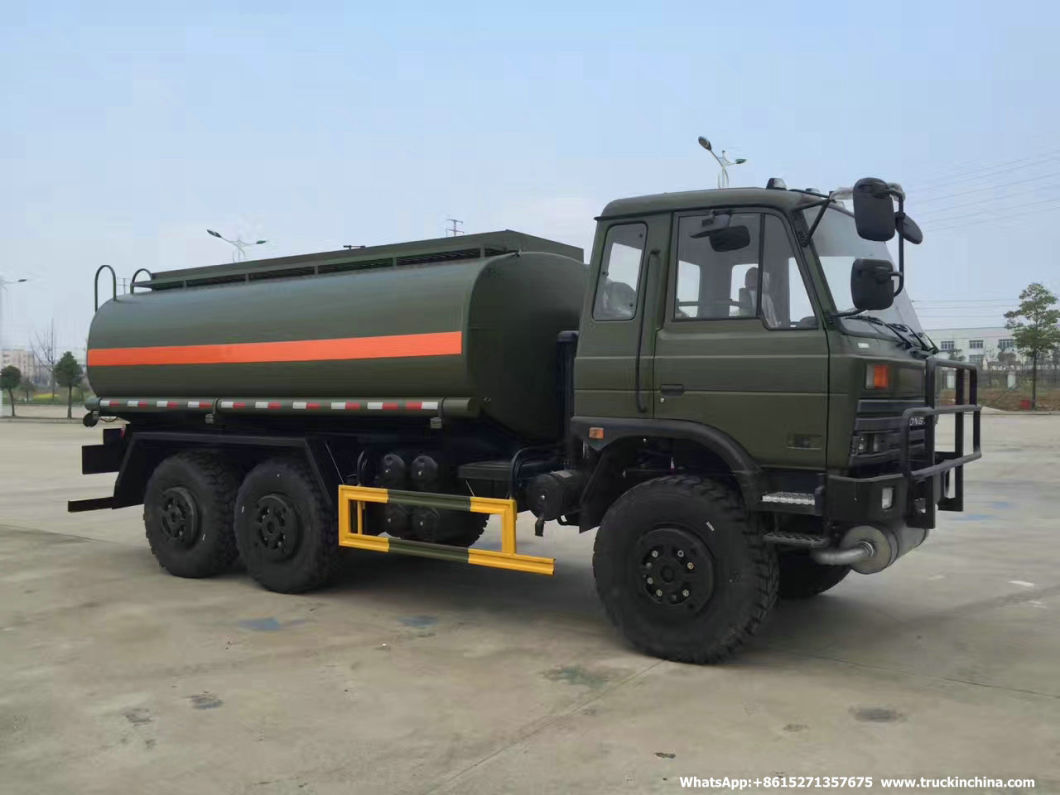

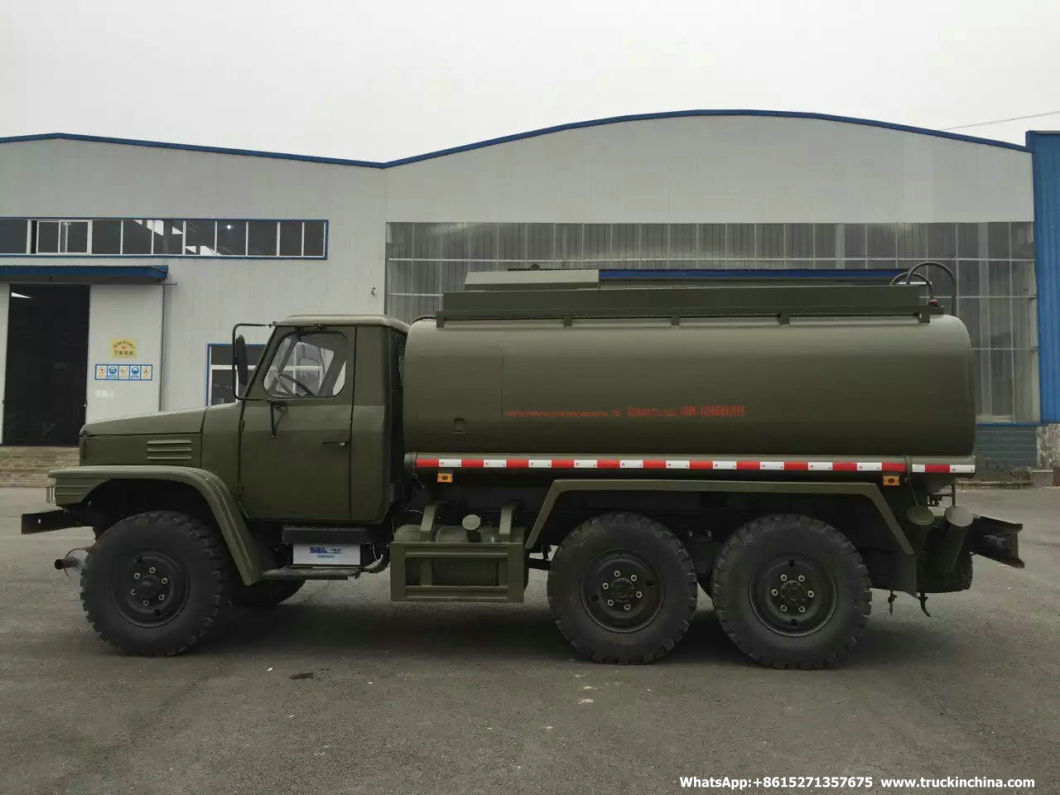

Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
Dongfeng Military 6x6 Fuel Tank Truck EQ2102 Fuel Oil Bowser Trucks For Sales 6000 ~10000Litres
Dongfeng 6x6 water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Dongfeng 6X6 Military Army Trucks
dongfeng offroad Tanker
6X6 All Driving Military Truck Military off Road Fuel Tanker
Dongfeng 10cbm 6X6 off-Road Fuel Tanker Truck
All Driving Military Truck Military off Road Fuel Tanker
Dongfeng 6X6 off Road Military Oil Tanker Bowser with Oil Pump Fuel Dispenser for Sale
Specification of Donfeng 6*6 Military Fuel Tanker Truck : |
Dongfeng All Wheel Drive 6*6 Off Road Military Fuel Tank Truck Oil Diesel Bowser Truck | ||

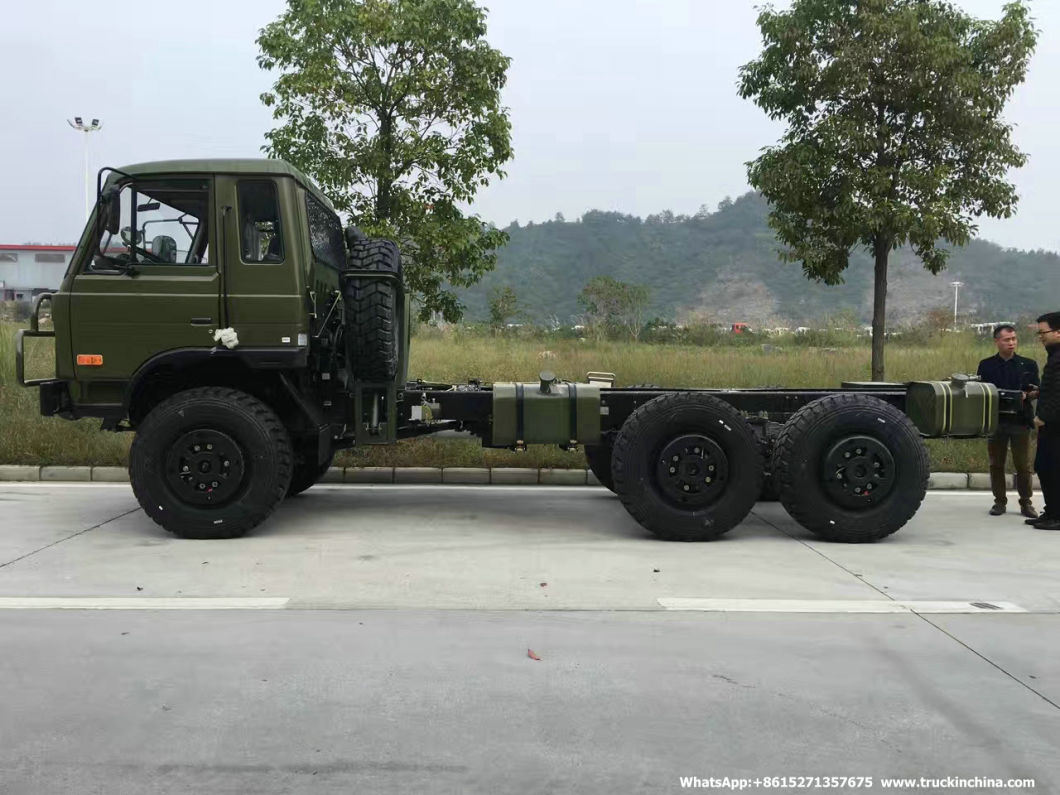

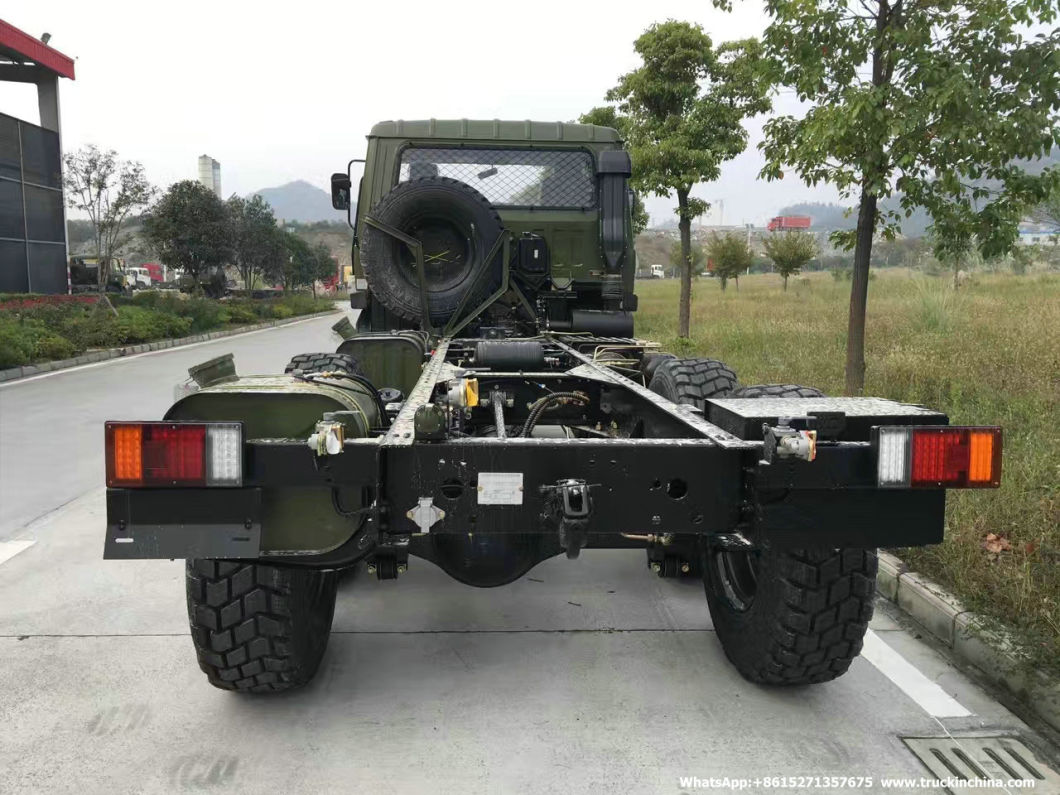

| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6*6 | |
| The total mass(kg) | 10940 | |
| Overall size(mm) | 7495*2470*2740 | |
| wheelbase(mm) | 3475+1250 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| Optional: PTO, oil pump, refilling machine, flow meter, air condition | ||
Fual tank: tank welded by welding machines and automatic welding of Carbon dioxide.
Tank material Made of 5mm GB Q235A carbon steel plate produced by Wuhan Iron and Steel corp.
Paint: painted by overall spraying machines.
Equipments 3 pcs of baffle plate are installed inside of the tank body.
2 manholes are located at the top of tank body.

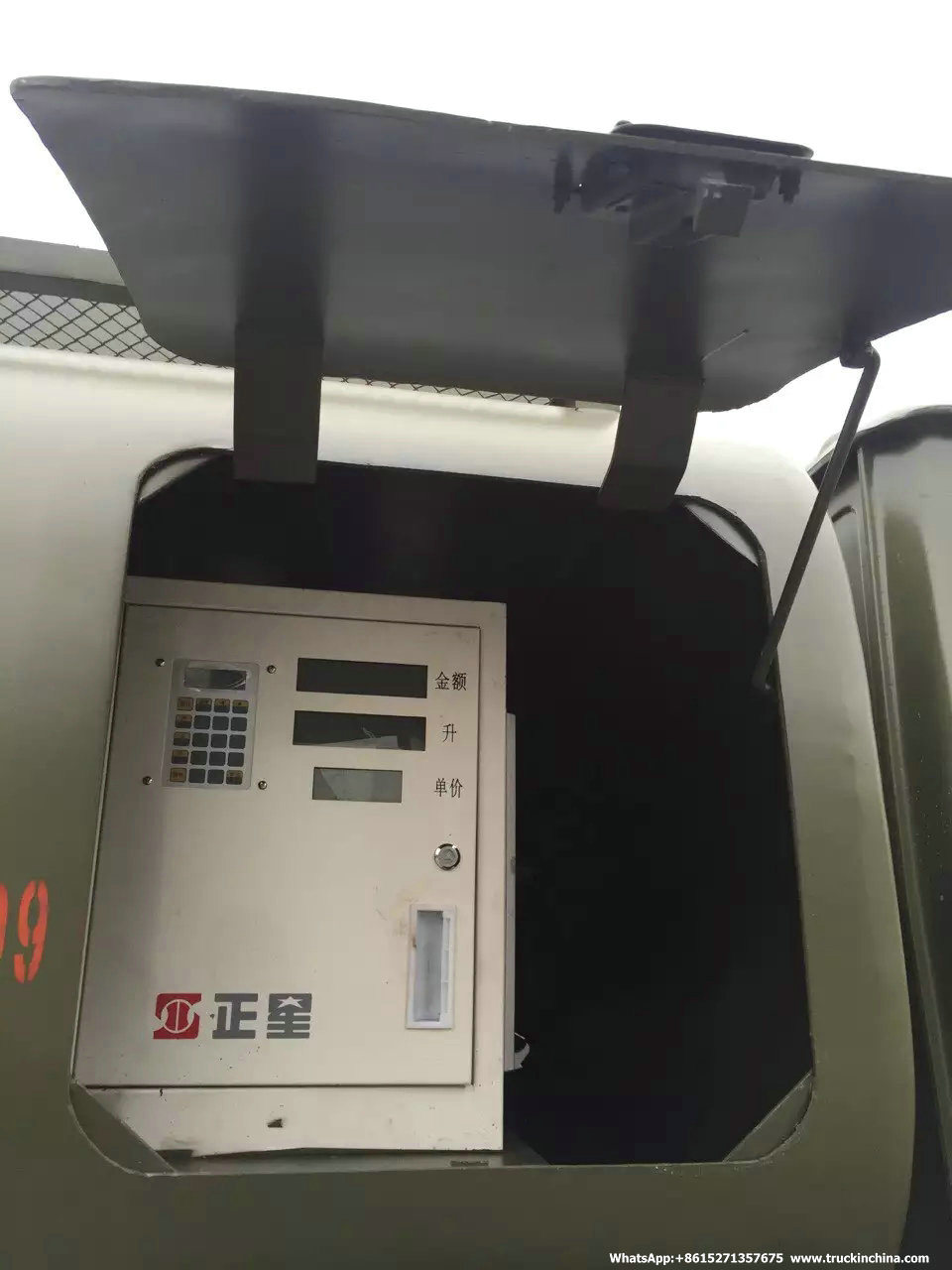

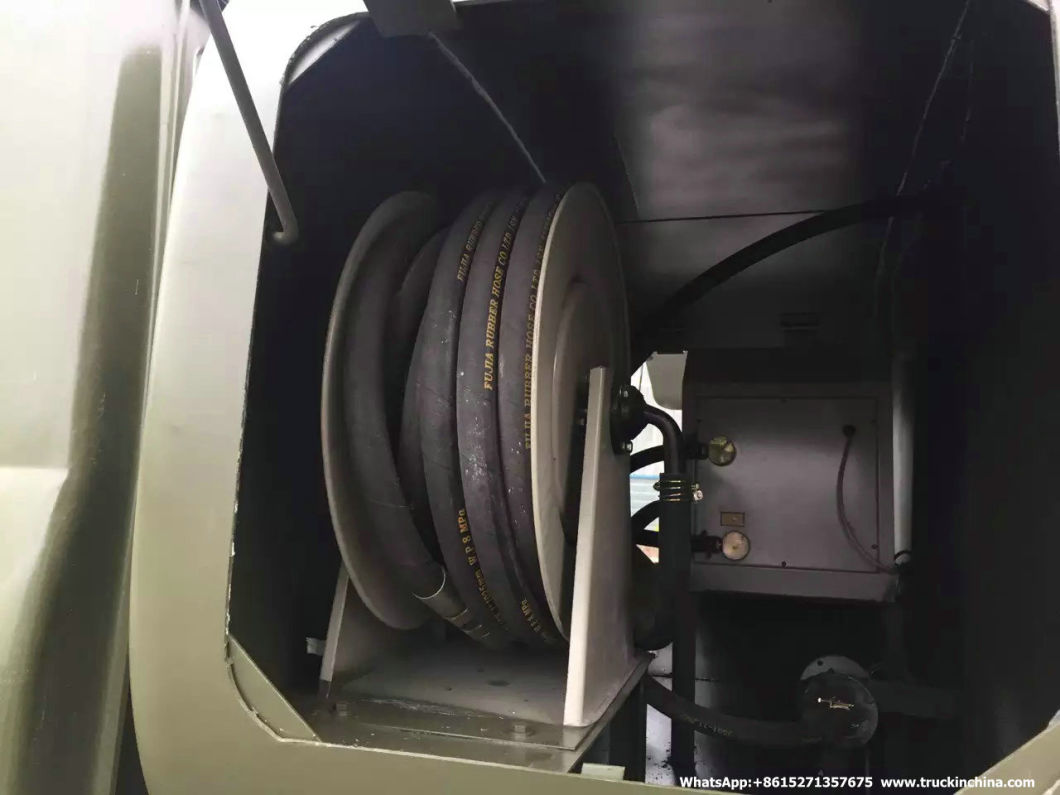

With oil pump.(Model: 80YHCB-60) oil pump, refilling machine, flow meter, air condition
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
Dongfeng Military 6x6 Fuel Tank Truck EQ2102 Fuel Oil Bowser Trucks For Sales
which has excellent performance with reasonable price.
Truck Chassis model | EQ2102(6*6 drive type) | |
Dimension(Lx Wx H)(mm) | 7760×2470×2740 | |
Track(front/rear)(mm) | 1876/1870 | |
Front/rear overhang (mm) | 1410/625 | |
Approach / Departure angle () | 35/34 | |
Wheel distance(mm) | 3475+1250 | |
Total mass (kg) | 10675 | |
Kerb mass (kg) | 6965 | |
Rated load weight (kg) | 3715 | |
Drive type | 6x6 | |
Max.grade ability (%) | 60% | |
Max.slop ability (%) | 40% | |
Min.turning circle (m) | 18.8 | |
Max speed (km/h) | 90 | |
Max.brake distance (m) | 8m | |
Min.ground clearance (mm) | 305 | |
Vertical obstacle-navigation Height (mm) | 700 | |
Climbing trenches depth (mm) | 700 | |
Max.fording depth (m) | 1 | |
Engine | Engine model:EQ6BT5.9 Engine manufacture: Dongfeng cummins co.,Ltd Rated power(kw/r/min):118/2800 | |
Displacement (L) | 5.880 | |
Max.power (kw/hp) | 118kw/160hp | |
Max rated speed (r/min) | 2800 | |
Fuel consumption (L/100km) | 26.5L | |
Emission standard | Euro II | |
Fuel tank (L) | Main fuel tank:145L,spare fuel tank:50L | |
Fuel tank material | Aluminum alloy | |
Clutch | Valeo 350 | |
Dry single plate, hydraulic control booster Mechanical operation with hydraulic assistance | ||
Mechanism,5 gears, 5 forward,1reverse gear Manual operation | ||
Braking | Service Brake | Brake gap can be adjusted automatically double circulation air brake system |
Assistant brake | WEVB(Engine exhaust brake) | |
Park brake | Spring brake effect to middle and rear tires | |
Steering description | Whole circulation in ball type, hydraulic power assistance | |
Vehicle frame dimension(mm) | 232x75x6.5 | |

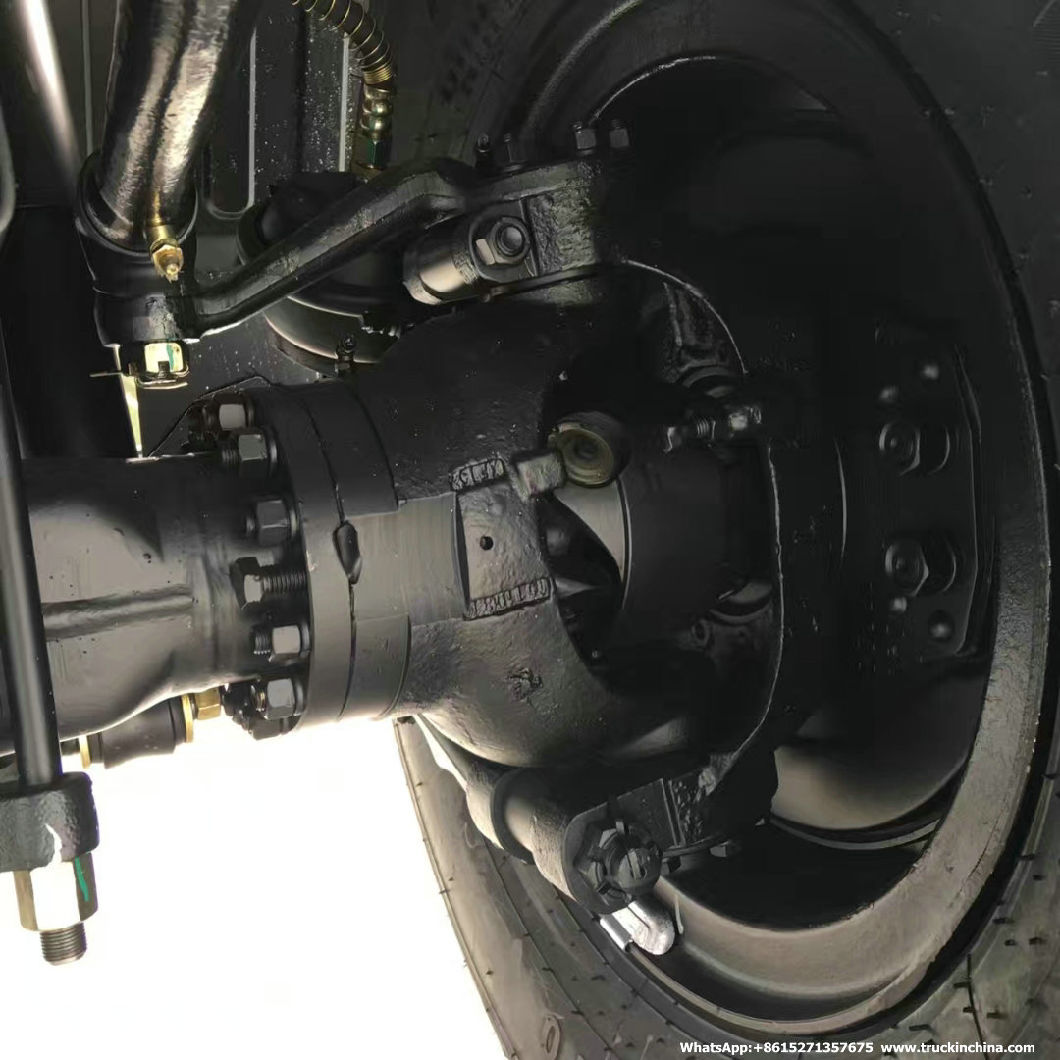

Front axle description(T) | 3.7T | |

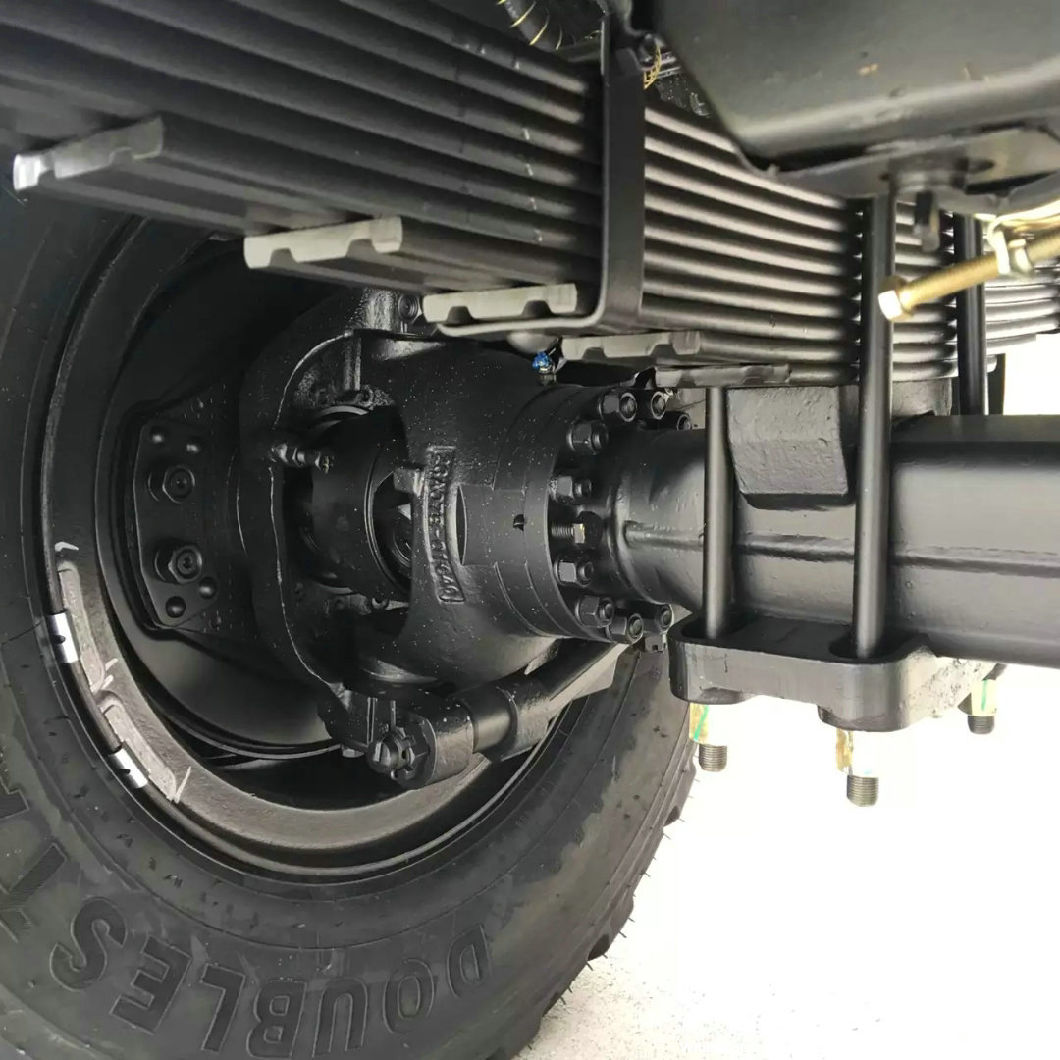

Rear axle description(T) | 4Tx2 axle | |
Tire and number | 12.5R-20 off-road tire,6+1 tires | |
Cab | 1. Full steel skeleton structure cab 2. One sleeper bed in the cab,with Air-conditioner 5.Air- damping driver\\\\ s seat | |
Water truck special function | A. Water tank capacity(L):10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Dongfeng 6 wheel Drive Truck chassis 6*6 military trucks all wheel drive trucks
Troop carrier soldiers carrier 6x6 trucks
Dongfeng off-road 6x6 fuel tanker truck capacity 10m3 with best price for sale
| Brand | Dongfeng | Drive type | 6x6 LHD/RHD |
| Total mass | 18000kg | Tanker capacity | 10000L(10m3) |
| Rated load | 9900kg | Material of tank | WISCO steel |
| Curb weight | 7955kg | Overall dimension | 7760×2500×2845mm |
| Wheel base | 3800+1400mm | F/R axle load | 4020/13980kg (Tandem) |
Quantity of leaf spring | 11/10 | Quantity of wheels | 6 |
| Tyre type | 12.5R20 | Approach/ Departure angle | 35/34° |
| F/R suspension | 1408/1453mm | Front track | 2051mm |
| Rear track | 2051/2051mm | Max.vehicle speed | 85km/h |
Passengers in cab | 2,3 | Chassis model | EQ2182NXJ |
| Engine | Model | B210 33 | |
| Max.power | 155kw/210HP | ||
| Displacement | 5900ml | ||
| Emission level | Euro 3 | ||
| Description | In line ,6 cylinders,4 strokes,water cooled,inter cooled,turbo charged, high pressure,common rail,diesel engine | ||
| Gearbox | Description | Manual,6 forward &1 reverse gears | |
Brake system | Service brake | Double circuit pneumatic (air) brake | |
| Parking brake | Spring-Power drum brake | ||
| Electric system | Operating voltage | 24V negative grounded | |
| Starter | 24V,5.4KW | ||
| Alternator | 28V,1.5KW | ||
| Battery voltage | 2X12V/165Ah | ||
| Cabin | Description | One and half rows,military quality configuration,single sleepers, power steering,A/C provided | |
Dongfeng 6x6 Military Army Trucks ALL WHEEL DRIVE ... Dongfeng 6x6 Military ArmyTrucks ALL WHEEL DRIVE(AWD) lorry truck
Welcome all around world customer visit our factory.-
We can Provide you the following 6x6 Military Truck OFF Road Fuel Truck: |
SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC I,SUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,ISUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L- 35000L - More Than 35000L Diesel Trailer.
8.the tank produce as you requiry;
Welcome all around world customer visit our factory.
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
Cell: 0086 152 7135 7675
