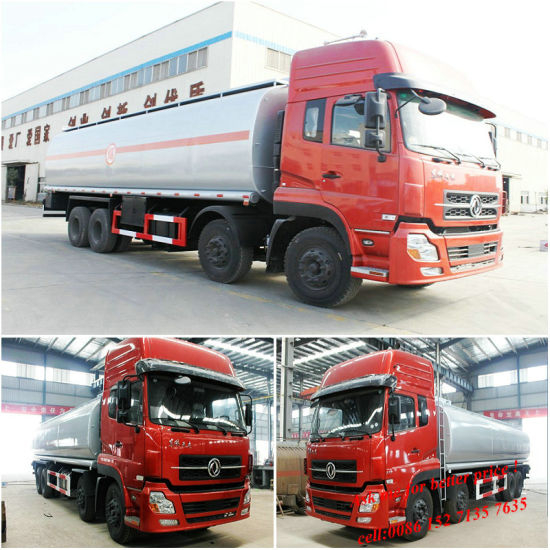

Dongfeng 8X4 35000 Liters Fuel Tanker Truck
| Quantity: | |
|---|---|
-
10000
-
T/T, Western Union
-
Nil
fuel tanker trucks , Refueling truck, off Road Tanker,
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
product | Dongfeng 8x4 35000 liters fuel tank truck | |
| Chassis type | DFL1311 | |
| Cubage(L) | 35,000-40,000 liters | |
| Parameters | Overall dimension length/width/height (mm) | 11500×2495×3650 |
| Total Mass(kg) | 31000 | |
| Payload(kg) | 17965 | |
| Kerb Mass(kg) | 12905 | |
| Approach angle/ Departure angle(mm) | 20/10 | |
| Front suspension/rear suspension(mm) | 1460/2985 | |
| Fuel Type | Diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 90 | |
| Engine | Type | |
| Displacement/Power(kw) | 270~385HP | |
| Manufacturer | Dongfeng Cummins engine Co.,Ltd | |
| Type | 6-cylinders,water-cooling,diesel engine | |
| Chassis | Drive type | 8×4 |
| Wheelbase(mm) | 1950+4250+1350 | |
| Tread(front/rear) | 1940/1940,1860/1860 | |
| Front axle | 5Tx2 | |
| Rear axle | 13Tx2 | |
| Steering gear | Hydraulic power assistance | |
| Transmission | 9 forward gear, 1 reverse gear,mechanical trasmission | |
Clutch | monolithic dry type clutch | |
Braking system | Full air brake on all wheels, dual air line system | |
Cab | Long cab,single row cab,with two sleeper bed | |
| Number of axle | 4 axle,rear axle are transmission axle | |
| Tire Type | 11.00-20 | |
| Air-condition | Factory installed Air-conditioner | |
Other models in this category
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 35000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
chassis list for refer
| 4×2,D530,ISB180 40,4500mm, 6DF6S9004.5T,9T9.00-20,ABS. | 163000 | DFL1160BX4 | |
| 4×2,D530,ISB180 40,4700mm, 6DF6S9004.5T,9T9.00-20,ABS. | 155000 | DFL1160BX5 | |
| 4×2,D530,ISDe180 40,3800mm, 6DF6S9004.5T,9T9.00-20,ABS. | 178000 | DFL1120B3 | |
| 6×4,,ISDe245 40,4350mm+1300mm, 8JS118T-B,7T,10T11.00R20,ABS,. | 276000 | DFL1250A11 | |
| 4×2,D530,ISDe185 40,5000mm, 6DF6S9006T+,10T275/80R22.5,ABS,,. | 206000 | DFL1160BX5 | |
| 6×2,ISB210-40,1800+4100,7,5T,10T,ABS,:295/80R22.518PR. | 223000 | DFL1250BX5A | |
| 8×4,D310,ISC8.3-292E40A(),2050+4400+1350mm,400L,,99JS119T,7T,22.5,10T,295/80R22.5,ABS(4),,. | 310000 | DFL1311A10 DFL1311A9 | |
| 8×4,D310,ISC8.3-270E40A(),2050+4400+1350mm,400L,,99JS119T,7T,22.5,10T,295/80R22.5,ABS(4),,. | 306000 | DFL1311A10 DFL1311A9 | |
| 6×4,D310,dCi385-40(),EDC7,3300+1350mm,1212JSD180TA,7T,22.5,10T(435),315/80R22.5(),ABS(4),,80/,BDS()GPS.90#. | 325000 | DFL4251A16 | |
| 4350+1300mm | DFL1250A11 | 6×4,D310,ISDe245 40,4350+1300mm,8 8JS118T-B,7T,10T,300mm(8+6),11.00R20,340.ABS,,,,. | |||||
| 1850+5450mm | DFL1253AX1B | 6×2,D310,ISB210 40,1850+5450mm,8 8JS118T-B,5T,10T,280mm(8+4),10.00R20,340.ABS,,,.. | |||||
| 1850+4600+1350mm | DFL1311A10 | 8×4,D310(),ISC8.3-270E40A,1850+4600+1350mm,99JS119TA,5T,10T,280mm(8+4),295/80R22.5,400L.ABS,,,. 292 | |||||
| 1850+4600+1350mm | DFL1311A10 | 8×4,D310(),ISC8.3-292E40A,1850+4600+1350mm,99JS119TA,5T,10T,280mm(8+4),295/80R22.5,400L.ABS,,,. | |||||
| 1850+3400+1350mm | DFL5310GJBA1 | 8×4,D310,dCi385-40,,99JS150T-B,7T,13T1850+3400+1350mm,350L,300mm(8+8),12.00R20,,,ABS,,,,. | |||||
| 3300+1350mm | DFL5251GJBA4 | 6×4,D310(H ),dCi385-40,1212JSD180TA,7T22.5,10,315/80R22.5,3300+1350mm,560L.ABS,,,,. | |||||
| 1850+4600+1350mm | DFL1131A9 | 8×4,D310(),dCi350-40,1212JSD160TA,5T,13T,1850+4600+1350mm,300mm(8+5),11.00R20,400L.ABS,,,. | |||||
Cell: 0086 152 7135 7675
0086 152 7135 7635
