Dongfeng 4x4 Offroad Fuel Bowser For Express Refueling Fuel Diesel With Oil Tank 5000 liters
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.

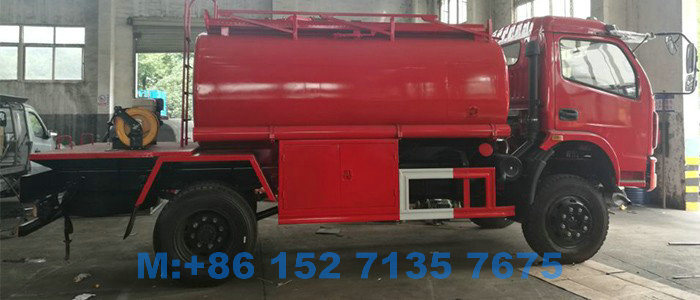

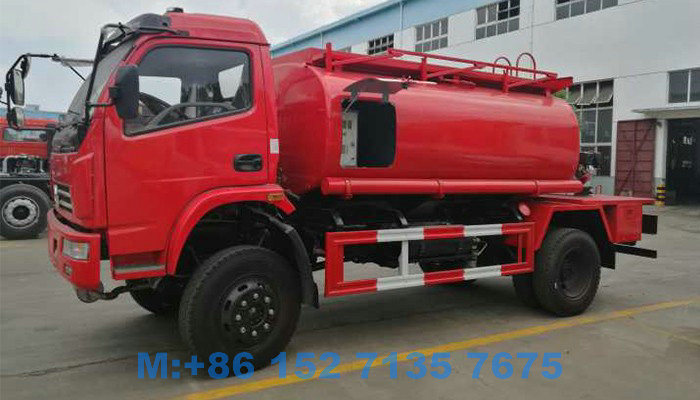

Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 liters 5 ton refueling fuel truck
Dongfeng 4x4 Offroad Fuel Bowser For Express Refueling Fuel Diesel With Oil Tank 5000 liters
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
DRZ5060GYY4X4
Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 -6000 liters 5 ton refueling fuel truck
Vehicle parameters | |||
Vehicle Model | DRZ5060GYY4X4 | Vehicle Brand | Dongrun Ze |
Overall dimensions | 5990×1980×2350mm | Curb weight | 3300kg |
Tank dimensions | 4100×1720×1150mm | Tank volume | 5000L 6000L |
Chassis parameters | |||||
Chassis model | EQ1060TJ20D3 | Chassis brand | DONGFENG | ||
Overall dimensions | 5820x1940x2080mm | Wheel base | 3300mm | ||
Front/rear wheel track | 1506/1466mm | Front/rear suspension | 1032/1488mm | ||
Approach/departure angle | 19/15° | Maximum speed | 80km/h | ||
Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,allowable 3 passengers | |||
Color | White,other color is optional | ||||
Engine | Model | CY4102-C3F | |||
Emission | Euro 3 | ||||
Type | in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 95hp,rated power speed 3200rpm | ||||
Displacement | 3856ml | ||||
Bore x stroke | 102x118mm | ||||
Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
Tire | Size | 7.00-16 nylon tire | |||
Number | 6+1 nos | ||||
Fuel tank | 100L,steel | ||||
Front axle | 2.0T | ||||
Rear axle | 4.0T | ||||
Drive form | 4X2 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 5 speed forward 1 reverse. | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner,steel wire tire,power assisted steering | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 4100×1720×1150mm | Tank volume | 4000L 5000L 6000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |
MOQ,payment terms,delivery terms,price | |
MOQ | One unit |
Payment terms | T/T 30% down payment, 70% balance after inspection before delivery |
l | |
Inspection | Buyer's agent or third party inspection agency,the cost is paid by the buyer |
Delivery term | 20 days from down payment |
Documentation | Maintenance manual |
User manual | |
Packing list | |
Commercial invoice | |
Certificate of origin is optional | |
Spare parts list for purchase is optional | |
Standard tools | With standard tools for chassis and fuel tank structure |
Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.
Our Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank welding after shot
blasting pretreatment process, rust, paint adopts advanced baking technology, durable and
beautiful appearance.
Competitive Advantage:
1) competitive price, cost-effective
2) quick delivery time
3) professional export and import procedure dealing
4) Using SINOTRUK HOWO 6X6 all wheels driving truck chassis,
5) Strong more power
6) Good off-road performance
7) Our Oil tank truck with advanced butt welding technology, after the forming
of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,
safe and stable vehicle characteristics;
8) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
9) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,
insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
10) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
11) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
12) with all kinds of truck model, which can fulfill your requirement
13) the key parts adopt the world's top technology products
14) based on strong technical support and top level technology make the trucks with high quality and
more reliable
All Wheel Drive off road Fuel Tanker Truck
