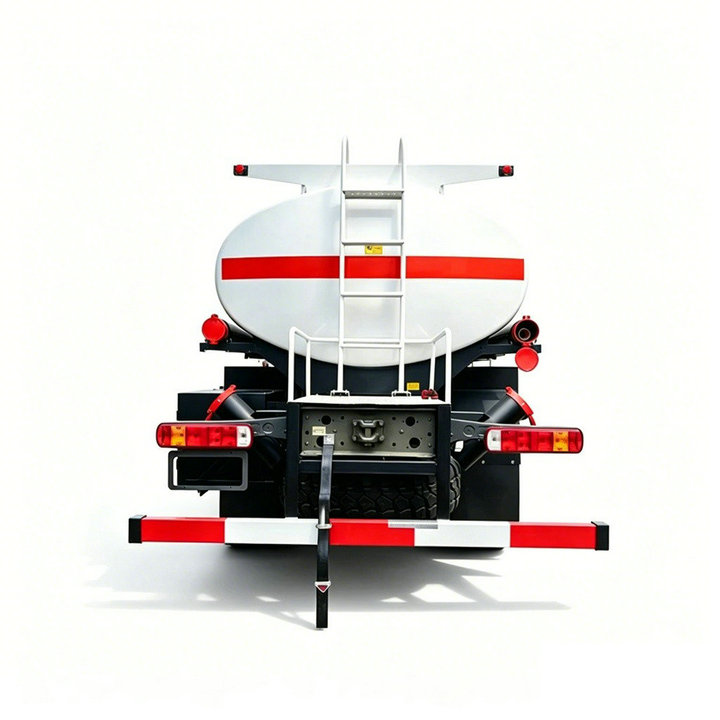

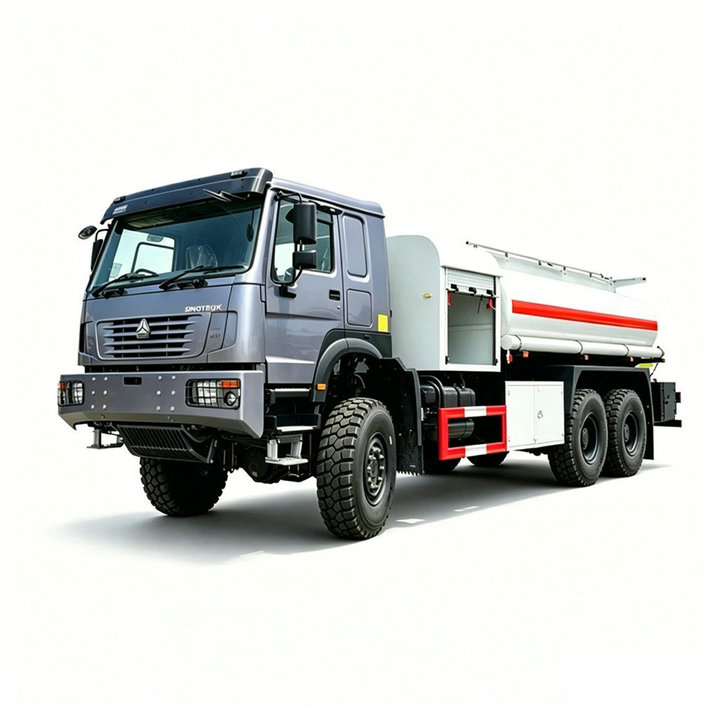

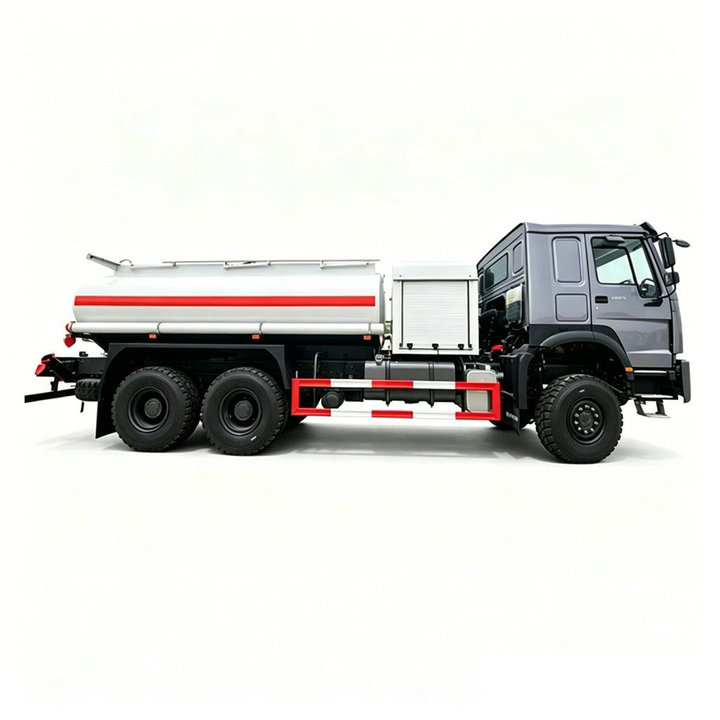

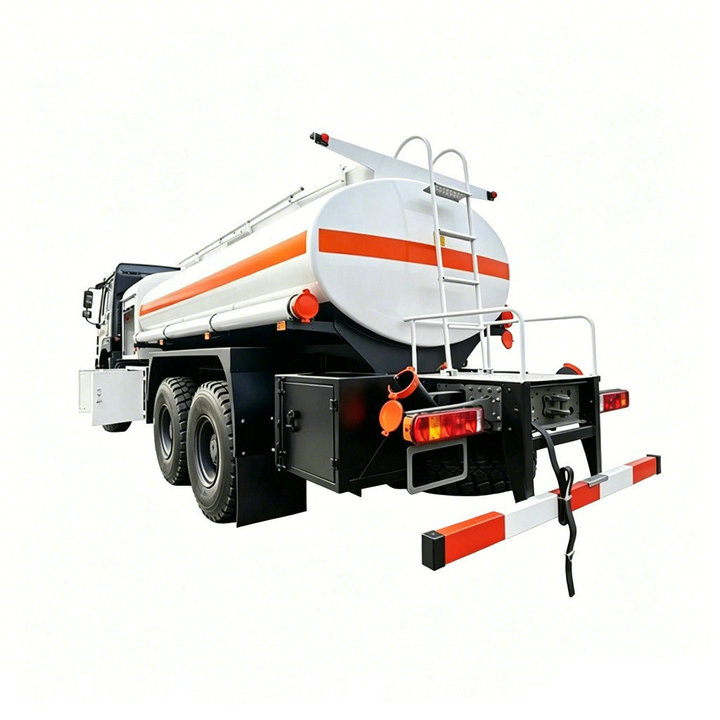

AWD HOWO 6x6 Off-road Fuel Bowser Truck 4000 Gallon
Capacity: 4000 gallons Q235 / SS304 Stainless Steel / aluminum alloy 5182
Drive:6×6
Engine power: 400 HP WP12S400E201
Price for refer only. Contact Us for Better Price.
Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5250GYYZZ
-
Shanghai, China
-
3000
-
T/T
AWD HOWO 6x6 Off-road Fuel Bowser Truck 4000 Gallon

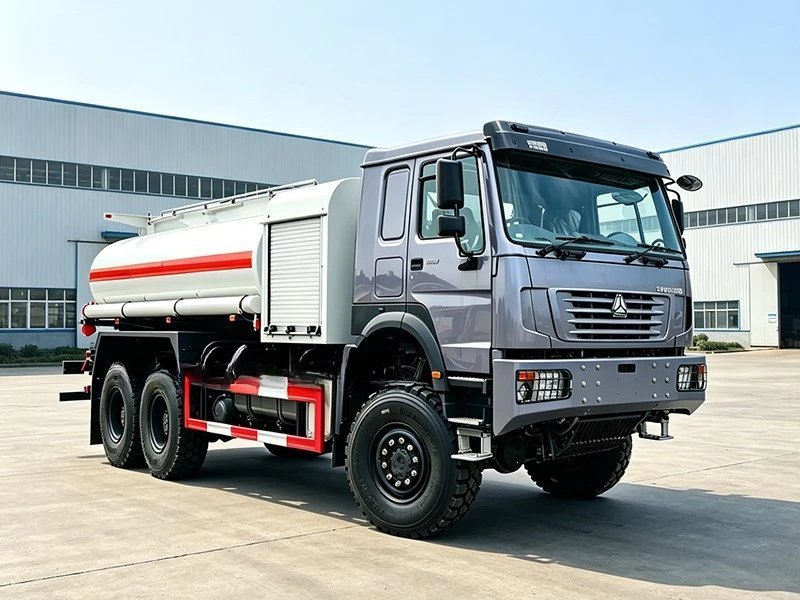

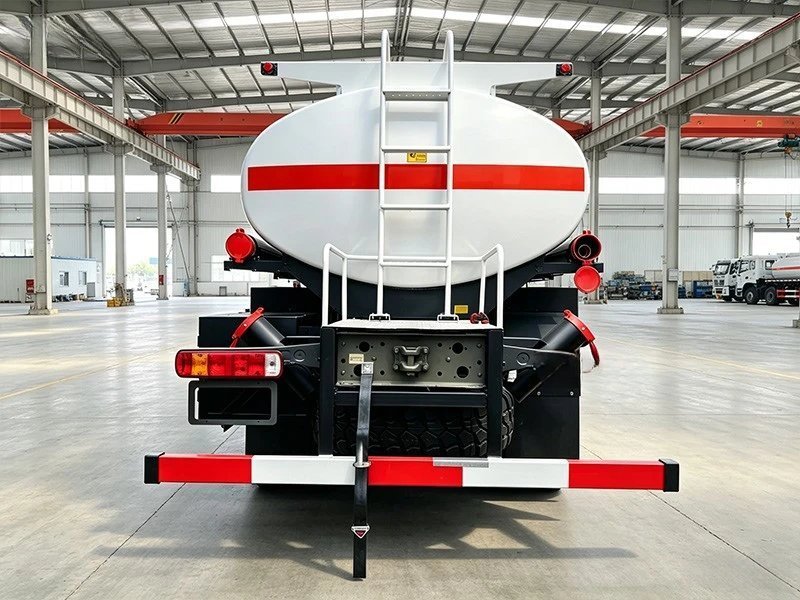

HOWO 6×6 Wildland 4000 Gallon Fuel Distribution Truck
Also known as: HOWO 6×6 offroad mobile refueling bowser, wildland fuel tender, diesel transfer tank, military fuel tanker

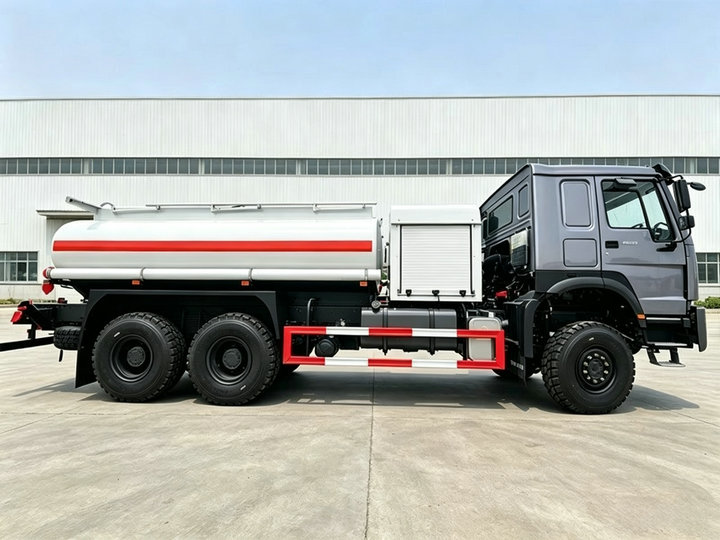

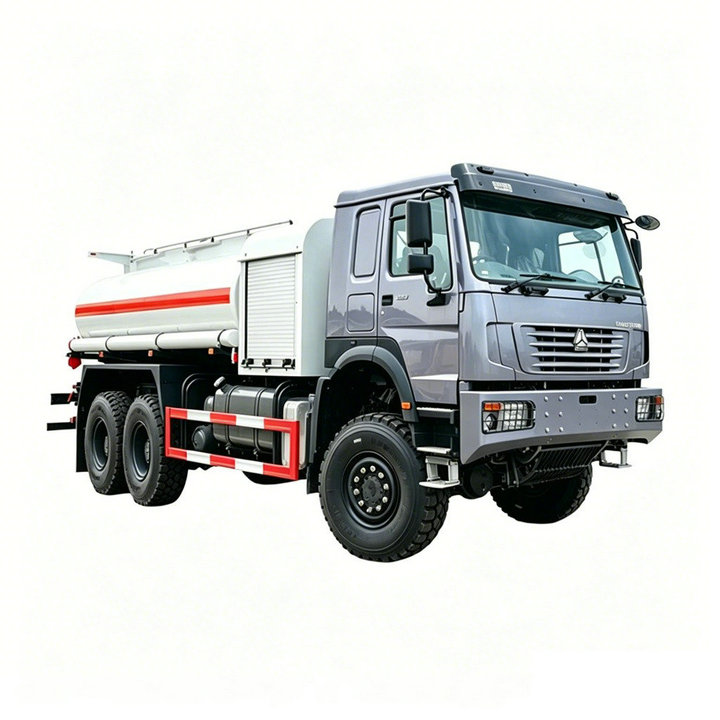

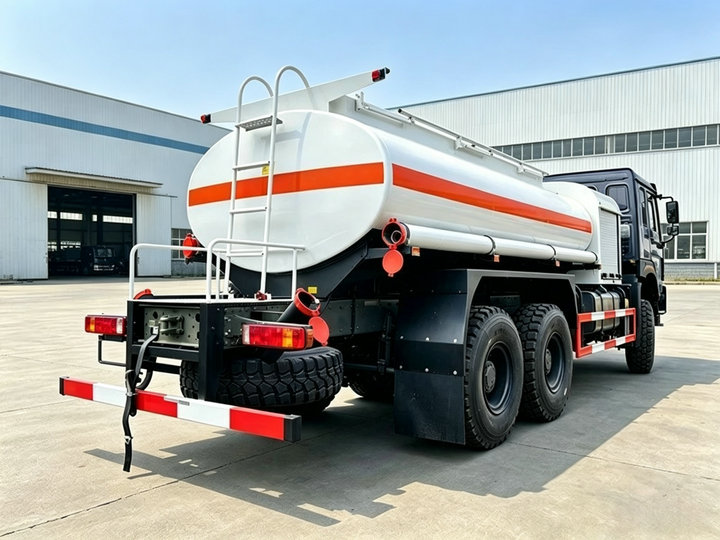

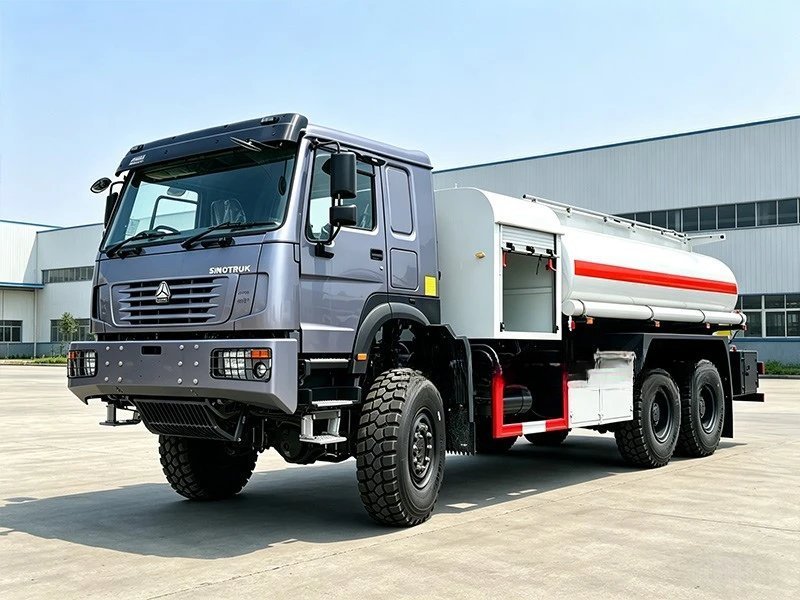

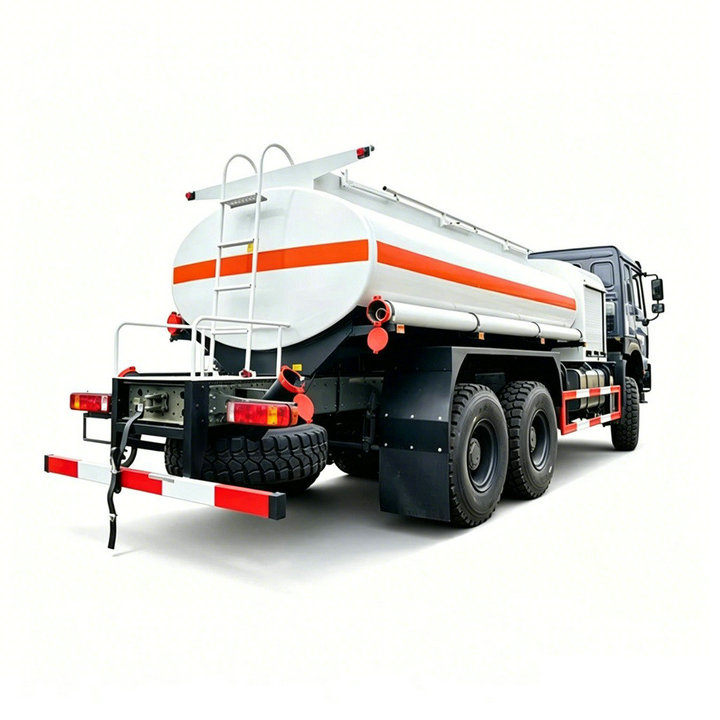

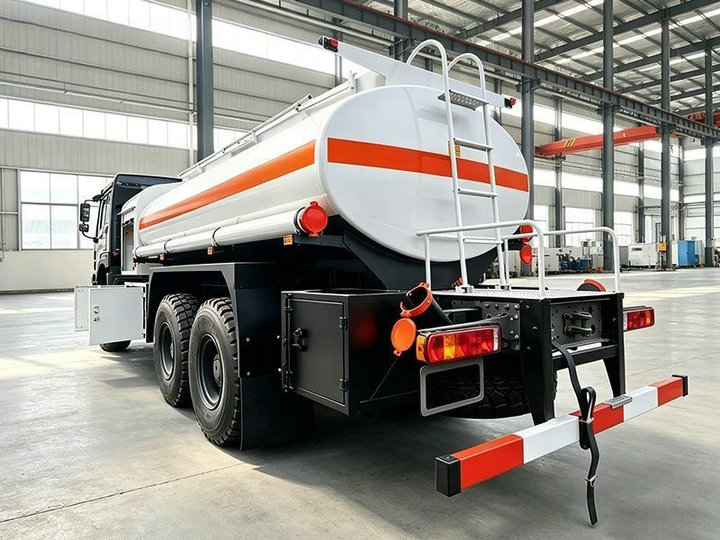

The HOWO 6×6 offroad 4000-gallon wildland fuel truck pairs a rugged SINOTRUK HOWO 6×6 all-wheel-drive chassis with a 20,000-liter (4,000-gallon) Q235 carbon steel /Stainless Steel / aluminum alloy tank and a dependable PTO-driven pumping system. Powered by a 400 HP Weichai WP12S400E201 diesel engine and rolling on 14.00R20 offroad tires, this mobile fuel bowser delivers diesel and gasoline to remote mining camps, oil fields, wildland fire bases, and military forward operating sites where paved roads simply do not exist.
| Item | Specification |
|---|---|
| Model | DRZ5250GYYZZ |
| Tank Capacity | 4,000 gallons (≈15,140 L / 20,000 L nominal) |
| Drive Type | 6×6 all-wheel drive |
| Engine | Weichai WP12S400E201, 400 HP (294 kW) |
| Emission | Euro II / Euro III |
| Transmission | HW19710, 10 forward + 2 reverse |
| GVW | 25,000 kg |
| Tire | 14.00R20 (10 + 1 spare) |
| Tank Material | 5 mm Q235 carbon steel |
Key Features
Heavy-Duty 6×6 Offroad Chassis
Built on a reinforced HOWO 6×6 frame with a 7.5-ton front axle and dual 13-ton rear axles, this truck maintains traction on mud, sand, rock, and steep gradients. The 6×6 drivetrain and 14.00R20 tires ensure mobility in terrain that would stop a conventional 4×2 or 6×4 tanker.
4,000-Gallon Carbon Steel Tank
The tank is fabricated from 5 mm Q235 carbon steel plate with anti-corrosion coating applied inside and out. Welded internal baffles minimize liquid surge during offroad travel, protecting the structure and improving handling on bumpy trails.
Reliable Fuel Transfer System

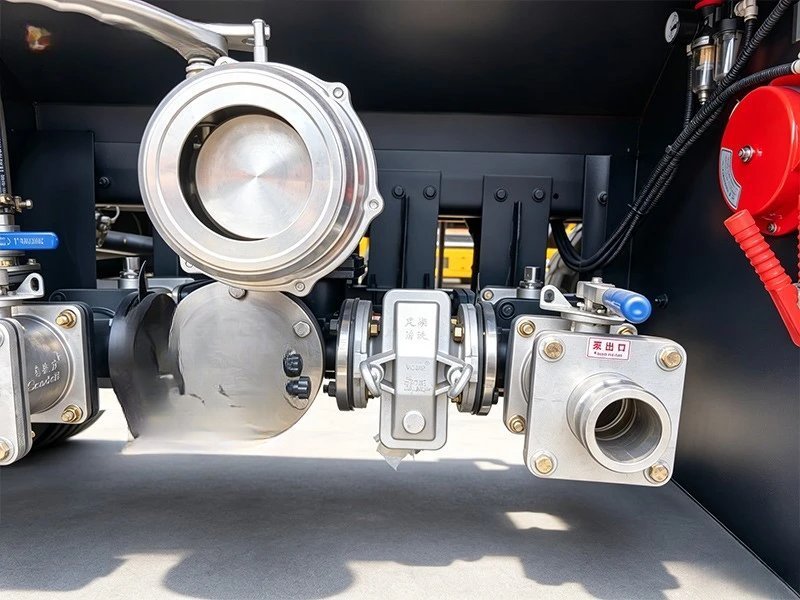

A PTO-driven pump delivers fuel quickly and efficiently. Optional equipment includes a fuel dispenser, flow meter, 20-meter hose reel with nozzle, level gauge, and bottom-loading system — making on-site refueling of vehicles, generators, and aircraft straightforward even in isolated locations.
Safety & Operational Features
Emergency shutoff valve
Anti-static grounding system
Overflow protection
Fire extinguishers
Centralized pump controls
Operational temperature range: −40 °C to +70 °C
Tropical-climate radiator
Vehicle Parameters
| Parameter | Value |
|---|---|
| Product Name | HOWO 6×6 Wildland 4000 Gallon Fuel Distribution Truck |
| Overall Model | DRZ5250GYYZZ |
| Drive Type | 6×6 |
| Gross Vehicle Weight | 25,000 kg |
| Curb Weight | 11,940 kg |
| Maximum Speed | 95 km/h |
| Overall Dimensions (L×W×H) | 11,300 × 2,580 × 3,250 mm |
| Front Axle | 7.5 T |
| Rear Axle | 13 T × 2 |
| Wheelbase | 4,600 + 1,350 mm |
| Steering | Left-hand drive |
| Brake | Air brake |
Engine
| Parameter | Value |
|---|---|
| Engine Model | WP12S400E201 |
| Engine Brand | Weichai |
| Fuel Type | Diesel |
| Power | 400 HP (294 kW) |
| Emission Standard | Euro II / Euro III |
| Displacement | 11,596 mL |
| Configuration | Inline 6-cylinder, water-cooled, turbocharged, intercooled |
Chassis
| Parameter | Value |
|---|---|
| Chassis Brand | SINOTRUK HOWO |
| Tire Quantity | 10 + 1 spare |
| Tire Specification | 14.00R20 |
| Transmission | HW19710 manual (10F + 2R) |
| Radiator | Tropical-climate suitable |
Fuel Tank
| Parameter | Value |
|---|---|
| Capacity | 4,000 gallons |
| Material | Q235 carbon steel, 5 mm |
| Transport Medium | Gasoline, diesel, fuel oil, or others |
| Optional Materials | Stainless steel, aluminum alloy |
| Compartments | Multi-compartment division available |
Applications & Solutions
Wildland Fire Refueling Support — Delivers fuel to fire engines, water tenders, and generators at remote fire bases and incident command posts.
Field Vehicle Refueling Deployment — On-site refueling for construction, logging, and exploration fleets operating off the grid.

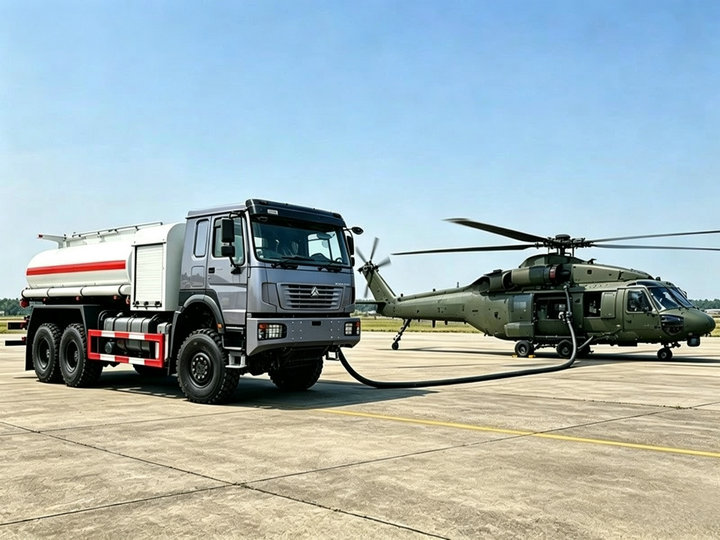

Military & Aviation Refueling — Tactical mobile fuel supply for vehicles, generators, and aircraft at forward operating locations.
Desert & Offroad Mobile Refueling — Reliable fuel distribution for mining camps, oil fields, and remote infrastructure projects.
Optional Accessories
Fuel dispenser with digital meter
Flow meter (positive displacement / turbine)

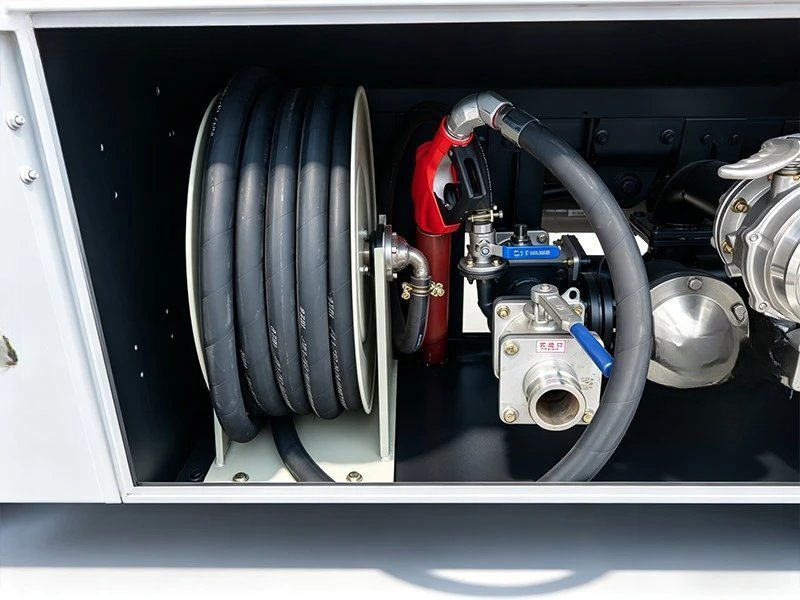

20 m hose reel with automatic nozzle
Level gauge (mechanical / electronic)
Bottom loading system
Heat preservation & heating system (for cold-climate / high-viscosity fuels)
Imported American pump upgrade
Stainless steel or aluminum tank material
Multi-compartment tank division
| Product Name | HOWO 6x6 Wildland 4000 Gallon Fuel Distribution Truck | ||
| Overall | Vehicle Model | DRZ5250GYYZZ | |
| Drive Type | 6*6 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 11940 kg | ||
| Maximum Speed | 95 km/h | ||
| Overall Dimensions L*W*H(mm) | 11300*2580*3250 mm | ||
| Front Axle | 7.5T | ||
| Rear Axle | 13T*2 | ||
| Engine | Engine Model | WP12S400E201 | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 400 HP(294KW) | ||
| Emission Standard | Euro II | ||
| Displacement | 11596 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK HOWO | |
| Tire No. | 10+1 | ||
| Tire Specification | 14.00R20 | ||
| Wheelbase (mm) | 4600+1350 mm | ||
| Transmission | HW19710 manual 10F and 2R | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Fuel tank | Capacity | 4000 gallons | |
| Tank material | Carbon steel Q235 5mm | ||
| Transport medium | Gasoline, Fuel, Diesel, or others | ||
| Optional | **Tank material could be carbon steel, stainless steel, or aluminum (Aluminum tanker). | ||
| ** It can be divided into many compartments. | |||
| ** Imported American pump as optional. | |||
| **Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc | |||
| **Heat preservation & heating system could be added. | |||
| **Bottom loading system can be equipped. | |||
