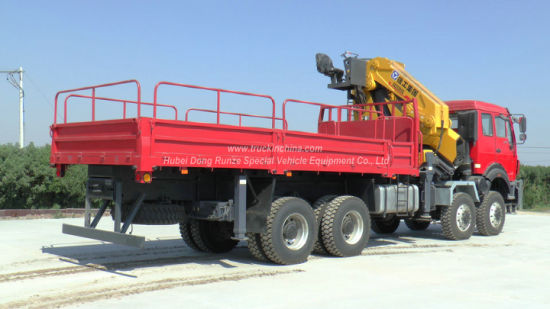

Beiben Truck Lorry Loading Crane All Wheel Drive off Road 8X8 LHD. Rhd
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Beiben Truck Lorry Loading Crane All Wheel Drive Off Road 8x8 LHD. RHD
Beiben 8x8 off road Truck loading crane
Beiben Truck Mounted Crane SQZ800K 30ton, SQ1800ZB 90t At 2m; 45ton At 4m (8X4, 8X8) Offroad All Wheel Drive LHD. RHD
AWD Beiben Truck Mounted Crane SQZ800K 30Ton at 2.3M ,SQ1800ZB 90T at 2M;45Ton at 4M ( 8X4,8x8) Offroad All Wheel Drive LHD.RHD
beiben 8*4 /8x8 military trucks with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is a problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high-efficiency work.
* Spare Parts: We have 7years experience on the machine and spare parts supplying, we are efforts to supply Genuine X.C.M.G .spare parts with good prices, quick response and professional service. SQZ800K Truck Mounted Crane
| SQZ800K Max. lifting moment | 70.4TM/718.4 K Nm |
| Max. lifting capacity | 30000KG/294000 K N |
| Max. Hydraulic outreach | 16.02 m |
| Slewing angle | 360°continuous |
| Slewing torque | 6.34tm/62.1 K Nm |
| Stabilizer spread | 8372 mm |
| Fitting space required | 2000 mm |
| Width folded | 2500 mm |
| Max.operating pressure | 33 MPa |
| Recommended pump capacity | 80 L /min |
| Dead weight | 8560 kg |
| Max Lifting Capacity(kg/m) | 30000/2.3 16000/4.4 10880/6.26 8190/8.13 6450/10.17 5300/12.02 4450/14.02 3850/16.02 |
Beiben trucks mounte crane , also call as beiben crane trucks, north benz trucks mounted crane. As the most professinal beiben crane trucks manufacturer in china, we can produce the beiben 25 T trucks mounted crane, beiben 30T truck mounted crane, beiben 80 T trucks mounted crane , and beiben 90 T trucks mounted crane.
The north benz trucks mounted can be on north benz AWD trucks chassis, 6*4/ 6x6 and 8*4 /8x8 trucks chassis. Customer can choose X.C.M.G, PALFINGER,UNIC, HIAB crane system to install on these north benz trucks chassis.
Beiben 30 T ~90 T trucks mounted crane.
DRSQ1800ZB (90T@2m ,45T@ 4 m) Knuckle Boom Truck Mounted Crane
| Model # | DRSQ1800ZB /Knuckle Crane 90 Ton At 2 m |
| Max Lifting Moment | 1800 Kn.m |
| Max Lifting Capacity(kg/m) | 45000/4 |
| 21000/7.86 | |
| 13500/11.26 | |
| 6100/15.1 | |
| Max Lifting Height | 17m |
| Max Working Radius | 15.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2220-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 17800kg |
| Installation Space | 2540mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
Customization, Cost Control Built How You Want it, Price You Can Afford. for sale call:+86-152 -7135-7675
The parameter of x.c.m.g crane (Optional) | Crane model | Max. lifting weight(KG) | Max. working height (m) |
SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
Beiben truck features and advantages:
1: Driving room: the steel structure, high safety,lower wind resistance coefficient
2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: double deceleration bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance
Beiben truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.
