DXXP5120TXFJY08/S6
-
SHACMAN
-
8705909990

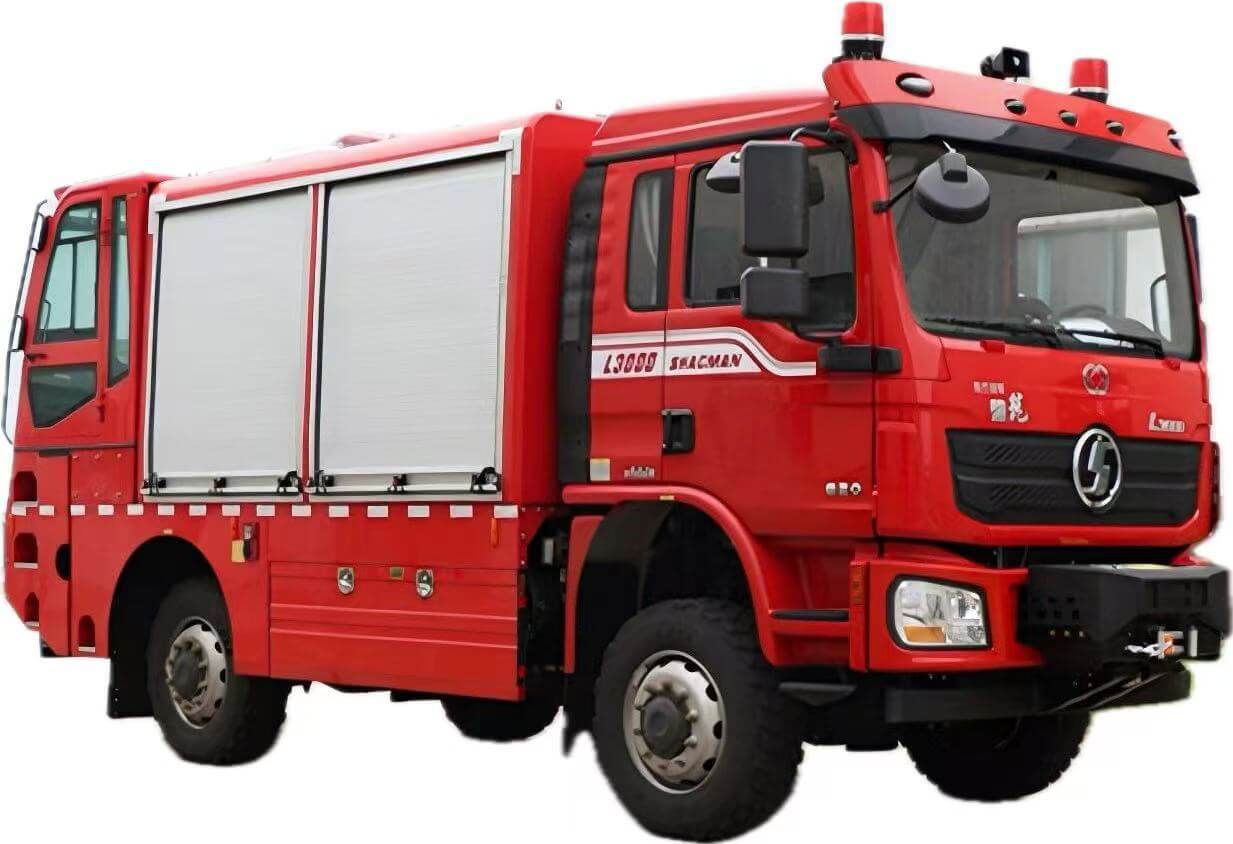

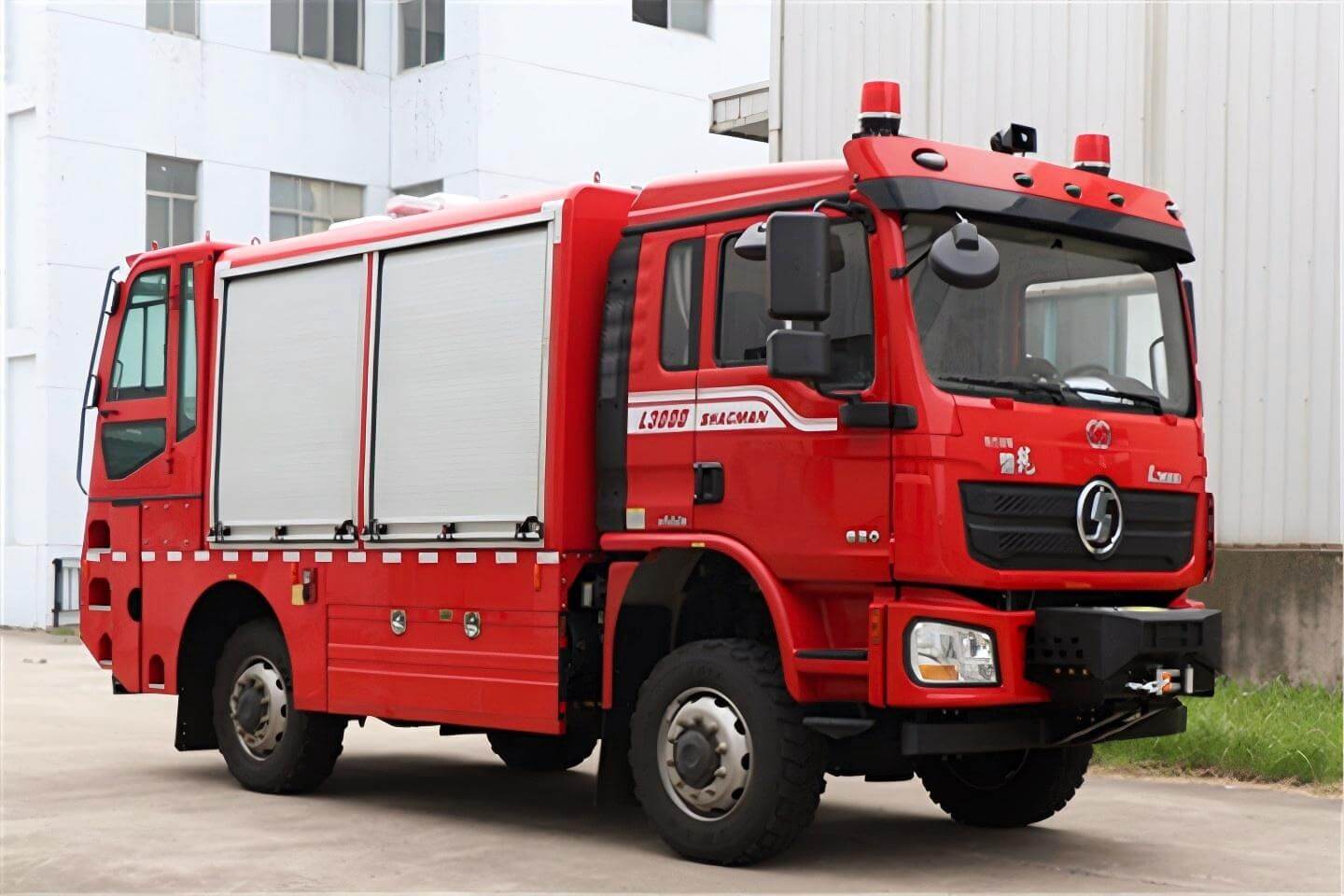

SHACMAN 4x4 Offroad Emergency Rescue Fire Truck Mounted with Excavator
Chassis : 4x4 offroad SX2129
Water Tank volume : 450L;800L
special equipment truck mounted excavator, winch and all kinds of fire emergency rescue equipment
Two-way Drive forest fire truck
1.Shaanxi Automobile SX2129 ,4x4 off-road chassis ,rated power 162KW

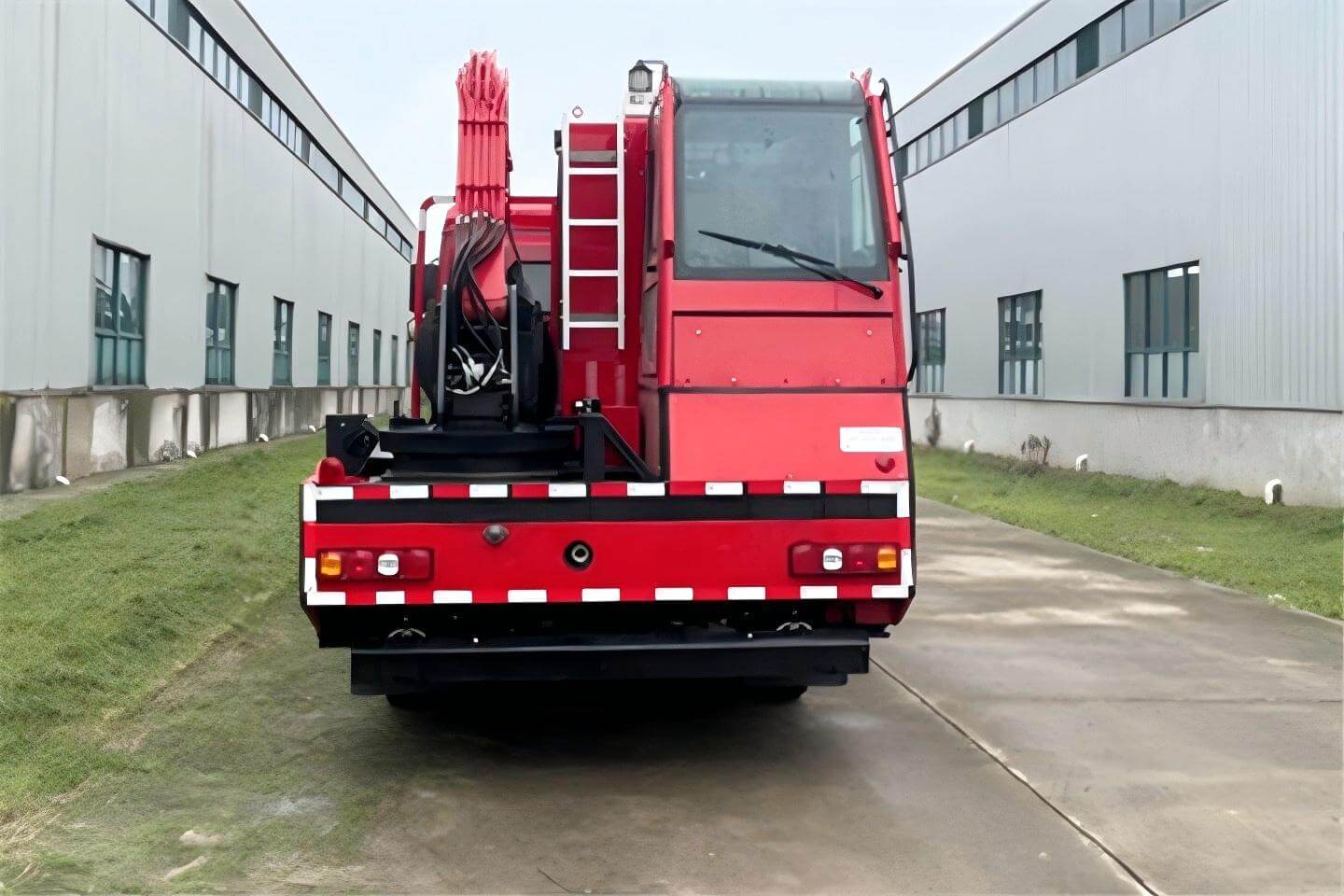

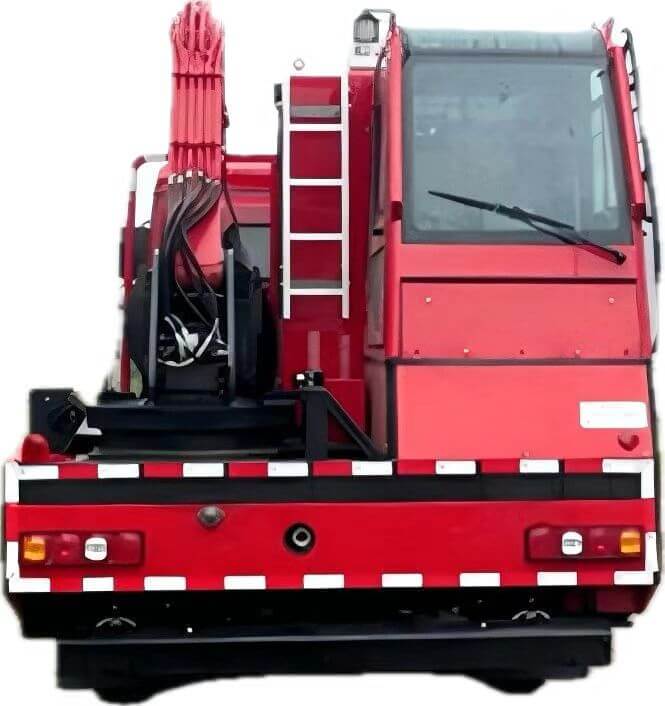

Vehicle-mounted excavator system digs depth :3m
Equipped with high-pressure water mist fire extinguishing system
Two-way operation, recommended maximum speed 95km/h, chassis speed 100km/h
Equipped with electro-hydraulic power source
Rated power generation 24kw
2. Lifting lighting system:
(1) Power: 300w
(2) Frequency: 50HZ
(3) Voltage: ≥ 380 V/220 V
(4) Main lighting power: 2x150W
(5) Type: Electric
3. Traction winch system 5 Ton
(1) Drive type: electric
(2) Maximum pulling force: 50KN
4. Diesel engine
(1) Number of cylinders: 4
(2) Output power (kW): 162
(3) Cylinder arrangement: in-line type
5. Generator
(1) Steady-state voltage regulation rate: ≤ 1% (single machine operation)
(2) Cooling method: self-cooling type
(3) Winding material: all copper
(4) Working system: continuous working system
General requirements: Two-way forest fire trucks are mainly used for forest and grassland disaster relief, fire fighting, and emergency rescue such as building collapse and road damage caused by earthquakes, landslides, mudslides, floods, etc.; The off-road chassis is equipped with a high-pressure water mist fire extinguishing system, which has the functions of dragging, digging, crushing, grab, lighting, drainage, etc., and has electric, hydraulic and pneumatic power sources; Can drive in both directions.
Overall dimensions: | 7140×2530×3550(mm) | Fuel type | Diesel |
Gross Weight | 11630(Kg) | Cab: | Crew 3 |
Net weight | 10915(Kg) | Rated load | 490(Kg) |
Approach Angle/Departure Angle: | 17/17(°) | Front/rear overhang: | 1340/1820(mm) |
Axle Load: | 4750/6880 | Wheelbase: | 3600,4400(mm) |
Axle Number | 2 | Maximum speed: | 95(km/h) |
Fuel consumption: | (L/100Km) | Suspension Spring : | 4/5,5/5 |
Number of tires: | 4(pcs) | Tire : | 315/70R22.5 20PR |
Front wheel track: | 1932(mm) | Rear wheel track: | 1930(mm) |
Engine Model | Engine Factory | Displacement (ml) | Power (kw)/ horsepower (ps) |
D4.5NS6B220 | Dongfeng Cummins Engine Co., LTD | 4500 | 162/220 |
Reference overall dimensions of the whole vehicle (length × width × height): 7140 × 2530 × 3550 mm;
▲ The maximum power of the engine is 162KW;
★ Excavation system: excavation depth 3m
▲ Fire extinguishing system: flow rate 40L/min, volume: water 800L.
★ Rated power generation : Main technical parameters of 24KW chassis
Chassis brand model: Shaanxi Automobile Group Co., Ltd. SX2129
Wheelbase: 3600mm Approach angle: 17 ° Departure angle: 40 °
Cab dimensions (length × width × height): approximately length 2165mm × width 2300mm × height 1680mm Maximum allowable total mass: 12000kg
Maximum loading mass: 5500kg
Axle load mass: front axle 5000kg, rear axle 7000kg Braking distance: ≤ 10m (muzzle speed 30km/h, full load)
Wading height : 500mm Drive Form: 4 × 4
Engine Power Rating: 162KW; Emission standards: National VI;
Fuel Type: Diesel
Transmission: Manual transmission Fuel tank: 200L
Excavation system
Digging depth: 3m;
Digging force: 45KN;
Rotation angle: 210 ° Bucket width: 600mm.
Installation location: On-board power generation system on the left side of the vehicle
Generator power: 24KW
Output port: 380V/220V Installation location: High-pressure water mist system in the middle of the vehicle
Water pump flow rate: 40L/min; Maximum pressure: 4.0 Mpa; Water mist range: ≥ 10 m;
Fine water range: ≥ 15 m;
Installation location: tank body on the right side of the vehicle
Capacity: Water 800L;
Material: stainless steel
Form: mid-mounted built-in
Structure: There are longitudinal and horizontal diaphragms inside, and longitudinal joists at the bottom. Tank accessories:
1 DN65 water tank overflow port;
1 liquid level indicating sensor;
1 water tank sewage outlet , DN25 manual ball valve control; 1 DN25 water tank water outlet.
Rear warehouse
Location: Right side of vehicle
Structure: Steel skeleton
Internal equipment rack: steel structure
Rolling shutter doors: two on the left and right, pull rod type with lock
Interior lighting: White light bright winch system
Form: Front electric winch
Wire rope length: 30m
Operating voltage: DC24V
Rated pulling force: 5000kg control cabinet and instrument panel
Material: Stainless steel, surface etched
Control cabinet display: lighting, data display, emergency shutdown, etc.
Instrument display: Power meter
Location: Middle of the cabin
Electrical system
Switch, warning lamp: Installed with main power switch, power take-off switch, external lighting switch, warning lamp not popping up when charging, etc.
Warning lights: 2 red round warning lights are installed on the top of the cab
Warning light alarm controller: power 100W, equipped with handheld loudspeaker in the cab
Exterior lamps: located on the roof (flip-up type)
Reversing monitor; 7-inch color LCD monitor, installed in the cab
Other electrical accessories: quick dispatch support system (for chassis battery charging) lighting system
Form: Flip-up LED light
Maximum lifting height: 4.2 m
Power: 2 × 150W
Luminous flux: 2 × 12000 lm
Input voltage: 24V
