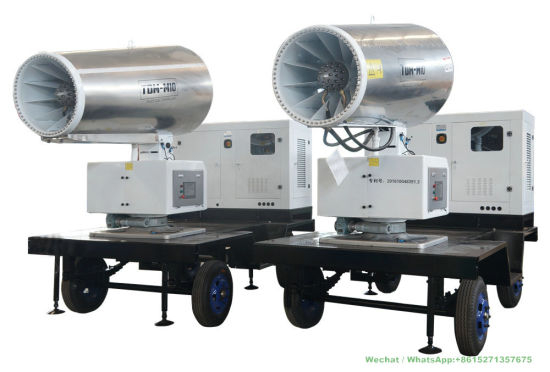

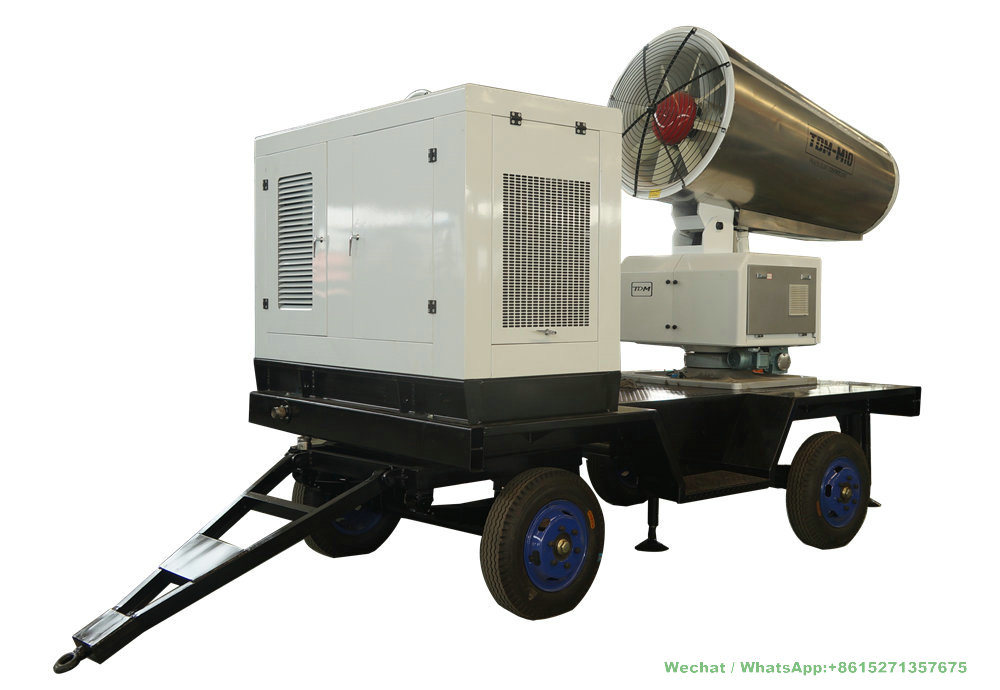

Mobile Dustfall Cannon Sprayer Water Fogging Machine Dolly (PM2.5 Dust Controller 50-120M)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Disinfection Spray Machine
Scope of application
The second generation intelligent sprayer is widely used in coal yard, quarry, quarry, cement plant, garbage plant and other industries. The remote sprayer can effectively suppress dust and dust and prevent fog and haze. In addition to dust removal and haze, Huali electric Mechatronics sprayer can also be used in many places. First of all, the PM2.5 value exceeds the standard in the air. These include some factories that will produce a lot of dust in production, such as metallurgical iron and steel, coal chemical plant, cement plant, thermal power plant and so on. Secondly, there are areas where dust removal and cooling are needed. These areas include construction sites, open-air stacking plants for materials and minerals, and demolition areas. Again, there are areas requiring extensive disinfection and prevention of plague, including areas experiencing natural disasters or garbage dumps or large amounts of garbage burning. Finally, there are densely populated areas, such as the commercial circle of the city, the park square of the city and so on.
This product has advanced control, visual operation, stable and reliable, diversified control methods, flexible fixation and installation mode, and can be used for fixed use or trailer or sprinkler.
Technological superiority
First, the automatic reset function is added. When the sprayer stops using, it will automatically reset to the original position, which saves the personnel's re adjustment and is convenient for transportation and placement.
Two, increase the automatic discharge function. When the spray machine is not used for a long time, the discharge solenoid valve will open automatically, and release the water in the pump, and prevent the pump from freezing in winter.
Three, the design of the distribution cabinet is lightweight; the external wiring is connected by an aviation plug, which is safe, strong, beautiful, generous and fashionable.
Four, the supporting power is flexible, that is, the power supply of three phase 380V can be supplied, and the diesel generating set can also be supplied.
Five, it can be fixed on concrete pouring platform, and can also be supplied with diesel generator set to transport vehicles, and can also be used with sprinklers.
Customization Dust Suppression System , Cost and Control Built How You Want it, at a Price You Can Afford.
Fog Mist Water Cannon Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price
Remote Controller , Spray fight Coronavirus in remote robot , Robot canon spray , Robot canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray Coronavirus , Remote control canon spray water Coronavirus , Robot fight Coronavirus , robot to fight Coronavirus
Product Fog Cannon for Water Evaporation
Fog Cannon for Dust Suppression on Quarry
Water Spray Dust Reduce Fog Cannon
Fog Cannon for Pest Control Air Blast Sprayer Water Sprayer
Automatic Intelligentized Water Fog Cannon for Environment Dedusting
Smoke Fog Machine Water Fog Spray Dust Remover Blower Cannon
Main technical parameters of vehicle sprayer disinfects spray machine (60-120 m):
| Parameter item | Reference index | ||||
| Sprayer type | Type TDM-M04 | Type TDM-M06 | Type TDM-M08 | Type TDM-M10 | Type TDM-M12 |
| Photo | |||||
Cannon spray machine China Price(RMB / CNY) | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY |
| Static wind Spray range (m) | 40m | 60m | 80m | 100m | 120m |
| Coverage area | 3768/5024 | 7536/11300 | 13400/20000 | 20900/31400 | 30144/45216 |
| Total power (Kw) | 10.5 | 27.1 | 31 | 38.6 | 69 |
| Fan power (Kw) | 7.5 | 18.5 | 22 | 30 | 55 |
| Water Pump power (Kw) | 2.2 | 7.5 | 7.5 | 7.5 | 11 |
| Power supply | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire |
| Number of sprinklers (Nozzles) | 39 | 78 | 78 | 110 | 100 |
| Water consumption (m3 / h ) | 3.2 | 7 | 7 | 10 | 10 |
| Pump pressure (Mpa) | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa |
| Diameter of water mist particles (m) | 30-150 | 30-150 | 20-200 | 20-200 | 20-200 |
| Rotation angle (electric) | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ |
| Pitch angle (electric) | 0∘~ 50∘ | -10∘~ 50∘ | -10∘~ 60∘ | -10∘~ 60∘ | -10∘~ 60∘ |
| control mode | Local / wireless remote / Cloud Services | Wireless remote control / touch screen | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services |
| Fixed mode | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type |
| Protection level | IP55 | IP55 | IP55 | IP55 | IP55 |
| Noise standard (dB) | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB |
| Use ambient temperature (c) | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). |
| Outline size (mm) | 1550*1100*1550 | 1900x1155x2365 | 2000x1155x2360 | 2435x1155x2360 | 3100x1700x2500 |
| Weight (Kg) | 620 | 1270 | 1300 | 1540 | 2700 |
| Number of fans (unit) | 2 | 1 | 2 | 2 | 2 |
| Noise control | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction |
| Spray ring type | International double spray form | International double spray form | International double spray form | International double spray form | International double spray form |
| Generator set optional | 20KW +¥30000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 100KW ¥80000~100000 |
CNY/USD rate
ater truck special function | A. Water tank capacity(L):6000L -30,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
| Fog cannon | HZ-50 | HZ-60 | HZ-70 | HZ-80 | HZ-90 | HZ-100 |
| Ram motor | 3kw | 5.5kw | 15kw | 18kw | 22KW | 30kw |
| Water pump motor | 3kw | 3kw | 5.5kw/100 | 5.5kw/120 | 7.5kw/150 | 7.5kw/180 |
| Horizontal range | 25-35M | 35-45M | 45-55M | 55-65M | 65-75M | 75-85M |
| Inlet diameter | 500mm | 500MM | 700/500 | 700/500 | 800/550 | 900/600 |
| The number of nozzles | 12+ | 12+ | 16+ | 26+ | 39+ | 46+ |
| Droplet particle (um) | 40--200 | 40--200 | 40--200 | 40--200 | 40--200 | 30--200 |
| Horizontal rotation Angle | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º |
| Pitch Angle | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º |
| Equipment operating environment | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC |
| Up and down drive | micro-motor | micro-motor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor |
| The control mode | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic |
| Generator | 8.5Kw (Gasoline Generator) | 30kw | 30kw | 50kw | 50kw | 100kw |
EXW $USD | $ | $ | $ | $ | $ | |
$USD Price for refer only | $ | $ | $ |
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
The reasons for suppressing dust are numerous and vary for particular industries; however, the main points are:
Loss of valuable material
Up to 5% of finished products can be lost due to wind erosion from stockpiles alone.
Environmental problems
Dust can contaminate the atmosphere, surrounding areas and local villages. It can also enter the food chain by polluting potable water sources and the soil.
Health hazard
Dust is responsible for certain diseases including silicosis and pneumoconiosis (black lung disease).
Reduced Visibility
Atmospheric pollution can cause hazardous working conditions for vehicle drivers and plant operators.
Explosion/Oxidation
Very fine (10 - 20 micrometres) combustible particles constitute a high explosion risk.
Coal stockpiles can also oxidise and develop "hot spots" if not capped by chemical film formers
Machine maintenance
Dust particles can contaminate machinery such as bearings, air filters and various engine parts.
Reduced capital investment
Generation of dust means investment in equipment e.g. spray bars, pumps and bowsers. Employing a chemical reagent can therefore reduce equipment costs.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
DS series(DS-30~DS200) sprayer's water fog droplet size is about 20~300µm, water fog droplet can
mixture with dust particles, then absorb other dust particles and fall down to the ground rapidly.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(c |
Disinfection Spray Machine
Scope of application
The second generation intelligent sprayer is widely used in coal yard, quarry, quarry, cement plant, garbage plant and other industries. The remote sprayer can effectively suppress dust and dust and prevent fog and haze. In addition to dust removal and haze, Huali electric Mechatronics sprayer can also be used in many places. First of all, the PM2.5 value exceeds the standard in the air. These include some factories that will produce a lot of dust in production, such as metallurgical iron and steel, coal chemical plant, cement plant, thermal power plant and so on. Secondly, there are areas where dust removal and cooling are needed. These areas include construction sites, open-air stacking plants for materials and minerals, and demolition areas. Again, there are areas requiring extensive disinfection and prevention of plague, including areas experiencing natural disasters or garbage dumps or large amounts of garbage burning. Finally, there are densely populated areas, such as the commercial circle of the city, the park square of the city and so on.
This product has advanced control, visual operation, stable and reliable, diversified control methods, flexible fixation and installation mode, and can be used for fixed use or trailer or sprinkler.
Technological superiority
First, the automatic reset function is added. When the sprayer stops using, it will automatically reset to the original position, which saves the personnel's re adjustment and is convenient for transportation and placement.
Two, increase the automatic discharge function. When the spray machine is not used for a long time, the discharge solenoid valve will open automatically, and release the water in the pump, and prevent the pump from freezing in winter.
Three, the design of the distribution cabinet is lightweight; the external wiring is connected by an aviation plug, which is safe, strong, beautiful, generous and fashionable.
Four, the supporting power is flexible, that is, the power supply of three phase 380V can be supplied, and the diesel generating set can also be supplied.
Five, it can be fixed on concrete pouring platform, and can also be supplied with diesel generator set to transport vehicles, and can also be used with sprinklers.
Customization Dust Suppression System , Cost and Control Built How You Want it, at a Price You Can Afford.
Fog Mist Water Cannon Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price
Remote Controller , Spray fight Coronavirus in remote robot , Robot canon spray , Robot canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray fight Coronavirus , Remote control canon spray Coronavirus , Remote control canon spray water Coronavirus , Robot fight Coronavirus , robot to fight Coronavirus
Product Fog Cannon for Water Evaporation
Fog Cannon for Dust Suppression on Quarry
Water Spray Dust Reduce Fog Cannon
Fog Cannon for Pest Control Air Blast Sprayer Water Sprayer
Automatic Intelligentized Water Fog Cannon for Environment Dedusting
Smoke Fog Machine Water Fog Spray Dust Remover Blower Cannon
Main technical parameters of vehicle sprayer disinfects spray machine (60-120 m):
| Parameter item | Reference index | ||||
| Sprayer type | Type TDM-M04 | Type TDM-M06 | Type TDM-M08 | Type TDM-M10 | Type TDM-M12 |
| Photo | |||||
Cannon spray machine China Price(RMB / CNY) | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY | ¥ CNY |
| Static wind Spray range (m) | 40m | 60m | 80m | 100m | 120m |
| Coverage area | 3768/5024 | 7536/11300 | 13400/20000 | 20900/31400 | 30144/45216 |
| Total power (Kw) | 10.5 | 27.1 | 31 | 38.6 | 69 |
| Fan power (Kw) | 7.5 | 18.5 | 22 | 30 | 55 |
| Water Pump power (Kw) | 2.2 | 7.5 | 7.5 | 7.5 | 11 |
| Power supply | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire | AC380V, 50Hz, three-phase four wire |
| Number of sprinklers (Nozzles) | 39 | 78 | 78 | 110 | 100 |
| Water consumption (m3 / h ) | 3.2 | 7 | 7 | 10 | 10 |
| Pump pressure (Mpa) | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa | Centrifugal 1.5-2.0Mpa |
| Diameter of water mist particles (m) | 30-150 | 30-150 | 20-200 | 20-200 | 20-200 |
| Rotation angle (electric) | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ | ±120∘/±180∘ |
| Pitch angle (electric) | 0∘~ 50∘ | -10∘~ 50∘ | -10∘~ 60∘ | -10∘~ 60∘ | -10∘~ 60∘ |
| control mode | Local / wireless remote / Cloud Services | Wireless remote control / touch screen | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services | Wireless remote control and touch screen / Cloud Services |
| Fixed mode | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type | Vehicle mounted, high platform, platform type |
| Protection level | IP55 | IP55 | IP55 | IP55 | IP55 |
| Noise standard (dB) | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB | 20 meters 65dB |
| Use ambient temperature (c) | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). | 0-50 (no heat preservation), -35-50 (heat preservation). |
| Outline size (mm) | 1550*1100*1550 | 1900x1155x2365 | 2000x1155x2360 | 2435x1155x2360 | 3100x1700x2500 |
| Weight (Kg) | 620 | 1270 | 1300 | 1540 | 2700 |
| Number of fans (unit) | 2 | 1 | 2 | 2 | 2 |
| Noise control | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction | Double wall noise reduction |
| Spray ring type | International double spray form | International double spray form | International double spray form | International double spray form | International double spray form |
| Generator set optional | 20KW +¥30000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 50KW +¥40000 | Yuchai 100KW ¥80000~100000 |
CNY/USD rate
ater truck special function | A. Water tank capacity(L):6000L -30,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
| Fog cannon | HZ-50 | HZ-60 | HZ-70 | HZ-80 | HZ-90 | HZ-100 |
| Ram motor | 3kw | 5.5kw | 15kw | 18kw | 22KW | 30kw |
| Water pump motor | 3kw | 3kw | 5.5kw/100 | 5.5kw/120 | 7.5kw/150 | 7.5kw/180 |
| Horizontal range | 25-35M | 35-45M | 45-55M | 55-65M | 65-75M | 75-85M |
| Inlet diameter | 500mm | 500MM | 700/500 | 700/500 | 800/550 | 900/600 |
| The number of nozzles | 12+ | 12+ | 16+ | 26+ | 39+ | 46+ |
| Droplet particle (um) | 40--200 | 40--200 | 40--200 | 40--200 | 40--200 | 30--200 |
| Horizontal rotation Angle | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º |
| Pitch Angle | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º |
| Equipment operating environment | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC |
| Up and down drive | micro-motor | micro-motor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor |
| The control mode | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic |
| Generator | 8.5Kw (Gasoline Generator) | 30kw | 30kw | 50kw | 50kw | 100kw |
EXW $USD | $ | $ | $ | $ | $ | |
$USD Price for refer only | $ | $ | $ |
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
The reasons for suppressing dust are numerous and vary for particular industries; however, the main points are:
Loss of valuable material
Up to 5% of finished products can be lost due to wind erosion from stockpiles alone.
Environmental problems
Dust can contaminate the atmosphere, surrounding areas and local villages. It can also enter the food chain by polluting potable water sources and the soil.
Health hazard
Dust is responsible for certain diseases including silicosis and pneumoconiosis (black lung disease).
Reduced Visibility
Atmospheric pollution can cause hazardous working conditions for vehicle drivers and plant operators.
Explosion/Oxidation
Very fine (10 - 20 micrometres) combustible particles constitute a high explosion risk.
Coal stockpiles can also oxidise and develop "hot spots" if not capped by chemical film formers
Machine maintenance
Dust particles can contaminate machinery such as bearings, air filters and various engine parts.
Reduced capital investment
Generation of dust means investment in equipment e.g. spray bars, pumps and bowsers. Employing a chemical reagent can therefore reduce equipment costs.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
DS series(DS-30~DS200) sprayer's water fog droplet size is about 20~300µm, water fog droplet can
mixture with dust particles, then absorb other dust particles and fall down to the ground rapidly.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(c |
