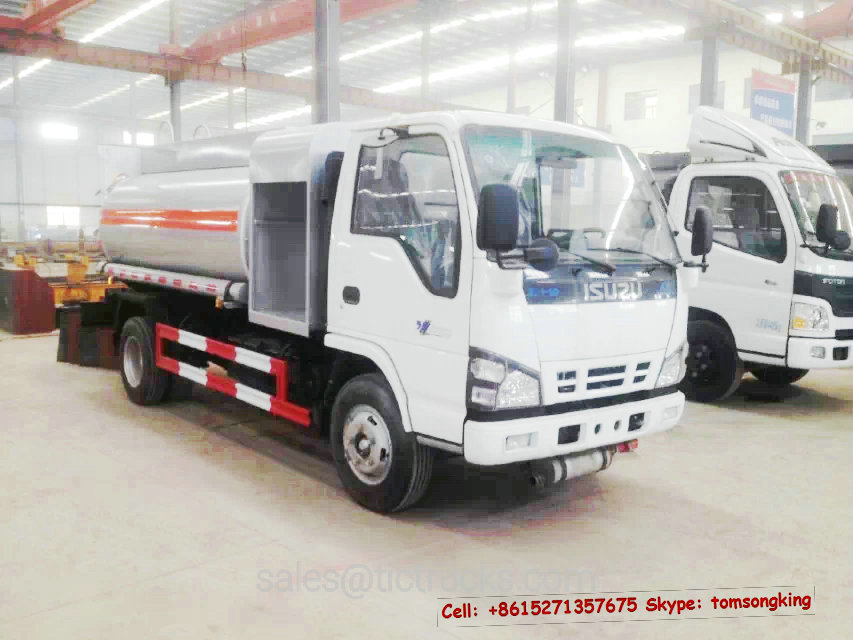

ISUZU 4,000L-6,000L Diesel oil Tanker Truck

Stainless Steel Fuel Tanker Truck ISUZU stainless steel 304. It is equipped with Euro-type manhole
Price: $ 31500
Discount Price: $ 24500  -  29500
FOB:
Availability:
Quantity:

  • DRZ5070GJY

  • DRZ

  • 87059099.90

 ISUZU 4,000L  ~6,000L Nissan Diesel oil Tanker Truck With gear pump, and optional refueling machine.

  Tank Truck,Fuel tank truck,Refueling Tank Truck,Refueller

  tanker Fuel tank truck,Refueling truck,Oil tank truck,Fuel tanker  Suppliers,

ISUZU-50T-  Commercial Vehical  truckISUZU-58T-  Commercial Vehical  truck
Customization, Cost Control, Built trucks How You Want it, at a Price You Can Afford !

ISUZU stainless steel fuel tanker , ISUZU FUEL TRUCK, ISUZU REFUELING truck, Fuel refueling trucks,ISUZU,

  ISUZU (4,000-5000 Litres)Stainless Steel Mini Fuel Truck

General

Vehicle Brand

DRZ

Chassis Brand

ISUZU

Overall Dimension

5980 * 1900 * 2200 mm

GVW / Kerb Weight

7,300 kg / 3,420 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine, 4HK1

Power

98 Ps (72 KW)

Displacement

2771 ml

Emission Standard

Euro IV

Chassis

Drive Type

4X2, left hand drive

Transmission

ISUZU gear box, no overhaul within 500,000km

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7.00-15

Tyre Number

6 tyres and 1 spare tyre

Max Speed

98 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

4,000 Litres (About 1,050 gallons)

Material

Tank, mechanical pump, pump box all stainless steel

Pump

Equipped for overhead delivery, 1000 litres / min

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..

Optional

Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker
It can be divided into many compartments.
 Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge……
 Heat preservation & heating system could be added.
 Bottom loading system can be equipped.

The Refueling Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR. As a transportation product, it register full of functions such as: oil transportation, fuel oil filling system, fixed-container refueling system, and also can be used as a mobile pump.
It takes more advantages from other similar special truck, and also using the advanced technology to take the production process strictly. The Refueling Tank Truck Series classified as general refueling vehicles (with fuel oil filling system) and fisal tank vehicles, widely usd in oil station and some transportation companies.
This model results the equipment with few positive points as: good performance, good structure, also operates simply.

 ISUZU 5,000L -8,000L oil Tanker Truck

With gear pump, and optional refueling machine.

 suzu Fuel tanker truck, also knowed as Isuzu Mobile refueling truck,  Isuzu oil delivery truck.   manufacturer,

 provide the high quality and reasonable price fuel tanker truck.



 Isuzu fuel tanker truck, Capacity 5~8CBM, 130HP Isuzu engine.
 Advantages

   We are MANUFACTURER more than 10years experience, Professional, well design!

   Standard Q235A high strength carbon steel ensure tanker durability and safety

   Germany Siemens AUTO welding process technology, quality guarantee

   Unique Optional Tank material: Stainless, carbon steel, Aluminum alloy, High strength plastic steel

   Capacity including: 3,000L, 5,000L, 6,000L, 8000L, 10,000L,  12,000L, 16,000L, 20,000L.










    UD tanker truck


The Refueling Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR. As a transportation product, it register full of functions such as: oil transportation, fuel oil filling system, fixed-container refueling system, and also can be used as a mobile pump.
It takes more advantages from other similar special truck, and also using the advanced technology to take the production process strictly. The Refueling Tank Truck Series classified as general refueling vehicles (with fuel oil filling system) and fisal tank vehicles, widely usd in oil station and some transportation companies.
This model results the equipment with few positive points as: good performance, good structure, also operates simply.
A.5000 L tanker


       Truck model        isuzu fuel truck
       Gross weight        7300        Tanker volum        5cbm
       Rated weight        4070        Overall dimension        5750×1880×2160
       Curb weight        3100        Body dimension        ××

       Cabin seat        2                0.60
       A/D angle        16/16        F/R overhang        1075/1315
       Axles        2        Wheel base        3360
       Axles loading        3230/4070        Max speed        100

       Chassis information list
       Chassis model        NKR77LLPACJAY
       Brand Name        isuzu        Manufacturer        isuzu
       Overall dimension        5900×1880×2160        Tyre quantity        6
       A/D angle        24/16        Tyre size        7.50-15,7.50R15,7.00-16,7.00R16
       Leaf spring quantity        8/6+5        Front track        1504
       Fuel type        Diesel        Rear track        1425
       Standard        Euro III
       Engine model        Manufacturer        Displacement        Power
       4KH1-TC        isuzu        2999        96


B.8000 L tanker

       Item        Specification
       Tank
       Capacity        8000 L
       Tank body material        5 MM Q235A carbon steel plate by WISCO
       Compartment        Single compartment  (multi-compartment are available)
       Baffles        With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head.
       Manhole        One manhole on the top of tank body
       ladder        Steel mounted at front, bolted top and bottom
       walkway        Along the top of the tank, sand paint
       Cabinet        One at the side the tank covering the valve.
       With gear pump, and optional refueling machine.
       Main Specification
       Drive type        4x2 Left hand drive
       Wheel base        3815 mm
       Engine
       Maker        ISUZU
       Model        4HK1-TC Diesel engine
       Power        129kw/175HP
       Transmission
       Maker        ISUZU
       Model        MLD 6-shift

  •    250-5000 gallon Capacities Available


  •    Mild/stainless steel


  •    Rollover protection, standard


  •    Full length belly plate with weep holes, standard


  •    Full length internal longitudinal baffle, standard


  •    Betts sealed manway, standard


  •    Custom storage cabinets available


  •    Multiple work lights


  •    Fire Extinguishers


  •    Emergency Shut-Offs, standard

         TIC TRUCKS , www.truckinchina.com
