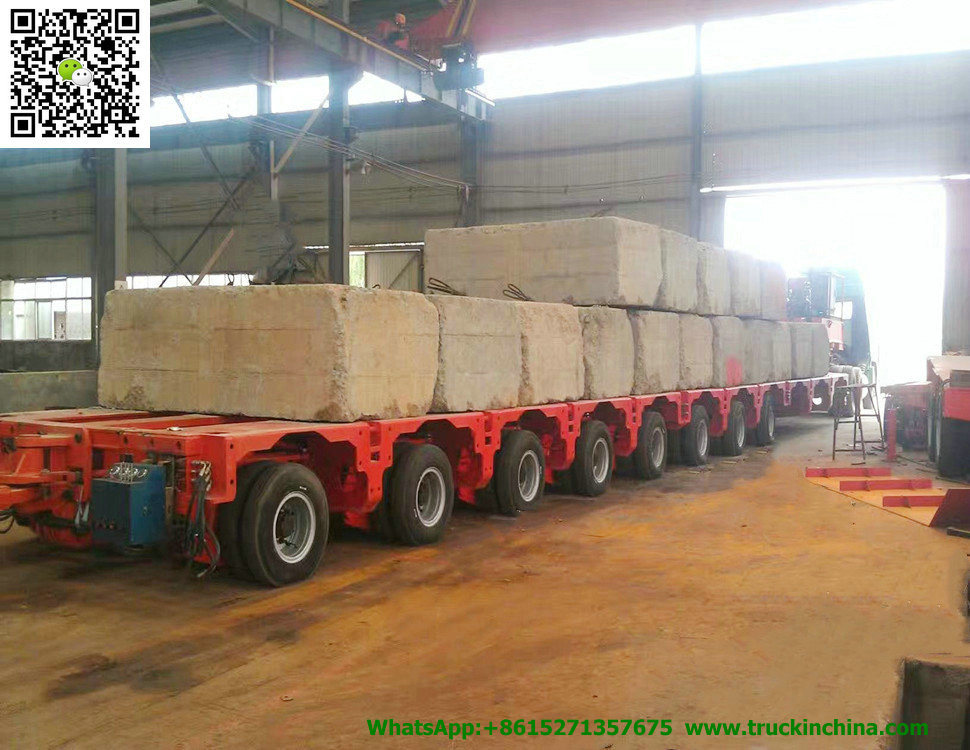

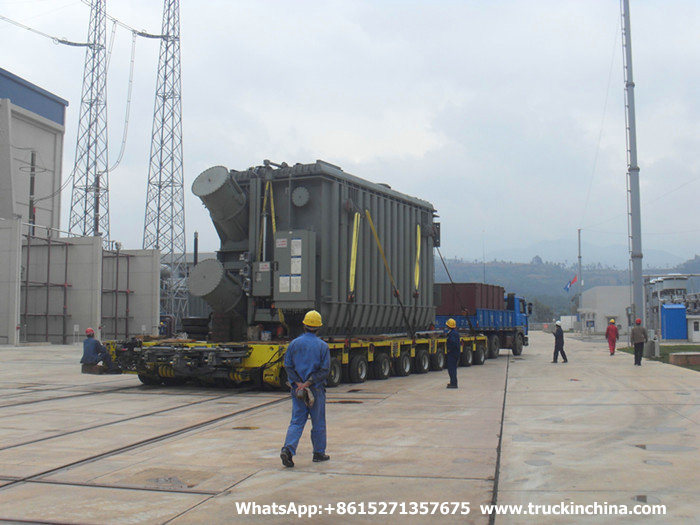

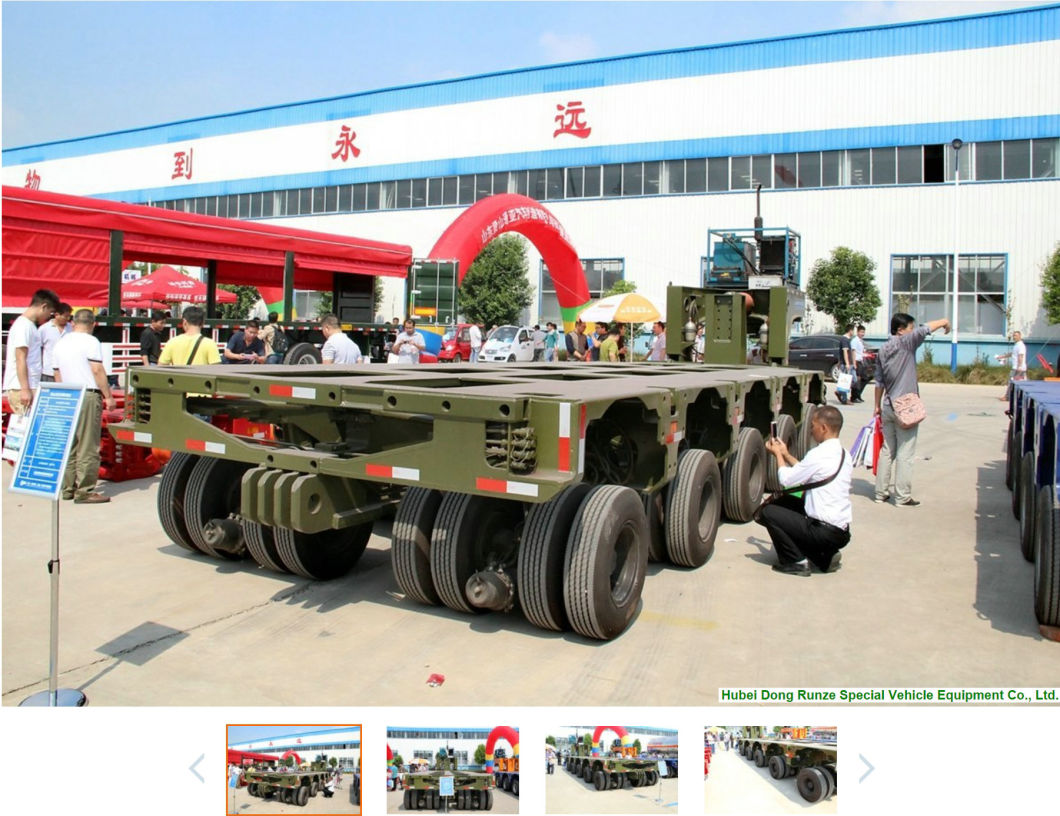

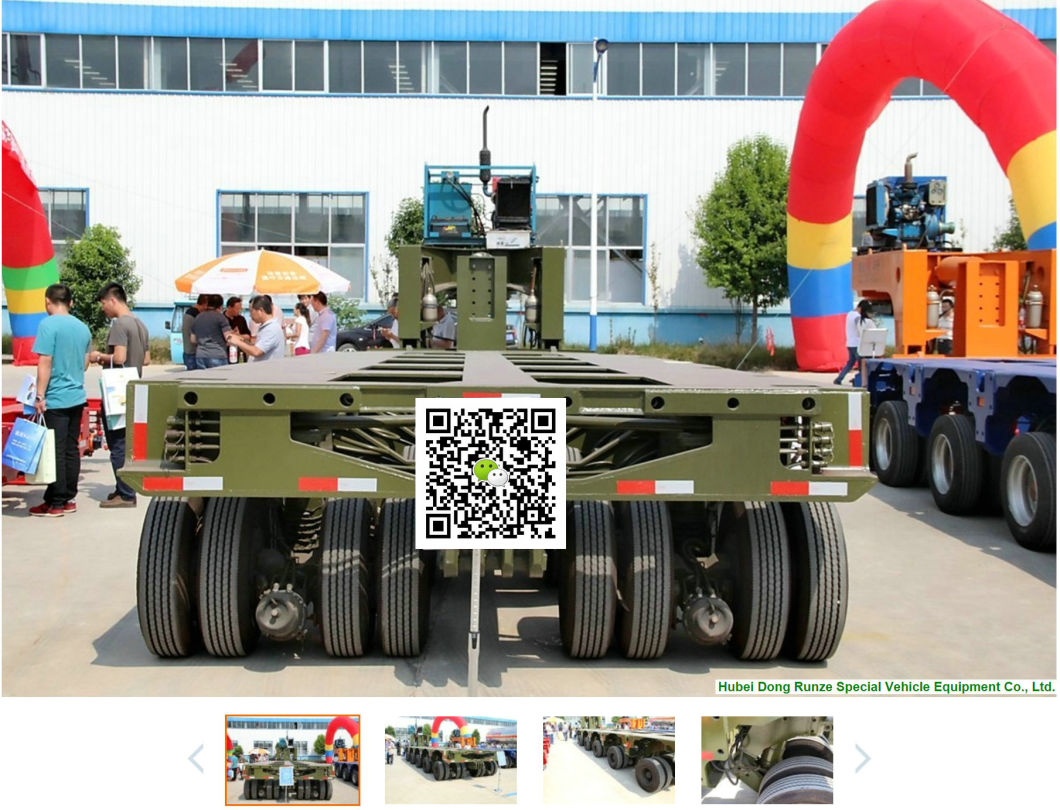

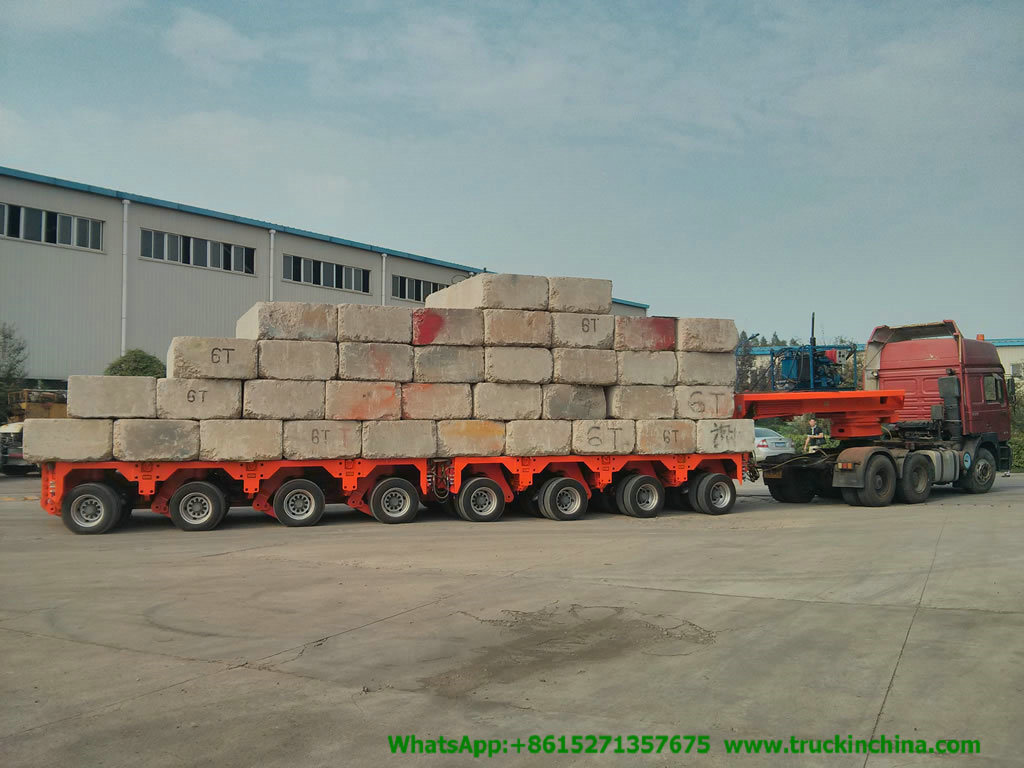

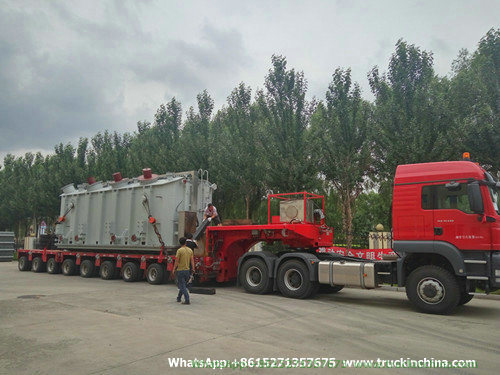

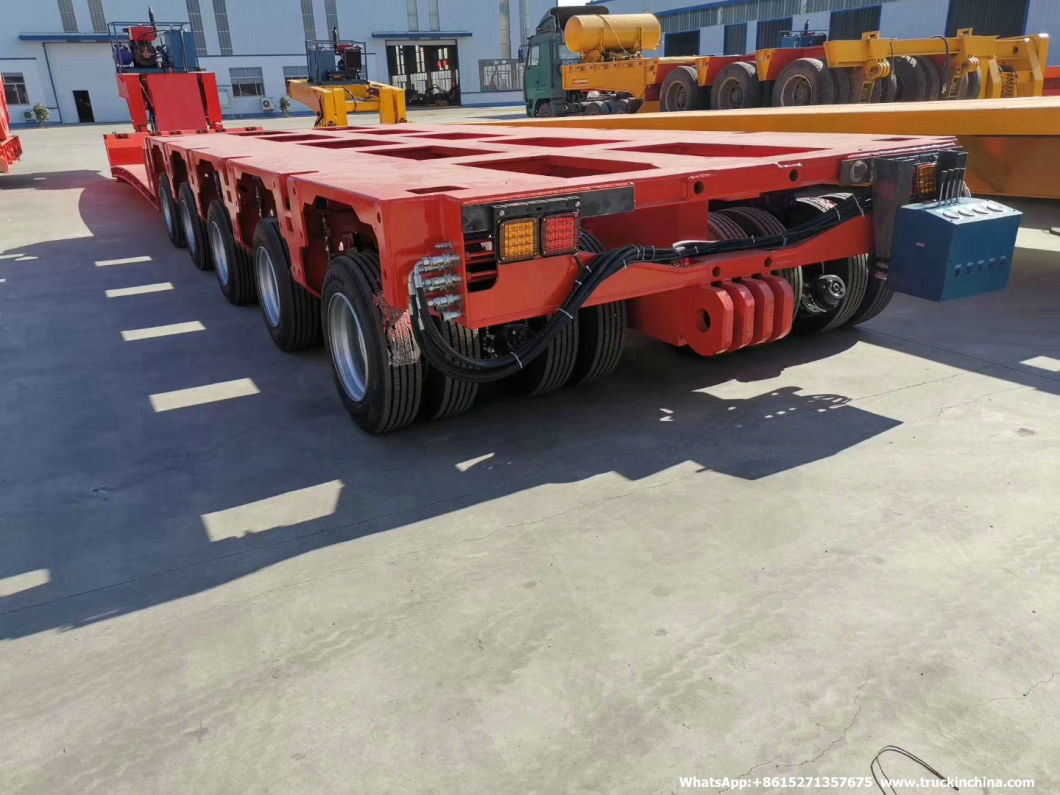

Heavy Hauler Hydraulic Multi Axles Lowbed Trailer
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets
-
T/T, Western Union
Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Axle Steering Axle Low Bed Trailer Combination Trailer
Steering Axle Low Bed Trailer
Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer )

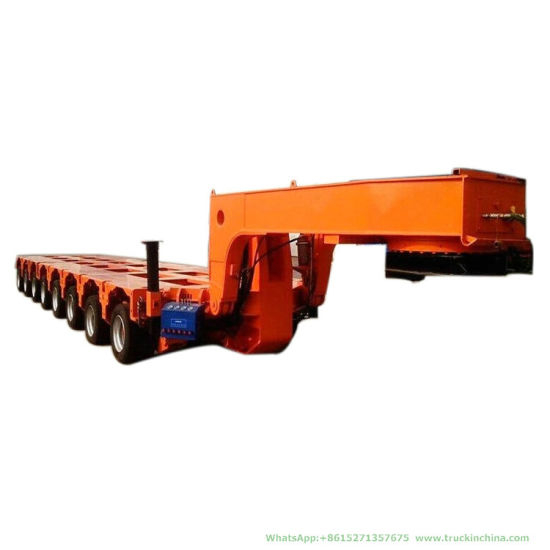

Modular low bed trailer equip power gooseneck/ramp
Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading Low Boy trailer)
| Hydraulic Gooseneck Modular Semi Trailer | ||
| Tech Parameter- Per 2 Rows Line-Axle Modular | ||
| Centerline Tare Weight | 3.5T | |
| Rated Capacity | 45T | |

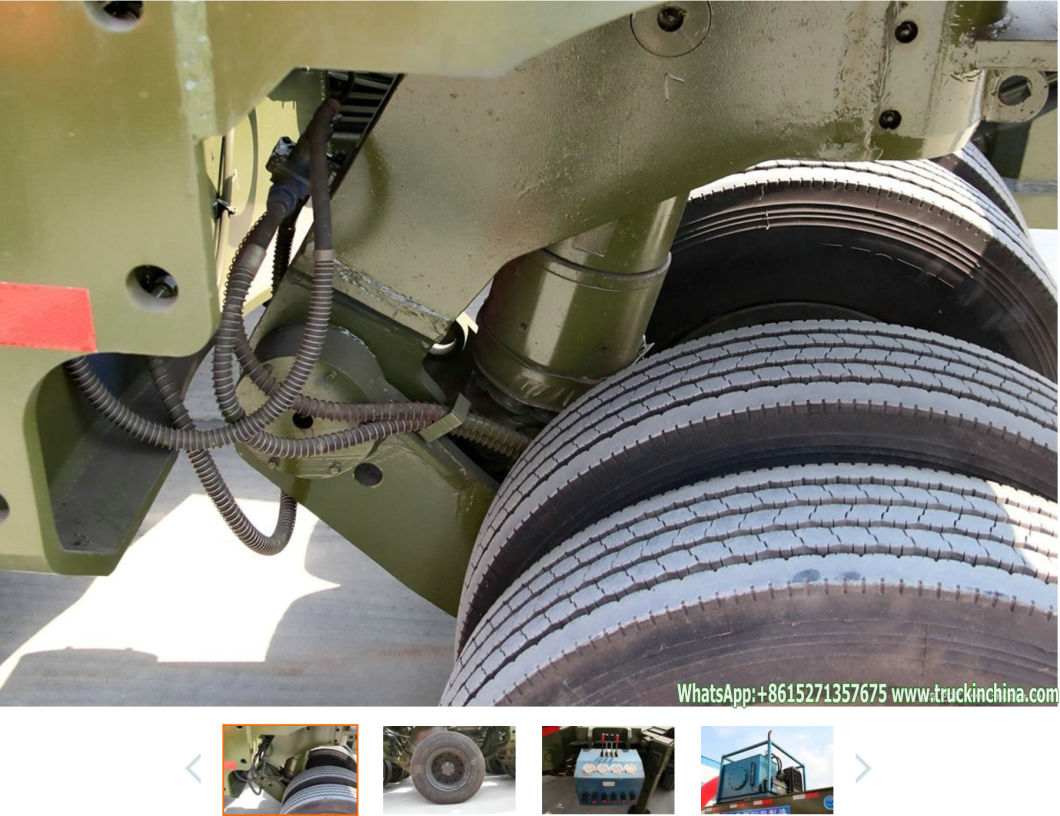

| Suspension | Stroke hydraulic + / - 300 mm | |
| Basic module width | 3.000 mm | |
| Angle of rotation axis | ±55° | |
| The control system | Integrated into the central frame | |
| Air cylinders | ||
| Oil tank | ||
| Hydraulic system | Safety valves | |
| Main beam Material | AH60,40Cr | |
| Main Parts | Combinable heavy module 4 line-axles | Combinable heavy module 6 line-axles |
| Outside Dimension | 6000mm*3000mm*1750+300mm | 9000mm*3000*+300mm |
| Axles / Tires | 8 axles / 32 Tires | 12 axles / 48 Tires |
| Total Dimension | 15000mm+3700mm+700mm *3000mm*1750+300mm | |
| Tire Size | 215/75 R 17,5 | |
| Wheelbase | 1500mm | |
| Modules Connections | Side-battle for different combinations. Axle units mounted on the frame by bolting | |
| Equipment for Modular Combinations | ||
| Diesel Power Plant | 22 KW | |
| Hydraulic Pump | 30 1/ min | |
| Standard Shaft | 3000mm long, flexible coupling ring, diameter 50 mm | |
| Operating head | 2 file combination | |
| Wireless Remote Control | Handheld operator panel / Transmitter - 1 piece | |
| Hydraulic bolted connector | 3 pcs | |
| Braking system | Dual line braking system with automatic air brake and ABS | |
| Operating panel | 1 pc with leveling system | |
| Alarm panel | 2 pairs | |
| Flashing light | 2 pcs | |
| Tool Box | 1 set of standard tools | |
| Hydraulic Gooseneck | ||
| Rated capacity | 35T | |
| Pin | 3.5-inch swivel pin | |
| Control system | Integrated dual-control system | |
| Connectors | Hydraulic and pneumatic | |
| Taps | 3 - 4 pcs | |
| Other capacity with other dimensions optional | ||
| Lowbed Trailer Product Description Modular low bed trailer equip power gooseneck/ramp |
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)

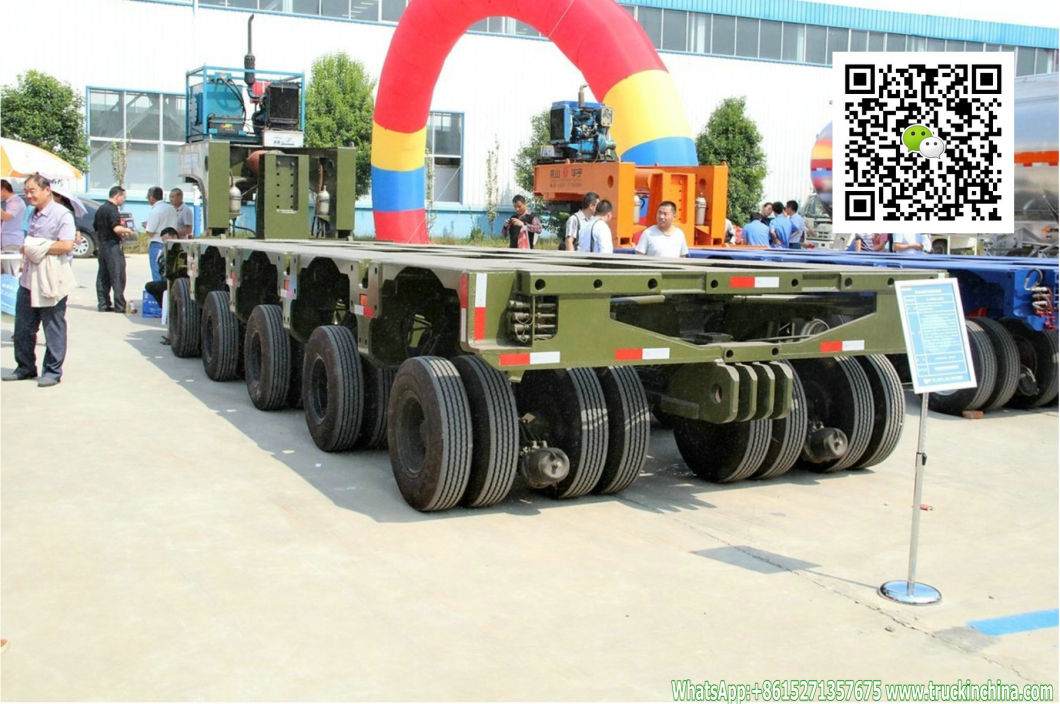

200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
| Type | Hydraulic modular trailer |
| Overall dimension | 15500 x 2990 x 1360 mm |
| Loading weight | 200 Ton |
| Hydraulic station | Diesel engine 4100 |
| Min. Turning radius | 11.7m |
| Approaching / depature angle | 30 % |
| Axle | 13 ton axle x 20 pcs |
| Tyre | 7.50-15 |
| Suspension | hydraulic |
| Color | As your required |
Trailers Non Ground Bearing Hydraulic Detachable Gooseneck
Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer
Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer
Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.
Description of SPMT trailer Self Propelled Modular Transporter.

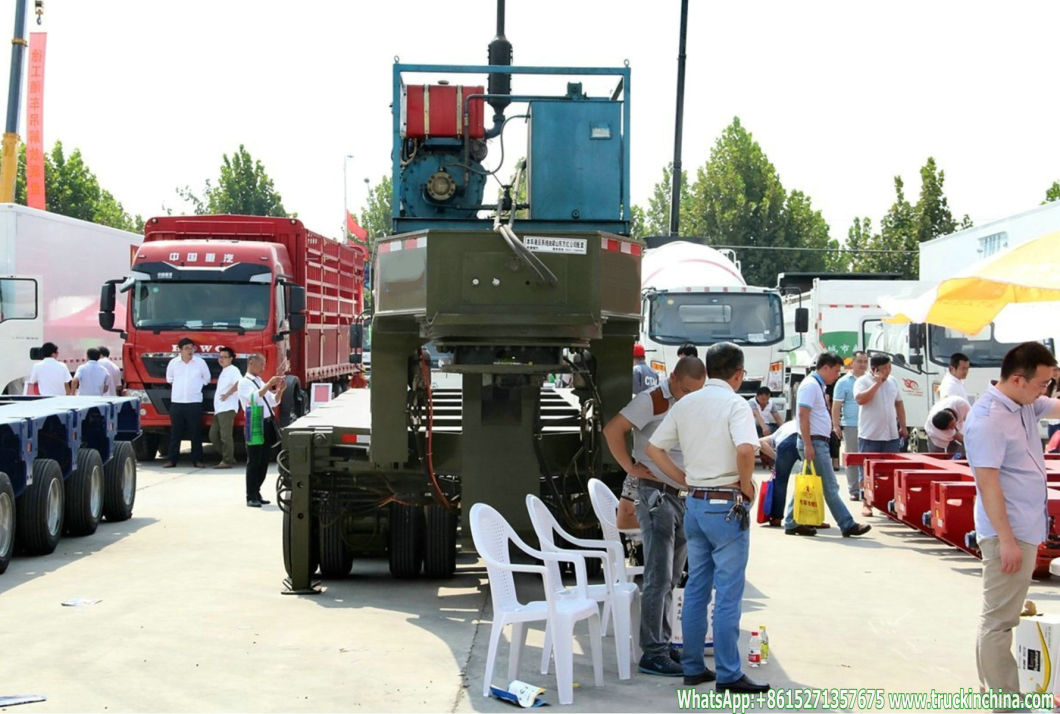

This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.
Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project
Specification
| Dimension | |
| Overall dimension | 15000x2500x1350mm |
| Tare weight | 19500kgs |
| Payload | 120Tons |
| Specification | |
| Chassis | Heavy duty and special design steel frame, |
| Axle | YORK axle |
| Suspension | Hydraulic suspension |
| Spring | Hydraulic cylinder |
| Floor | 5mm steel plate |
| Power | Diesel engine as a power pack |
| Hydraulic system | Hydraulic system to control lifting and steering |
| Tyre | 11R22.5 |
| Brake system | Pneumatic braking system |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Removable Gooseneck Lowboy Trailer heavy transport Mine dumper
Hydraulic-neck low-bed trailer Front loading Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER
Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos
OVERSIZE LOAD - REMOVABLE GOOSENECK
Gooseneck hydraulic trailers Feature
REMOVABLE GOOSENECK Lowboy Trailer
Customize Truck
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Axle Steering Axle Low Bed Trailer Combination Trailer
Steering Axle Low Bed Trailer
Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer )
Modular low bed trailer equip power gooseneck/ramp
Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading Low Boy trailer)
| Hydraulic Gooseneck Modular Semi Trailer | ||
| Tech Parameter- Per 2 Rows Line-Axle Modular | ||
| Centerline Tare Weight | 3.5T | |
| Rated Capacity | 45T | |
| Suspension | Stroke hydraulic + / - 300 mm | |
| Basic module width | 3.000 mm | |
| Angle of rotation axis | ±55° | |
| The control system | Integrated into the central frame | |
| Air cylinders | ||
| Oil tank | ||
| Hydraulic system | Safety valves | |
| Main beam Material | AH60,40Cr | |
| Main Parts | Combinable heavy module 4 line-axles | Combinable heavy module 6 line-axles |
| Outside Dimension | 6000mm*3000mm*1750+300mm | 9000mm*3000*+300mm |
| Axles / Tires | 8 axles / 32 Tires | 12 axles / 48 Tires |
| Total Dimension | 15000mm+3700mm+700mm *3000mm*1750+300mm | |
| Tire Size | 215/75 R 17,5 | |
| Wheelbase | 1500mm | |
| Modules Connections | Side-battle for different combinations. Axle units mounted on the frame by bolting | |
| Equipment for Modular Combinations | ||
| Diesel Power Plant | 22 KW | |
| Hydraulic Pump | 30 1/ min | |
| Standard Shaft | 3000mm long, flexible coupling ring, diameter 50 mm | |
| Operating head | 2 file combination | |
| Wireless Remote Control | Handheld operator panel / Transmitter - 1 piece | |
| Hydraulic bolted connector | 3 pcs | |
| Braking system | Dual line braking system with automatic air brake and ABS | |
| Operating panel | 1 pc with leveling system | |
| Alarm panel | 2 pairs | |
| Flashing light | 2 pcs | |
| Tool Box | 1 set of standard tools | |
| Hydraulic Gooseneck | ||
| Rated capacity | 35T | |
| Pin | 3.5-inch swivel pin | |
| Control system | Integrated dual-control system | |
| Connectors | Hydraulic and pneumatic | |
| Taps | 3 - 4 pcs | |
| Other capacity with other dimensions optional | ||
| Lowbed Trailer Product Description Modular low bed trailer equip power gooseneck/ramp |
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
| Type | Hydraulic modular trailer |
| Overall dimension | 15500 x 2990 x 1360 mm |
| Loading weight | 200 Ton |
| Hydraulic station | Diesel engine 4100 |
| Min. Turning radius | 11.7m |
| Approaching / depature angle | 30 % |
| Axle | 13 ton axle x 20 pcs |
| Tyre | 7.50-15 |
| Suspension | hydraulic |
| Color | As your required |
Trailers Non Ground Bearing Hydraulic Detachable Gooseneck
Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer
Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer
Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.
Description of SPMT trailer Self Propelled Modular Transporter.
This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.
Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project
Specification
| Dimension | |
| Overall dimension | 15000x2500x1350mm |
| Tare weight | 19500kgs |
| Payload | 120Tons |
| Specification | |
| Chassis | Heavy duty and special design steel frame, |
| Axle | YORK axle |
| Suspension | Hydraulic suspension |
| Spring | Hydraulic cylinder |
| Floor | 5mm steel plate |
| Power | Diesel engine as a power pack |
| Hydraulic system | Hydraulic system to control lifting and steering |
| Tyre | 11R22.5 |
| Brake system | Pneumatic braking system |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Removable Gooseneck Lowboy Trailer heavy transport Mine dumper
Hydraulic-neck low-bed trailer Front loading Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER
Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos
OVERSIZE LOAD - REMOVABLE GOOSENECK
Gooseneck hydraulic trailers Feature
REMOVABLE GOOSENECK Lowboy Trailer
Customize Truck
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
