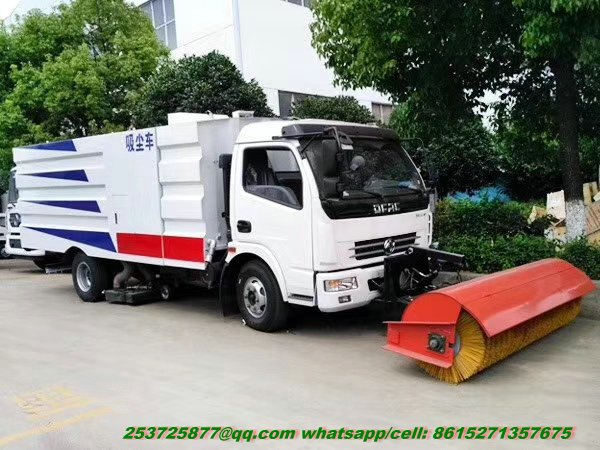

Dongfeng Sweeper Trucks with Snow Sweeper

GVW (kg)

Appro7300

Fact Loading Capacity(kg)

4000

Mass in working order (kg)

Appro5150

Max. Speed (km/h)

100

Chassis Description

Chassis Model

DFA1070SJ35

Cab

Standard cabin with Left hand drive

optional righ hand drive

Color

Optional

Allowable person in cab

2/3

Wheel base (mm)

3300

Front/Rear track base (mm)

1850/1806

Front/Rear overhang (mm)

1230/2150

Number of axles

2

Axle

Front axle

3000

Rear axle

50000

Traction system

4*2

Operation control system

Power steering

Braking system

Full air

Electric system

24V

Transmission

5speed

Spring plate

8/13

Tire specification

7.00R16 14PR

Tire quantity

6+1

Engine Description

Engine model

CY4102-CE4F

Emission standard

Euro 2

Exhaust/output

3856ml/73kw

Horse power

100hp

Up-parts Description

Sweeping Width(m)

3

Water Tank Volume(L)

2000

Garbage Tank Volume(L)

2000

Working Speed(km/h)

5~20

Maximum Working Area(m2/h)

40000

Maxiumu Suction Size(mm)

120

Sweeping Efficiency

5%

Working Condition:

1,Altitude: 0-4500m

2,Temperature: -350C~+450C

3,Relative humidity: 80%

4,Wind force degree

Trash tank volume (m³)

5

Water tank volume (m³)

2.5

Material of trash tank

Stainless steel

Material of water tank

Stainless steel

Model of auxiliary engine

JX493G

Power of auxiliary engine(Kw)

57KW

Manufacturers of auxiliary engine

JiangXi ISUZU Engine Co., Ltd.

Max sweeping width(mm)

3200

Sweeping speed (km / h)

3-20

Sweeping capacity（㎡/h）

9000- 60000

Maximum Grain size and quality (mm)

100mm\±1.5kg

Cleaning Rate

96%

Road Sweeper Features

1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!

2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles!

3.Both of side of the scan disk can be working altogether, or unilateral work independently.

4.The core components of hydraulic systems adopts the original import!

Product model、name

DRZF5072TSLDFA4  Road Sweeper Truck

Gross weight(Kg)

7300

Drive type

4 X 2

Payload (Kg)

2000

Overall dimension (mm)

6150×2230×2550

Curb weight(Kg)

5170

cab seats (man)

2

Approach / departure angle(°)

19/11

Front/rear hang(mm)

1032/1818

Number of axles

2

Wheelbase(mm)

3300

Axle load

2920/4380

Max speed(Km/h)

95

Chassis specifications

Chassis model

DFA1070SJ35D6

Manufacturer

DongFeng  Motors Co., Ltd.

Brand name

DongFeng

Overall dimension(mm)

5845×1900×2220

Tire specification

7.00R16

Tires No.

6

Steel spring number

8/9+5,6/8+4,6/6+5

Front track(mm)

1506

 Fuel type

Diesel

Rear track(mm)

1466

Emission standard

Euro IV

Transmission

5 forward gear, oil brake

Cabin

Available move forward with the direction of power , optional air conditioning,

Engine model

Engine manufacture

Displacement(ml)

Power(Kw)

D28D10-4DA

Dongfeng Light Engine Co., Ltd.

2771

75

Road Sweeper Performance

Trash tank volume (m³)

4

Water tank volume (m³)

1.5

Material of trash tank

Stainless steel

Material of water tank

Stainless steel

Model of auxiliary engine

JX493G

Power of auxiliary engine(Kw)

57KW

Manufacturers of auxiliary engine

JiangXi ISUZU Engine Co., Ltd.

Max sweeping width(mm)

3200

Sweeping speed (km / h)

3-20

Sweeping capacity（㎡/h）

9000- 60000

Maximum Grain size and quality (mm)

100mm\±1.5kg

Cleaning Rate

96%

Road Sweeper Features

1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!

2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles!

3.Both of side of the scan disk can be working altogether, or unilateral work independently.

4.The core components of hydraulic systems adopts the original import!
