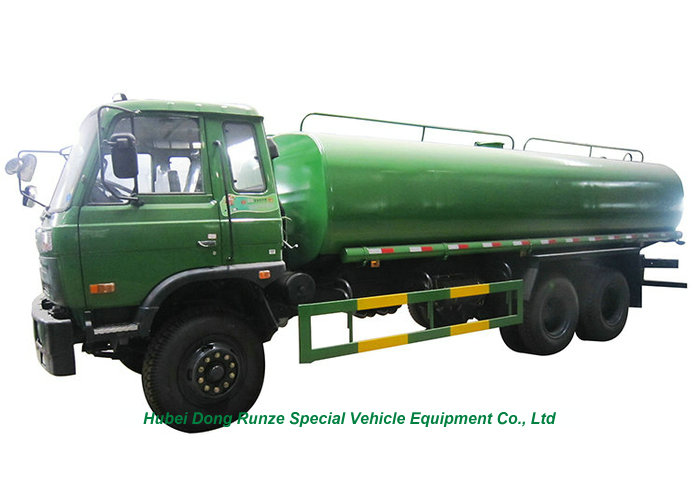

Dongfeng 6x4 20000L-22000L Street Sprinkler Truck

Share to:

Dongfeng 6x4 20000L-22000L Street Sprinkler Truck

Dongfeng 6x4 20000L-22000L Street Sprinkler Truck
Overall dimensions 9950,10350×2480×3550mm Curb weight 9105kg
Tank dimensions 6980×2300×1500,
7330×2300×1500mm Tank volume 22000L

Price: $ 30500 - 44500

Discount Price: $ 28500 - 42500

FOB:	DRZ5290GSSE DRZ5253GSSE/carbon steel DRZ5253GSSE/stainless steel
Availability:

Quantity:

Model:
DRZ5...GSS.
Brand:
Dong Run Ze
Code:
8705909990

DRZ5253GSSE Dongfeng 6x4 20000L-22000L Street Sprinkler Truck

Dongfeng stainless steel water tank transportation trucks 3.jpg

DRZ5290GSSE30000L 270HP Water Truck 8x4

DRZ5126GSSE Dongfeng 12000L Water sprinkler truck

DRZ5108GSSE Dongfeng 10000L Water tank truck

DRZ5110GSSE Dongfeng 8000L Water tank truck

DRZ5090GSSE Dongfeng 6000L water tank truck

DRZ5121GSSE 10000L water truck

DRZ5090GSSE Dongfeng 6000L stainless steel water spaying truck

ongfeng 6000L stainless steel water tank truck_1

DRZ5060GSSE Dongfeng 4x2 5000L Drinking Water Truck

DRZ5311GSSD Dongfeng Tianlong 8x4 30000L Water Sprinkler Truck

DRZ5250GSSD dongfeng DFL 22000L Water Spraying Truck

DRZ5240GSSH CAMC 6X4 20000L Water Tank Truck

DRZ5160GSSD king Run 4x2 12000L Water Tanker Truck

Standard configuration

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,

water hose, climbing ladder.

Selective configuration

Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda

pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights

Extended model

water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.

DRZ5253GSSE Dongfeng 6x4 20000L-22000L Street Sprinkler Truck

Overall dimensions 9950,10350×2480×3550mm Curb weight 9105kg
Tank dimensions 6980×2300×1500,
7330×2300×1500mm Tank volume 22000L

Chassis parameters
Chassis model EQ5253GFJ2 Chassis brand DONGFENG
Overall dimensions 9565x2470x2850mm Wheel base 4350+1300mm
Front/rear wheel track 1940/1860/1860mm Front/rear suspension 1245/2670mm
Approach/departure angle 28/15° Maximum speed 85km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Red, other color is optional
Engine Model B210 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 210hp,rated power speed 2500rpm
Displacement 5900ml
Max. torque 700N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Frame 280×80×(7+5)mm
Fuel tank 200L,steel
Front axle 5.0T
Rear axle 10.0T
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 8JS118, 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner, steel wire tire, wheel base 4750+1300mm,engine YC6A240-33(240hp),new driver`s cab
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 6980×2300×1500,
7330×2300×1500mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5mm or stainless steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

4x2, 4x4, 6x4, 6x6, 8x4 Water Truck for your selection, LHD and RHD cabin are both available.

Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

Our water tank series:

-----water tanker truck

-----sanitation water tank truck

-----sprinkler truck

-----water wagon truck

-----insulation water tank truck

-----pesticide sprinkling truck

-----water spraying truck

-----Mild steel water tank cart

-----Stainless steel tank water truck

-----Aluminum alloy water tanker

-----RHD watering cart

-----Water tank semi trailer

-----Storage water tanker
