DRZ5251
Sinotruck
8705909990

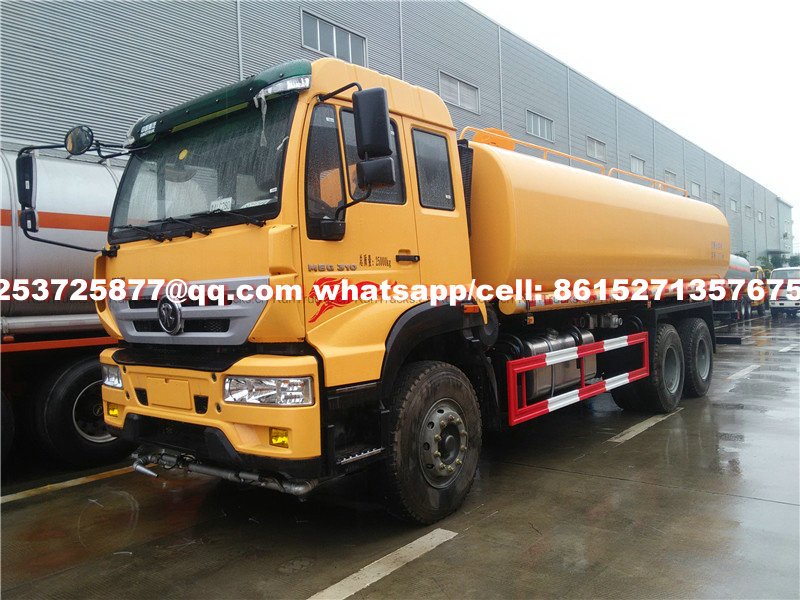

Sino 18m3 water tanker truck Euro 5
Water Bowserfor dust control, water sprinkle truck, water tanker
1.Stainless Steel/Aluminum Alloy Water Tank, Price Add $1000 /cbm ( $5000-$20000)
2.Insulation Layer For Water Tank, Price Add $2000-$3000
3.Stainless Steel Water Pump, Price Add $1500- $2000
4.Fire Pump, Fire Cannon CB10/20 Price Add $2800 ; CB10/30 Price Add $3100
5.Pesticide Cannon, Pump Price Add $100-$8000
6.Cabin Remote Control Front Cannon Price Add $2000
7.Honda Motor Pump Price Add $700
key words:Sino Water tanker ,Sinotruck ,Tanker Truck,stainless steel water Truck,Sinotruck stainless steel water Truck,China water bowser,China water bowser Euro 5 ,Sinotruck water bowser ,Sinotruck stainless steel water bowser
Sino 18m3 water tanker truck Euro 5
Water Bowserfor dust control, water sprinkle truck, water tanker
1.Stainless Steel/Aluminum Alloy Water Tank, Price Add $1000 /cbm ( $5000-$20000)
2.Insulation Layer For Water Tank, Price Add $2000-$3000
3.Stainless Steel Water Pump, Price Add $1500- $2000
4.Fire Pump, Fire Cannon CB10/20 Price Add $2800 ; CB10/30 Price Add $3100
5.Pesticide Cannon, Pump Price Add $100-$8000
6.Cabin Remote Control Front Cannon Price Add $2000
7.Honda Motor Pump Price Add $700
key words:Sino Water tanker ,Sinotruck ,Tanker Truck,stainless steel water Truck,Sinotruck stainless steel water Truck,China water bowser,China water bowser Euro 5 ,Sinotruck water bowser ,Sinotruck stainless steel water bowser
Sino 18m3 water tanker truck Euro 5
The main technical parameters China Howo 18m3 water tanker truck | |||
Product brand | Dong Run ze | ||
Product name | green spray vehicles | product ID | DRZ5251 |
Total quality (Kg) | 25000 | Tank volume (M3) | 18 |
Rated load (Kg) | 13740,13675 | Size (mm) | 9900×2500×3280 |
curb weight (Kg) | 11130 | Cargo compartment size(mm) | * * |
Rated capacity (people ) | The total mass of the quasi Trailer (Kg) | ||
Cab number ( people ) | 3,2 | The quality of the utilization coefficient | |
Approach angle /Departure angle (~) | 13/18 | The front suspension /Rear overhang (mm) | 1320/25901320/2480 |
Axis number | Three | Wheelbase (mm) | 4350+13504550+1350 |
Axle load (Kg) | 7000/18000 | Maximum speed (Km/h) | 100 |
Other | Effective tank volume for : 17.9 Cubic metre ; Transport medium : Acetone water solution ;density : 800 Kg / Cubic metre ; Tank dimensions ( long * The major axis * Short axis ) (mm): 6800 x 2400 x 1640 The side door made of carbon steel /Q235B, Bolt connection , After the door made of carbon steel /Q235B, welding , High section 120mm , Section width50mm , The lower edge of groundclesrance 510mm . Chassis with optional exhaust position. ABS System model 4460046300, Control system for vehicle production enterprises ( China ) Limited company , The color can be changed , Spraying position can change the text. | ||
chassis technology | |||
Chassis Model | ZZ1251 | Chassis name | |
Brand name | manufacturing enterprise | China CNHTC Ji'nan Commercial Vehicle Co. | |
Size (mm) | 92009710 x 2470 x 3000 | Tire number | Ten |
Approach angle /Departure angle (~) | 13/20,13/17 | Tire specifications | 11.00-20,11.00R20 16PR, 12R22.5 16PR, 295/80R22.5 16PR |
Number of spring steel | 3/5,3/10,11/10,11/12,3/-, 11/- | Front track (mm) | 2035 |
The type of fuel | diesel oil | Rear wheel (mm) | 1850/1850 |
emission standard | GB17691-2005 country V, Euro 5 | ||
Engine model | Engine production enterprises | displacement (ML) | power (Kw) |
MC07.28-50 MC07.31-50 | China Heavy Automobile Group Co Ltd China Heavy Automobile Group Co Ltd | 6870 6870 | 206 228 |
Standard configuration
Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,
water hose, climbing ladder.
Selective configuration
Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda
pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model
water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
Sino 18m3 water tanker truck Euro 5
The main technical parameters China Howo 18m3 water tanker truck | |||
Product brand | Dong Run ze | ||
Product name | green spray vehicles | product ID | DRZ5251 |
Total quality (Kg) | 25000 | Tank volume (M3) | 18 |
Rated load (Kg) | 13740,13675 | Size (mm) | 9900×2500×3280 |
curb weight (Kg) | 11130 | Cargo compartment size(mm) | * * |
Rated capacity (people ) | The total mass of the quasi Trailer (Kg) | ||
Cab number ( people ) | 3,2 | The quality of the utilization coefficient | |
Approach angle /Departure angle (~) | 13/18 | The front suspension /Rear overhang (mm) | 1320/25901320/2480 |
Axis number | Three | Wheelbase (mm) | 4350+13504550+1350 |
Axle load (Kg) | 7000/18000 | Maximum speed (Km/h) | 100 |
Other | Effective tank volume for : 17.9 Cubic metre ; Transport medium : Acetone water solution ;density : 800 Kg / Cubic metre ; Tank dimensions ( long * The major axis * Short axis ) (mm): 6800 x 2400 x 1640 The side door made of carbon steel /Q235B, Bolt connection , After the door made of carbon steel /Q235B, welding , High section 120mm , Section width50mm , The lower edge of groundclesrance 510mm . Chassis with optional exhaust position. ABS System model 4460046300, Control system for vehicle production enterprises ( China ) Limited company , The color can be changed , Spraying position can change the text. | ||
chassis technology | |||
Chassis Model | ZZ1251 | Chassis name | |
Brand name | manufacturing enterprise | China CNHTC Ji'nan Commercial Vehicle Co. | |
Size (mm) | 92009710 x 2470 x 3000 | Tire number | Ten |
Approach angle /Departure angle (~) | 13/20,13/17 | Tire specifications | 11.00-20,11.00R20 16PR, 12R22.5 16PR, 295/80R22.5 16PR |
Number of spring steel | 3/5,3/10,11/10,11/12,3/-, 11/- | Front track (mm) | 2035 |
The type of fuel | diesel oil | Rear wheel (mm) | 1850/1850 |
emission standard | GB17691-2005 country V, Euro 5 | ||
Engine model | Engine production enterprises | displacement (ML) | power (Kw) |
MC07.28-50 MC07.31-50 | China Heavy Automobile Group Co Ltd China Heavy Automobile Group Co Ltd | 6870 6870 | 206 228 |
Standard configuration
Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,
water hose, climbing ladder.
Selective configuration
Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda
pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model
water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
