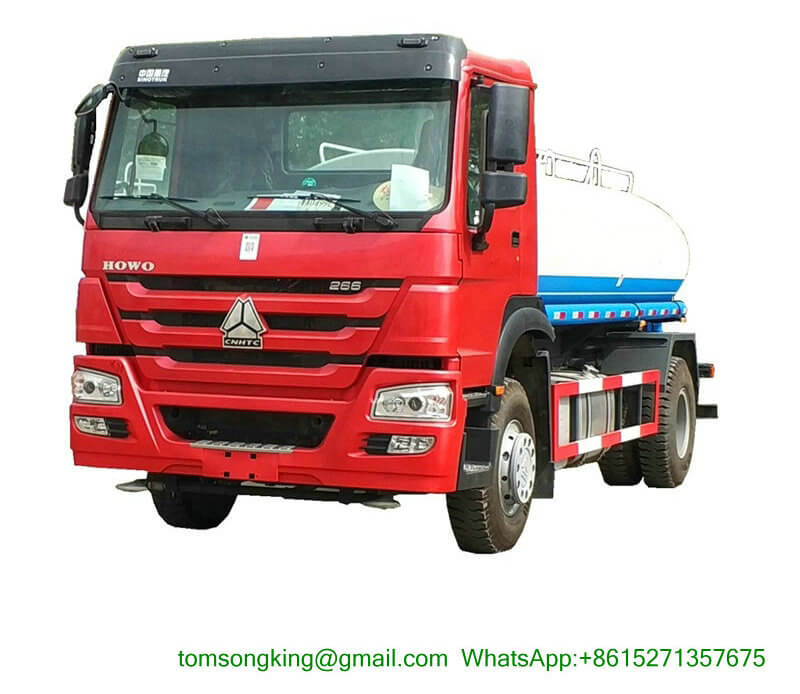

SINOTRUK HOWO 4x2 water tank truck LHD/RHD 2200 gallon-10000liters

10M3 HOWO Water Carrier LHD/RHD
10000 Liters Water Bowser
1.Wheelbase(mm):4600
2.Tyre specification:11.00R20
3.Transmission:HW15710CL(Manual transmission)
4.Tank material:Carbon steel Q235 or Stainless steel
5.Water pump flow(m³/h):60
6.Watering width(M):≥14
7.Water cannon range (M):≥28
8.Horsepower(HP):266
Price: $ 28000  -  45000
Discount Price: $ 23500  -  40500
FOB:
Availability:
Quantity:

  • DRZ5160GPSZZ3W

  • HOWO

  • 8705909990

SINOTRUK HOWO 4x2 water tank truck  LHD/RHD  2200 gallon-10000liters

Water Bowser HOWO-05WATER STAINLESS STEEL TANKER 10M3_1.jpg

10M3 4x2 HOWO truck Water Carrier_1.jpg

HOWO RHD water tanker -10200liter.jpgHOWO RHD water tanker -10300liter.jpgHOWO RHD water tanker -11000liter.jpgHOWO RHD water tanker -11300liter.jpg


4x2 HOWO RHD 10000l tanker truck

4x2 HOWO RHD 10000l tanker truck 2.jpg4x2 HOWO RHD 10000l tanker truck.jpgHOWO RHD 10000l water tanker truck.jpg4x2 HOWO RHD 10000l water tanker truck.jpg

We provide all sizes of water trucks and trailers with volumes mainly ranging from 3cbm to 60cbm. The tank materials could be carbon steel,stainless steel,aluminum alloy,etc.



The basic equipment includes front rusher, rear sprinkler, side sprayer, water gun, outflow valve, fire fighting joint, 2 pcs 3 meters water hoses, etc.  The optional equipment includes remote control in cab, Honda pump, cannon, alarm light, sluice gate on the sides, crane, atomizing device, LED arrow lights, etc.




Ⅱ. Packaging&Shipping

We provide Ro-Ro, container and bulk shipping.


  • SINOTRUK HOWO 4x2 water tank truck LHD/RHD 2200 gallon-10000liters


  • 1.Wheelbase(mm):4600

  • 2.Tyre specification:11.00R20

  • 3.Transmission:HW15710CL(Manual transmission)

  • 4.Tank material:Carbon steel Q235 or Stainless steel

  • 5.Water pump flow(m³/h):60

  • 6.Watering width(M):≥14

  • 7.Water cannon range (M):≥28

  • 8.Horsepower(HP):266

Main specification

Product model and name

DRZ5160GPSZZ3W water truck

Gross weight(Kg)

16000

Drive type

4X2

Payload(Kg)

7570

Overall dimension(mm)

8500,8150X2500X3300

Curb weight(Kg)

8300

Cab seats

2

Approach/departure angle(°)

16/13,16/15

Front/rear hang(mm)

1500/2400,1500/2050

Axle No.

2

Wheelbase(mm)

4600

Axle load(Kg)

6000/10000

Max speed(Km/h)

90

Chassis specification

Chassis model

ZZ1167M4617C

Manufacturer

China SINOTRUK Group Jinan Truck Co.,Ltd

Brand name

SINOTRUK(HOWO)

Dimension(mm)

7990×2496×2958

Tyre specification

11.00R20

Tyre No.

6

Steel spring number

10/9+6

Front track base(mm)

2022,2041

Fuel type

Diesel

Rear track base(mm)

1830

Emission standard

Euro 3

Transmission

HW15710CL(Manual transmission)

Cab

HW76 medium cab, luxurious interior trim with seats,And power steering with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

WD615.92E

China Heavy Duty Truck Group Co.,Ltd

9726



196



Performance

Tank volume(liter)

10000 to 15000

Tank material

Carbon steel Q235 or Stainless steel

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.













SINOTRUK HOWO 4x2 2200 gallon 10000liters

1.Stainless steel tanker truck, HOWO chassis 266hp;
2.SINOTRUK brand, well-done after-service;
3.Well-designed structure.

LOADING CAPACITY

10000L

TARE WEIGHT

8,650KG

MAX. SPEED

90KPH

MIN. TURNING CIRCLE

15.4M IN DIAMETER

CLIMBING CAPACITY

39%

OVERALL LENGTH

8200MM

OVERALL WIDTH

2,480MM

OVERALL HEIGHT

3020MM

WHEEL BASE

4600MM

WHEEL TRACK

1,939MM (FRONT) / 1,800MM (REAR)

DRIVE TYPE

4X2

ENGINE

WD615.62

RATED POWER

266HP at 2,200RPM

RATED TORQUE

830NM at 1,600--1,700RPM

CLUTCH

430mm SINGLE PLATE / DRY TYPE

GEARBOX

RT-11509C

GEARS RATIO

Ratio 12.42 8.29 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99(r)

DIFF DRIVE

DIFFERENTIAL WITH PLANETARY WHEEL REDUCTION


TOTAL REDUCTION RATIO 5.73

STEERING

ZF8098 POWER STEERING SYSTEM

CABIN

SINGLE CABIN, FULL STEEL, FORWARD CONTROL

TYRE & RIM

12.00-20 / 8.5-20

FUEL CONSUMPTION

26L

PER 100KM AT 50KPH

FUEL TANK CAPACITY

400L





PUMP





MODEL :80QZF-60/90S

RATED ROTATION SPEED :1150RPM

MAX. SUCTION HEAD :6M

TOTAL HEAD :25M

MAX. FLOW RATE :60M3/H



water tank truck

 4x2 HOWO RHD 10000l tanker truck

 water tanker is a motor vehicle designed to carry water on roads for sprinkling, spraying, planting, watering, washing, rushing, misting, transporting,etc.



The Parameters of 10000 Liters Water Bowser
Overview
Name 10000 Liters Water Bowser
Dimension(LxWxH) 8000X2370X3150(mm)
Total Mass 15600Kg
Rated Payload 10000Kg
Kerb Weight 5600Kg
Passenger  3
Approach/Departure Angle 27/20
The Parameters of Chassis
Manufacture/Model HOWO/ZZ1107G4515C1R
Driving Type 4*2 left/right hand drive
Wheel Base 4500 mm
Gearbox Seven speed lever with six speed forward and one reverse, manual
Front/Rear Track 1798/1764(mm)
Tyre 8.25R20
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1240/2255(mm)
Leaf Spring Number 9/11+7,9/12+9,8/10+8
The Paremeters of Engine
Manufacturer/Model Yucai/YC4E140-33
Rated Power 140hp/105kw
Fuel Type Diesel oil
Displacement/Capacity 4257ml
Emission Standard Euro3
Cylinder Straight/4/watercooling
Max. torque 500N.m
Velocity 1600rpm
The Parameters of Equipment
Dimension(LxWxH) 5550×2250×1350(mm)
Color/Logo Customizable
Material 5 mm Carbon Steel/AI/Stainless Steel
Volume of Tank 10000L
Equipment Flowmeter, level sensor, outflow valves, pump, pipelines, 2 pcs 3 meters water hoses, ladder, manhole,etc.

 HOWO RHD water tanker -10000liter.jpg
