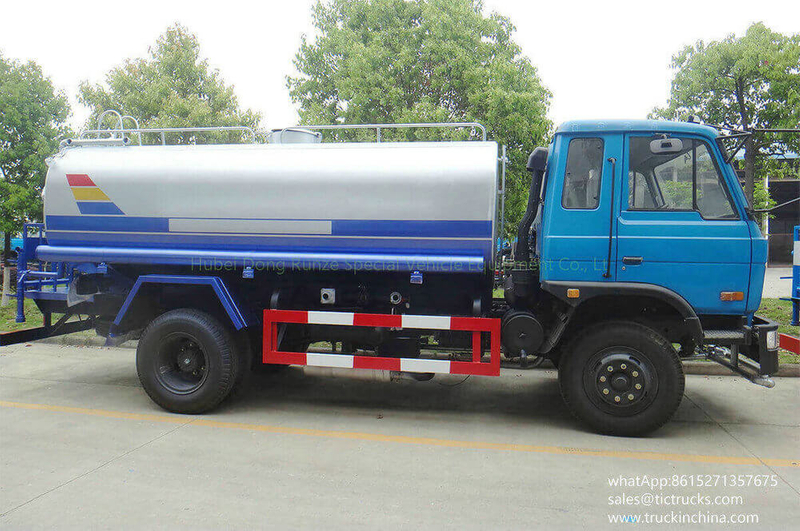

DRZ5108GSSE Dongfeng 10000L Water tank truck

Overall dimensions 7450X2480X2985mm Curb weight 5400kg
Tank dimensions 4060×2100×1360mm Tank volume 10000L

Chassis parameters
Chassis model EQ1108KJ Chassis brand DONGFENG
Overall dimensions 6975X2462X2690mm Wheel base 3950mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/1820mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model B170 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 170hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 560N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (250×80×7)mm,parts are double layers.
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,steel wire tire,new driver`s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Water tank structure
Tank dimensions 4060×2100×1360mm Tank volume 10000L
Tank material Carbon steel Tank thickness 4/5mm or  stainless steel Tank thickness 4mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5110GSSE Dongfeng 8000L Water tank truck

Overall dimensions 7350X2440X2790mm Curb weight 4755kg
Tank dimensions 3800×2000×1500mm Tank volume 8000L


Chassis parameters
Chassis model EQ1100FKJ Chassis brand DONGFENG
Overall dimensions 6605x2364x2370mm Wheel base 3950mm
Front/rear wheel track 1810x1800mm Front/rear suspension 1065/1340mm
Approach/departure angle 34/30° Maximum speed 85km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration single row cab, allowable 3 passengers
Color Blue, other color is optional
Engine Model YC4E140-33
Emission Euro 3
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 140hp,rated power speed 2800rpm
Displacement 4257ml
Max. torque 500N•m
Bore x stroke 110x112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame 232mm
Fuel tank 120L,steel
Front axle 2.8T
Rear axle 8.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner, steel wire tire
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 3800×2000×1500mm Tank volume 8000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5090GSSE Dongfeng 6000L water tank truck

Overall dimensions 6995X2285X2780mm Curb weight 4205kg
Tank dimensions 4100×1730×1100mm Tank volume 6000L

Chassis parameters
Chassis model EQ1090T9ADJ3AC Chassis brand DONGFENG
Overall dimensions 6695x2180x2350mm Wheel base 3800mm
Front/rear wheel track 1750/1586mm Front/rear suspension 1180/1715mm
Approach/departure angle 22/13° Maximum speed 80km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab, air conditioner, allowable 3 passengers, cab can be flipped
Color White, other color is optional
Engine Model CY4102-E3C
Emission Euro 3
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 120hp,rated power speed 2800rpm
Displacement 3856ml
Bore x stroke 102x118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.50R16,steel wire tire
Number 6+1 nos
Frame 192mm
Brake Air break, electronic flame out, exhaust brake
Fuel tank 100L,steel
Front axle 2.4T
Rear axle 4.2T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner, Cummins engine B140 33(140hp)
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 4100×1730×1100mm Tank volume 6000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5121GSSE 10000L water truck

Overall dimensions 7450X2480X2985mm Curb weight 5400kg
Tank dimensions 4060×2100×1360mm Tank volume 10000L
Chassis parameters
Chassis model EQ1121GKJ /EQ1162GKJ  Chassis brand DONGFENG
Overall dimensions 6975X2462X2690mm Wheel base 3950mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/1820mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model  YC4E160-33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 160hp,rated power speed 2600rpm
Displacement 4257ml
Max.torque 600N.m
Bore x stroke 110x112mm
Manufacturer Guangxi Yulin Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (232×80×7)mm,parts are double layers.
Fuel tank 160L,steel
Front axle 2.8T
Rear axle 8.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel  Right  hand drive or left hand drive
Selective configuration Air Conditioner,steel wire tire,new driver`s cab

Water tank structure
Tank dimensions 4060×2100×1360mm Tank volume 10000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5090GSSE Dongfeng 6000L stainless steel water spaying truck

Overall dimensions 6995X2285X2780mm Curb weight 4205kg
Tank dimensions 4100×1730×1100mm Tank volume 6000L

Chassis parameters
Chassis model EQ1090T9ADJ3AC Chassis brand DONGFENG
Overall dimensions 6695x2180x2350mm Wheel base 3800mm
Front/rear wheel track 1750/1586mm Front/rear suspension 1180/1715mm
Approach/departure angle 22/13° Maximum speed 80km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab, air conditioner, allowable 3 passengers, cab can be flipped
Color White, other color is optional
Engine Model CY4102-E3C
Emission Euro 3
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 120hp,rated power speed 2800rpm
Displacement 3856ml
Bore x stroke 102x118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.50R16,steel wire tire
Number 6+1 nos
Frame 192mm
Brake Air break, electronic flame out, exhaust brake
Fuel tank 100L,steel
Front axle 2.4T
Rear axle 4.2T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner, Cummins engine B140 33(140hp)
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 4100×1730×1100mm Tank volume 6000L
Tank material stainless steel Tank thickness 4mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5060GSSE Dongfeng 4x2 5000L Drinking Water Truck

Overall dimensions 5980X1980X2180mm Curb weight 2950kg
Tank dimensions 3500×1720×1150mm Tank volume 5000L

Chassis parameters
Chassis model EQ1060TJ20D3 Chassis brand DONGFENG
Overall dimensions 5820x1940x2080mm Wheel base 3300mm
Front/rear wheel track 1506/1466mm Front/rear suspension 1032/1488mm
Approach/departure angle 19/15° Maximum speed 80km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab, allowable 3 passengers
Color White, other color is optional
Engine Model CY4102-C3F
Emission Euro 3
Type in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 95hp,rated power speed 3200rpm
Displacement 3856ml
Bore x stroke 102x118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.00-16 nylon tire
Number 6+1 nos
Fuel tank 100L,steel
Front axle 2.0T
Rear axle 4.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering wheel Left hand drive
Selective configuration Air Conditioner, steel wire tire, power assisted steering
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 3500×1720×1150mm Tank volume 5000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5311GSSD Dongfeng Tianlong 8x4 30000L Water Sprinkler Truck

Overall dimensions 11980X2500X3690mm Curb weight 14205kg
Tank dimensions 8550×2300×1500mm Tank volume 30000L

Chassis parameters
Chassis model DFL1311A4 Chassis brand DONGFENG
Overall dimensions 11475x2500x3030mm Wheel base 1850+4600+1350mm
Front/rear wheel track 1940/1940/1860/1860mm Front/rear suspension 1460/2135mm
Approach/departure angle 28/13° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration D310 standard flat roof a row and a half deluxe cab(with sleeping berth),cab, air conditioner, electric glass, hydraulic mechanical flip, channel type instrument panel, central lock, allowable 3 passengers
Color white, other color is optional
Engine Model C260 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 260hp,rated power speed 2200rpm
Displacement 8300ml
Max. torque 1090N•m
Bore x stroke 114x135mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 11.00R20,steel wire tire
Number 12+1 nos
Brake Double loop air brake system, exhaust brake
Clutch Push type diaphragm spring clutch,Φ430
Frame (300×80×[8+4])mm
Fuel tank 350L iron
Front axle 5.0 tons
Rear axle 10.0 tons, with ABS, main reduction ratio 4.44
Drive form 8X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119T-B, 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration

Water tank structure
Tank dimensions 8550×2300×1500mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5250GSSD dongfeng DFL 22000L Water Spraying Truck

 Overall dimensions 10770X2480X3100mm Curb weight 12300kg
Tank dimensions 6000×2400×1600mm Tank volume 22000L

Chassis parameters
Chassis model DFL1250A9 Chassis brand DONGFENG
Overall dimensions 10460x2480x3030mm Wheel base 5350+1300mm
Front/rear wheel track 1986/1860/1860mm Front/rear suspension 1460/2350mm
Approach/departure angle 20/16° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration D310 standard flat roof a row and a half deluxe cab(with sleeping berth),cab, air conditioner, electric glass, hydraulic mechanical flip, channel type instrument panel, central lock, allowable 3 passengers
Color white, other color is optional
Engine Model C260 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 260hp,rated power speed 2200rpm
Displacement 8300ml
Max. torque 1090N•m
Bore x stroke 114x135mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 11.00R20,steel wire tire
Number 10+1 nos
Brake Double loop air brake system, exhaust brake
Clutch Push type diaphragm spring clutch,Φ430
Frame (300×80×[8+4])mm
Fuel tank 350L aluminum fuel tank
Front axle DANA 7.0T
Rear axle DANA 10.0T
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119T-B, 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Water tank structure
Tank dimensions 6000×2400×1600mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

DRZ5160GSSD king Run 4x2 12000L Water Tanker Truck

 Overall dimensions 8500X2460X3000mm Curb weight 6185kg
Tank dimensions 5200×2100×1445mm Tank volume 12000L

Chassis parameters
Chassis model DFL1160BX Chassis brand DONGFENG
Overall dimensions 8290x2370x2760mm Wheel base 4700mm
Front/rear wheel track 1880/1800mm Front/rear suspension 1430/2160mm
Approach/departure angle 20/13° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration Tianjin a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers
Color white, other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N•m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Clutch push type diaphragm spring clutch,Φ395mm
Frame (250x80x[7+4])mm
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T main reduction ratio 5.286
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S750, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 5200×2100×1445mm Tank volume 12000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

CAMC 6X4 20000L Water Tank Truck

Overall dimensions 10420×2500×3560mm Curb weight 11435kg
Tank dimensions 6980×2300×1500mm Tank volume 20000L

Chassis parameters
Chassis model HN1240P29E2M3J Chassis brand CAMC
Overall dimensions 10875x2452x2965mm Wheel base 5220+1350mm
Front/rear wheel track 2065/1860/1860m Front/rear suspension 1370/2935mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Anhui Hualing Automobile Co. Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth),air conditioner, electric glass, allowable 3 passengers
Color White,other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N•m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Front axle 5.5T
Rear axle 13.0T,458 axle
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119, 9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration

Water tank structure
Tank dimensions 6980×2300×1500mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights

Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.If there is a slight change in the chassis parameters above,please take the actual product as the standard

Water truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.

Water  truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.

Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.

4x2, 4x4, 6x4, 6x6, 8x4 Watering Vehicle for your selection, LHD and RHD cabin are both available.


 Our  water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

 Our water tank series:

 -----water tanker truck

 -----sanitation water tank truck

 -----sprinkler truck

 -----water wagon truck

 -----insulation water tank truck

 -----pesticide sprinkling truck

 -----water spraying truck

 -----Mild steel water tank cart

 -----Stainless steel tank water truck

 -----Aluminum alloy water tanker

 -----RHD watering cart

 -----Water tank semi trailer

 -----Storage water tanker

1, Attached parts and tools put into standard export box.

2, Water tank truck will be cleaned and covered with wax before delivery.

3, Water tank truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small water tank truck can be put into container according to its overall dimensions.
