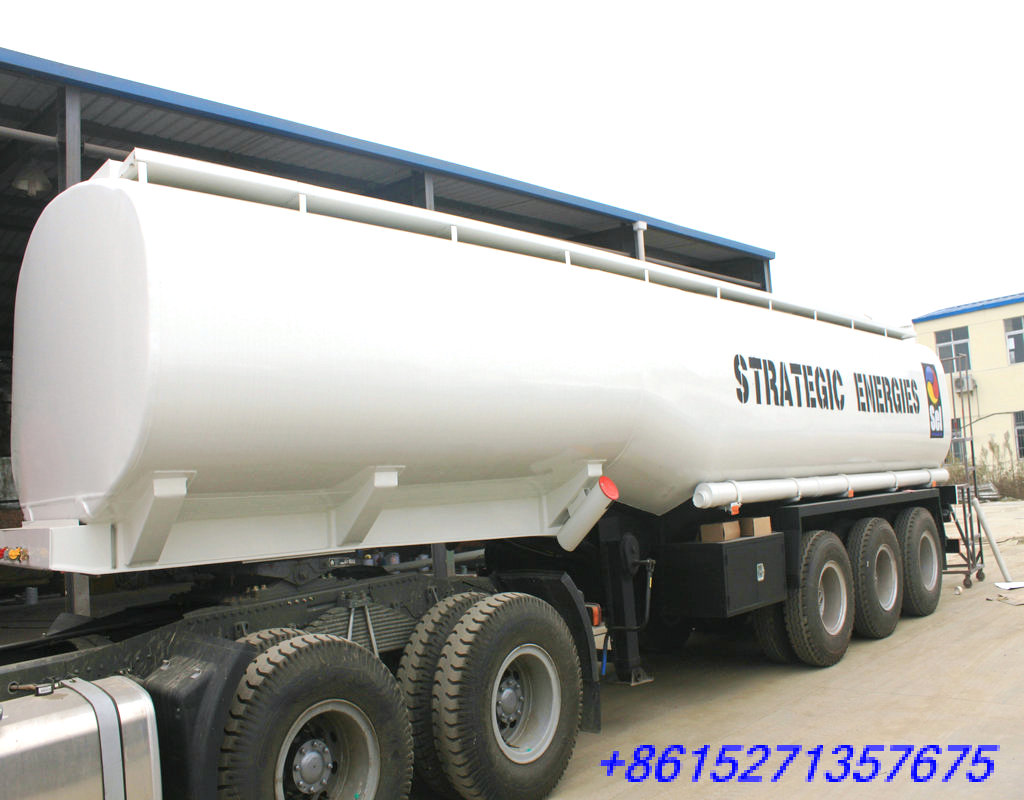

DTA9400GYY Oil Tank Trailer 35000L~45000L

DTA9400GYY Oil Tank Trailer 35000L~45000L
Availability:
Quantity:

DTA9400GYY oil tank trailer 35000L~45000L Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 EXW $20000~25000

 DTA9400GYY oil tank trailer 35000L~45000L
 Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675


         Product Name         DTA9400GYY  tanker trailer
         Model         DTA9400GYY
         Overall Dimension(Length×Width×Height)         Appro12800X2500X3750mm


           Fuel tanker




           Volume of tank




           35000~ 40000L  4Compartment




           Tank shape




             optional Customization




           Tank Material




           Q235  5mm ;option Aluminum ALLOY 6mm




           Tank color




           According to your demands, and we can painted your logo on the tank




           Total Mass




           40000kg




           Rated Payload




           30000 Kg




           Kerb Weight




           10000 Kg




           Wheel Base




           7100+1310+1310 mm




           Wheel Tread




           1840/1840/1840 mm




           Axle




           Three 13T axle air bag SUSPENSION




           Type & Size of Tyre




           13units  315/80R 22.5 tires




           Spring suspension




           9/9/9




           Other equipment



           provide 4x manhole (  steel / aluminium) , 2x ABC type 9KGS extinguisher and   steel piping system.



           connect 3" valves ( DN 80)




           Two Spare wheel carriers




           Two Fire extinguishers




           One normal Tool box




           1set of JOST loading leg
