Customizing 9-10axles 150t- 200t Hydraulic Modular Lowboy Semi Trailer for Cylinder Tank Goods Tanker (Petro Chemical Industry Transporter)
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union
Customizing 9-10Axles 150T- 200T Hydraulic Modular Lowboy Semi Trailer For Cylinder Tank Goods Tanker (Petro Chemical Industry Transporter)Customization
Extendable Lowbed Trailer Multi Functional Gooseneck Hydraulic Combined
Hydraulic Combined Modular Lowbed Trailer Customization 50-150 ton Multi Axle Modular Lowboy Semi Trailer With Hydraulic Suspension Steering Axle
heavy load multi axle hydraulic modular low bed truck trailer
| Tare Weight | 28.5T | |||||||
| Dimension | 13690mm*2990mm*1180mm | |||||||
| Max payload (T) | 150T | |||||||
| Axles | 6Axles | |||||||
| wheel base | 7350 | |||||||
| Rim | 6.75-17.5 | |||||||
| Tire | 235/75R17.5 143/141 | |||||||
| Tire Wheelbase | 2475mm | |||||||
| Tire No. | 48PCS | |||||||
| Suspension | Hydraulic Suspension | |||||||
| King pin | JOST brand 2 inch and 3.5inch | |||||||
| Main beam | Material is WELTEN80 Steel ,Height: 400mm | |||||||
| upper plate is 25mm, middle plate is 12mm, down plate is 25mm | ||||||||
| Side beam | Length:7040mm 250mm*90mm*9mm | |||||||
| Towing Pin Type | "I" type | |||||||
| Brake chamber | N0.30 (type) | |||||||
| Braking System | ABS | |||||||
| ABS | WABCO | |||||||
| Light | LED | |||||||
| Voltage | 24V | |||||||
| Receptacle | 1PCS | |||||||
| Painting | As customer's request | |||||||
| Above is just one of our specialized semi trailers, we can design and produce according to customer's requirements. Please don't hesitate to contact me if you have any inquiry!! | ||||||||
100 ton loading multi axle modular lowboy semi trailer with hydraulic suspension
| Weight | About 20.5T |
| Size | 13500mm*2990mm*1400mm(customized) |
| Loading Capacity (T) | ≤ 100 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Hydraulic suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Hydraulicsac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. customer's special need.Please don't hesitate to contact me if you have any inquiry!! |
Customising Multi Axle Hydraulic Modular Low Bed Truck Trailer with Hydraulic Lifting and Steering Axle
Customized 2 Axle Hydraulic Lifting Platform Lowbed Semi Trailer with Hydraulic Steering Axle Hydraulic Loading Ramp
Gooseneck 2 Axle 50 ton Hydraulic Suspension Modular Low Bed Truck Trailer
High Strength Military Lowbed Lowboy Semi Trailer to Transport Large Machines
Heavy Duty Machinery Transport Lowbed Lowboy Truck Semi Trailer
2-3 Axle 50-70ton Lowboy for Sale
40T 2 Axles Gooseneck Low Bed Platform Semi Trailer Gooseneck Detachable Hydraulic Lowbed Lowboy
Hydraulic Modular Trailers, Multi Axle Trailer 40T- 250T
| Product Name | 40T 2 axles low bed platform semi trailer gooseneck detachable automatic lifting |
| Weight | About 16345Kg |
| Size | customized |
| Loading Capacity (T) | ≤ 40 T |
| Axle | track width 2300mm, 12T, 16 inch,made in china (customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 6.75-17.5 steel wheel him, made in china,235/75R17.5-16PR tire, 8 pcs(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | 19 inch FUWA single speed type (customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry!! |

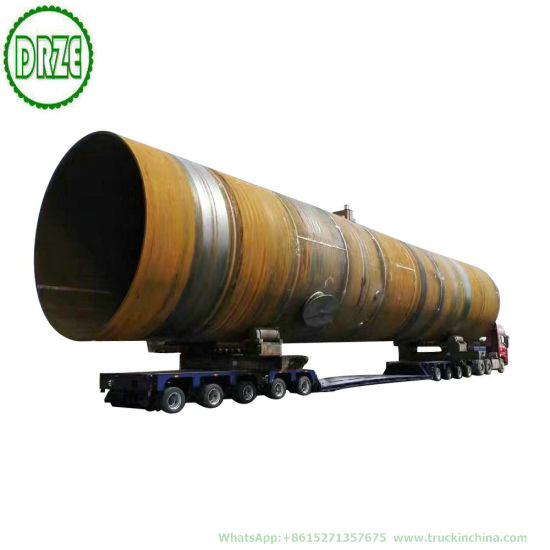

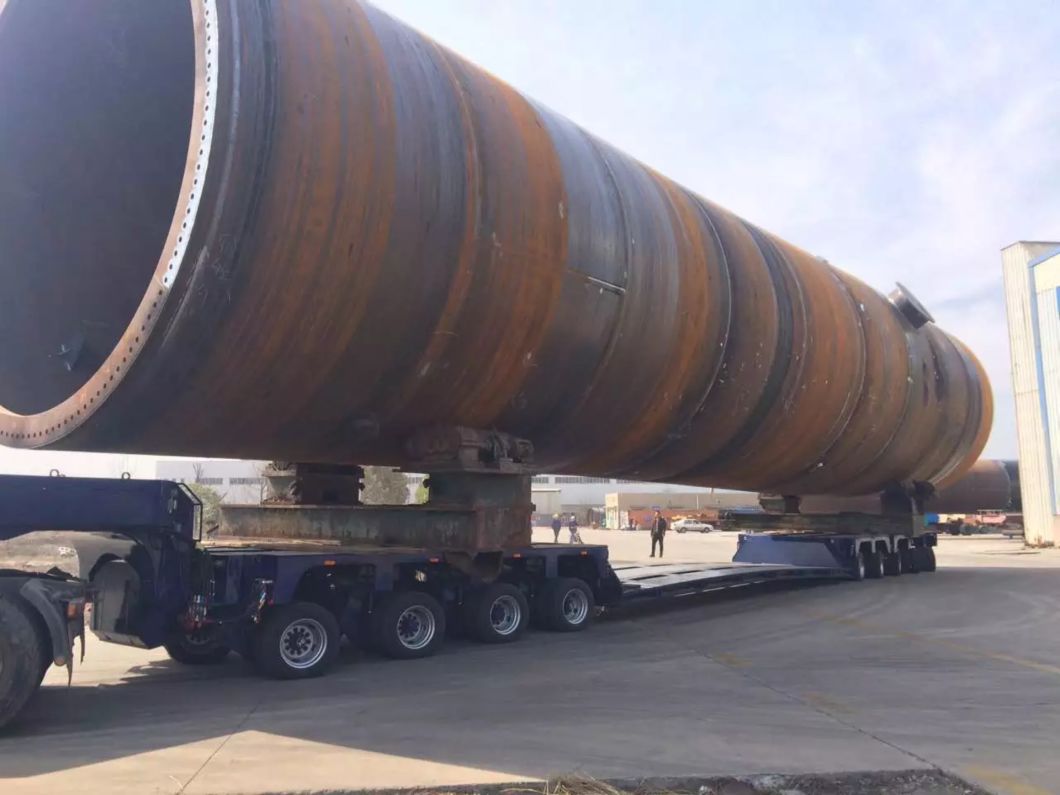

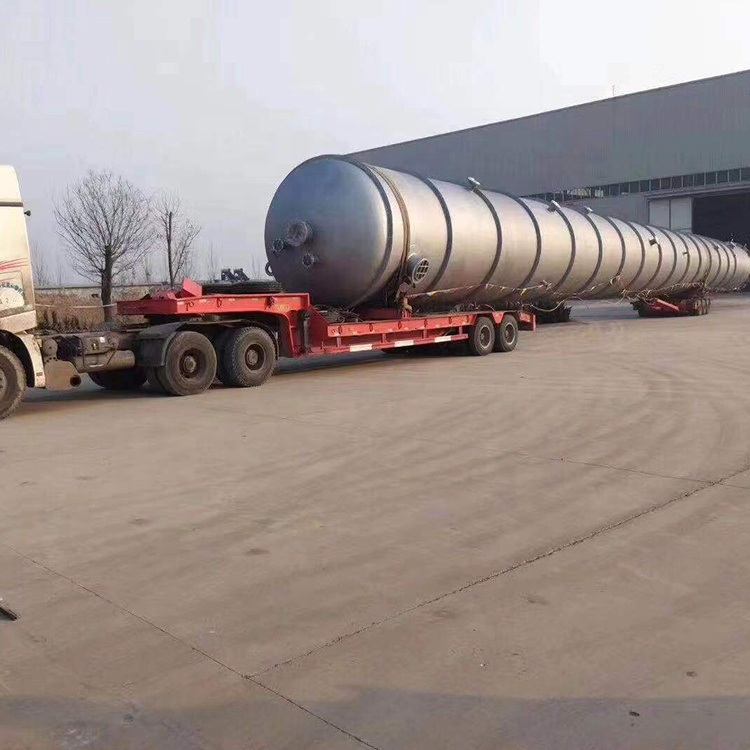

Hydraulic Low Loader Semi Trailer For Cylinder Tank Goods Tanker
Multi Axle Steering Axle Low Bed Trailer
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
| Product Name | Multi Axle Steering Axle Multifunctional hydraulic combined lowbed trailer |
| Weight | About 16345Kg |
| Size | 12400mm*2990mm*1605mm(customized) |
| Loading Capacity (T) | ≤ 40 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. customer's special need.Please don't hesitate to contact me if you have any inquiry!! |
Gooseneck 2 Axle 50 ton Hydraulic Suspension Modular Low Bed Truck Trailer
Steering Axle Low Bed Trailer Hydraulic Low Loader 2 Axle 16 Wheel Hydraulic Gooseneck Lowbed Semi Trailer
| Product Name | 2 axle 16 wheel hydraulic gooseneck horse low bed semi trailer |
| Size | 12400mm*2990mm*1605mm(customized) |
| Loading Capacity (T) | ≤ 40 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry!! |
Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
Multi axle Hydraulic Modular Lowbed Semi Trailer
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer )
Modular low bed trailer equip power gooseneck/ramp
Hydraulic Front Loading Lowboy 4-Axle 100ton Semi Trailer for Sale
Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading Low Boy trailer)
Tri Axle 70 Tons Detatchable Lowboy for Sale Low Bed Trailer Gooseneck Trailer
| Lowbed Trailer Product Description Modular low bed trailer equip power gooseneck/ramp |
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
| Type | Hydraulic modular trailer |
| Overall dimension | 15500 x 2990 x 1360 mm |
| Loading weight | 200 Ton |
| Hydraulic station | Diesel engine 4100 |
| Min. Turning radius | 11.7m |
| Approaching / depature angle | 30 % |
| Axle | 13 ton axle x 20 pcs |
| Tyre | 7.50-15 |
| Suspension | hydraulic |
| Color | As your required |
Trailers Non Ground Bearing Hydraulic Detachable Gooseneck
Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer
Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer
Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.
Description of SPMT trailer Self Propelled Modular Transporter.
This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.
Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project
Specification
| Dimension | |
| Overall dimension | 15000x2500x1350mm |
| Tare weight | 19500kgs |
| Payload | 120Tons |
| Specification | |
| Chassis | Heavy duty and special design steel frame, |
| Axle | YORK axle |
| Suspension | Hydraulic suspension |
| Spring | Hydraulic cylinder |
| Floor | 5mm steel plate |
| Power | Diesel engine as a power pack |
| Hydraulic system | Hydraulic system to control lifting and steering |
| Tyre | 11R22.5 |
| Brake system | Pneumatic braking system |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Removable Gooseneck Lowboy Trailer heavy transport Mine dumper
Hydraulic-neck low-bed trailer Front loading Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER
Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos
OVERSIZE LOAD - REMOVABLE GOOSENECK
Gooseneck hydraulic trailers Feature
REMOVABLE GOOSENECK Lowboy Trailer
Customize Truck
80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
50 Ton Gooseneck 2 Axle Lowboy Hydraulic Suspension Modular Low Bed Truck Trai
heavy load multi axle hydraulic modular low bed truck trailer
Customizing 9-10Axles 150T- 200T Hydraulic Modular Lowboy Semi Trailer For Cylinder Tank Goods Tanker (Petro Chemical Industry Transporter)Customization
Extendable Lowbed Trailer Multi Functional Gooseneck Hydraulic Combined
Hydraulic Combined Modular Lowbed Trailer Customization 50-150 ton Multi Axle Modular Lowboy Semi Trailer With Hydraulic Suspension Steering Axle
heavy load multi axle hydraulic modular low bed truck trailer
| Tare Weight | 28.5T | |||||||
| Dimension | 13690mm*2990mm*1180mm | |||||||
| Max payload (T) | 150T | |||||||
| Axles | 6Axles | |||||||
| wheel base | 7350 | |||||||
| Rim | 6.75-17.5 | |||||||
| Tire | 235/75R17.5 143/141 | |||||||
| Tire Wheelbase | 2475mm | |||||||
| Tire No. | 48PCS | |||||||
| Suspension | Hydraulic Suspension | |||||||
| King pin | JOST brand 2 inch and 3.5inch | |||||||
| Main beam | Material is WELTEN80 Steel ,Height: 400mm | |||||||
| upper plate is 25mm, middle plate is 12mm, down plate is 25mm | ||||||||
| Side beam | Length:7040mm 250mm*90mm*9mm | |||||||
| Towing Pin Type | "I" type | |||||||
| Brake chamber | N0.30 (type) | |||||||
| Braking System | ABS | |||||||
| ABS | WABCO | |||||||
| Light | LED | |||||||
| Voltage | 24V | |||||||
| Receptacle | 1PCS | |||||||
| Painting | As customer's request | |||||||
| Above is just one of our specialized semi trailers, we can design and produce according to customer's requirements. Please don't hesitate to contact me if you have any inquiry!! | ||||||||
100 ton loading multi axle modular lowboy semi trailer with hydraulic suspension
| Weight | About 20.5T |
| Size | 13500mm*2990mm*1400mm(customized) |
| Loading Capacity (T) | ≤ 100 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Hydraulic suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Hydraulicsac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. customer's special need.Please don't hesitate to contact me if you have any inquiry!! |
Customising Multi Axle Hydraulic Modular Low Bed Truck Trailer with Hydraulic Lifting and Steering Axle
Customized 2 Axle Hydraulic Lifting Platform Lowbed Semi Trailer with Hydraulic Steering Axle Hydraulic Loading Ramp
Gooseneck 2 Axle 50 ton Hydraulic Suspension Modular Low Bed Truck Trailer
High Strength Military Lowbed Lowboy Semi Trailer to Transport Large Machines
Heavy Duty Machinery Transport Lowbed Lowboy Truck Semi Trailer
2-3 Axle 50-70ton Lowboy for Sale
40T 2 Axles Gooseneck Low Bed Platform Semi Trailer Gooseneck Detachable Hydraulic Lowbed Lowboy
Hydraulic Modular Trailers, Multi Axle Trailer 40T- 250T
| Product Name | 40T 2 axles low bed platform semi trailer gooseneck detachable automatic lifting |
| Weight | About 16345Kg |
| Size | customized |
| Loading Capacity (T) | ≤ 40 T |
| Axle | track width 2300mm, 12T, 16 inch,made in china (customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 6.75-17.5 steel wheel him, made in china,235/75R17.5-16PR tire, 8 pcs(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | 19 inch FUWA single speed type (customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry!! |

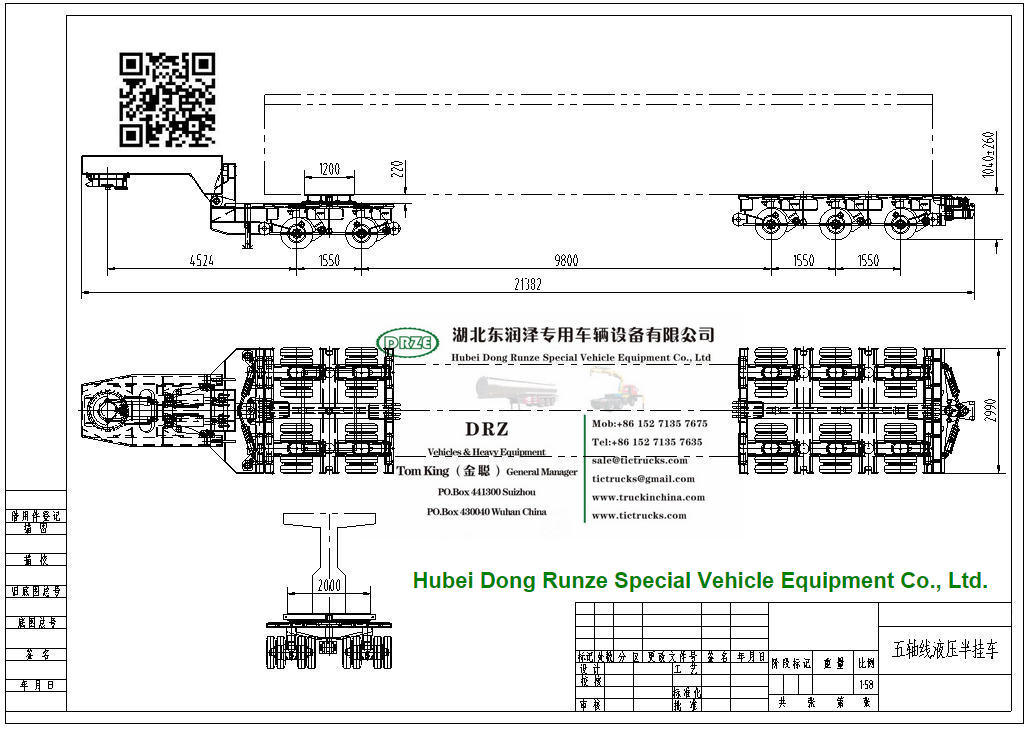

Hydraulic Low Loader Semi Trailer For Cylinder Tank Goods Tanker
Multi Axle Steering Axle Low Bed Trailer
Multi Functional Gooseneck Hydraulic Combined Lowbed Trailer (Multi Axle Steering Axle Lowboy Trailer)
| Product Name | Multi Axle Steering Axle Multifunctional hydraulic combined lowbed trailer |
| Weight | About 16345Kg |
| Size | 12400mm*2990mm*1605mm(customized) |
| Loading Capacity (T) | ≤ 40 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. customer's special need.Please don't hesitate to contact me if you have any inquiry!! |
Gooseneck 2 Axle 50 ton Hydraulic Suspension Modular Low Bed Truck Trailer
Steering Axle Low Bed Trailer Hydraulic Low Loader 2 Axle 16 Wheel Hydraulic Gooseneck Lowbed Semi Trailer
| Product Name | 2 axle 16 wheel hydraulic gooseneck horse low bed semi trailer |
| Size | 12400mm*2990mm*1605mm(customized) |
| Loading Capacity (T) | ≤ 40 T |
| Axle | 13 T/16T, saf(customized) |
| Rim | 6.75/7.5(special for export market )(customized) |
| Tire | 235/75R 17.5 143/141 (special for export market )(customized) |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Or Air suspension (China brand or BPW brand ) (special for export market ) | |
| Spring leaf | Air sac |
| (special for export market ) | |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type(customized) |
| Support leg | JOST brand C200T or China brand 28Tons (Double speed)(customized) |
| Main beam | Height: 380mm, upper plate is 16mm, middle plate is 8mm,(customized) |
| Down plate is 16mm; Material is WELTEN80 Steel.(customized) | |
| Side beam | 6mm channel steel (Material is Q235steel). (customized) |
| Bottom Platform | 3mm diamond steel plate (customized) |
| Side Wall | 6100mm ,or can be do box type ,for choose(customized) |
| Brake chamber | N.24(customized) |
| ABS | Optional(customized) |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional(customized) |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness)(customized) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
| Remark | The above trailer is just for you reference, we producing according to customer's requirements. we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry!! |

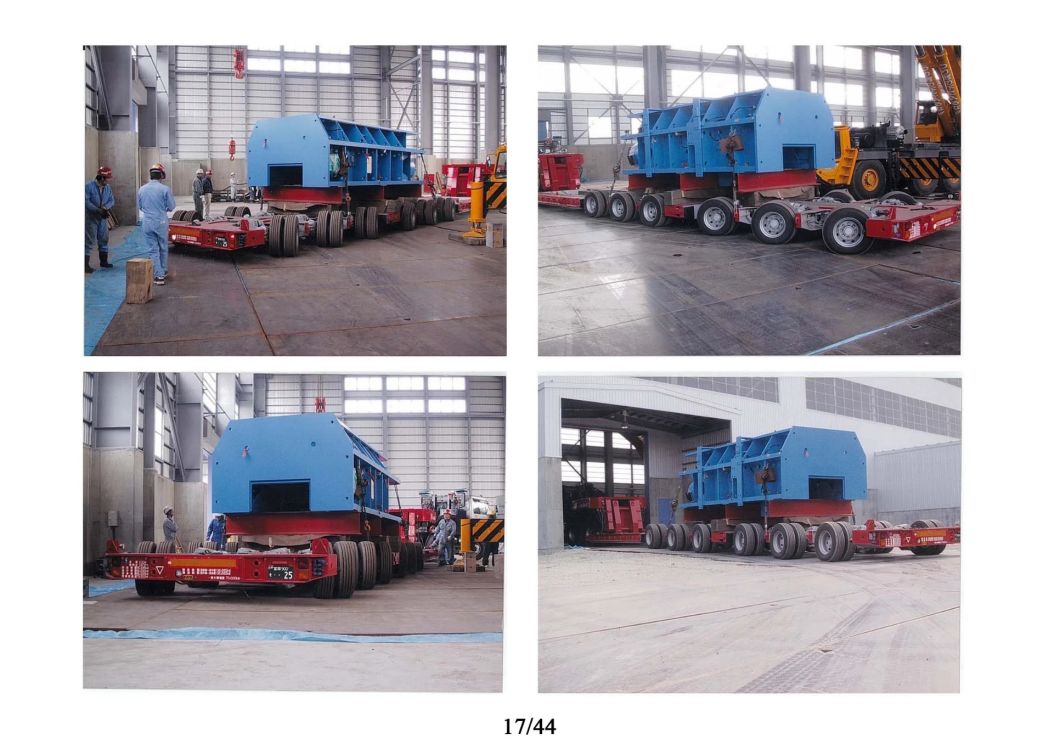

Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
Multi axle Hydraulic Modular Lowbed Semi Trailer
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer )
Modular low bed trailer equip power gooseneck/ramp
Hydraulic Front Loading Lowboy 4-Axle 100ton Semi Trailer for Sale
Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading Low Boy trailer)
Tri Axle 70 Tons Detatchable Lowboy for Sale Low Bed Trailer Gooseneck Trailer
| Lowbed Trailer Product Description Modular low bed trailer equip power gooseneck/ramp |
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
200 Ton Multi axle Hydraulic Modular Lowbed Semi Trailer
| Type | Hydraulic modular trailer |
| Overall dimension | 15500 x 2990 x 1360 mm |
| Loading weight | 200 Ton |
| Hydraulic station | Diesel engine 4100 |
| Min. Turning radius | 11.7m |
| Approaching / depature angle | 30 % |
| Axle | 13 ton axle x 20 pcs |
| Tyre | 7.50-15 |
| Suspension | hydraulic |
| Color | As your required |
Trailers Non Ground Bearing Hydraulic Detachable Gooseneck
Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer
Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer
Application of SPMT trailer Self Propelled Modular Transporter
Self propelled modular transporter is a self driving trailer, without the power and assistance from tractor or other vehicles. It is designed and made for heavy duty equipment transport, like the shipyard, tower, bridge. This modular trailer could combine other type of modular trailer vertically or horizontally to fulfill huge project transport, reaches hundreds or thousands tons.
Description of SPMT trailer Self Propelled Modular Transporter.
This is a 8 axle lines self propelled modular transporter. The independent power pack in front of the trailer provide the pressure to the hydraulic system of this trailer, which could control the trailer to move, steer, lift, etc.
Selling point of SPMT trailer Self Propelled Modular Trailer
1.Combined with other modular platform trailer
2.Suitable for extremely heavy loading project
Specification
| Dimension | |
| Overall dimension | 15000x2500x1350mm |
| Tare weight | 19500kgs |
| Payload | 120Tons |
| Specification | |
| Chassis | Heavy duty and special design steel frame, |
| Axle | YORK axle |
| Suspension | Hydraulic suspension |
| Spring | Hydraulic cylinder |
| Floor | 5mm steel plate |
| Power | Diesel engine as a power pack |
| Hydraulic system | Hydraulic system to control lifting and steering |
| Tyre | 11R22.5 |
| Brake system | Pneumatic braking system |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Removable Gooseneck Lowboy Trailer heavy transport Mine dumper
Hydraulic-neck low-bed trailer Front loading Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER
Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos
OVERSIZE LOAD - REMOVABLE GOOSENECK
Gooseneck hydraulic trailers Feature
REMOVABLE GOOSENECK Lowboy Trailer
Customize Truck
80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
50 Ton Gooseneck 2 Axle Lowboy Hydraulic Suspension Modular Low Bed Truck Trai
heavy load multi axle hydraulic modular low bed truck trailer
