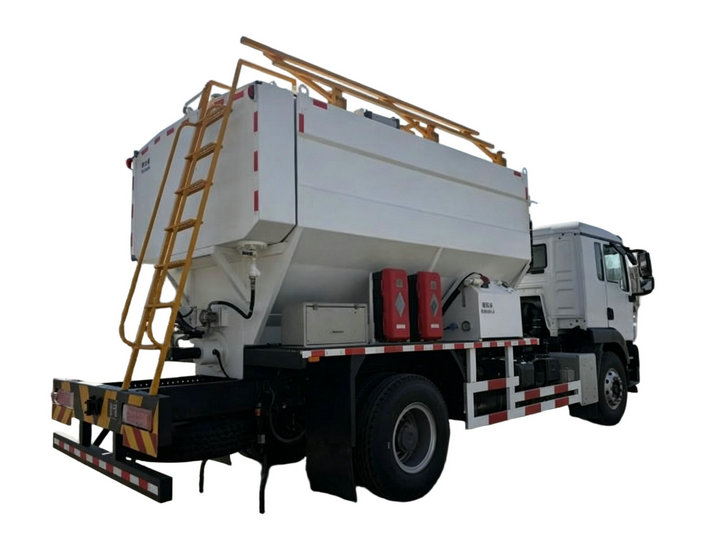

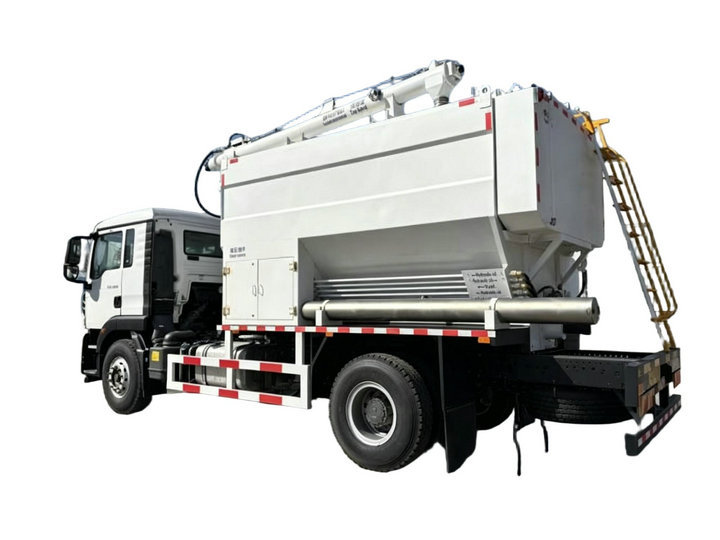

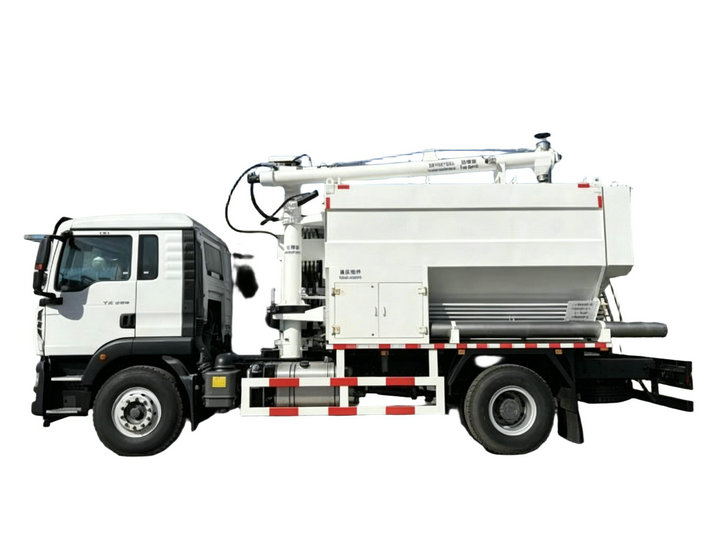

Customize HOWO 10 T BCLH-10 On-site Mixing And Charging Machine Granular Ammonium Explosive ANFO Truck
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCLH-10
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Customize HOWO 10/15/20/30T BCLH-10 On-site Mixing And Charging Machine Granular Ammonium Explosive ANFO Truck Description:
(1) Load porous granular ammonium nitrate and diesel fuel into the designated storage bins aboard the charging vehicle, then transport the vehicle to the designated blasting site.
(2) Activate the hydraulic power unit and adjust the system pressure to the specified operational value. Using a handheld remote controller, the operator actuates the swing and rotation cylinders to precisely align the mixing auger with the target blast hole—achieving automatic, repeatable positioning.
(3) Navigate to the ANFO (ammonium nitrate–fuel oil) loading interface. Input the required charge mass per borehole and initiate the “Automatic Charging” sequence. The control system then executes a predefined sequence: starting the primary mixing auger, the inclined feed auger, the secondary mixing auger, and the diesel metering pump. Porous ammonium nitrate and diesel fuel are continuously metered, homogeneously blended, and pneumatically conveyed into the borehole via the mixing auger. Charging ceases automatically upon reaching the preprogrammed mass threshold, thereby completing the charge for that individual borehole.
(4) Reposition the charging vehicle to the next borehole and repeat Steps (2) and (3) until all designated boreholes have been loaded.
| Parameter | Tech |
| Carrying capacity | Porous granular ammonium nitrate 8000kg ,diesel 600kg |
| Delivery efficiency | 300kg／min |
| Measurement error | ± 2% |
| Side helix rotation Angle | 150 ° |
| Overall dimension | Length × width × height 9000×2500×3600 |
| Truck chassis | ZZ1167N4617E1 (Euro 5) ZZ1167N4617D1 |
| Maximum engine power | 202kw |
| Gross mass | 16000kg |
| PTO | PTOs, Side auger Pump |

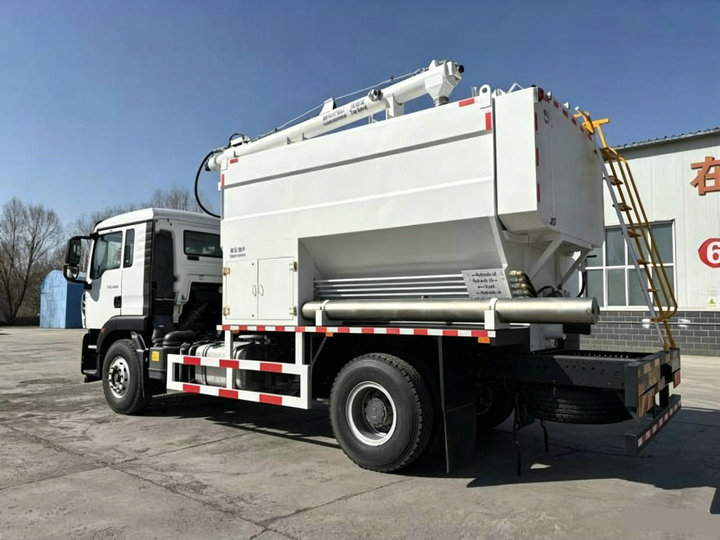

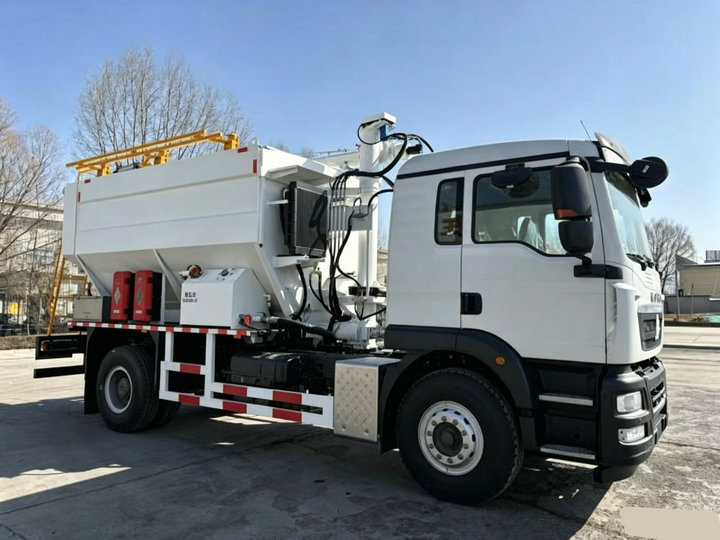

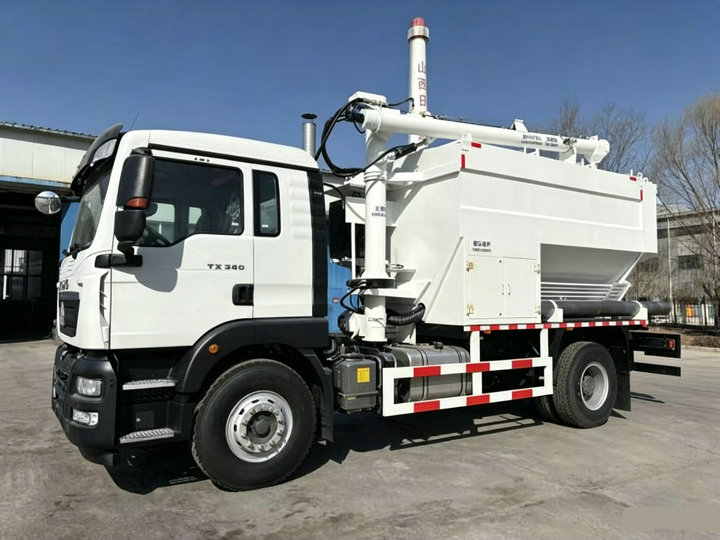

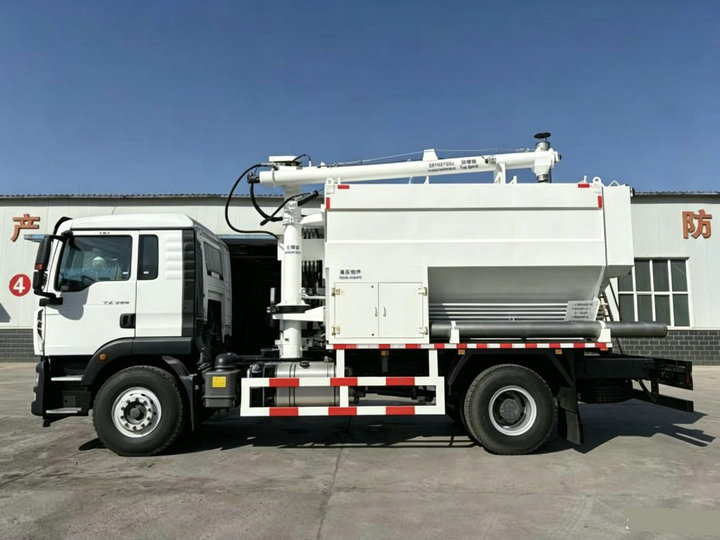

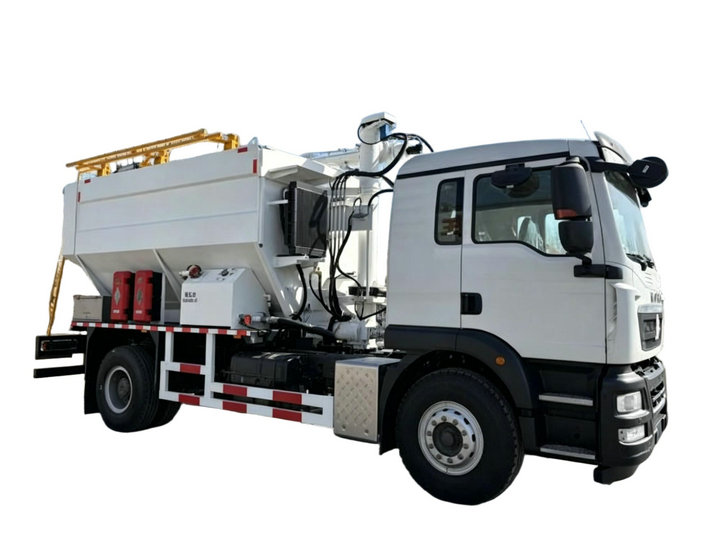

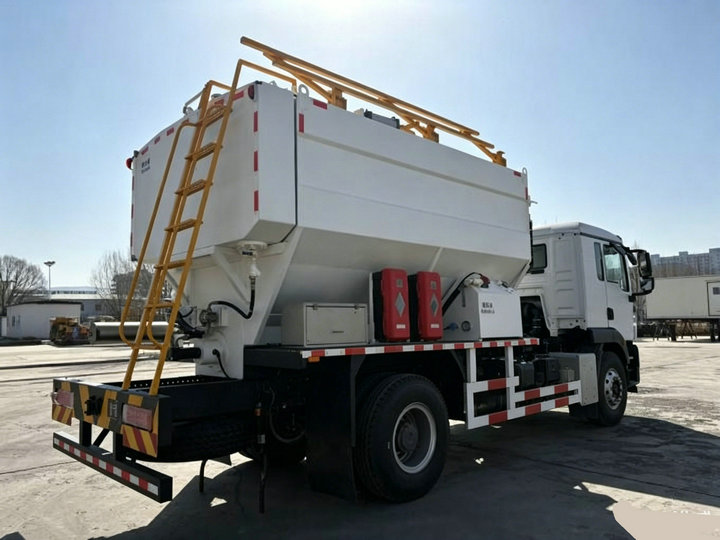

ANFO auger truck
1. Core Configuration List
| Item | Name | Quantity | Remarks |
| 1 | Vehicle Chassis | 1 Unit | HOWO Truck Chassis |
| 2 | Material Storage Tank | 1 Set | Material: 304 stainless steel; Equipped with 12m³ ammonium nitrate tank and 1m³ fuel tank; The volume can be customized according to customer requirements |
| 3 | Screw Conveyor | 3 Sets | Made of 304 stainless steel |
| 4 | Hydraulic System | 1 Set | Consists of engine power assembly, hydraulic oil pump, hydraulic oil tank, radiator, hydraulic motor, solenoid valve group and other accessories |
| 5 | Automatic Control System | 1 Set | Composed of sensors, industrial control computer, dedicated control software, safety interlock system and other supporting devices |
2. Overall Specifications
2.1 Cabin
2.2 Engine
Manufacturer: SINOTRUK
Type: 4-stroke direct injection diesel engine
Engine Model: WD615.87, Euro 2 Emission Standard, 290 HP
Structure: In-line 6-cylinder, water cooling, turbocharging & intercooling
Displacement: 9.726L
2.3 Transmission
2.4 Steering System
2.5 Axle System
Front Axle: HF9 type, rated load 9000KGS, double T-cross section beam steering axle
Rear Axle: HC16 type, dual rear axles with single axle rated load 16000KGS; Pressed axle housing, central single reduction with hub reduction, equipped with inter-wheel and inter-axle differential locks; Final Drive Ratio: 4.42
2.6 Propeller Shaft
2.7 Chassis & Suspension
Frame: U-profile parallel ladder frame with specification of 300×80×8mm, reinforced subframe equipped; All cross members are connected by cold riveting process
Front Suspension: 10 pieces of semi-elliptic leaf springs, matched with hydraulic telescopic double-action shock absorbers and stabilizer
Rear Suspension: 12 pieces of semi-elliptic leaf springs, bogie spring assembly and stabilizer
2.8 Brake System
Service Brake: Dual circuit compressed air brake
Parking & Emergency Brake: Spring energy type, compressed air control, acting on front and rear wheels
Auxiliary Brake: Engine exhaust brake
2.9 Electric System
Operating Voltage: 24V, negative grounded
Starter: 24V, 5.4KW
Alternator: 3-phase alternating current, 28V, 1500W
Batteries: 2 pcs of 12V batteries, 165Ah for each battery
Auxiliary Accessories: Cigar-lighter, air horn, headlamps, fog lights, brake lights, indicator lights and reverse lights
2.10 Other Configurations
Tyre Specification: 315/80R22.5 tubeless tyres, including 1 spare tyre
Fuel Tank Capacity: 400L
Overall Dimension: 8500×2550×3200mm
3. Application Scope

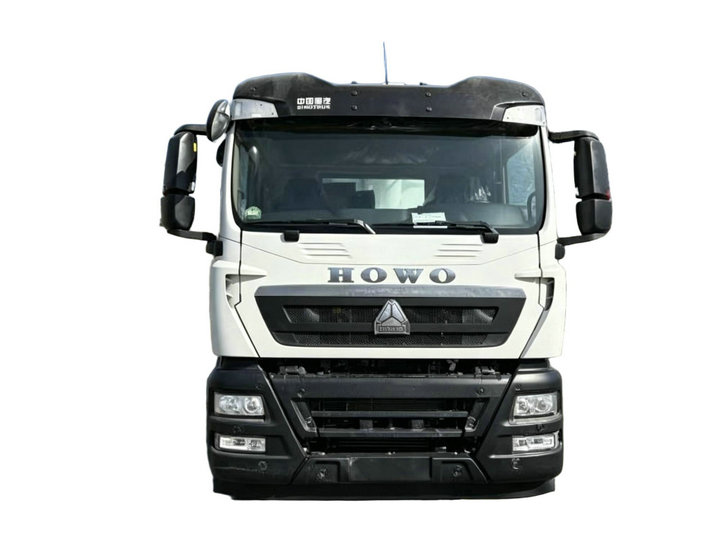

Howo ZZ1167N4617D1 type II truck chassis
Chassis model: | ZZ1167N4617D1 | Fuel Type: | Diesel oil |
Chassis type: | Truck chassis | Chassis brand: | Howo |
Overall dimensions: | Length: 8060,8360 Width: 2500 Height: 2996,3012 | ||
Number of shafts: | 2-axis | Wheelbase: | 4600,4800 |
Front wheel pitch: | 2030 | Rear wheel pitch: | 1830 |
Tire Specifications: | 12.00R20 16PR | ||
Total quality: | 16000 | Quality of service: | 6950 |
Trailer quality: | Half saddle: | ||
Front passenger: | 2 | Approach departure Angle: | 26/23 p / 24 |
Front suspension rear suspension: | 1570/1890,1570/1990 | Maximum speed: | 114km/h |
Howo ZZ1167 Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.32- | China Heavy Duty Automobile Group Co., LTD | 10518 | 238 |
