Customize Mixing Emulsion Explosive Matrix Trucks 11 Ton
BCZH-10,Bulk Explosive ammonium nitrate Emulsion,
ANFO Emulsion explosive charge 250 - 280kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCZH-11 , 5261THRS
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

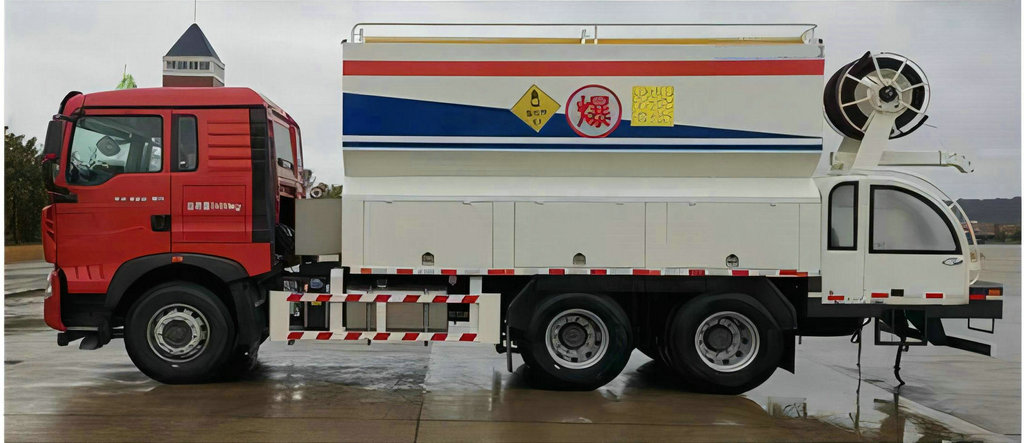

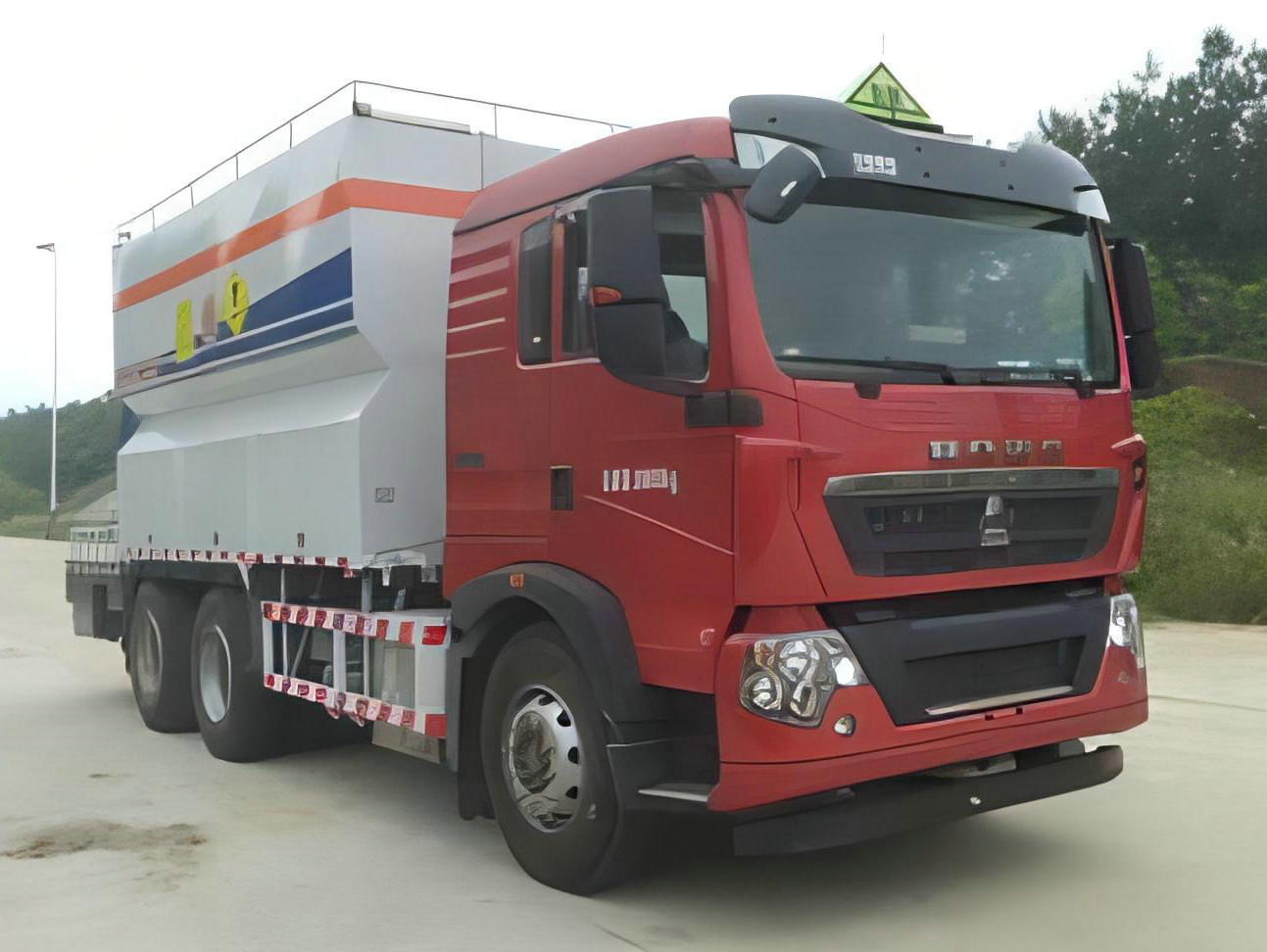

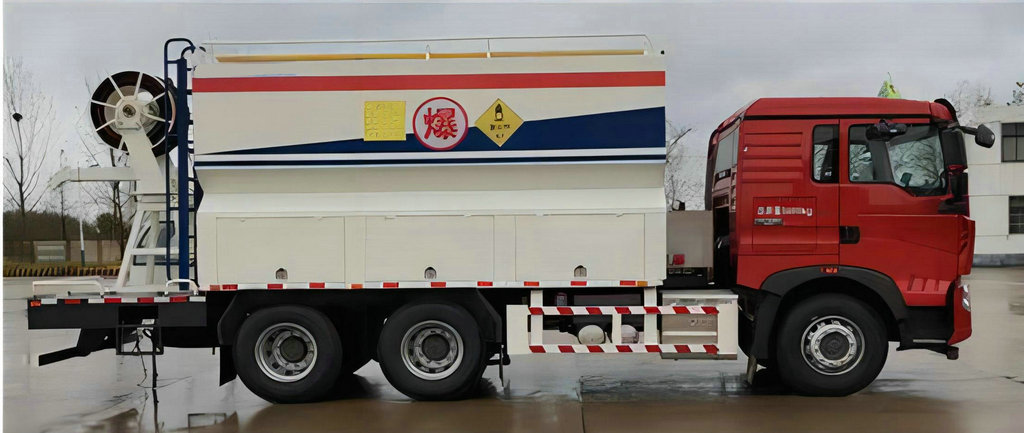

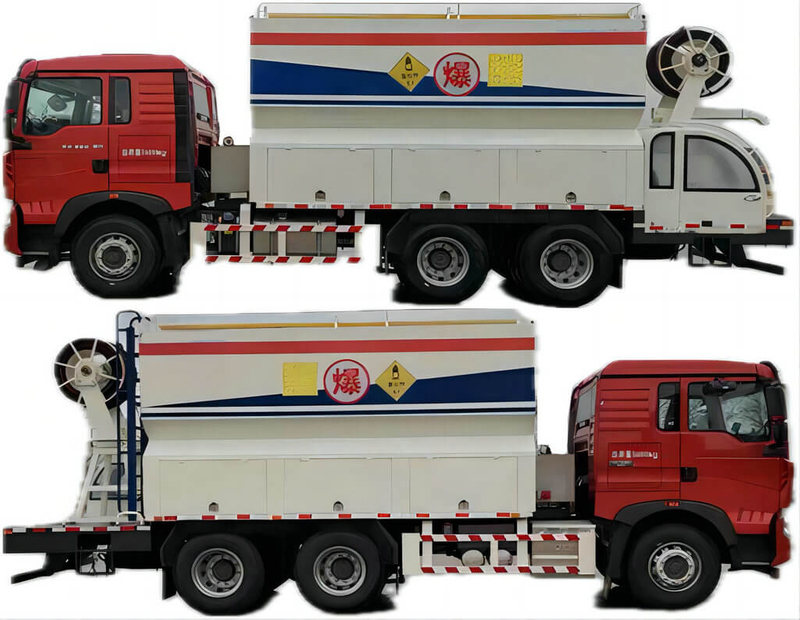

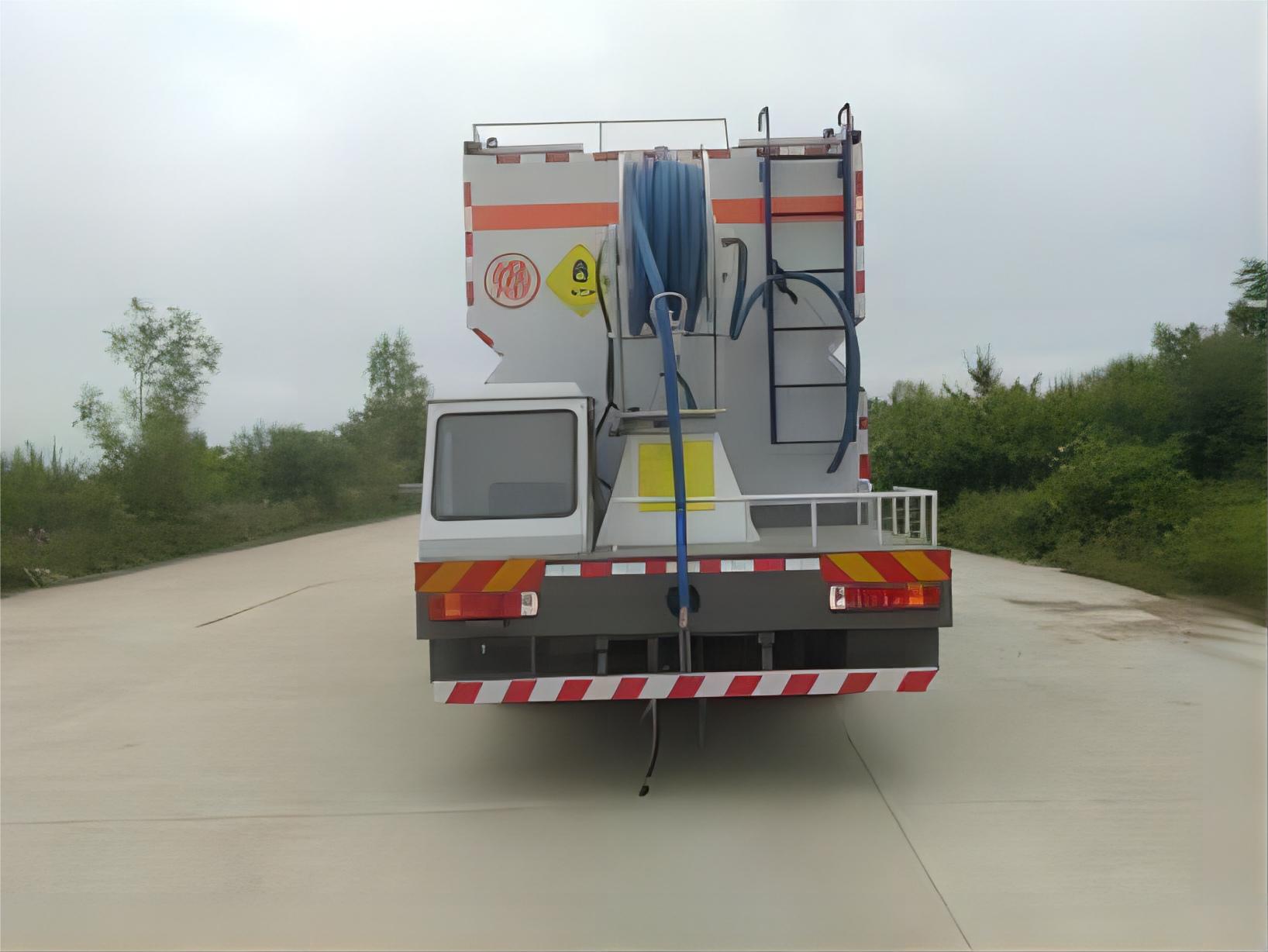

Customize Mixing Emulsion Explosive Matrix Trucks 11 Ton
ANFO Emulsion Explosive Mixing Loading Trucks
HOWO mixing and charging truck Euro 6 Chassis :BJ1108VFJEA-FK
Overall dimensions: | 9090×2500×3750(mm) | Fuel Type: | Diesel oil | |
GW | 26000(Kg) | |||
NW | 14580(Kg) | Rated load | 11290(Kg) | |
Approach Angle/Departure Angle: | 19/17 (°) | Front/rear overhang: | 1430/2485(mm) | |
Axle Load: | 7000/19000(Two-axis group) | Wheelbase: | 3175+1400,3775+1400,4075+1400, 4275+1400,4575+1400,4875+1400, 5175+1400,5775+1400(mm) | |
Number of shafts: | 3 | Maximum speed: | 80(km/h) | |
Number of tires: | 10(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5 18PR, 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR | |
Fuel consumption: | 31.8(L/100Km) | Number of spring pieces: | 4/-/-,3/-/-,2/-/-,2/1+-/1+-,3/1+-/1+-, 3/2+-/2+-,4/2+-/2+- | |
Front wheel base: | 2015,2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) | |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07H.33-60; MC11.40-60; MC09.38-60; MC07.34-60; MC07.27-60; MC11.40-61; MC07H.29-60; MC07.33-60; MC09.35 B - 60; MC07.29-60; MC09.35-60; MC07.31-60; WP9H350E62; MC07H.35-60; WP8.350 E61. WP10H400E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 10518; 8765; 6870; 6870; 10518; 7360; 6870; 8765; 6870; 8765; 6870; 8800; 7360; 7800; 9500 | 240; 297; 279; 251; 202; 297; 213; 240; 260; 213; 260; 228; 257; 257; 257; 294 | |

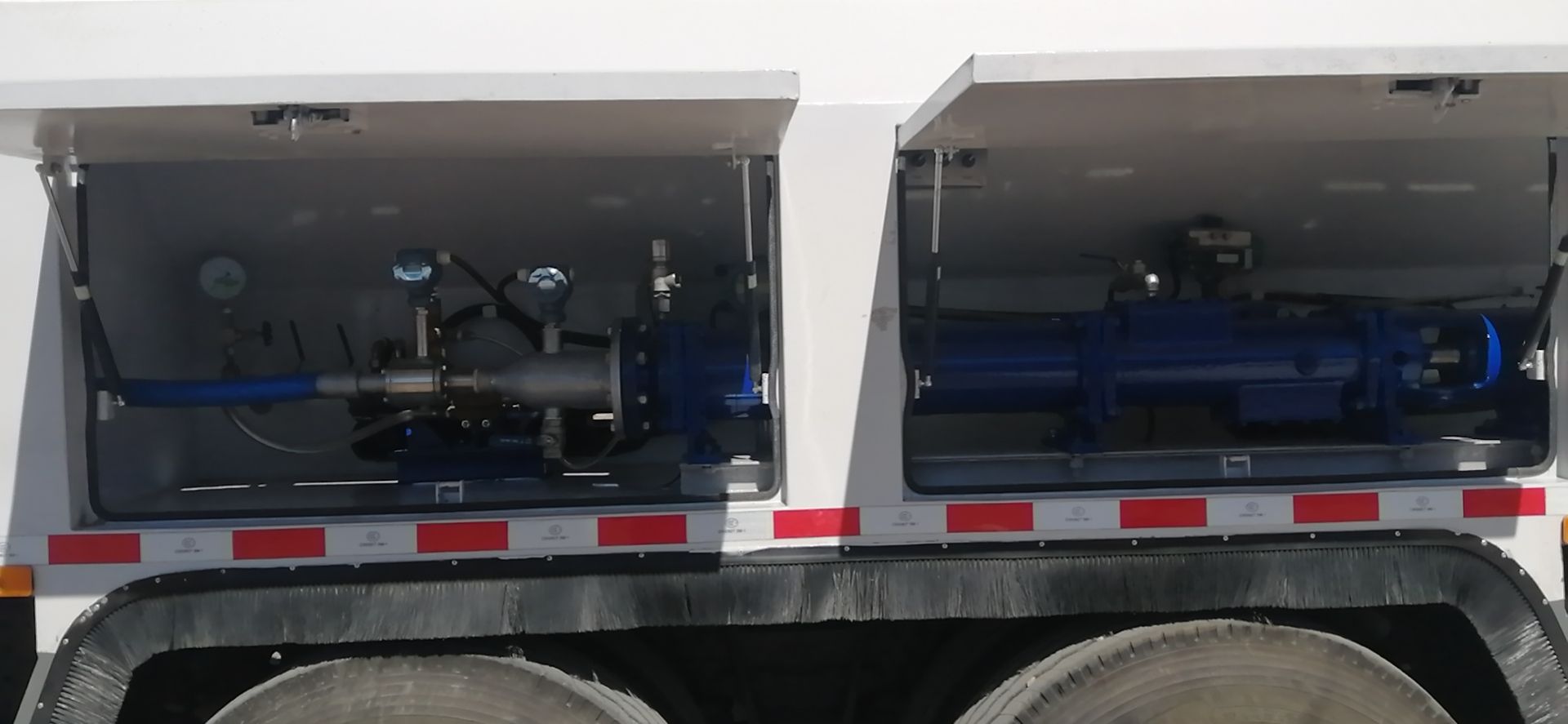

This type of vehicle is a special operation vehicle, and the main special device is PTO, Emulsion matrix box, fuel system, screw pumping system, hydraulic system, electrical control system, etc., which is mainly suitable for filling explosives in water holes in open-pit mines. The system operation is carried out by conveying pumps, rear telescopic cantilever, and feeding pipes, which can accurately fill reasonable proportion of explosives and ammonium nitrate latex in the drill holes Matrix category item number 5.1; The product is installed in line with the national standard tail sign plate; Dangerous goods signs and dangerous goods signs are installed, disc brakes are installed, and all steering wheels are installed with emergency protection devices for burst tires. Radial tire truck. Equipped with fire extinguisher
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Heavy ANFO units manufacture
Our heavy ANFO units are designed to fit your cab chassis and can be fully fitted up and commissioned shortly after delivery. As with our ANFO mix module units, the heavy ANFO unit consists of an ammonium nitrate storage tank and a process fuel oil tank. The product is discharged using a side-mounted auger, with convenient electronic controls placed in the cabin of the unit. A single person can operate a heavy ANFO unit; specialised controllers provide ingredient percentages and individual ingredient rates, which allow batch and total amounts to be recorded, with a second operator monitoring the loading.
Heavy ANFO is a blend of ANFO and Emulsion, which is made to increase the bulk density of normal ANFO, with the ability to be loaded into partial wet holes. By using these blends you increase the density of ANFO, thereby increasing the energy in the borehole. It provides water resistance to ANFO and is priced somewhere between the cost of ANFO and pumpable emulsion, ultimately reducing your mining costs.
There are many benefits to the manufacture of heavy ANFO and using the blend including:
Water resistance for ANFO in wet formations
Save on drilling costs
Increased production per hole
Specialised bulk trucks are used for the loading of heavy ANFO. These trucks allow for the mixing of components prior to loading and provide for the loading of either ANFO or heavy ANFO.
