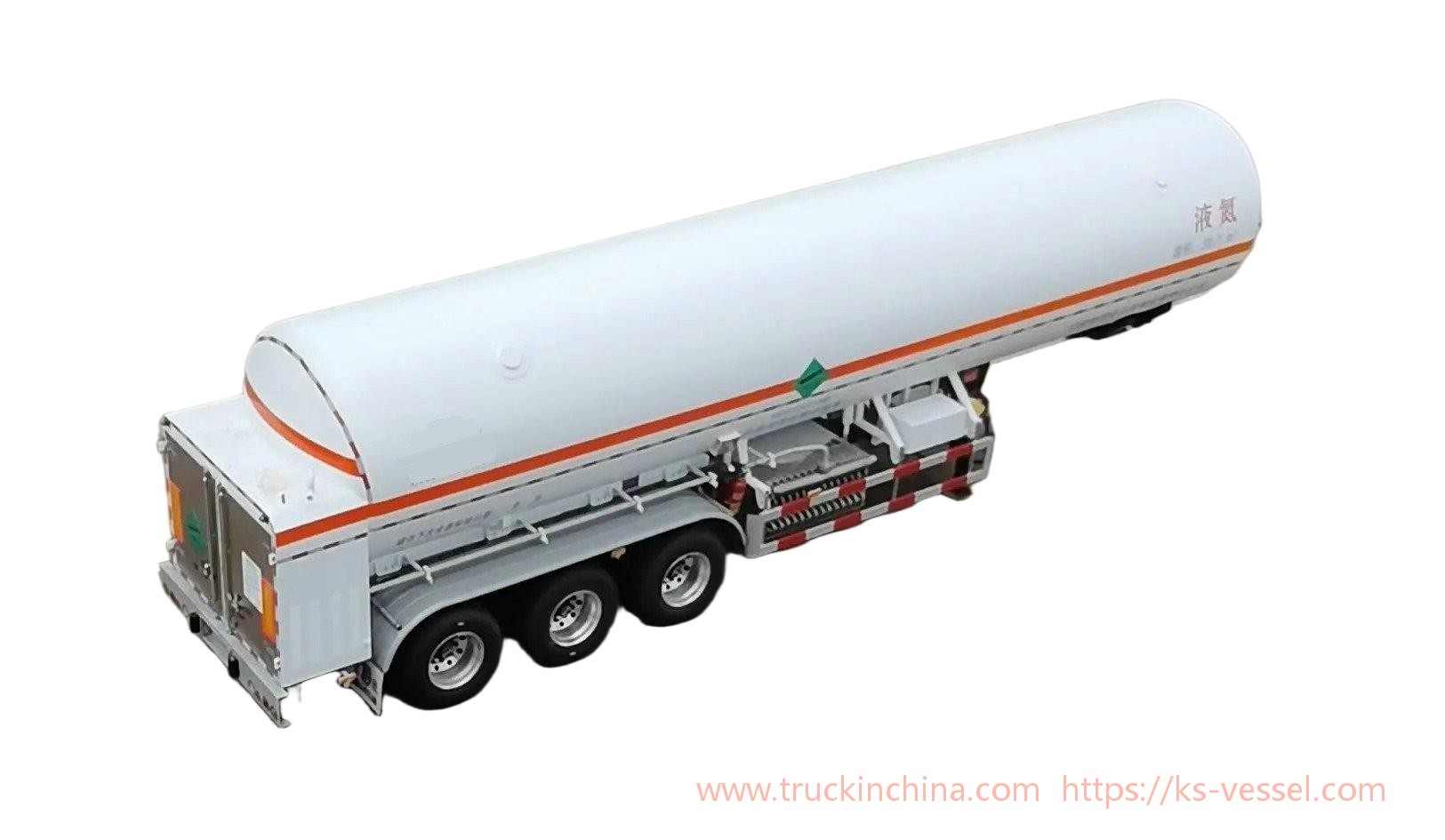

3 Axles 35 M3 26T Cryogenic Liquid Nitrogen Tanker Semi-Trailer

3 Axles 35 M3 26T Cryogenic Liquid Nitrogen Tanker Semi-Trailer
Liquid Nitrogen Transport Semi trailer UN1977
Price for refer only. Final Price Offer Discount.
Price: $ 102500
Discount Price: $ 72500
Availability:
Quantity:

  • 9395GDYC1HT,9400GDYNHT

  • 8716319000

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • 1 Ask for discount

Cryogenic Liquid Nitrogen Tanker Semi-trailer, 3 Axles, Weight 16700kg,

Total Allowable Weight 38140kg,

Tires 12r22.5,

Tank Capacity 29470 ~35000Liters, 100% New

(applicable medium: liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquefied natural gas, and so on)

35m3 Cryogenic Lorry Tanker for Liquid Nitrogen Oxygen Argon Natural Gas (3Axles Lox, Lin, Lar   Storage Cryogenic Liquid LN2 Transportation Semi-trailer) Main Technical Parameters

External Dimensions 12730×2500×3650 (mm) Gross Mass 40000 (Kg)
Curb Mass

13600 (Kg

16700)

Rated Load Mass 26400 (Kg)
Approach Angle/Departure Angle -/14 (°) Front Overhang/Rear Overhang -/1775 (mm)
Axle Load -/24000 (Three-axle Group) (Kg) Wheelbase 6710+1310+1310 (mm)
Number of Axles 3 Maximum Speed (km/h) (Not specified)
Number of Tires 12 (pieces) Tire Specification 12R22.5 12PR
Fuel Consumption (L/100Km) (Not specified) Number of Leaf Springs

-/-/-/-

4/4/4 ;

8/8/8

Front Track -(mm) (Not specified) Rear Track 1840/1840/1840, 1860/1860/1860 (mm)


  • Vehicle Type for Dangerous Goods Transport: Type AT UN1977

  • Tank External Dimensions: Φ2264×11916 (mm)

  • Inner Tank Dimensions: Φ2012×11515 (mm)

  • Total Tank Capacity: 35.7 cubic meters

  • Effective Volume: 33 cubic meters

  • Loading Medium: Liquid Nitrogen

  • Hazard Class and Item Number: 2.2

  • Filling   Volume: 745 kg/cubic meter

  • Maximum volume of liquid allowed to be filled with cryogenic liquefied gas  32.375M3

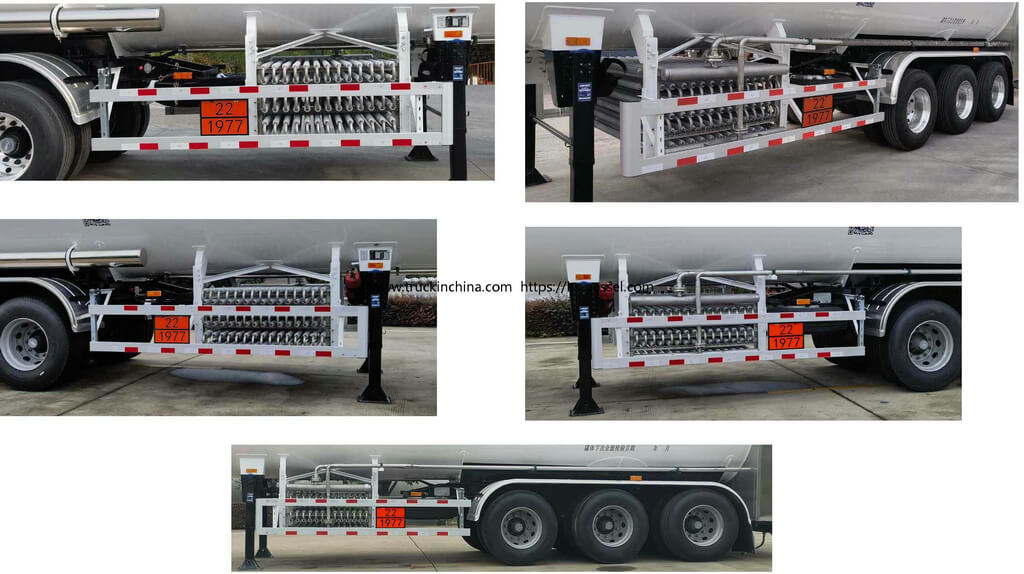

Cryogenic liquid tank semi-trailer LN LAr (3)_1


Model

Shafts

Medium

Dimension (mm)

Loading weight(kg)

Tanker weight(kg)

Total weight(kg)

Volume (m3)

CF-20/20

3

LCO2

10700 ×2500 ×3995

20400

15500

35900

20

CF-25/25

3

LCO2

12060 ×2500 ×3800

22500

22560

45060

25

DRZ9403GDYWSD

3

LCO2

10700 ×2500 ×3995

23200

16600

39800

26.4

DRZ5141GDYFEQ

2

LO2

7850 ×2480 ×2950

4365

9100

13660

4.21

DRZ9310GDYFTH

2

LO2

11200 ×2480 ×3365

17100

13900

31000

16.17

DRZ9400GDYFSD

3

LO2

12230 ×2480 ×3750

24000

15890

39890

23.3

DRZ9401GDYFSD

3

LN2

12060 ×2500 ×3800

21600

18000

39600

28

DRZ9320GDYFTH

2

LN2

12700 ×2480 ×3482

19576

12100

31676

23.7

DRZ9362GDYFSD

3

LAr

11750 ×2500 ×3600

22983

12950

35933

17.2

CF-20/16

3

LNG

10500 ×2500 ×3720

9000

13500

22500

20

CF-46.4/7

3

LNG

2500 ×3875 ×12990

20050

19950

40000

46.4
