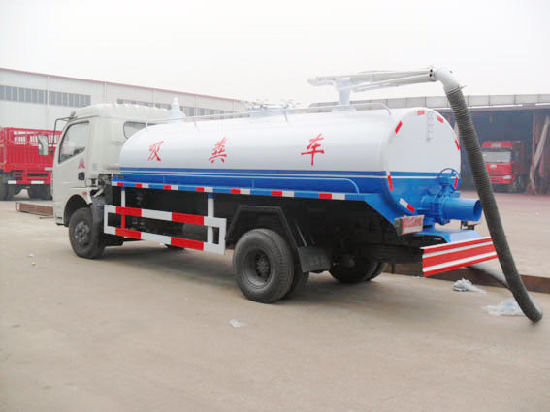

Samll 4000L - 5000L LHD/Rhd Fecal Suction Truck Sale

Quantity:
  • 80000
  • Nil
  • T/T
  • 5060 \5090
  • 4x2
  • 95~140
  • New
  • LHD/Rhd
  • 5995*2980*2280
  • 6.50-16 7.0-16
  • 4000-8000
  • Dongfeng
  • China
  • 8705909090
  • ISO9000, CCC
  • Euro 3
  • 5t
  • Manual
  • Diesel
  • 4000L
Samll 4000L - 5000L LHD/RHD Fecal suction truck sale
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com


Description of Goods
Quantity
Unit Price
Total Amount
Fecal suction truck chassis : EQ1060 Tank capacity 4 m3 7.00-16 CY4102-C3F 95HP LHD
1
¥79000CNY

¥79000CNY

Fecal suction truck chassis : EQ1060 Tank capacity 4 m3 7.00-16 CY4102-C3F 95HP RHD
1
¥93000CNY

¥93000CNY

Fecal suction truck chassis : EQ1090 Tank capacity 5 m3 7.50R16 CY4102-E3C120HP LHD
1
¥96000CNY

¥96000CNY

Fecal suction truck chassis : EQ1090 Tank capacity 5 m3 7.50R16 CY4102-E3C 120HP RHD
1
¥112000CNY

¥112000CNY

Fecal suction truck chassis : EQ1090 Tank capacity 5 m3 7.50R16 B140 33 140HP LHD
1
¥106000CNY

¥106000CNY

Fecal suction truck chassis : EQ1090 Tank capacity 5 m3 7.50R16 B140 33 140HP RHD
1
¥120000CNY

¥120000CNY




EQ 1060 CHASSIS TECHNIQUE PARAMETERS:
ITEM
MODEL&SPEC.
ITEM
MODEL&SPEC.
Drive System
4*2
Emission Standard
Euro 3
Displacement (ml)/Power(kw)
2659/66
Tyre & Spare Tyre Spec
6.50-16 7.0-16
Gross /Rated / Kerb Mass(kg)
4495/1500/2865
No. of Leaf Springs
6/8+4
Dimension(L*W*H)(mm)
5995*2980*2280
F/R Suspension(mm)
1032/1663
Wheelbase/Axis No.(mm)
3300 /2
Approach /Departure Angle(°)
17/14.5
F/R- Gearcase
1.8/3.5T
F/R Truck(wheel base) (mm)
1380/1418
Cab
Ca over Line
Clutch
Single-Disc, Dry Diaphragm Spring
Steering-Gears
Dual-spoke Steering Wheel , Recalculating ball steering
Brake System
Hydraulic Brake, Drum brakes; Air Brake (Option)
Gearbox
D1,2,3,4,5, R; Mechanical transmission, Wire soft shaft controlling


EQ1090
Type
4*2
Overall dimensions(mm)
7995*2250*3450
GVW (kg)
9235
Mass in working order (kg)
5050
Loading capacity (kg)
5000-8000
Max speed (Km/h)
95
Chassis Description
Chassis Model
EQ1090
Cab
Half row
Allowable Passengers In Cab
3
Air conditioner
Equipment
Wheel base(mm)
4400
Number of axles
2
F/R track base(mm)
1770/1602
F/R overhang(mm)
1180/2115
Approach/Departure angle(°)
22/11
Spring plate
11/13+8
F/R axle-load
3800/5695
Type of fuel
Diesel
Tire specification
8.25-16 7.50R16
Tire quantity
6
Traction system
4*2
Operation control system
Power steering
Braking system
Air braking
Electric system
24V
Engine Description
Engine model
Manufacturer
Displacement(ml)
Power(kw)
CY4102-C3F

DONGFENG CHAOYANG MOTOR CO.,LTD
3856

70KW
95 hp
CY4102-C3C

DONGFENG CHAOYANG MOTOR CO.,LTD
3856

88KW
120hp
CY4102-E3C
DONGFENG CHAOYANG MOTOR CO.,LTD
3856

88KW
120hp


Engine model
B140 33
Exhaust/output
3900/103
Horse power
140
Engine Manufacturer
Dongfeng Cummins Engine Co., Ltd.
Engine optional


Tank body -parts Description



VEHICLE MODIFCATION TECHNIQUE INFORMATION:
ITEM
MODEL&SPEC.
ITEM
MODEL&SPEC.
Cubage(m3)
4 ,5
Max Vertical Suction
≥7
Material
Q235
Absolute Pressure
400Pa
Figure
ellipse
Rotate Speed
500
Dimension(L*W*H)(mm)
3900*1100*680
Pumping Speed (Theory)
45L/S
Vacuum Pump
China
Shaft Power
4kw
Manufacturer Qualification
Measure up (CN standard)
Air in-outlet calibers
50mm
Painting
Metallic Paint
Container Filling Time
<5s
Spare Parts & Accessories
Maintenance Manual, Services Stations List, Introduction, Tools
Container Emptying Time
<4s
Configure
Consisted with PTO, DRIVE SHAFT, VACUUM PUMP, CONTAINER, PIPE SYSTEM, etc... Equipped vacuum pressure gauge, monitoring window, hand washing apparatus. Suction tube could be turned around. Suction time: ≤5min, suction lift ≥6m, .automatically, durable using worked efficiently, big capacity, easy transport, is an ideal and versatile system for the handling of sewage, sludge and slurry and gasoline etc

Vacuum sewage tanker with tipping type units price add ¥20000CNY as Fecal tankers'

Article NO
Name of Goods
Description of Goods
Quantity
Unit Price
Total Amount
DTA5060GXW
DTA5060GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1060 Tank capacity 4 m3 7.00-16 CY4102-C3F 95HP LHD
1
¥99000CNY

¥99000CNY

DTA5060GXW
DTA5060GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1060 Tank capacity 4 m3 7.00-16 CY4102-C3F 95HP RHD
1
¥113000CNY

¥113000CNY

DTA5090GXW
DTA5090GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1090 Tank capacity 5 m3 7.50R16 CY4102-E3C120HP LHD
1
¥116000CNY

¥116000CNY

DTA5090GXW
DTA5090GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1090 Tank capacity 5 m3 7.50R16 CY4102-E3C 120HP RHD
1
¥132000CNY

¥132000CNY

DTA5090GXW
DTA5090GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1090 Tank capacity 5 m3 7.50R16 B140 33 140HP LHD
1
¥126000CNY

¥126000CNY

DTA5090GXW
DTA5090GXW Vacuum sewage tanker
Vacuum sewage tanker chassis : EQ1090 Tank capacity 5 m3 7.50R16 B140 33 140HP RHD
1
¥140000CNY

¥140000CNY

TOTAL
Saying: US only.
FCA GUANGZHOU , SHANGHAI
2.Mature technology stable performance
3.Competitive Price
4.Dongfeng Duolika sewage suction tanker truck

Main Parameter DTA5090GXW
Name
Dongfeng Duolika sewage suction truck
for sanitation
Total Weight
Kg
8495
Rated Payload Weight
3800
Curb Weight
4500
Effective Volume
5m3
5000L
Density of Fecal Tanker
Kg/M?3;
1000
Overall Dimension(LxWxH)
MM
6700x2350x2650
Approach/Departure Angle
°
24/13
Front/Rear Overhang
MM
1210/1685
Wheel Base
3800
Axles Number
Pcs
2
Allowable People in Cab
People
3
Axles Load
Kg
3485/5010
Max Speed
Km/h
90
Chassis Information
Chassis Model
EQ1090T
Brand
Dongfeng
Dimension(LxWxH)
MM
6700x2140x2300,2450
Tire Number
Pcs
6
Approach/Departure Angle
°
24/15
Steel Plate Spring Number
Pcs
7/8+5,8/10+7
Front Wheel Distance
MM
1770
Rear Wheel Distance
1602
Tire Type
7.50R16,
Engine Information
Type
CY4102 -
Horsepower
Hp
120/124
Output Volume
ML
3856
Fuel
Diesel
Emission Standard
EURO III
