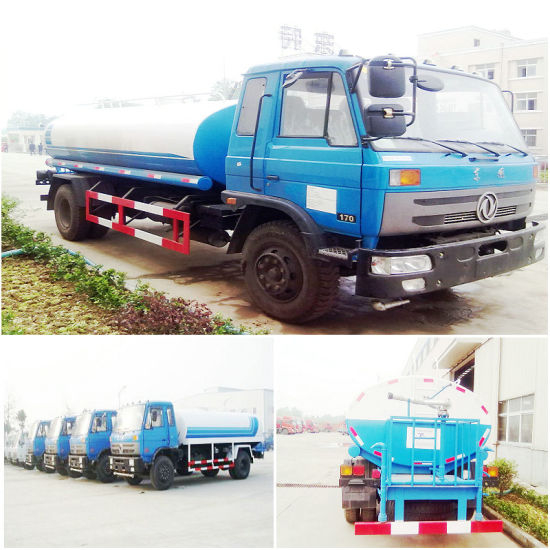

10000 ~15000liters Water Tanker Truck
| Quantity: | |
|---|---|
- 1000
- T/T, Western Union
- Nil
Dongfeng Water Truck 10000 ~15000Litres
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7635
10000 Liters water tank truck
Model | TIC5160GSS water tank truck | Chassis Model | EQ1110 | |||
Weight parameter (kg) | Rated load weight | 8509 | Outline size (mm) | 9000×2480×2950 | ||
Curb weight | 6900 | Tank size (mm) | 5000×2100×1350 | |||
Overall weight | 16000 | Wheelbase (mm) | 4500 4700 | |||
Engine | Model | YC6J170-33 | Fuel type | Diesel engine | ||
Power/Displaceme(kw/ml) | 170hp/6494 | Engine manufacture | Guangxi Yuchai engine | |||
Engine type | Straight, 4 stroke,water-cooling,turbocharge-intercooling | |||||
Performance parameter | Max speed (km/h) | 85 | Track span (mm) | Front axle | 1800 | |
Emission standard | Europe 2 | Rear axle | 1810 | |||
Drive type | 4x2 drive type | Reaching out of Vehicle (mm) | Front overhang | 1250 | ||
Loading medium | Water | Rear overhang | 2515 | |||
Front axle load(T) | 3.6T | Driving angle(°) | Approach angle | 25 | ||
Rear axle load(T) | 9T | Departure angle | 15 | |||
The number of leaf of spring | 9/12+9 | Tirespecification | 10.00-20,and 1 spare tyre | |||
Steering explanation | Power steering assistance | Brake system Explanation | Double circle air break | |||
Clutch description | Φ350 mm diaphragm spring clutch | Transmission description | 6 gear,5 forward,1 reverse | |||
Cab | 1.Flat cab,tippable cab,have air-conditioner,and radio player 2.All metal enclosed type,2 passenger allowed. | |||||
Special Function | Capacity (L) | 8,000L~10000L | Tank size(mm) | 5000x2100x1350 | ||
Sprinkling area(m) | 14-16m | Suction lift(m) | ≥7m | |||
water cannon range (m) | Water cannon installed on the rear of the truck, with operation plateform,that operator can work on the plateform.It can be used to clean road,trees,and emergency fire fighting. Water cannon range: ≥60m,it can rotation with 360°degree | |||||
Manhole size(mm) | Man way acces hole on top of tank, manhole diameter:500mm | |||||
Special Function | Front spray fuction | Front spray bar with fan sprayer on both side,spray range ≥16m | ||||
Rear spray fuction | Front spray bar with fan sprayer on both side,spray range ≥16m | |||||
Man walk way | With skid resistance man walk way on top of tank | |||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | ||
Head of delivery(m) | 60 | Shaft power | 22.5 | |||
Suction height (m) | 6.5 | Efficiency(%) | 95% | |||
Other models in this categor
Model | Dongfeng 153 water tank truck | Chassis Model | EQ1168 / EQ1120 | |||
Weight parameter (kg) | Rated load weight | 7000 | Outline size (mm) | 8200×2480×2800 | ||
Curb weight | 7295 | Tank cubage (L) | 15,000 liters | |||
Overall weight | 14490 | Wheelbase (mm) | 4500 | |||
Engine | Model | B190-30 | Fuel type | Diesel engine | ||
Power/Displaceme(kw/ml) | 190hp/6700ml | Engine manufacture | Dongfeng Cummins Co.,Ltd | |||
Performance parameter | Max speed (km/h) | 85 | Track span (mm) | Front axle | 1940 | |
Emission standard | Europe 2/3 | Rear axle | 1860 | |||
Drive type | 4x2 drive type | Reaching out of Vehicle (mm) | Front overhang | 1205 | ||
Max torque(N.m) | 650 | Rear overhang | 2495 | |||
Torque speed(rpm) | 1400 | Driving angle(°) | Approach angle | 28 | ||
Number of cylinder | 6 | Departure angle | 12 | |||
Engine description | Engine type | Straight, 6 cylinder,4 stroke,water-cooling,turbocharge-intercooling | ||||
Max torque(N.m) | 650 | Torque speed (r/min) | 1400 | |||
Axle load(T) | Front axle | 5T | Rear axle load | 10T | ||
The number of leaf of spring | 9/10+8 | Tirespecification | 10.00-20 | |||
Steering explanation | Power steering | Brake system Explanation | Double circle air break | |||
Clutch description | Monolithic dry type clutch | Transmission description | 5 forward and 1 reverse gear | |||
Electric system | Line voltage (V) | 24V | Generator power | 1000 W | ||
Cab | 1.Flat cab,tippable cab,no air-conditioner 2.All metal enclosed type,3 passenger allowed. | |||||
Special Function | Capacity (L) | 12000~15,000L | Tank capacity (L) | 15,000 liters | ||
Sprinkling area(m) | 14-16m | Suction lift(m) | ≥7m | |||
water cannon range (m) | Water cannon installed on the rear of the truck,also with operation plateform,that operator can work on the plateform.It can be used to clean road,trees,also for emergency fire fighting. Water cannon range: ≥60m,it can rotation with 360°degree freely | |||||
Manhole size(mm) | Man way acces hole on top of tank; manhole diameter:¢500mm | |||||
Special Function | Front spray fuction | Front spray bar with fan sprayer on both sides,spray range: ≥20m | ||||
Rear spray fuction | Front spray bar with fan sprayer on both sides, spray range: ≥20m | |||||
Man walk way | With skid resistance man walk way on top of tank | |||||
Horse reels | Two 75 ft hose reels at each side of the truck | |||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | ||
Head of delivery(m) | 60 | Shaft power | 22.5 | |||
Suction height (m) | 6.5 | Efficiency(%) | 95% | |||
Emission Standard | EUR 3 | ||||
| Model Name | TIC5120GSS | ||||
| Chassis code | EQ1121GKJ | ||||
| Driving Type | 4×2 | ||||
| Dimensions | |||||
| Wheelbase(mm) | 3950 | ||||
| Overall Dimension(mm) | 7600×2500×3100 | ||||
| Water tanker size(mm) | 5000×2200×1200 | ||||
| Weights | |||||
| GVW(kg) | 12450 | ||||
| Rated payload Weight (kg) | 9200 | ||||
| Curb weight(kg) | 6800 | ||||
| Front axle load(T) | 3.6 Ton | ||||
| Rear axle load(T) | 9 Ton | ||||
| Front axle span(mm) | 1900 | ||||
| Rear axle span(mm) | 1800 | ||||
| Front/rear overhang(mm) | 1250/2250 | ||||
| Approach angle(°) | 20 | ||||
| Departure angle(°) | 15 | ||||
| Max speed(km/h) | 80 | ||||
| Engine | |||||
| Engine model | YC6J160-33 from Guangxi Yuchai engine Co.,Ltd | ||||
| Engine type | Straight in line, 6 cylinders water-cooled, Direct injection engine 4 stroke | ||||
| No. of cylinders | Straight-6 cylinders | ||||
| Displacement(L) | 6.5L | ||||
| Max. output(kw/Ps) | 118kw(160ps) | ||||
| Max torque/Speed(N.m/rpm) | 520 N.m/1700rpm | ||||
| Drive Line | |||||
| Clutch description | Dry single plate, hydraulic control booster,mechanical operation with hydraulic assistance | ||||
| Transmission | 6 forwarder gear,1 reverse gear,Manual operation | ||||
| Tanker body | |||||
| Tanker body size(mm) | 5000×2200×1200 (Water tank capacity: 10,000 Liters) | ||||
| Tire specification | |||||
| Tire specification | 9.00-20 standard tire,7 tires(including 1 spare tire) | ||||
| Special function of water tank truck | |||||
| Water tanker material | Of high quality carbon steel (Q235A)-4mm thickness. From WISCO | ||||
| Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||
| Water cannon | Water cannon installed on the rear of the truck, with operation platform, It can be used to clean road, irrigate trees, corps, also for fire fighting. Water cannon range: ≥50m,it can rotation with 360°degree freely | ||||
| Manhole | Man way access hole on top of tank; 1 units 500mm manhole | ||||
| Front spray function | Front spray bar with fan sprayer on both sides, spray range: ≥10m | ||||
| Man walk way | With skid resistance man walk way on top of tank | ||||
| Horse reels | 2 inch 50ft outlet long hose reels, and 2 inch 7ft inlet hose reels | ||||
| Water pump | Water pump flow rate(L/m): 1000L/m Head of delivery(m): 50m Efficiency(%):95% Note: The water pump can fixed on the rear of tanker and middle of the tanker. | ||||
| Others | a. 1 units tool box | ||||
10000 Liters water tank truck , dongfeng Water tank , WATER TANK , Water tank Truck , water tanker
| EQ5140KLJ | YC6J180-33 | EQ1168GLJ3 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | YC6J180-33 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDe210 30 | ISB210 40 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | YC6J180-30 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDE180-30 | ISDe180 40 | EQ1168GLJ3 | 4500 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | B190 30 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J170-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-30
EQ1120GLJ EQ1168GLJ2 ISDE180 30
EQ1120GLJ EQ1168GLJ2 B190 30
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J170-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1168GLJ3 | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1128GLJ1 | ISB170 40 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ3 | YC6J170-33 | EQ1168GLJ3 | YC6J180-46 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ | ISDe185 30 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | ISDe180 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ3 | ISDe160 30 | EQ1128GLJ1 | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 30 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 30 | EQ1128GLJ1 | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker
TIC TRUCKS , www.truckinchina.com
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
Dongfeng Water Truck 10000 ~15000Litres
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7635
10000 Liters water tank truck
Model | TIC5160GSS water tank truck | Chassis Model | EQ1110 | |||
Weight parameter (kg) | Rated load weight | 8509 | Outline size (mm) | 9000×2480×2950 | ||
Curb weight | 6900 | Tank size (mm) | 5000×2100×1350 | |||
Overall weight | 16000 | Wheelbase (mm) | 4500 4700 | |||
Engine | Model | YC6J170-33 | Fuel type | Diesel engine | ||
Power/Displaceme(kw/ml) | 170hp/6494 | Engine manufacture | Guangxi Yuchai engine | |||
Engine type | Straight, 4 stroke,water-cooling,turbocharge-intercooling | |||||
Performance parameter | Max speed (km/h) | 85 | Track span (mm) | Front axle | 1800 | |
Emission standard | Europe 2 | Rear axle | 1810 | |||
Drive type | 4x2 drive type | Reaching out of Vehicle (mm) | Front overhang | 1250 | ||
Loading medium | Water | Rear overhang | 2515 | |||
Front axle load(T) | 3.6T | Driving angle(°) | Approach angle | 25 | ||
Rear axle load(T) | 9T | Departure angle | 15 | |||
The number of leaf of spring | 9/12+9 | Tirespecification | 10.00-20,and 1 spare tyre | |||
Steering explanation | Power steering assistance | Brake system Explanation | Double circle air break | |||
Clutch description | Φ350 mm diaphragm spring clutch | Transmission description | 6 gear,5 forward,1 reverse | |||
Cab | 1.Flat cab,tippable cab,have air-conditioner,and radio player 2.All metal enclosed type,2 passenger allowed. | |||||
Special Function | Capacity (L) | 8,000L~10000L | Tank size(mm) | 5000x2100x1350 | ||
Sprinkling area(m) | 14-16m | Suction lift(m) | ≥7m | |||
water cannon range (m) | Water cannon installed on the rear of the truck, with operation plateform,that operator can work on the plateform.It can be used to clean road,trees,and emergency fire fighting. Water cannon range: ≥60m,it can rotation with 360°degree | |||||
Manhole size(mm) | Man way acces hole on top of tank, manhole diameter:500mm | |||||
Special Function | Front spray fuction | Front spray bar with fan sprayer on both side,spray range ≥16m | ||||
Rear spray fuction | Front spray bar with fan sprayer on both side,spray range ≥16m | |||||
Man walk way | With skid resistance man walk way on top of tank | |||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | ||
Head of delivery(m) | 60 | Shaft power | 22.5 | |||
Suction height (m) | 6.5 | Efficiency(%) | 95% | |||
Other models in this categor
Model | Dongfeng 153 water tank truck | Chassis Model | EQ1168 / EQ1120 | |||
Weight parameter (kg) | Rated load weight | 7000 | Outline size (mm) | 8200×2480×2800 | ||
Curb weight | 7295 | Tank cubage (L) | 15,000 liters | |||
Overall weight | 14490 | Wheelbase (mm) | 4500 | |||
Engine | Model | B190-30 | Fuel type | Diesel engine | ||
Power/Displaceme(kw/ml) | 190hp/6700ml | Engine manufacture | Dongfeng Cummins Co.,Ltd | |||
Performance parameter | Max speed (km/h) | 85 | Track span (mm) | Front axle | 1940 | |
Emission standard | Europe 2/3 | Rear axle | 1860 | |||
Drive type | 4x2 drive type | Reaching out of Vehicle (mm) | Front overhang | 1205 | ||
Max torque(N.m) | 650 | Rear overhang | 2495 | |||
Torque speed(rpm) | 1400 | Driving angle(°) | Approach angle | 28 | ||
Number of cylinder | 6 | Departure angle | 12 | |||
Engine description | Engine type | Straight, 6 cylinder,4 stroke,water-cooling,turbocharge-intercooling | ||||
Max torque(N.m) | 650 | Torque speed (r/min) | 1400 | |||
Axle load(T) | Front axle | 5T | Rear axle load | 10T | ||
The number of leaf of spring | 9/10+8 | Tirespecification | 10.00-20 | |||
Steering explanation | Power steering | Brake system Explanation | Double circle air break | |||
Clutch description | Monolithic dry type clutch | Transmission description | 5 forward and 1 reverse gear | |||
Electric system | Line voltage (V) | 24V | Generator power | 1000 W | ||
Cab | 1.Flat cab,tippable cab,no air-conditioner 2.All metal enclosed type,3 passenger allowed. | |||||
Special Function | Capacity (L) | 12000~15,000L | Tank capacity (L) | 15,000 liters | ||
Sprinkling area(m) | 14-16m | Suction lift(m) | ≥7m | |||
water cannon range (m) | Water cannon installed on the rear of the truck,also with operation plateform,that operator can work on the plateform.It can be used to clean road,trees,also for emergency fire fighting. Water cannon range: ≥60m,it can rotation with 360°degree freely | |||||
Manhole size(mm) | Man way acces hole on top of tank; manhole diameter:¢500mm | |||||
Special Function | Front spray fuction | Front spray bar with fan sprayer on both sides,spray range: ≥20m | ||||
Rear spray fuction | Front spray bar with fan sprayer on both sides, spray range: ≥20m | |||||
Man walk way | With skid resistance man walk way on top of tank | |||||
Horse reels | Two 75 ft hose reels at each side of the truck | |||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | ||
Head of delivery(m) | 60 | Shaft power | 22.5 | |||
Suction height (m) | 6.5 | Efficiency(%) | 95% | |||
Emission Standard | EUR 3 | ||||
| Model Name | TIC5120GSS | ||||
| Chassis code | EQ1121GKJ | ||||
| Driving Type | 4×2 | ||||
| Dimensions | |||||
| Wheelbase(mm) | 3950 | ||||
| Overall Dimension(mm) | 7600×2500×3100 | ||||
| Water tanker size(mm) | 5000×2200×1200 | ||||
| Weights | |||||
| GVW(kg) | 12450 | ||||
| Rated payload Weight (kg) | 9200 | ||||
| Curb weight(kg) | 6800 | ||||
| Front axle load(T) | 3.6 Ton | ||||
| Rear axle load(T) | 9 Ton | ||||
| Front axle span(mm) | 1900 | ||||
| Rear axle span(mm) | 1800 | ||||
| Front/rear overhang(mm) | 1250/2250 | ||||
| Approach angle(°) | 20 | ||||
| Departure angle(°) | 15 | ||||
| Max speed(km/h) | 80 | ||||
| Engine | |||||
| Engine model | YC6J160-33 from Guangxi Yuchai engine Co.,Ltd | ||||
| Engine type | Straight in line, 6 cylinders water-cooled, Direct injection engine 4 stroke | ||||
| No. of cylinders | Straight-6 cylinders | ||||
| Displacement(L) | 6.5L | ||||
| Max. output(kw/Ps) | 118kw(160ps) | ||||
| Max torque/Speed(N.m/rpm) | 520 N.m/1700rpm | ||||
| Drive Line | |||||
| Clutch description | Dry single plate, hydraulic control booster,mechanical operation with hydraulic assistance | ||||
| Transmission | 6 forwarder gear,1 reverse gear,Manual operation | ||||
| Tanker body | |||||
| Tanker body size(mm) | 5000×2200×1200 (Water tank capacity: 10,000 Liters) | ||||
| Tire specification | |||||
| Tire specification | 9.00-20 standard tire,7 tires(including 1 spare tire) | ||||
| Special function of water tank truck | |||||
| Water tanker material | Of high quality carbon steel (Q235A)-4mm thickness. From WISCO | ||||
| Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||
| Water cannon | Water cannon installed on the rear of the truck, with operation platform, It can be used to clean road, irrigate trees, corps, also for fire fighting. Water cannon range: ≥50m,it can rotation with 360°degree freely | ||||
| Manhole | Man way access hole on top of tank; 1 units 500mm manhole | ||||
| Front spray function | Front spray bar with fan sprayer on both sides, spray range: ≥10m | ||||
| Man walk way | With skid resistance man walk way on top of tank | ||||
| Horse reels | 2 inch 50ft outlet long hose reels, and 2 inch 7ft inlet hose reels | ||||
| Water pump | Water pump flow rate(L/m): 1000L/m Head of delivery(m): 50m Efficiency(%):95% Note: The water pump can fixed on the rear of tanker and middle of the tanker. | ||||
| Others | a. 1 units tool box | ||||
10000 Liters water tank truck , dongfeng Water tank , WATER TANK , Water tank Truck , water tanker
| EQ5140KLJ | YC6J180-33 | EQ1168GLJ3 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | YC6J180-33 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDe210 30 | ISB210 40 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | YC6J180-30 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500,4700,5100 | |
| EQ5140KLJ | ISDE180-30 | ISDe180 40 | EQ1168GLJ3 | 4500 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | B190 30 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
| EQ1168GLJ3 | 4500,4700,5100 | ||||
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J170-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 YC4E160-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC4E160-30
EQ1120GLJ EQ1168GLJ2 ISDE180 30
EQ1120GLJ EQ1168GLJ2 B190 30
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 B170 33
EQ1120GLJ EQ1168GLJ2 B190 33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J170-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
EQ1120GLJ EQ1168GLJ2 YC6J180-33
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1168GLJ3 | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1128GLJ1 | ISB170 40 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ3 | YC6J170-33 | EQ1168GLJ3 | YC6J180-46 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ | ISDe185 30 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | ISDe180 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ3 | ISDe160 30 | EQ1128GLJ1 | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 30 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 30 | EQ1128GLJ1 | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker
TIC TRUCKS , www.truckinchina.com
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
