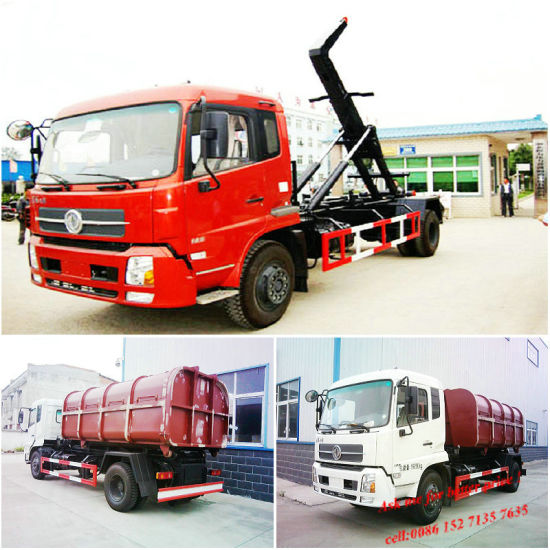

Kingrun Hooklift Garbage Truck 12~15cbm

  • 10000
  • Nil
  • T/T, Western Union
  • TIC5160B
  • Diesel
  • 4×2
  • Dongfeng
  • Medium
  • Arm Type
  • New
  • Euro 4
  • 170~240HP
  • 7350×2495×3120
  • 4500
  • 7/9+6,8/10+8
  • 10.00-20
  • 16000
  • 8000
  • ≤60
  • ≤60
  • TIC
  • military standard.
  • China
  • 8705909090
  • Roll Off
  • ISO9000, CCC
  • 10001-15000L
  • Euro 4
  • Manual
  • 10t

Hooklift Garbage Truck with Hydraulic Self Loading System

Dongfeng Roll off Garbage Truck

Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck

waste compactor truck
Our hot sale hydraulic garbage truck
The Specification of Hooklift Garbage Truck:
Engine model optional
ISDe210 40
ISDe180 40
ISDe185 40
ISB180 40
Engine manufacturer Dongfeng Cummins Engine Co Ltd
Displacement(ml) 5900 Power(kw) 140
Overall dimension(mm) 7350×2495×3120 Box dimension(mm) 4500*2270*1500mm
G.V.W.(kg) 16000 Allowable passenger in cab 3
Tare weight(kg) 8205 Payloading(kg) 7600
Approach/departure angle 20/19 Front/rear suspension 1430/1420
Wheelbase (mm) 4500 Front/rear axle- loading(T) 1430/1420.
Axle nos. 2 Spring leaf nos. 7/9+6,8/10+8
Tire nos. 6 Tire model 10.00-20
Front track(mm) 1880 Rear tract(mm) 18,00 1,860
Steering system steering wheel Max speed(km/h) 90
Emission standard GB3847-2005,GB17691-2005 Euro 4
Chassis model DFL1160BX
Hook arm frame lifting capacity (kg) 8000
Hook compartments work time (s) ≤60
Unloading time lifting compartments (s) ≤60
Carriage lifting time (s) ≤60
Dustbin Max lifting angle (s) 49
The height of center hook (mm) 1570

Hooklift Truck
We are specialzied in offer various kinds of garbage trucks.
Diesel Truck Tractor Truck Truck Lift Mini Truck Off Road Truck Dongfeng Garbage Truck Garbage Collection Truck Dongfeng Van Truck Dongfeng Fuel Tank Truck Dongfeng Bulk Powder Truck Hook Lift Truck
Recommended Suppliers
Diesel Truck Manufacturers Tractor Truck Manufacturers Truck Lift Manufacturers Mini Truck Manufacturers Off Road Truck Manufacturers Dongfeng Garbage Truck Manufacturers Garbage Collection Truck Manufacturers Dongfeng Van Truck Manufacturers Dongfeng Fuel Tank Truck Manufacturers Dongfeng Bulk Powder Truck Manufacturers Hook Lift Truck Manufacturers
Hot Wholesale Products
Wholesale China Heavy Truck Wholesale Mini Forklift Truck Wholesale Off Heavy Truck Wholesale Truck Car Lift Wholesale Loader Forklift Truck Wholesale Auto Lift Truck
Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
