water tanker truck.
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

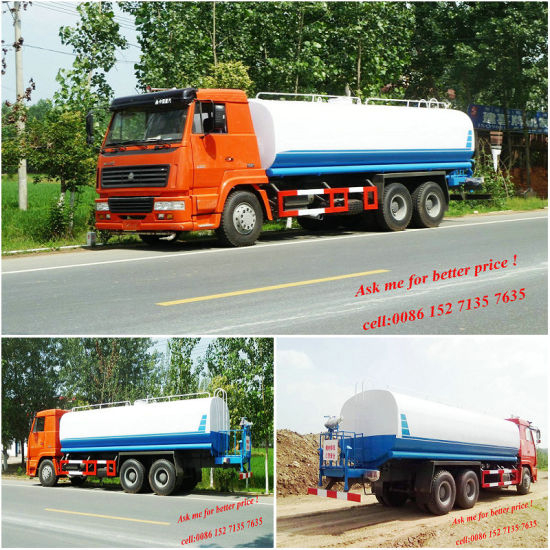

Styre king 25,000 liters water tank truck(6*4,290hp) | |||||||
Emission Standard | EUR 3 | ||||||
Model Name | TIC5256GSSZZ | ||||||
Chassis model | ZZ1256M4646F | ||||||
Driving Type | 6×4 | ||||||
Dimensions | |||||||
Wheelbase(mm) | 4600+1350 | ||||||
Overall Dimension(mm) | 9450*2500*3050 | ||||||
Water tanker size (mm) | LxWxH: 7200*2300*1300 | ||||||
Weights | |||||||
GVW(kg) | 25000 | ||||||
Rated load weight(kg) | 13500 | ||||||
Curb weight(kg) | 11500 | ||||||
Front axle load(T) | 7 Ton | ||||||
Rear axle load(T) | Styre 16Ton rear axle(2 axle combined) | ||||||
Front axle span(mm) | 1,939 | ||||||
Rear axle span(mm) | 1800/1800 | ||||||
Front/rear overhang(mm) | 1560/2520 | ||||||
Approach angle(°) | 15 | ||||||
Departure angle(°) | 13 | ||||||
Calculated Performance | |||||||
Max speed(km/h) | 85 | ||||||
Engine | |||||||
Engine model | WD615.93 from CNHTC(China national heavy duty truck cooperation) | ||||||
Engine type | 4 stroke water-cooled, direct injection, turbo charge,Inter-cooling | ||||||
No. of cylinders | straight-6 cylinders | ||||||
Displacement(L) | 9.726L | ||||||
Max.output | 213kw(290hp)/1100-1600 rpm | ||||||
Drive Line | |||||||
Clutch description | Dry single plate, hydraulic control booster,mechnical operation | ||||||
Transmission | Brand:HOWO, Model:HW15710 10 forwarder,1 reverse gear, synchronous meshing Manual operation | ||||||
Braking system | Service brake | Brake gap can be adjusted automatically double circulation air brake system | |||||
Assistant brake | WEVB(Engine exhaust brake) | ||||||
Park brake | Spring brake effect to middle and rear tires | ||||||
Steering description | German ZF steering, with hydraulic booster assistance | ||||||
Tanker body | |||||||
Tanker capacity (liter) | (Tank capacity:25,000 Liters) | ||||||
Tire specification | |||||||
Tire specification | 12.00-20 standard tire,10+1 tires | ||||||
Cab description | |||||||
1. Full steel skeleton structure cab, flat bed cab 2. The cab can turn over 70 degree 3. One sleeper bed in the cab, no Air-conditioner | |||||||
Special function of water tank truck | |||||||
Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||||
Water cannon | Water cannon installed on the rear of the truck, with operation platform, It can be used to clean road, trees, also for emergency fire fighting. Water cannon range: ≥60m,it can rotation with 360°degree freely | ||||||
Manhole | Man way access hole on top of tank; 2 units 00mm manhole | ||||||
Front spray function | Front spray bar with fan sprayer on both sides, spray range:≥14m | ||||||
Man walk way | With skid resistance man walk way on top of tank | ||||||
Horse reels | Two 75 ft hose reels at each side of the truck | ||||||
Water pump | Water pump flow rate(L/m): 1000L/m Head of delivery(m): 60m Suction height (m): 22.5m Efficiency(%):95% | ||||||
Tanker
Material Steel
Thickness of shell 4 ,5,6mm
Thickness of dish 5,6mm
Inside baffles 3mm
Compartments 1 compartments
Volume 15000L to 25000L+ 5% expansion
Option: Water Pump, Sprinkler
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
TIC TRUCKS , www.truckinchina.com
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED
Cell: 0086 152 7135 7675
0086 152 7135 7635
