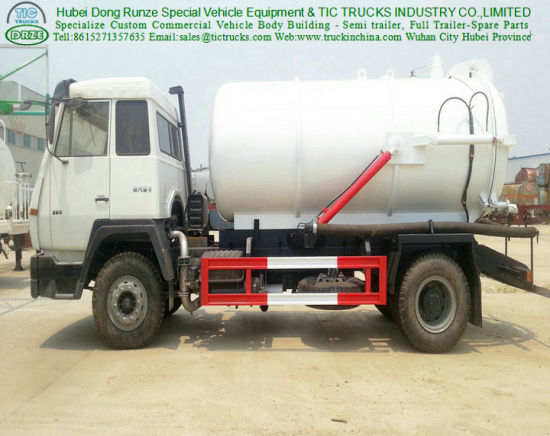

Shacman -Steyr 4X2 /4X4 270HP~380HP Septik Truck Sewage Tanker 6~12cbm
Quantity: | |
---|---|
Shacman 4 X 2 Sewage Vacuum Truck , 10M3 10000L Gully / Cesspit Emptier
Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
voulme of tank 10CBM 10000L more or less
Material of tank Carbon steel. Thickness: 6mm
4 X 2 Shacman Vacuum Tank Truck 10M3 10000L Gully And Cesspit Emptier
Product Description:
Sewage suction truck is to collect, clean up the transport, sewage sludge, and avoid the secondary pollution of sanitation vehicles, new USES the vacuum pump, the suction, suction cjay, suitable for use in a sewer in the warp, excrement and urine, mud, oil and other liquid material pump, the loading and unloading.
1.Product Parameter:
Products Technical Specification | |
Type | 4 * 2 Sewage Suction Truck |
Brand | Shacman |
Cab | One and half row |
Vehicle Description | |
Overall dimensions (mm) | 8340 * 2500 * 3350 |
G.V.W (kg) | 16000 |
Curb weight(vehicle) (kg) | 8060 |
Loading capacity (kg) | 8000-10000 |
Max speed (Km/h) | 92 |
Engine Description | |
Engine model | WP10.270E40 |
Maximum power | 199kw / 270hp |
Displacement (L) | 9.726 |
Chassis Description | |
Chassis Model | SX1166UN461 |
Wheel base (mm) | 4600 |
F / R track base (mm) | 1939 / 1860 |
F / R overhang (mm) | 1576 / 2164 |
Approach/Departure angle (°) | 18 / 15 |
Spring plate | 10 / 9 + 6 |
Front axle / rear axle load capacity (kg) | 6000 / 10000 |
Type of fuel | Diesel |
Brake system | Air braking |
Operation control system | Power steering wheel |
Electric system | 24V |
Tires & Tire quantity | 11.00R20 & 6+1 |
Sewage Suction Tank Description | |
Tank volume (m3) | 10 m3 |
Tank material | Q235 Carbon Steel |
Thickness (mm) | Tank body:5mm End plate:6mm |
The max.inclined angle | ≥ 45° |
Tank lifting time | ≤ 45s |
Rear cover open angle | ≥ 75° |
Rear cover open time | ≤ 25s |
Vacuum pump model | 68 / 400 |
Vacuum pump manufacture | Yifeng Suizhou |
Absolute vacuum pressure | ≤ 0.007Mpa |
Effective absorption distance | ≥ 5M |
The suction pipe diameter | 100 mm |
Power takeoff form | Sandwich power takeoff,full-power output |
Vehicle description | |||
Vehicle type | Shacman sewage suction truck | ||
Overall dimension (mm) | 8330*2500*3250 | ||
Max speed (km/h) | 99 | ||
Weight data(kg) | G.V.W. (kg) | 16000 | |
Mass in working order (kg) | 8095 | ||
Design loading weight (kg) | 7775 | ||
Chassis description | |||
Chassis model | SX1165UN461 | ||
F/R track base (mm) | 1939/1800 | ||
F/R overhang (mm) | 1576/2145 | ||
Approach/departure angle | 18/15 | ||
Transmission | 9JS135 | ||
Leaf spring | 9/9+6 | ||
Type of fuel | Diesel | ||
Operation control system | Steering wheel | ||
Traction system | 4*2 | ||
Electrical system | 24V | ||
Axle | Wheel Base | 4600 | |
Number of axles | 2 | ||
F/R axle loading (kg) | 6000/10000 | ||
Cab | Cab type | Shacman | |
Air conditioner | optional | ||
Allowable passengers in cab | 2 | ||
Engine | Engine model | WP10.270 | |
Engine manufacturer | Weichai Engine Co., LTD | ||
Rated power (kw) | 199 | ||
Horse power | 271 | ||
Emission standard | Euro 3 | ||
Displacement (ml) | 9726 | ||
Tyre | Number of tires | 6+1 | |
Tyre specification | 11.00-20 | ||
Tanker description | |||
Dimensions (mm) | 5000*2000*1100 | ||
Fact cubage (L) | 11000 | ||
Material | Carbon steel | ||
Thickness | 4mm thickness | ||
Special equipment | |||
Standard equipment | 1. Equipped with self-discharging hydraulically opened rear lid,self-priming and self-draining vacuum pump rating rotate speed=1400r/m, min rotate speed>800r/m max suction lift>6m, vacuum>500mmHg, clockwise B. Equipped with power take-off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and clean-out equipment C. Time for full suction<5min | ||
Function | mainly used for the pumping, transporting and draining of sludge and waste oil in sewers,catch basin,sewer man-hole,septic tanks and sediments of sludge pool in chemical plants. |
More pictures of Shacman 11cbm sludge tank truck for export
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
