Excavator Transportation Lowbed Trailer 2 Axles Cheap Price
| Quantity: | |
|---|---|
- 200sets Per Month
- T/T, Western Union
- by Bulk Cargo Carrier, Roro or Frt Container

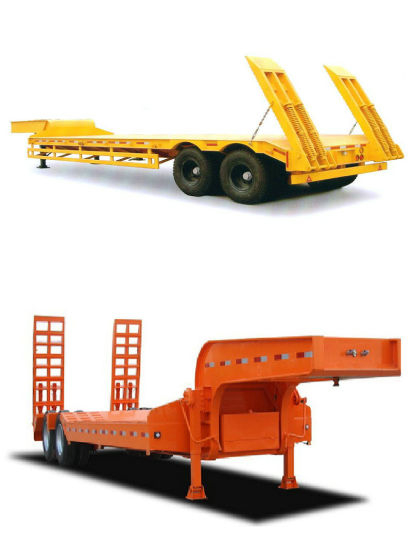

Excavator Transportation Lowbed trailer 2 axles cheap price
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale call:+86-152 -7135-7635
Low bed semi-trailer could be loading large-scale engineering equipment, bulk cargos or longer items as well.
| Name | 2-axle lowbed semi trailer | |
General | Brand | IKING |
| Model | 9350TDP1 | |
| Overall size | 13000*3000*1650mm ( Exact size depends on the final design) | |
| Complete vehicle kerb mass | About 8.5-13T | |
| Capacity load | 40-60T | |
Running gear | Axle | 16T or 18T axle x 2, FUWA, BPW or other brand |
| Suspension | Mechanical suspension (Germany Type or America Type) | |
| Wheel rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) | |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20, brand can be optional | |
Chassis | Frame | Heavy duty and extra durability design, high tensile steel Q345B, welding by automatic Submerged -Arc process. |
| Kingpin | JOST 2" (50#) or 3.5" (90#) | |
| Landing gear | Two-speed, manual operation, heavy duty JOST brand | |
| Brake system | Dual Line braking system,WABCO brake valve | |
| Electrical system | 24V 7-pin socket | |
| Light system | rear light, turn light, rear reflector, side light, side reflector etc. | |
Other | Ladder | spring support ladder, or hydraulic type |
| Spare tire bracket | 2 units | |
| Tool box | 1 unit, with standard driver's tool | |
| Steel side guardoard | 1 unit | |
Surface treatment | Treatment before painting | Sand blasting for complete semi-trailer |
| Painting | one coat of anti corrosion primer, two coat of finish painting | |
| Color | color advised by client | |
| Package | For shipment | By bulk cargo carrier, RORO |
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Main Configuration | |||||
Weight (KG) | Tare Weight | 9000 | |||
Load Weight | 50000 | ||||
Total Weight | 59000 | ||||
Dimensions (LxWxH) | Overall Dimensions | 13800x3000x1550 mm | |||
Technical Parameter | |||||
Main Frame | |||||
Main Beam Material | Q345B steel | Main Beam Height | 500mm | ||
Upper Plate | 20mm | Lower Plate | 20mm | ||
Web Plate | 12mm | Platform | 3mm | ||
Side Beam Material | 16# channel steel | Side Beam Height | 200mm | ||
Running Gear | |||||
Axle | 3*13Ton Fuwa axle | Suspension | Leaf spring suspension | ||
Tyre | 12*1100R20 | Rim | 12*8.0-20 | ||
Landing Gear | 28Ton Lengthen type leg | King Pin | 2" or 3.5" bolt-in or welded king pin | ||
Brake System | |||||
Type | Pneumatic brake | Brake Chamber | Six double chambers | ||
Relay Valve | Wabco relay valve | ABS System | Optional | ||
Electrical System | |||||
Lamps | A full set of LED lights | Voltage | 24V | ||
Receptacle | 7 ways | ||||
Accessories | |||||
Tool Box | Equipped one set with basic tools | Spare Wheel Carrier | One or two | ||
Side Guard | 2 units of side guards | Ramp | A pair of mechanical ramp | ||
Suit Your Needs Excellence By Design! | |||||
