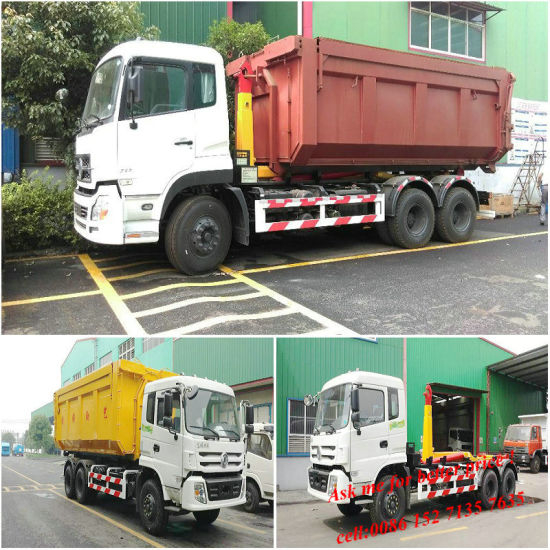

DF hook lift Truck with 17~20T
Hooklift Garbage Truck with Hydraulic Self Loading System
Dongfeng Roll off Garbage Truck
Product | Dongfeng Tianlong compression garbage truck(15-20T) | |
Chassis type | DFL1250A11, DFL1250A12, | |
Cubage(T) | 15-20 | |
Parameters | Overall dimension length/width/height (mm) | 8200×2490×3110 |
Total Mass(kg) | 25000 | |
Payload(kg) | 13350 | |
Kerb Mass(kg) | 11650 | |
Approach angle/ Departure angle(mm) | 25/13 | |
Front suspension/rear suspension(mm) | 1420/2710 | |
Fuel Type | diesel | |
Fuel Consumption/100 km | ||
Max Speed | 98 | |
Engine | Type | ISDE270 40 |
Displacement/Power(kw) | 6700 / 198 | |
Manufacturer | Dongfeng Cummins disel engine company | |
Type | 6 cylinders,turbcharge inter-cooling | |
Chassis | Drive type | 6×4 |
Wheelbase(mm) | 4350+1300,5350+1300 | |
Tread(front/rear) | 1986/1860,1860 | |
Front axle | 7T | |
Rear axle | 18T | |
Steering gear | Hydraulic assistance | |
Transmission | 8 forward gear,1 reverse gear,manual mechanical type | |
Clutch | Single,dry type, hydraulic remote control | |
Braking system | Double rear axle braking su | |
Cab | Non-long headed cabin,one sleeper bed in the cab | |
Number of spring axle(front/rear) | 8/9,8/10 | |
Tire Type | 11.00-20 | |
Air-condition | With air conditioner |
Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
waste compactor truck
Our hot sale hydraulic garbage truck
The Specification of Hooklift Garbage Truck:
Hook arm frame lifting capacity (kg) | 17000~20000 |
Hook compartments work time (s) | ≤60 |
Unloading time lifting compartments (s) | ≤60 |
Carriage lifting time (s) | ≤60 |
Dustbin Max lifting angle (s) | 49 |
The height of center hook (mm) | 1570 |
Hooklift Truck
We are specialzied in offer various kinds of garbage trucks.
Diesel Truck Tractor Truck Truck Lift Mini Truck Off Road Truck Dongfeng Garbage Truck Garbage Collection Truck Dongfeng Van Truck Dongfeng Fuel Tank Truck Dongfeng Bulk Powder Truck Hook Lift Truck
Recommended Suppliers
Diesel Truck Manufacturers Tractor Truck Manufacturers Truck Lift Manufacturers Mini Truck Manufacturers Off Road Truck Manufacturers Dongfeng Garbage Truck Manufacturers Garbage Collection Truck Manufacturers Dongfeng Van Truck Manufacturers Dongfeng Fuel Tank Truck Manufacturers Dongfeng Bulk Powder Truck Manufacturers Hook Lift Truck Manufacturers
Hot Wholesale Products
Wholesale China Heavy Truck Wholesale Mini Forklift Truck Wholesale Off Heavy Truck Wholesale Truck Car Lift Wholesale Loader Forklift Truck Wholesale Auto Lift Truck
Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
