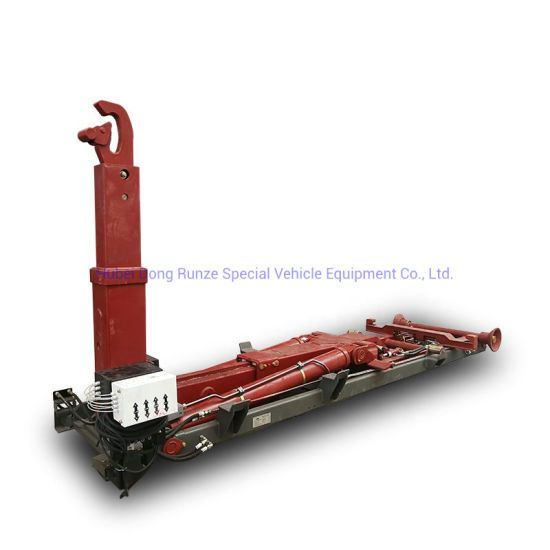

Hooklift Kit for 3 Ton-26 Ton Truck Body Parts
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
Hooklift Kit For 3 Ton-26 Ton Truck Body Parts
Cell /+8615271357675
The pictures are for your reference only.
| keywords | removable truck body , quick change truck body , roll off interchangeable truck body , roll off hooklift truck body , roll off truck body |
|---|
| Gvw of the vehicle (t) | DCCD327 | DCCD332 |
| Capacity (Ton) | 3 | 3 |
| Gvw of the vehicle (t) | 4.5 | 4.5 |
| H = Hook height (mm) | 930 | 930 |
| L = G-length (mm) | 2700 | 3200 |
| LR = Container length (internal) (m) | 3.0-3.5 | 3.5-4.0 |
| S = Sliding distance(mm) | 545 | 600 |
| Body width(mm) | 1060 | 1060 |
| H1 = Installation height(mm) | 145 | 145 |
| H2= MIN. Free tunnel height(body) (mm) | 80 | 80 |
| G = Centre of gravity (mm) | 1440 | 1688 |
| Tipping angle (º) | 49° | 49° |
| Equipment weight (kg) | 460 | 480 |
| Max. operating pressure (mpa) | 25 | 25 |
| Recommended oil flow (l/min) |
HOOK LIFT truck,RORO SKIP LORRY TRUCK ,
TECHNICAL SPECIFICATION fo reference only
We supply and fit a variety of Hook Lift /Bin Lifters/side lifter Frames to suit your truck
A variety of controls and accessories are available depending on your requirements. Hydratarps are also available and can be fitted to suit your individual needs.
Hooklift Kits to fit;
1Tonne,2Tonne,for fit 3.5 Tonne 4x2 Trucks
5Tonne,6.3Tonne,-for fit 7.5 Tonne 4x2 Trucks
8 Tonne --for fit 12tonne-18tonne 4x2 Trucks
10Tonne,15 Tonne ,-for fit -26 Tonne 6x4 Trucks
17Tonne,20 Tonne -for fit 32 Tonne 8x4 Trucks
HOOK LIFT kit price list
HOOK LIFT Model | Lifting capacity (Ton) | Fit wheelbase For refer only | USD ($) |
KX2 | 2 | 2600-3300mm | $7100 |
KX3 | 3 | 3300-3800mm | $9000 |
KX5 | 5 | 3600-4500mm | $11600 |
KX6.3 | 6.3 | 3900-5500mm | $12600 |
KX8 | 8 | 4500-5800mm | $14200 |
KX10 | 10 | 4000+1300, 5700+1300 mm | $18400 |
KX15 | 15 | 4000+1300, 5700+1300 mm | $23200 |
KX17 | 17 | 4000+1300, 5700+1300 mm | $25600 |

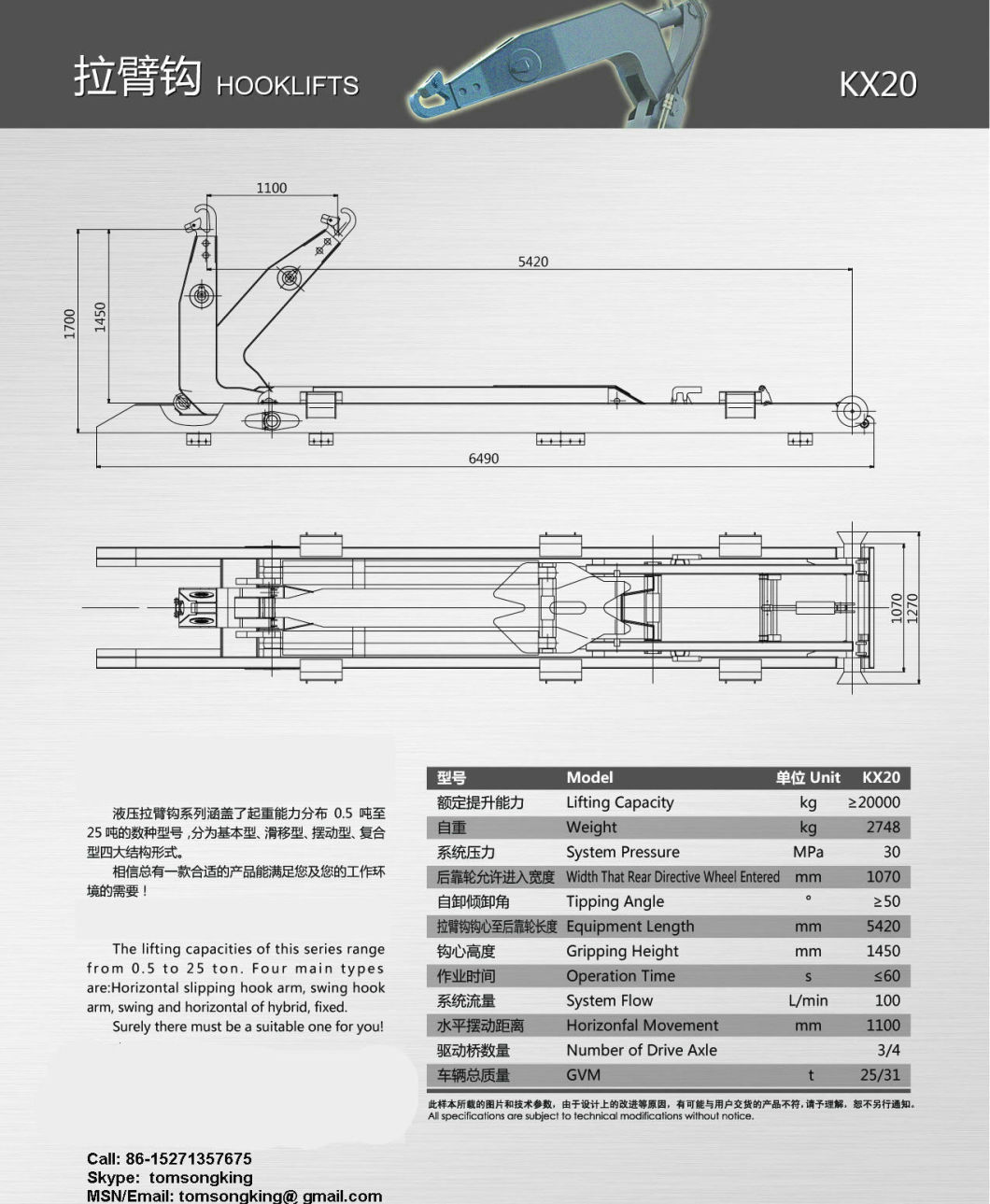

KX20 | 20 | 1850+3280+1370, 1850+4575+1370 mm | $32000 |
| m³ | Wheelbase mm | Chassis | Control methods | Cylinder | Ton | Box length | Unit price FOB $ USD |
| 3 | 2500 | SC1022DB4N | Electrically | ¢80 | 1.5T | 2m | |
| 3 | 2600 | FOTON BJ1042V9JA5-X2 | Electrically | ¢80 | 1.5T | 2m | |
| 4-5 | 3100 | DLK EQ1080SJ2BDA | manual control | ¢100 | 5 T | 3m | |
| 4-5 | 3300 | DFA DFA1070SJ35D6 | manual control+Remote control | ¢100 | 5 T | 3m | |
| 4-5 | 3360 | FOTON BJ1043V9JEA-A | manual control+Remote control | ¢100 | 5 T | 3m | |
| 6-8 | 3800 | DLK DFA1110SJ11D3 | manual control+Remote control | ¢125 | 8 T | 3.5-4 m | |
| 8-10 | 3950 | DFA 145EQ1128GLJ | manual control+Remote control | ¢130 | 10-12T | 4-4.3 m | |
| 12-15 | 4500 | DFA 153EQ1160ZZ4GJ | manual control+Remote control | ¢140 | 12-16T | 4.5-5 m | |
| 12-15 | 4500 | King run DFL1160BX4 | manual control+Remote control | ¢150 | 12-16T | 4.5-5 m | |
| 12-15 | 4350+1300 | DFA 1208EQ5251GYYKJ | manual control+Remote control | ¢160 | 20T | 4.8-6m | |
| m³ | Wheelbase mm | Chassis | Control methods | Cylinder | Ton | Box length | Unit price FOB |
| 12-15 | 4350+1300 | DFA DFL1250A11 | manual control+Remote control | ¢160 | 20T | 4.8-6m | |
| 15-20 | 4900+1350 | manual control+Remote control | ¢160 | 25T | 6-6.8m | Ask me for better price | |
| 18-22 | 1850 +3800+1350 | manual control+Remote control | ¢180 | 28T | 6.5-7.2 m | Ask me for better price | |
| 3 | 2615 | GA GA1020BDSE4 | Electrically | ¢80 | 1.5T | 2m | |
| 3 | 2370 | FOTON BJ1020V1JV1-E1 | Electrically | ¢80 | 1.5T | 2m | |
| 3 | 2600 | SQR1021-1E | Electrically | ¢80 | 1.5T | 2m | |
| 6-8 | 3800 | DFA EQ1100FLJ8 | manual control | ¢125 | 8T | 6-8 m | Ask me for better price |
Cell :+8615271357675
