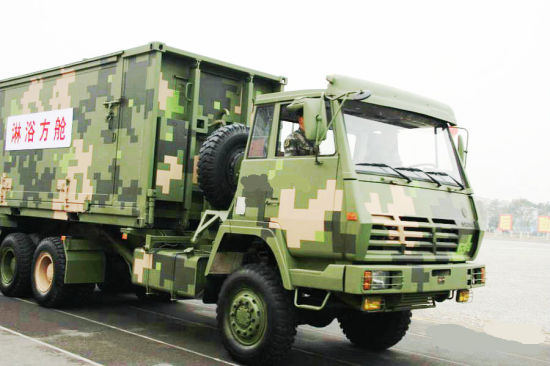

Military 6X6 Hooklift Truck with 20ft Shower Room Container Sale
| Quantity: | |
|---|---|
- 10000
- T/T, Western Union
- Nil
Military Hooklift Truck with shower room container sale
| Model | SX2190 |
| Make | SHACMAN Military Truck |
| Drive type | 6×6 |
| Application | Off-road |
| Weight | |
| Complete kerb mass (kg) | 11500 |
| GVW (kg) | 18500 |
| GCW (kg) | 26000 |
| Dimensions | |
| Max.length(mm) | 7994 |
| Max.width(mm) | 2500 |
| Max.heigh(mm) | 3095 |
| Front / Rear overhang (mm) | 1770/1449 |
| Wheel base(mm) | 3375+1400 |
| Track width(mm) | 2072/2072 |
| Performance | |
| Max.speed (km/h) | 86 |
| Min.turning circle(m) | 13 |
| Min.ground clearance(mm) | 380 |
| Approach / Departure angle (°) | 36/38 |
| Max.gradeability(%) | 60 |
| Engine | |
| Make | WEI CHAI |
| Model | WD615.50 WP10.270~336 |
| Power(kw/HP) | 206/280 |
| Max.Torque (N.m )/rpm | 1160/1400 |
| Displacement (L) | 9.726 |
| Emission Standards | Euro 2 ~ 3 |
| Transmission | |
| Make | FAST |
| Model | RT11509C |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Transfer case | |
| Model | VG1200 |
| Clutch | |
| Type | Single plate air assisted type |
| Action | mechanical pull type, self adjusting Air assisted clutch |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Steering | |
| Make | Shashi Jiulong |
| Type | Integral inner circulation power steering |
| Chassis | |
| Type | Ladder structure with parallel straight |
| Dimensions (mm) | 243×80×8 |
| Suspension | |
| Front Suspension | semi-elliptic springs with shock absorbers |
| Rear Suspension | inverted leaf spring stabilizator suspension |
| Axles | |
| Make | SHAAN'XI HANDE |
| Front axle | 6500kg |
| Rear axle | 13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 5.73:1 |
| Tires | |
| Type (Standard) | 14.00-20 |
| Fuel tank | |
| Tank capacity (L) | 400 |
| Material | Metal |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw(24V) |
| Generator | 1.54kw(28V 55A) |
| Battery | 2×180Ah |
| Cab | |
| Type | Steyr length cab |
| Equipments | 2 doors, hydraulic titling, 2 seats |
| Fording depth(m) | 1.2 |
20ft Shower Room Containers
Hooklift with Hydraulic Self Loading System
Military Hooklift Truck
| No. | Item | Specification | Details |
| 1 | Structure | Size: | 20' ft: 6058 x 2438 x 2591mm |
| 40' ft: 11800mm*2438mm*2591mm | |||
| Can customized, do according to request | |||
| 2 | Ceiling | FRP sandwich panel | Galvanized cold-formed steel roof frame with gutter, steel tube cross member |
| ISO shipping container corners | |||
| Insulation( PU, EPS can be chosen), Thickness (50, 70, 75, 100mm can be chosen) | |||
| 1 piece of whole FRP (2mm-Fiberglass Reinforced Plastic) sheet on each side | |||
| 3 | Wall | Colo red steel sandwich panel | Color -coated steel sandwich panel, color steel sheet 0.376mm |
| Insulation( PU, EPS, Rock wool can be chosen), Thickness (50, 70, 75, 100mm can be chosen) | |||
| 4 | Floor | Customized | Bamboo plywood board with 2mm pvc vinyl flooring |
| Solid wood floor, composite wood floor, carpet etc. | |||
| 5 | Removable Pillars | Steel cold-formed pillar, well painted | |
| Linked with roof and floor with screws | |||
| 6 | Window | Customized (size, type, quantity) | Sliding window/Eur o pean style window e tc. (normal size 875*1000mm) |
| Door | Sliding door/Solid wood door e tc. (normal size: 900*2100mm) | ||
| 7 | Electricity | Design can be provided according to the related law of the country | Distribution boxes with breakers Lights, sockets & switches Wire (concealed wiring for high class decoration) |
| Water plumbing | Flush toilet, shower, pipe etc. | ||
| 8 | Transportation | flatpack/ knock down | Completely knocked down& be loaded into container. |
